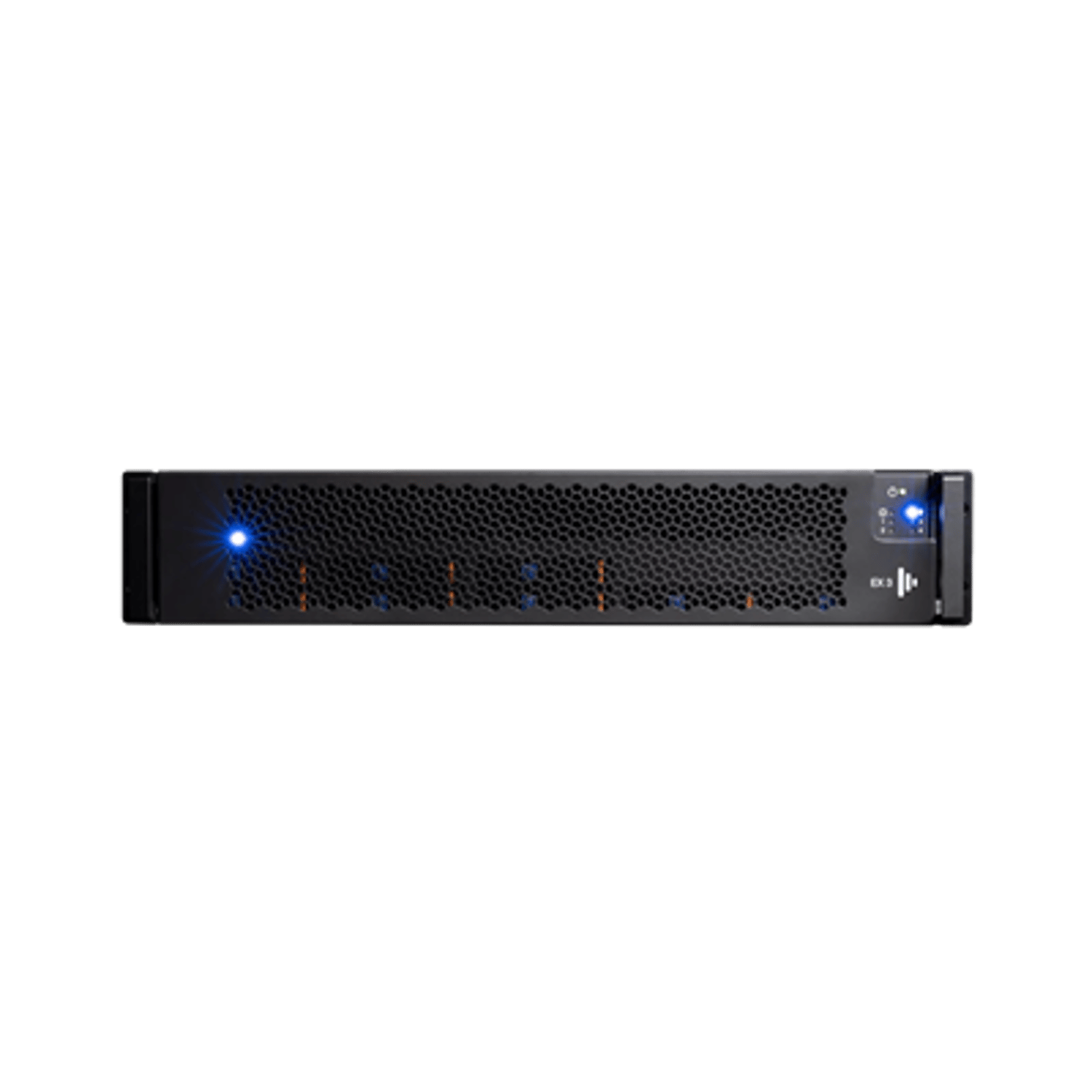

disguise EX 3
EX 3 is designed to meet the specific playback needs of immersive experiences and fixed installations.
Why Choose the EX 3?
From Concept to Delivery
Reap all the benefits of one single connected workflow from concept to delivery.
Our APIs will connect your Disguise system to third-party integrations so you can control your show and monitor the health of your system without the need for an on-site operator.
Scalability & ReliabilityNetwork multiple EX 3 machines to scale out your content and support experiences that evolve over time. The EX 3 also comes with built-in hardware failover to guarantee continuity in the rare event of machine failure.
Seamless Projector CalibrationThe EX 3 can also be used alongside OmniCal, our camera-based projector calibration system which accurately aligns projectors to sub-pixel precision within minutes, on any projection-mapped installation.
System ConnectivityVideo Output:
1x DisplayPort 1.4 (GUI)3x 4K outputs using DisplayPort 1.4Video Input:
0 - video input via NDI onlyGeneral Network:
2x 1Gb/sec Ethernet2x 10Gb/sec EthernetHigh-Speed Network:
2x 25Gb/sec Ethernet (SFP28)Data/Peripherals:
4x USB 3.0Video Sync:
1x BNC GenlockRead more
EX 3 is designed to meet the specific playback needs of immersive experiences and fixed installations.
Why Choose the EX 3?
From Concept to Delivery
Reap all the benefits of one single connected workflow from concept to delivery.
Our APIs will connect your Disguise system to third-party integrations so you can control your show and monitor the health of your system without the need for an on-site operator.
Scalability & ReliabilityNetwork multiple EX 3 machines to scale out your content and support experiences that evolve over time. The EX 3 also comes with built-in hardware failover to guarantee continuity in the rare event of machine failure.
Seamless Projector CalibrationThe EX 3 can also be used alongside OmniCal, our camera-based projector calibration system which accurately aligns projectors to sub-pixel precision within minutes, on any projection-mapped installation.
System ConnectivityVideo Output:
1x DisplayPort 1.4 (GUI)3x 4K outputs using DisplayPort 1.4Video Input:
0 - video input via NDI onlyGeneral Network:
2x 1Gb/sec Ethernet2x 10Gb/sec EthernetHigh-Speed Network:
2x 25Gb/sec Ethernet (SFP28)Data/Peripherals:
4x USB 3.0Video Sync:
1x BNC GenlockRead more
Specifications
| Type | Rack mounted Server |
| Brand | disguise |
