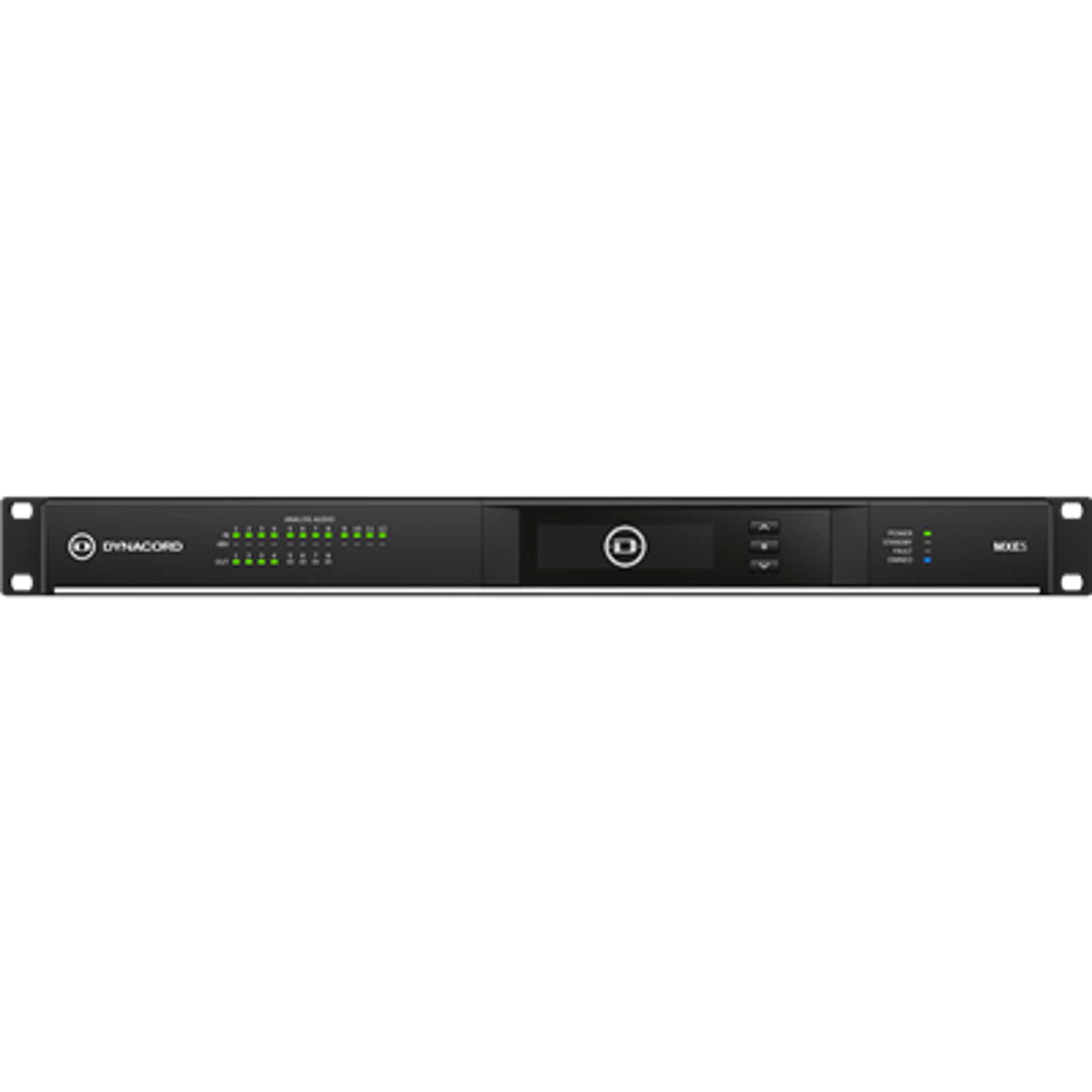

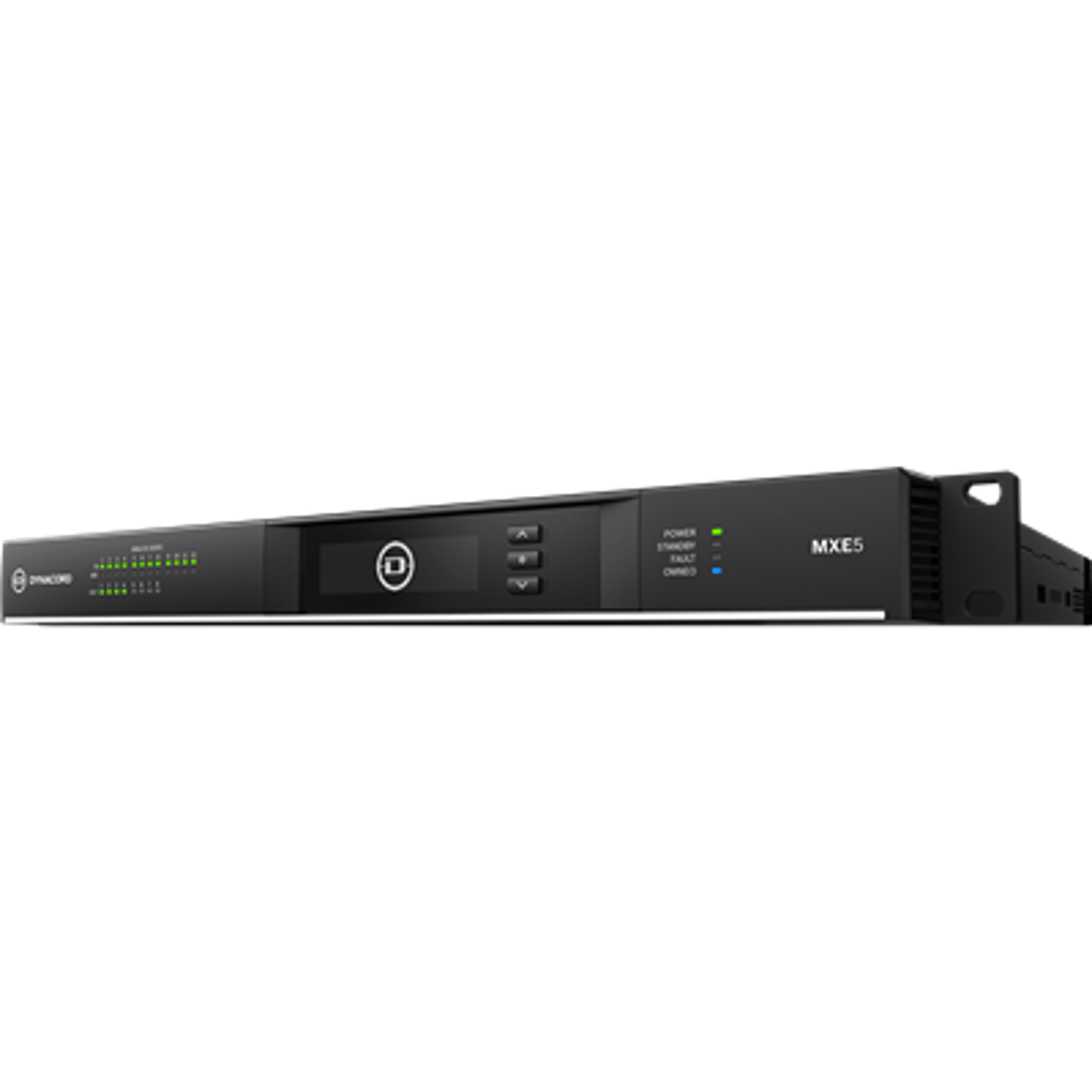

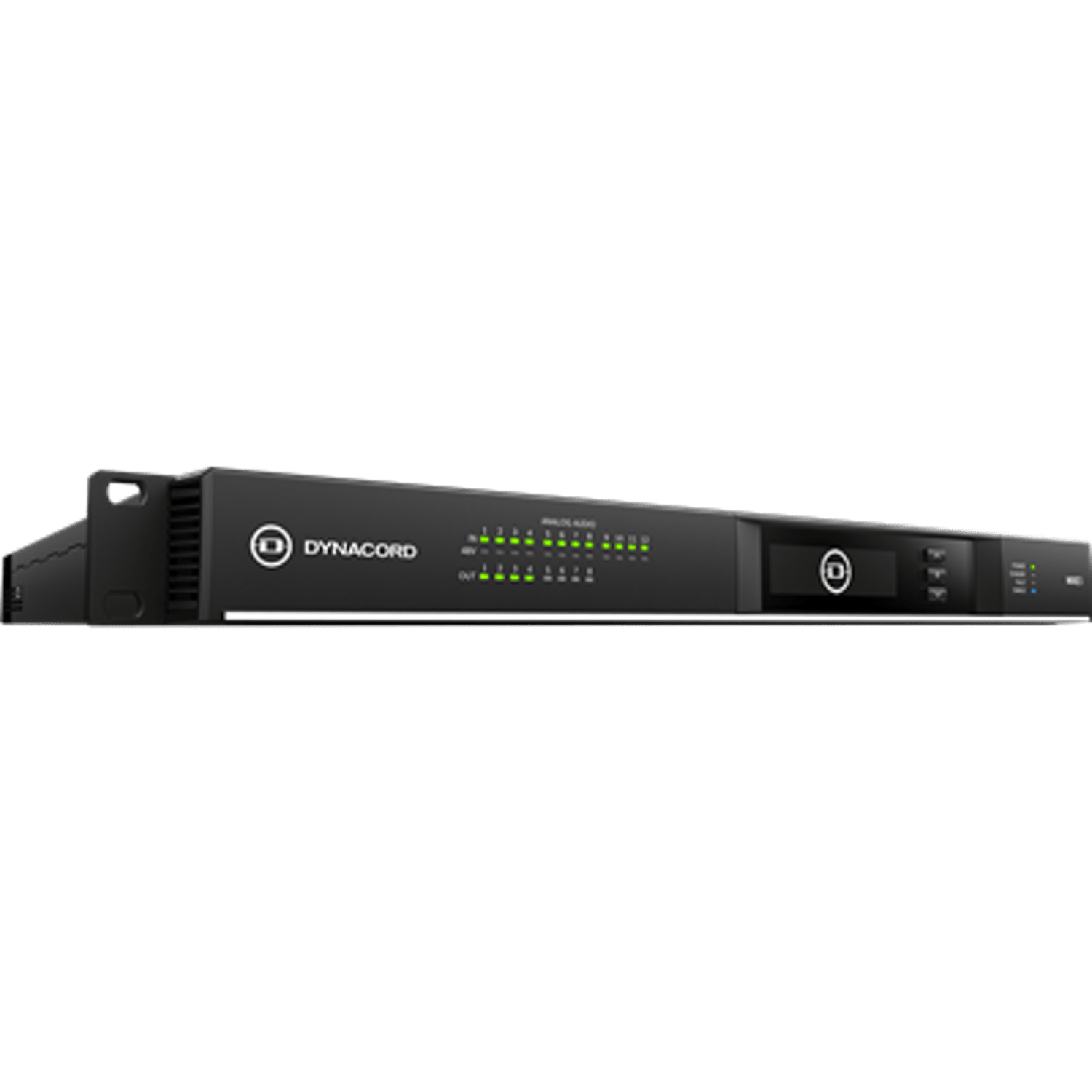

Dynacord MXE5-64
Working as a control center and communications hub for other system devices and IP-based peripherals, it provides comprehensive supervision and system wide control, featuring 12 analog mic/line inputs, 8 line outputs and 64x64 Dante channels.
The freely configurable DSP unit offers a variety of DSP blocks, the configurable matrix blocks support up to 3840 cross-points and up to 256 internal signal paths for customized DSP designs. Onboard are professional input and output processing features, including mixing, parametric EQ, delays, compression, limiting, ducking, auto mixing, auto gain control, ambient noise compensation and a comprehensive speaker processing with FIR drive.
MXE’s TaskEngine provides advanced, system wide control with functions like scheduler and scene handling. The MXE5-64 is entirely designed and configured in SONICUE Sound System Software which also allows the creation of customized GUIs for use in SONICUE Control on TPC-1 touch panels, iOS devices or PCs.
Specifications DSP Matrix Mix Engine Open architecture DSP, sound system manager, system control and supervision Matrix Size Flexible with 3860 cross-points, 256 signal paths Dante audio (48/96 kHz) 64 x 64 channels (64 Flows) Analog Inputs 12 mic / line w. 48V phantom power Analog Outputs 8 line Control ports 8 GPIO (digital in/out, analog in) Signal to Noise Ratio (A-weighted) > 118 dB THD+N < 0.002 % Sampling rate 96 kHz / 48 kHz Latency (analog in/out, 96/48 kHz) < 0.22 ms / 0.45 ms Signal Processing 32/40-bit floating point Max. input/output level + 22 dBu DSP blocks EQs, x-over, FIR drive, compressor, PA & RMS limiter, noise gate, ducker, automatic gain control, ambient noise compensation, mix-matrix, router, auto mixer, delay, generators, detectors, VU meters, polarity, level, mute TaskEngine (system logic) Analog, logic and text operations, scheduler, scene handling, OCA & HTTP protocol Safety / Redundancy Int. supervision, system monitoring, watchdog, fault output, audio redundancy supported Dimensions (w x h x d) 483 x 43.5 x 471 mm (19”, 1RU) Weight 6.0 kg (13.2 lbs) Read moreWorking as a control center and communications hub for other system devices and IP-based peripherals, it provides comprehensive supervision and system wide control, featuring 12 analog mic/line inputs, 8 line outputs and 64x64 Dante channels.
The freely configurable DSP unit offers a variety of DSP blocks, the configurable matrix blocks support up to 3840 cross-points and up to 256 internal signal paths for customized DSP designs. Onboard are professional input and output processing features, including mixing, parametric EQ, delays, compression, limiting, ducking, auto mixing, auto gain control, ambient noise compensation and a comprehensive speaker processing with FIR drive.
MXE’s TaskEngine provides advanced, system wide control with functions like scheduler and scene handling. The MXE5-64 is entirely designed and configured in SONICUE Sound System Software which also allows the creation of customized GUIs for use in SONICUE Control on TPC-1 touch panels, iOS devices or PCs.
Specifications DSP Matrix Mix Engine Open architecture DSP, sound system manager, system control and supervision Matrix Size Flexible with 3860 cross-points, 256 signal paths Dante audio (48/96 kHz) 64 x 64 channels (64 Flows) Analog Inputs 12 mic / line w. 48V phantom power Analog Outputs 8 line Control ports 8 GPIO (digital in/out, analog in) Signal to Noise Ratio (A-weighted) > 118 dB THD+N < 0.002 % Sampling rate 96 kHz / 48 kHz Latency (analog in/out, 96/48 kHz) < 0.22 ms / 0.45 ms Signal Processing 32/40-bit floating point Max. input/output level + 22 dBu DSP blocks EQs, x-over, FIR drive, compressor, PA & RMS limiter, noise gate, ducker, automatic gain control, ambient noise compensation, mix-matrix, router, auto mixer, delay, generators, detectors, VU meters, polarity, level, mute TaskEngine (system logic) Analog, logic and text operations, scheduler, scene handling, OCA & HTTP protocol Safety / Redundancy Int. supervision, system monitoring, watchdog, fault output, audio redundancy supported Dimensions (w x h x d) 483 x 43.5 x 471 mm (19”, 1RU) Weight 6.0 kg (13.2 lbs) Read moreSpecifications
| Brand | Dynacord |
