- Electro-Voice MFX-15MC-B 15“ Coaxial Wedge, Black

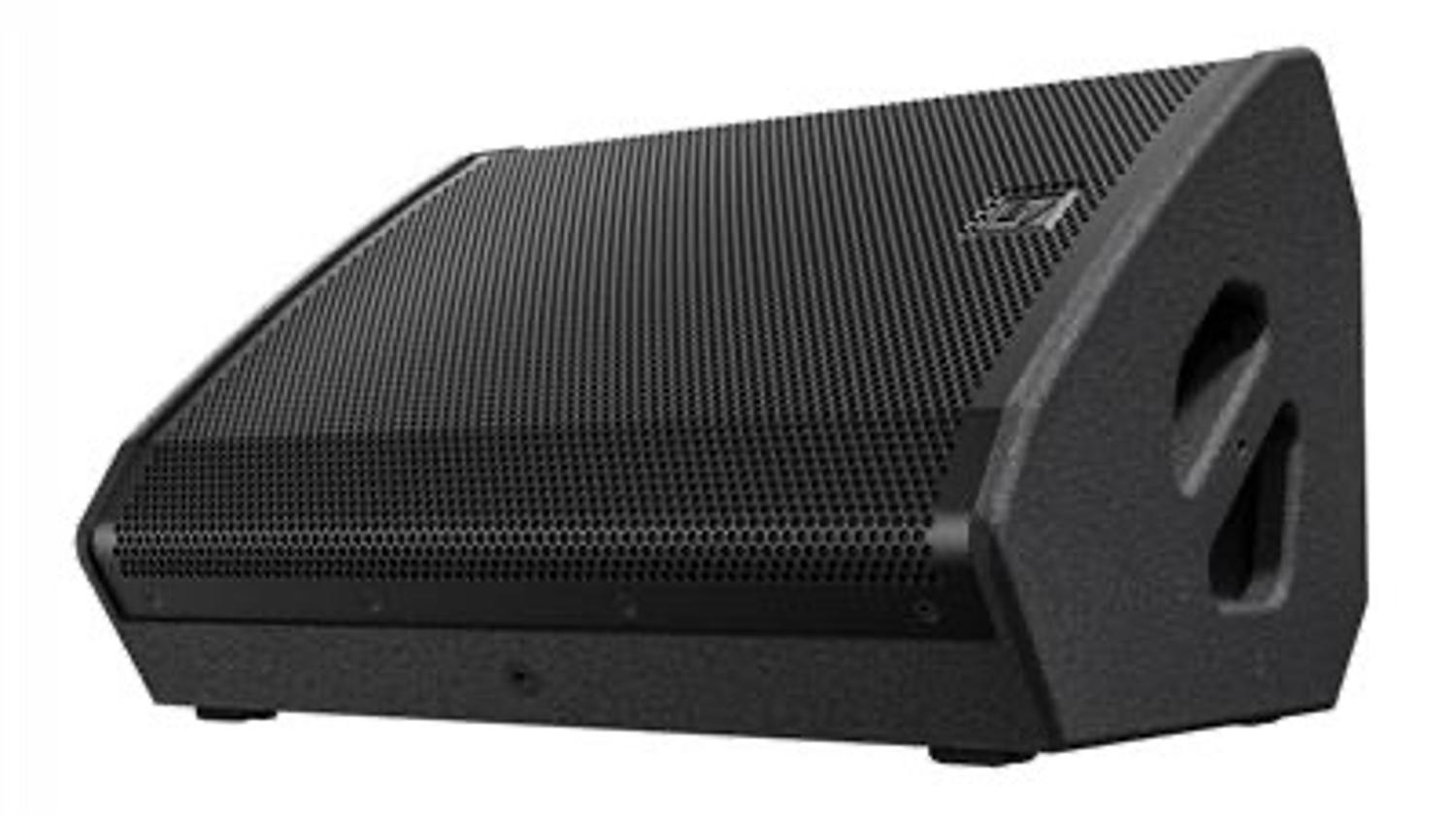

Electro-Voice MFX-15MC-B 15“ Coaxial Wedge, Black
In addition to providing a stable sound image as the performer moves off-axis, the compact coaxial design presents a significantly lower-profile footprint on stage in comparison to competitive high-end monitors, helping to maintain audience sight lines and reducing stage clutter. A new cabinet concept with dual monitor angles (35° and 55°) allows the output to be precisely focused towards the performer.
MFX Multi-Function Monitors are optimized for use with TGX10 or IPX10:4 amplifiers from EV’s sibling brand Dynacord. Both models can be deployed in passive or bi-amp configuration, and can be optimized for different uses via DSP settings in the amps. Power handling for the MFX-12MC is 400 W (continuous) and 4000 W (peak); the MFX-15MC delivers 500 W (continuous) and 4000 W (peak). Each model has a maximum SPL rating of 135 dB and 136 dB respectively.
In addition to their primary function as high-performance stage monitors, both the MFX-12MC and MFX-15MC feature an integrated pole cup (neatly located in one of the two side handle recesses), so they can serve as short-throw main/full-range sound reinforcement for portable applications using tripods or subwoofer poles. Coverage in this orientation is 60° H x 40° V. Extending their truly multi-functional design, each model features four M10 suspension points. U brackets, yokes, a tilt adapter, truss clamps, stand-mount adapters and a rigging bar are available for temporary or permanent installations. A rugged EVCoat finish (available in black or white) and 1.5 mm-thick corrosion-resistant grille combine professional-grade durability with sleek aesthetics.
MFX Multi-Function Monitors were developed to deliver a best-in-class combination of professional performance and excellent value. Target customers include production companies that provide sound systems for any kind of live performance, including spoken-word presentations, corporate events, worship services and concerts. The multi-functional aspect of the speakers makes them a more attractive investment for live sound companies because they can be deployed in multiple system roles, keeping more of the rental inventory working rather than sitting in the warehouse until an appropriate job is booked.
Read moreIn addition to providing a stable sound image as the performer moves off-axis, the compact coaxial design presents a significantly lower-profile footprint on stage in comparison to competitive high-end monitors, helping to maintain audience sight lines and reducing stage clutter. A new cabinet concept with dual monitor angles (35° and 55°) allows the output to be precisely focused towards the performer.
MFX Multi-Function Monitors are optimized for use with TGX10 or IPX10:4 amplifiers from EV’s sibling brand Dynacord. Both models can be deployed in passive or bi-amp configuration, and can be optimized for different uses via DSP settings in the amps. Power handling for the MFX-12MC is 400 W (continuous) and 4000 W (peak); the MFX-15MC delivers 500 W (continuous) and 4000 W (peak). Each model has a maximum SPL rating of 135 dB and 136 dB respectively.
In addition to their primary function as high-performance stage monitors, both the MFX-12MC and MFX-15MC feature an integrated pole cup (neatly located in one of the two side handle recesses), so they can serve as short-throw main/full-range sound reinforcement for portable applications using tripods or subwoofer poles. Coverage in this orientation is 60° H x 40° V. Extending their truly multi-functional design, each model features four M10 suspension points. U brackets, yokes, a tilt adapter, truss clamps, stand-mount adapters and a rigging bar are available for temporary or permanent installations. A rugged EVCoat finish (available in black or white) and 1.5 mm-thick corrosion-resistant grille combine professional-grade durability with sleek aesthetics.
MFX Multi-Function Monitors were developed to deliver a best-in-class combination of professional performance and excellent value. Target customers include production companies that provide sound systems for any kind of live performance, including spoken-word presentations, corporate events, worship services and concerts. The multi-functional aspect of the speakers makes them a more attractive investment for live sound companies because they can be deployed in multiple system roles, keeping more of the rental inventory working rather than sitting in the warehouse until an appropriate job is booked.
Read moreSpecifications
| Powered/non-powered | Non-powered |
| Application | Touring |
| Brand | Electro-Voice |
