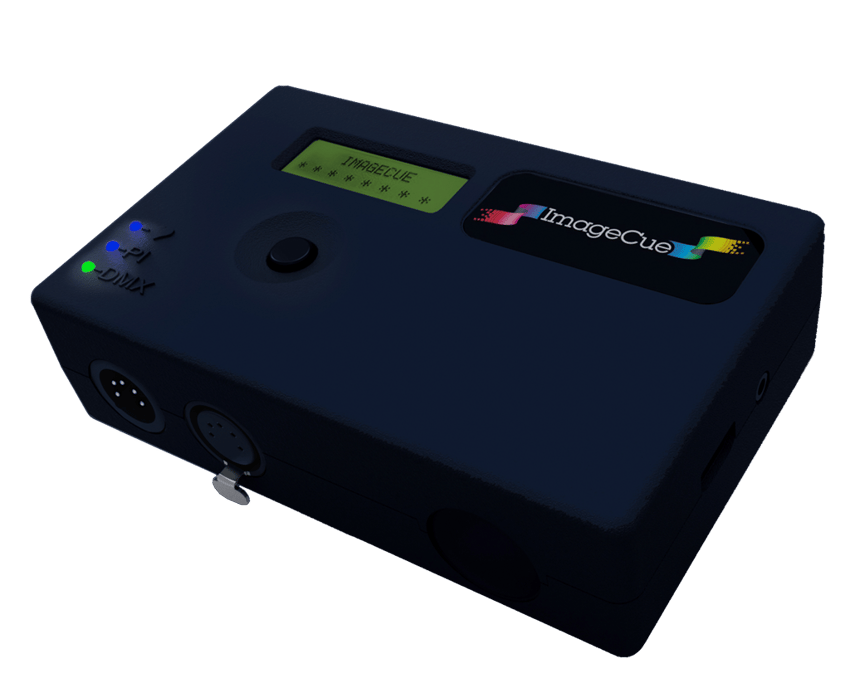

ImageCue HD Image Server
ImageCue™ accepts JPEG files for still images, and H264 (AVI) video files. PNG files with transparency can be overlaid onto images and videos. A software utility to convert user content to H264 is available for the following video file types: MOV, MP4, AVI, MPEG, and VOB.
Starting with software version 1.0.1.8, ImageCue also accepts media file formats MP4, MOV, MKV and M4V to play videos with audio (Personality 2).
ImageCue™ gives the user full RGB mixing control of the background, and the color mixing can also be used in the foreground to tint images and videos. Full dimming control is provided for the output. ImageCue™ provides the power and elegance to select and display images and videos from your DMX512 lighting console, without the complexity of a media server.
Features Smooth Dimming Up to 65000 Images and videos (no size limit) Crossfading 0.1 sec increments (Image to Image, Image to Video, Video to Image) Color mixing with saturation Single layer background pre-roll for media file A/V sync Up to 255 Overlay Images with adjustable opacity DMX Controlled with RDM support Boots up in less than 10 seconds No splash screen or other disturbing stuff und screen during boot Boots directly to selected content Stock content 205 - Still images (JPEG) 50 - HD videos (H264) 55 - Overlay images (PNG)In addition, there is a SD-Card "Techno" with 130 video loops, 125 static images and 55 overlay images available for purchase (replaces the stock content)
Package Contents ImageCue 1.1 with 16GB SD-Card containg Imagecue Operating System, Software and Stock Content Power Supply Mounting Bracket incl. 4 Screws HDMI to DVI Adapter Quickstart Guide OperationLCD Display: 2 rows x 16 alpha numeric characters with adjustable backlight brightness
Navigation: 5 way navigation knob (up, down, left, right, press to select)
2 USB Ports for USB Flash Drive or External Solid State Drive ONLY
High Definition 1920 x 1080p via HDMI connector (default) including audio
DMX512: 5-pin Male and 5-pin Female XLR type
Power: 5 VDC - 5.5/2.1mm barrel connector
Compliance: FCC, CE
Operation Temperature: 0-49 Celsius (32 - 120 Farenheit)
Humidity: 5%- 95% (non condensing)
Control: DMX512A ANSI E1.11 - 2008 (R2013) ; RDM ANSI E1.20 - 2010
DMX Isolation: ISOLATED 2500 VRMS
Power Supply: 5VDC @ 3A
ImageCue™ accepts JPEG files for still images, and H264 (AVI) video files. PNG files with transparency can be overlaid onto images and videos. A software utility to convert user content to H264 is available for the following video file types: MOV, MP4, AVI, MPEG, and VOB.
Starting with software version 1.0.1.8, ImageCue also accepts media file formats MP4, MOV, MKV and M4V to play videos with audio (Personality 2).
ImageCue™ gives the user full RGB mixing control of the background, and the color mixing can also be used in the foreground to tint images and videos. Full dimming control is provided for the output. ImageCue™ provides the power and elegance to select and display images and videos from your DMX512 lighting console, without the complexity of a media server.
Features Smooth Dimming Up to 65000 Images and videos (no size limit) Crossfading 0.1 sec increments (Image to Image, Image to Video, Video to Image) Color mixing with saturation Single layer background pre-roll for media file A/V sync Up to 255 Overlay Images with adjustable opacity DMX Controlled with RDM support Boots up in less than 10 seconds No splash screen or other disturbing stuff und screen during boot Boots directly to selected content Stock content 205 - Still images (JPEG) 50 - HD videos (H264) 55 - Overlay images (PNG)In addition, there is a SD-Card "Techno" with 130 video loops, 125 static images and 55 overlay images available for purchase (replaces the stock content)
Package Contents ImageCue 1.1 with 16GB SD-Card containg Imagecue Operating System, Software and Stock Content Power Supply Mounting Bracket incl. 4 Screws HDMI to DVI Adapter Quickstart Guide OperationLCD Display: 2 rows x 16 alpha numeric characters with adjustable backlight brightness
Navigation: 5 way navigation knob (up, down, left, right, press to select)
2 USB Ports for USB Flash Drive or External Solid State Drive ONLY
High Definition 1920 x 1080p via HDMI connector (default) including audio
DMX512: 5-pin Male and 5-pin Female XLR type
Power: 5 VDC - 5.5/2.1mm barrel connector
Compliance: FCC, CE
Operation Temperature: 0-49 Celsius (32 - 120 Farenheit)
Humidity: 5%- 95% (non condensing)
Control: DMX512A ANSI E1.11 - 2008 (R2013) ; RDM ANSI E1.20 - 2010
DMX Isolation: ISOLATED 2500 VRMS
Power Supply: 5VDC @ 3A
Specifications
| Type | Image servers |
| Brand | ImageCue |
