Article number:
67651
LumenRadio MoonLite2

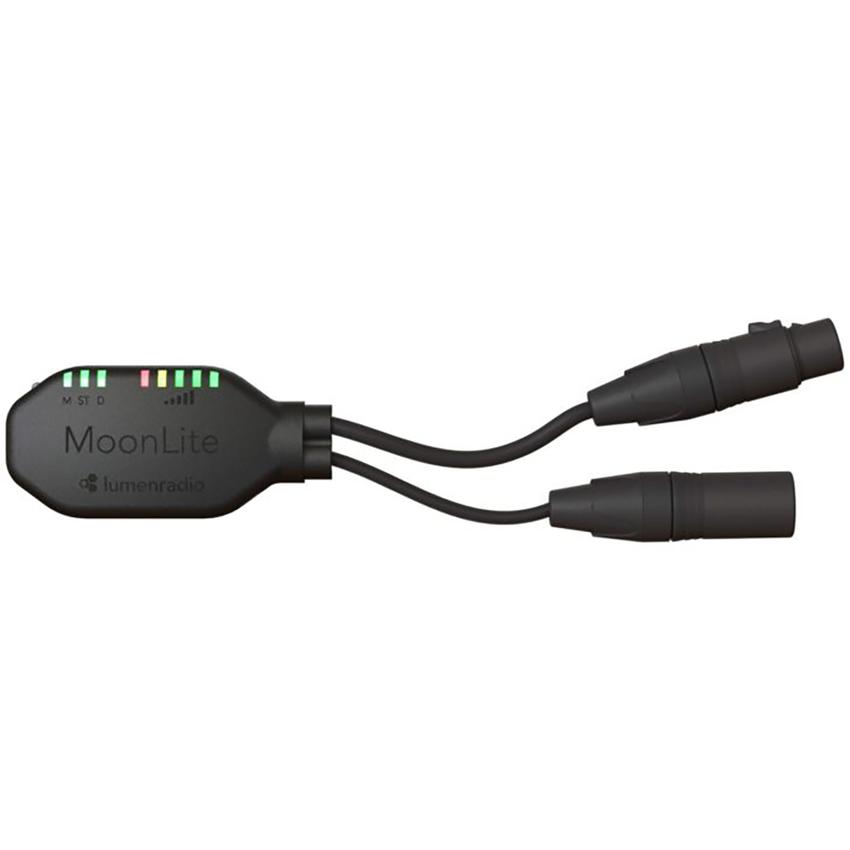

The LumenRadio MoonLite² is a portable rechargeable wireless DMX/RDM transceiver, designed to turn any DMX port into instant wireless capability. It transmits and receives using CRMX and W-DMX protocols, includes RDM controller and DMX testing, dual XLRs, Bluetooth, and a clear screen with intuitive controls—ideal for lighting professionals who need versatility in a compact tool.
Product specificationsSupported Protocols
DMX-512A (ANSI E1.11), RDM (ANSI E1.20)
RF protocols, TX mode: CRMX, W-DMX G3, G4S
RF protocols, RX mode: CRMX, CRMX2, W-DMX G3, G4, G4S & G5
RF Characteristics
Frequency range: 2402-2480 MHz (ISM band)
Max RF output power: 100 mW (EU) / 280 mW (North America)
Integral antenna
Connectors & Interfaces
5-pin XLR DMX In & Out (male & female)
USB-C for power / charging
Navigation buttons & clear screen on front panel
Power & Battery
DC power via USB-C, 5 VDC ±10%
Max input current while charging: 500 mA
Rechargeable battery: approx. 10-12 hours in CRMX RX mode
Physical & Environmental
Dimensions (W × H × D, excl. cables): 47 × 100 × 25 mm
Dimensions (incl. cables): 47 × 275 × 25 mm
Weight: ~160 g
Operating temperature: -20 °C to +55 °C
Storage temperature: -30 °C to +80 °C
Humidity: 0-90%, non-condensing
IP rating: IP20
Read more
The LumenRadio MoonLite² is a portable rechargeable wireless DMX/RDM transceiver, designed to turn any DMX port into instant wireless capability. It transmits and receives using CRMX and W-DMX protocols, includes RDM controller and DMX testing, dual XLRs, Bluetooth, and a clear screen with intuitive controls—ideal for lighting professionals who need versatility in a compact tool.
Product specificationsSupported Protocols
DMX-512A (ANSI E1.11), RDM (ANSI E1.20)
RF protocols, TX mode: CRMX, W-DMX G3, G4S
RF protocols, RX mode: CRMX, CRMX2, W-DMX G3, G4, G4S & G5
RF Characteristics
Frequency range: 2402-2480 MHz (ISM band)
Max RF output power: 100 mW (EU) / 280 mW (North America)
Integral antenna
Connectors & Interfaces
5-pin XLR DMX In & Out (male & female)
USB-C for power / charging
Navigation buttons & clear screen on front panel
Power & Battery
DC power via USB-C, 5 VDC ±10%
Max input current while charging: 500 mA
Rechargeable battery: approx. 10-12 hours in CRMX RX mode
Physical & Environmental
Dimensions (W × H × D, excl. cables): 47 × 100 × 25 mm
Dimensions (incl. cables): 47 × 275 × 25 mm
Weight: ~160 g
Operating temperature: -20 °C to +55 °C
Storage temperature: -30 °C to +80 °C
Humidity: 0-90%, non-condensing
IP rating: IP20
Read more
Specifications
| Type | WirelessDMX |
| Brand | LumenRadio |
