- Luminex GigaCore 10 GB SMF Transceiver
Article number:
63500
Luminex GigaCore 10 GB SMF Transceiver

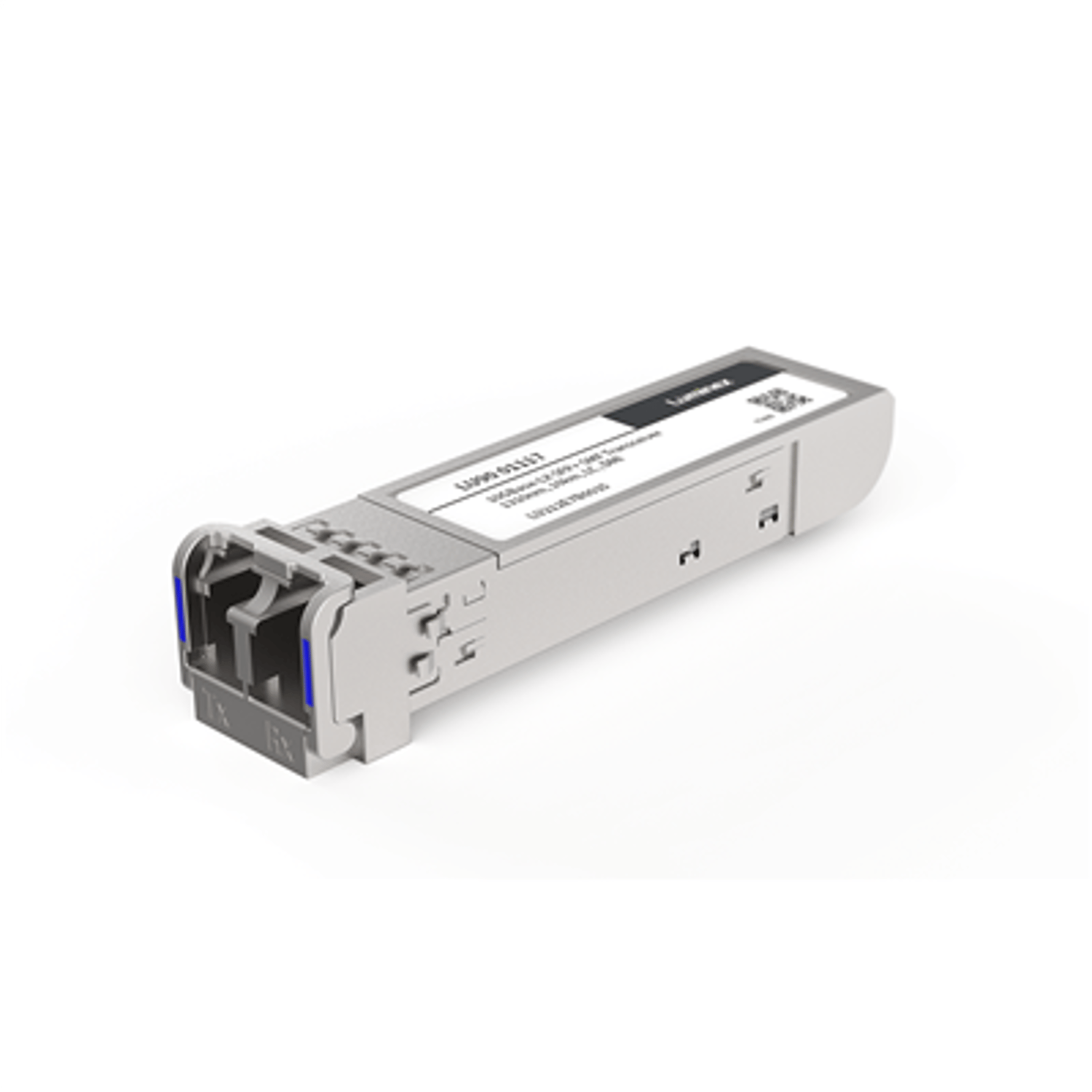

Luminex 10GBase-LR SFP+ SMF Transceiver 1310nm, 10km, LC, DMIThis single mode fiber (SMF) SFP+ transceiver provides 10GBase-LR troughput to up to 10km making use of a wavelenght of 1310nm over a duplex LC connector.
This easy to install and hot pluggable/swapable transceiver is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and compliant with IEEE 802.3ah specification.Its wide temperature range ensures reliable operation in the most diverse applications.
Features:
Environmental: Industrial temperature range: -40°C to 85°C Storage temperature: -40°C to 85°C Humidity: 5-85% RH Connectivity: Duplex LC connector Maximum Bitrate: 11.13 Gbps Regulatory Compliance: SFF-8432 compliant SFF-8472 compliant TAA compliant Compatible with MIL-STD-833E Method 3015.4 Compatible with IEC 61000-4-3 Compatible with FCC Part 15 Subpart B EN55022:2210 Compatible with FDA21CFR, EN60950-1, EN (IEC) 60825-1,2 Compliant with EU RoHS 2.0 directive 2015/863/EU Optical Characteristics: Duplex LC connector Single Mode Fiber Hot pluggable Remote diagnostics with Araneo Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Transmit: Optical power (avg.): PAVE -8.2 dBm Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Receive: Sensitivity (avg.): RAVE -24 dBm Sensitivity (OMA): -12.6 dBm Receiver wavelength: R? 1260 nm Receiver overload: PMAX 0 dBm
Read more
This easy to install and hot pluggable/swapable transceiver is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and compliant with IEEE 802.3ah specification.Its wide temperature range ensures reliable operation in the most diverse applications.
Features:
Environmental: Industrial temperature range: -40°C to 85°C Storage temperature: -40°C to 85°C Humidity: 5-85% RH Connectivity: Duplex LC connector Maximum Bitrate: 11.13 Gbps Regulatory Compliance: SFF-8432 compliant SFF-8472 compliant TAA compliant Compatible with MIL-STD-833E Method 3015.4 Compatible with IEC 61000-4-3 Compatible with FCC Part 15 Subpart B EN55022:2210 Compatible with FDA21CFR, EN60950-1, EN (IEC) 60825-1,2 Compliant with EU RoHS 2.0 directive 2015/863/EU Optical Characteristics: Duplex LC connector Single Mode Fiber Hot pluggable Remote diagnostics with Araneo Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Transmit: Optical power (avg.): PAVE -8.2 dBm Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Receive: Sensitivity (avg.): RAVE -24 dBm Sensitivity (OMA): -12.6 dBm Receiver wavelength: R? 1260 nm Receiver overload: PMAX 0 dBm
Read more
Luminex 10GBase-LR SFP+ SMF Transceiver 1310nm, 10km, LC, DMIThis single mode fiber (SMF) SFP+ transceiver provides 10GBase-LR troughput to up to 10km making use of a wavelenght of 1310nm over a duplex LC connector.
This easy to install and hot pluggable/swapable transceiver is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and compliant with IEEE 802.3ah specification.Its wide temperature range ensures reliable operation in the most diverse applications.
Features:
Environmental: Industrial temperature range: -40°C to 85°C Storage temperature: -40°C to 85°C Humidity: 5-85% RH Connectivity: Duplex LC connector Maximum Bitrate: 11.13 Gbps Regulatory Compliance: SFF-8432 compliant SFF-8472 compliant TAA compliant Compatible with MIL-STD-833E Method 3015.4 Compatible with IEC 61000-4-3 Compatible with FCC Part 15 Subpart B EN55022:2210 Compatible with FDA21CFR, EN60950-1, EN (IEC) 60825-1,2 Compliant with EU RoHS 2.0 directive 2015/863/EU Optical Characteristics: Duplex LC connector Single Mode Fiber Hot pluggable Remote diagnostics with Araneo Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Transmit: Optical power (avg.): PAVE -8.2 dBm Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Receive: Sensitivity (avg.): RAVE -24 dBm Sensitivity (OMA): -12.6 dBm Receiver wavelength: R? 1260 nm Receiver overload: PMAX 0 dBm
Read more
This easy to install and hot pluggable/swapable transceiver is programmed and tested to be fully compatible with the real time analytics and diagnostics functions built into GigaCore and Araneo and compliant with IEEE 802.3ah specification.Its wide temperature range ensures reliable operation in the most diverse applications.
Features:
Environmental: Industrial temperature range: -40°C to 85°C Storage temperature: -40°C to 85°C Humidity: 5-85% RH Connectivity: Duplex LC connector Maximum Bitrate: 11.13 Gbps Regulatory Compliance: SFF-8432 compliant SFF-8472 compliant TAA compliant Compatible with MIL-STD-833E Method 3015.4 Compatible with IEC 61000-4-3 Compatible with FCC Part 15 Subpart B EN55022:2210 Compatible with FDA21CFR, EN60950-1, EN (IEC) 60825-1,2 Compliant with EU RoHS 2.0 directive 2015/863/EU Optical Characteristics: Duplex LC connector Single Mode Fiber Hot pluggable Remote diagnostics with Araneo Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Transmit: Optical power (avg.): PAVE -8.2 dBm Optical Modulation Amplitude (OMA): POMA -5.2 dBm Optical wavelength: T? 1260 nm Receive: Sensitivity (avg.): RAVE -24 dBm Sensitivity (OMA): -12.6 dBm Receiver wavelength: R? 1260 nm Receiver overload: PMAX 0 dBm
Read more
Specifications
| Type | AV Network Switches |
| Brand | Luminex |
