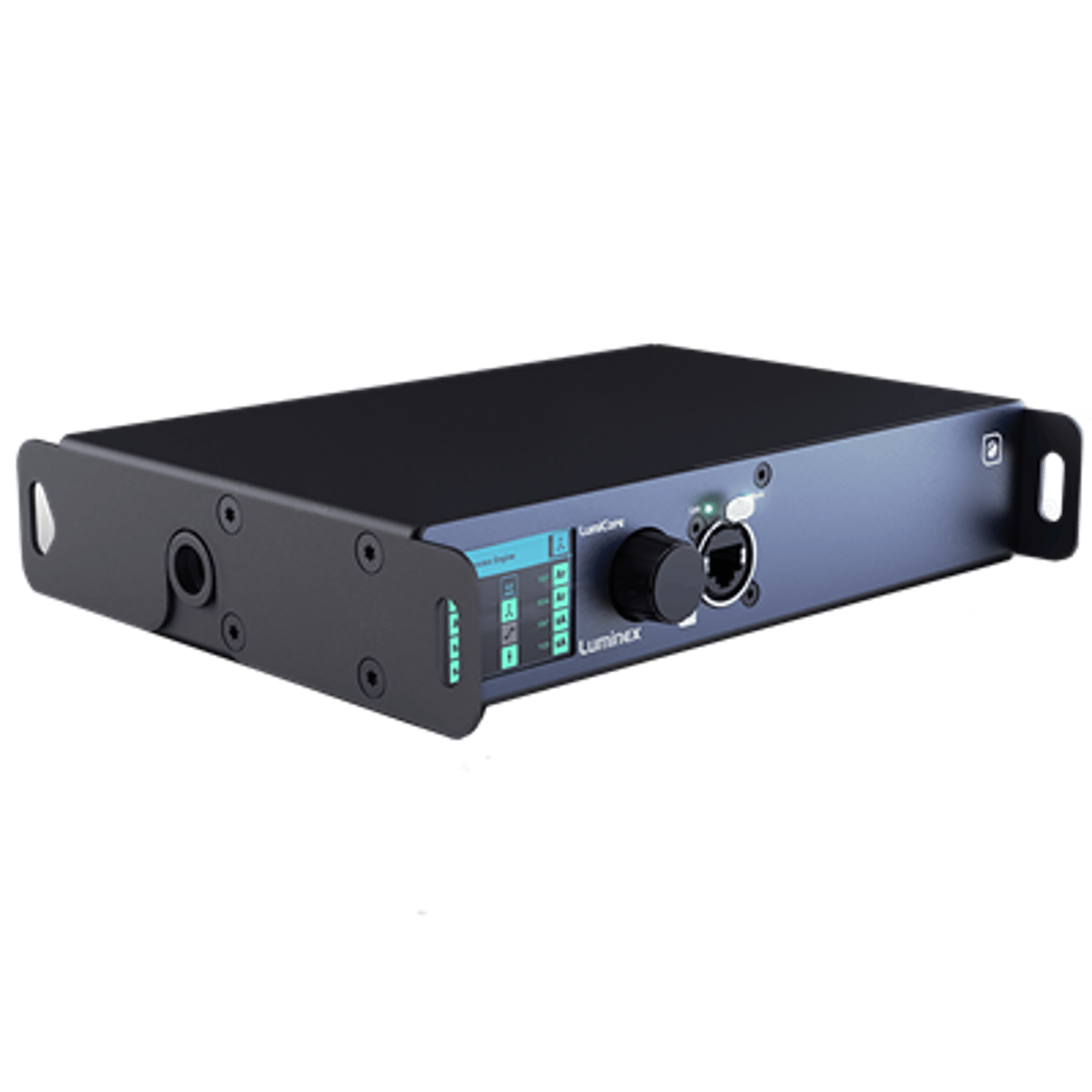

Luminex LumiCore 16
BUILT-IN ENGINES
LumiCore, now available with 64, 32 (this version) or 16 engines, allows you to merge and route up to 64 x 4 input sources toward 64 newly defined universes. This way, LumiCore becomes the ideal solution to isolate your control setup on a festival, a theater or in a TV studio. As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency.
MERGE IN HTP, LTP, BACKUP,SWITCH, CROSSFADE ORCUSTOM MODE
The engine technology allows you to merge in HTP, LTP, Backup, Switch, Crossfade or custom mode, with different triggers that can be assigned even on a per channel basis.In large pixel mapping applications LumiCore is the ideal bridge to merge different control sources into new network streams.
In TV studio’s LumiCore willallow you to have control desks inthe IT environment.
With its split interface possibilities LumiCore allows you to isolateyour lighting rig LAN from the IT infrastructure. This allows youto monitor your control infrastructure from the IT departmentand to centralize show storage on IT side meanwhile sharingthese resources over several studios. LumiCore acts as a realbridge and can be deployed in a fully redundant way.
SpecificationsDMX/RDM connectivity: NoneEthernet connectivity: 2x shielded Neutrik Ethercon connectorContact closure: YesPower connectivity: 1x Neutrik powerCON TRUE1 Ethernet (PoE)DMX FeaturesDMX protocols: NADMX port direction: NADMX port isolation: NADMX timing: NANetwork FeaturesEthernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX), KiNET v1,v2Ethernet port speed: 1GbpsPort sensing: Auto-negociation, MDI / MDIXSplit management interface: YesGroups (VLAN) support: YesKey FeaturesProcess engines: 64 (LumiCore 64), 32 (LumiCore 32), 16 (LumiCore16)Merging engine: HTP LTP Backup Switch X-Fade CustomSoftpatch: YesMaster/Limit: Proportional LimitTrigger system: YesReRoute: YesProfile manager: YesSnapshot: YesDMX Redundancy: NAMonitoring software: LumiNet Monitor V2 (free)Configuration: Through the built-in web server or with the front end display menuStatusDisplay and jog: YesStatus LEDs: Ethernet Port link/activity LED and mode LEDPowerPower input: 100-240VAC 50-60Hz PoE (802.3af)Power consumption: Maximum 13WPower redundancy: YesEnvironmentalOperating temperature: 0 to +50°CStorage temperature: -10 to +70°CHumidity (non condensing): 5 to 95% RHPhysicalEnclosure: Robust metal housingMounting: Rack, TrussDimensions (W x D x H): 220 x 175 x 44 mm (1/2 19" x 8,7" x 1,7")Weight: 2,4 kgPackaging: 530 x 330 x 80 mm (21" x 13" x 3,15")ApprovalElectromagnetic emissions and immunity: EN55032 class A EN55035 EN61000-3-2 EN61000-3-3 EN61000-4-2 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 FCC Part 15 CFR 47 class A ICES-003 Issue 6Safety: IEC 62368-1 EN 62368-1 UL 62368-1 CAN/CSA-C22.2 No. 62368-1 CECertificates: cSGSus Mark CE CB certificateGreen: RoHS REACHRead more
LumiCore, now available with 64, 32 (this version) or 16 engines, allows you to merge and route up to 64 x 4 input sources toward 64 newly defined universes. This way, LumiCore becomes the ideal solution to isolate your control setup on a festival, a theater or in a TV studio. As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency.
MERGE IN HTP, LTP, BACKUP,SWITCH, CROSSFADE ORCUSTOM MODE
The engine technology allows you to merge in HTP, LTP, Backup, Switch, Crossfade or custom mode, with different triggers that can be assigned even on a per channel basis.In large pixel mapping applications LumiCore is the ideal bridge to merge different control sources into new network streams.
In TV studio’s LumiCore willallow you to have control desks inthe IT environment.
With its split interface possibilities LumiCore allows you to isolateyour lighting rig LAN from the IT infrastructure. This allows youto monitor your control infrastructure from the IT departmentand to centralize show storage on IT side meanwhile sharingthese resources over several studios. LumiCore acts as a realbridge and can be deployed in a fully redundant way.
SpecificationsDMX/RDM connectivity: NoneEthernet connectivity: 2x shielded Neutrik Ethercon connectorContact closure: YesPower connectivity: 1x Neutrik powerCON TRUE1 Ethernet (PoE)DMX FeaturesDMX protocols: NADMX port direction: NADMX port isolation: NADMX timing: NANetwork FeaturesEthernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX), KiNET v1,v2Ethernet port speed: 1GbpsPort sensing: Auto-negociation, MDI / MDIXSplit management interface: YesGroups (VLAN) support: YesKey FeaturesProcess engines: 64 (LumiCore 64), 32 (LumiCore 32), 16 (LumiCore16)Merging engine: HTP LTP Backup Switch X-Fade CustomSoftpatch: YesMaster/Limit: Proportional LimitTrigger system: YesReRoute: YesProfile manager: YesSnapshot: YesDMX Redundancy: NAMonitoring software: LumiNet Monitor V2 (free)Configuration: Through the built-in web server or with the front end display menuStatusDisplay and jog: YesStatus LEDs: Ethernet Port link/activity LED and mode LEDPowerPower input: 100-240VAC 50-60Hz PoE (802.3af)Power consumption: Maximum 13WPower redundancy: YesEnvironmentalOperating temperature: 0 to +50°CStorage temperature: -10 to +70°CHumidity (non condensing): 5 to 95% RHPhysicalEnclosure: Robust metal housingMounting: Rack, TrussDimensions (W x D x H): 220 x 175 x 44 mm (1/2 19" x 8,7" x 1,7")Weight: 2,4 kgPackaging: 530 x 330 x 80 mm (21" x 13" x 3,15")ApprovalElectromagnetic emissions and immunity: EN55032 class A EN55035 EN61000-3-2 EN61000-3-3 EN61000-4-2 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 FCC Part 15 CFR 47 class A ICES-003 Issue 6Safety: IEC 62368-1 EN 62368-1 UL 62368-1 CAN/CSA-C22.2 No. 62368-1 CECertificates: cSGSus Mark CE CB certificateGreen: RoHS REACHRead more
BUILT-IN ENGINES
LumiCore, now available with 64, 32 (this version) or 16 engines, allows you to merge and route up to 64 x 4 input sources toward 64 newly defined universes. This way, LumiCore becomes the ideal solution to isolate your control setup on a festival, a theater or in a TV studio. As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency.
MERGE IN HTP, LTP, BACKUP,SWITCH, CROSSFADE ORCUSTOM MODE
The engine technology allows you to merge in HTP, LTP, Backup, Switch, Crossfade or custom mode, with different triggers that can be assigned even on a per channel basis.In large pixel mapping applications LumiCore is the ideal bridge to merge different control sources into new network streams.
In TV studio’s LumiCore willallow you to have control desks inthe IT environment.
With its split interface possibilities LumiCore allows you to isolateyour lighting rig LAN from the IT infrastructure. This allows youto monitor your control infrastructure from the IT departmentand to centralize show storage on IT side meanwhile sharingthese resources over several studios. LumiCore acts as a realbridge and can be deployed in a fully redundant way.
SpecificationsDMX/RDM connectivity: NoneEthernet connectivity: 2x shielded Neutrik Ethercon connectorContact closure: YesPower connectivity: 1x Neutrik powerCON TRUE1 Ethernet (PoE)DMX FeaturesDMX protocols: NADMX port direction: NADMX port isolation: NADMX timing: NANetwork FeaturesEthernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX), KiNET v1,v2Ethernet port speed: 1GbpsPort sensing: Auto-negociation, MDI / MDIXSplit management interface: YesGroups (VLAN) support: YesKey FeaturesProcess engines: 64 (LumiCore 64), 32 (LumiCore 32), 16 (LumiCore16)Merging engine: HTP LTP Backup Switch X-Fade CustomSoftpatch: YesMaster/Limit: Proportional LimitTrigger system: YesReRoute: YesProfile manager: YesSnapshot: YesDMX Redundancy: NAMonitoring software: LumiNet Monitor V2 (free)Configuration: Through the built-in web server or with the front end display menuStatusDisplay and jog: YesStatus LEDs: Ethernet Port link/activity LED and mode LEDPowerPower input: 100-240VAC 50-60Hz PoE (802.3af)Power consumption: Maximum 13WPower redundancy: YesEnvironmentalOperating temperature: 0 to +50°CStorage temperature: -10 to +70°CHumidity (non condensing): 5 to 95% RHPhysicalEnclosure: Robust metal housingMounting: Rack, TrussDimensions (W x D x H): 220 x 175 x 44 mm (1/2 19" x 8,7" x 1,7")Weight: 2,4 kgPackaging: 530 x 330 x 80 mm (21" x 13" x 3,15")ApprovalElectromagnetic emissions and immunity: EN55032 class A EN55035 EN61000-3-2 EN61000-3-3 EN61000-4-2 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 FCC Part 15 CFR 47 class A ICES-003 Issue 6Safety: IEC 62368-1 EN 62368-1 UL 62368-1 CAN/CSA-C22.2 No. 62368-1 CECertificates: cSGSus Mark CE CB certificateGreen: RoHS REACHRead more
LumiCore, now available with 64, 32 (this version) or 16 engines, allows you to merge and route up to 64 x 4 input sources toward 64 newly defined universes. This way, LumiCore becomes the ideal solution to isolate your control setup on a festival, a theater or in a TV studio. As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency.
MERGE IN HTP, LTP, BACKUP,SWITCH, CROSSFADE ORCUSTOM MODE
The engine technology allows you to merge in HTP, LTP, Backup, Switch, Crossfade or custom mode, with different triggers that can be assigned even on a per channel basis.In large pixel mapping applications LumiCore is the ideal bridge to merge different control sources into new network streams.
In TV studio’s LumiCore willallow you to have control desks inthe IT environment.
With its split interface possibilities LumiCore allows you to isolateyour lighting rig LAN from the IT infrastructure. This allows youto monitor your control infrastructure from the IT departmentand to centralize show storage on IT side meanwhile sharingthese resources over several studios. LumiCore acts as a realbridge and can be deployed in a fully redundant way.
SpecificationsDMX/RDM connectivity: NoneEthernet connectivity: 2x shielded Neutrik Ethercon connectorContact closure: YesPower connectivity: 1x Neutrik powerCON TRUE1 Ethernet (PoE)DMX FeaturesDMX protocols: NADMX port direction: NADMX port isolation: NADMX timing: NANetwork FeaturesEthernet protocols: Art-Net™ (1-4), sACN ANSI E1.31, RTTrPL (BlackTraX), KiNET v1,v2Ethernet port speed: 1GbpsPort sensing: Auto-negociation, MDI / MDIXSplit management interface: YesGroups (VLAN) support: YesKey FeaturesProcess engines: 64 (LumiCore 64), 32 (LumiCore 32), 16 (LumiCore16)Merging engine: HTP LTP Backup Switch X-Fade CustomSoftpatch: YesMaster/Limit: Proportional LimitTrigger system: YesReRoute: YesProfile manager: YesSnapshot: YesDMX Redundancy: NAMonitoring software: LumiNet Monitor V2 (free)Configuration: Through the built-in web server or with the front end display menuStatusDisplay and jog: YesStatus LEDs: Ethernet Port link/activity LED and mode LEDPowerPower input: 100-240VAC 50-60Hz PoE (802.3af)Power consumption: Maximum 13WPower redundancy: YesEnvironmentalOperating temperature: 0 to +50°CStorage temperature: -10 to +70°CHumidity (non condensing): 5 to 95% RHPhysicalEnclosure: Robust metal housingMounting: Rack, TrussDimensions (W x D x H): 220 x 175 x 44 mm (1/2 19" x 8,7" x 1,7")Weight: 2,4 kgPackaging: 530 x 330 x 80 mm (21" x 13" x 3,15")ApprovalElectromagnetic emissions and immunity: EN55032 class A EN55035 EN61000-3-2 EN61000-3-3 EN61000-4-2 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 EN61000-4-11 FCC Part 15 CFR 47 class A ICES-003 Issue 6Safety: IEC 62368-1 EN 62368-1 UL 62368-1 CAN/CSA-C22.2 No. 62368-1 CECertificates: cSGSus Mark CE CB certificateGreen: RoHS REACHRead more
Specifications
| Type | Dmx & Lighting Gateways |
| Brand | Luminex |
