- Martin Audio CDD5 (Black)
Article number:
41287
Martin Audio CDD5 (Black)

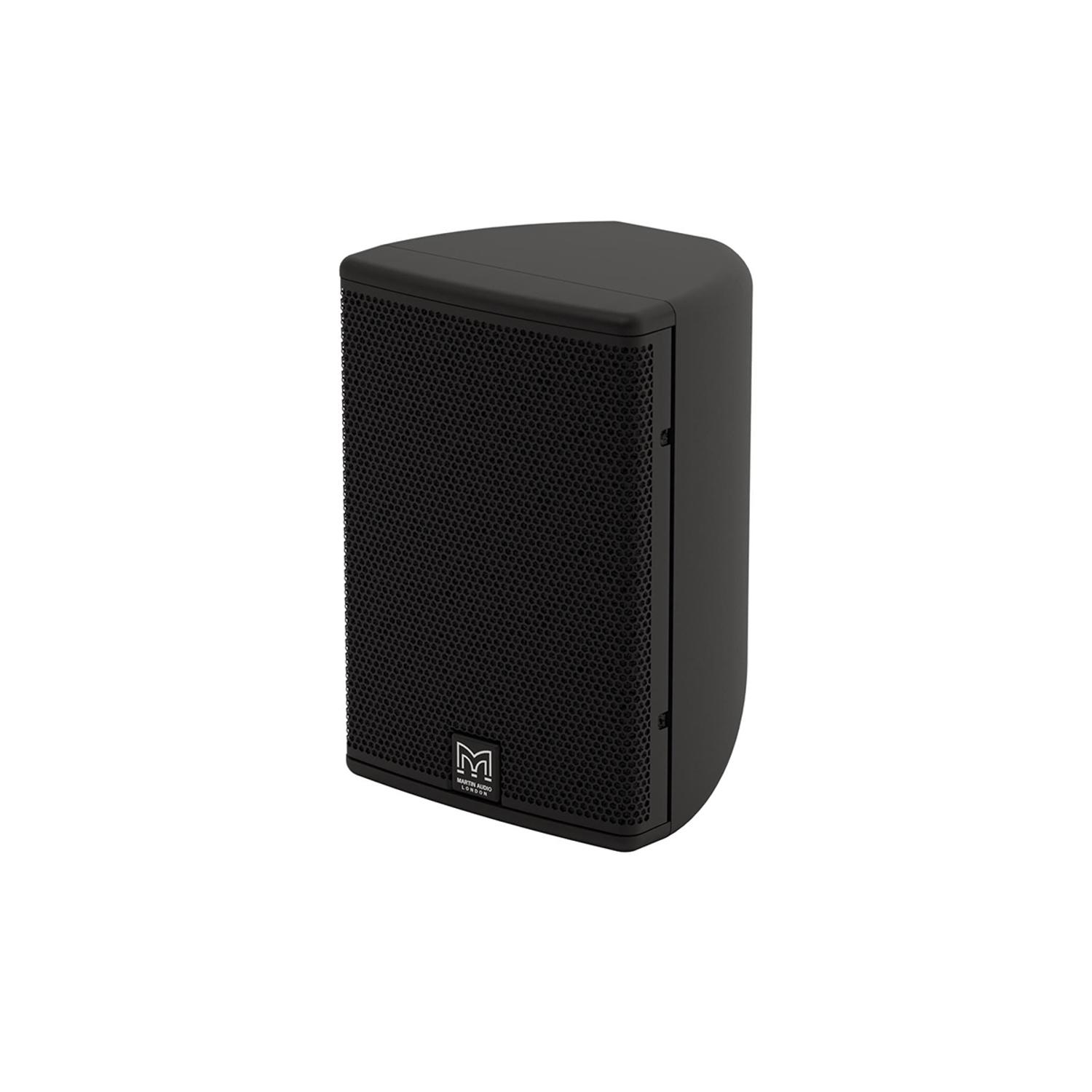

The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent protected 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.

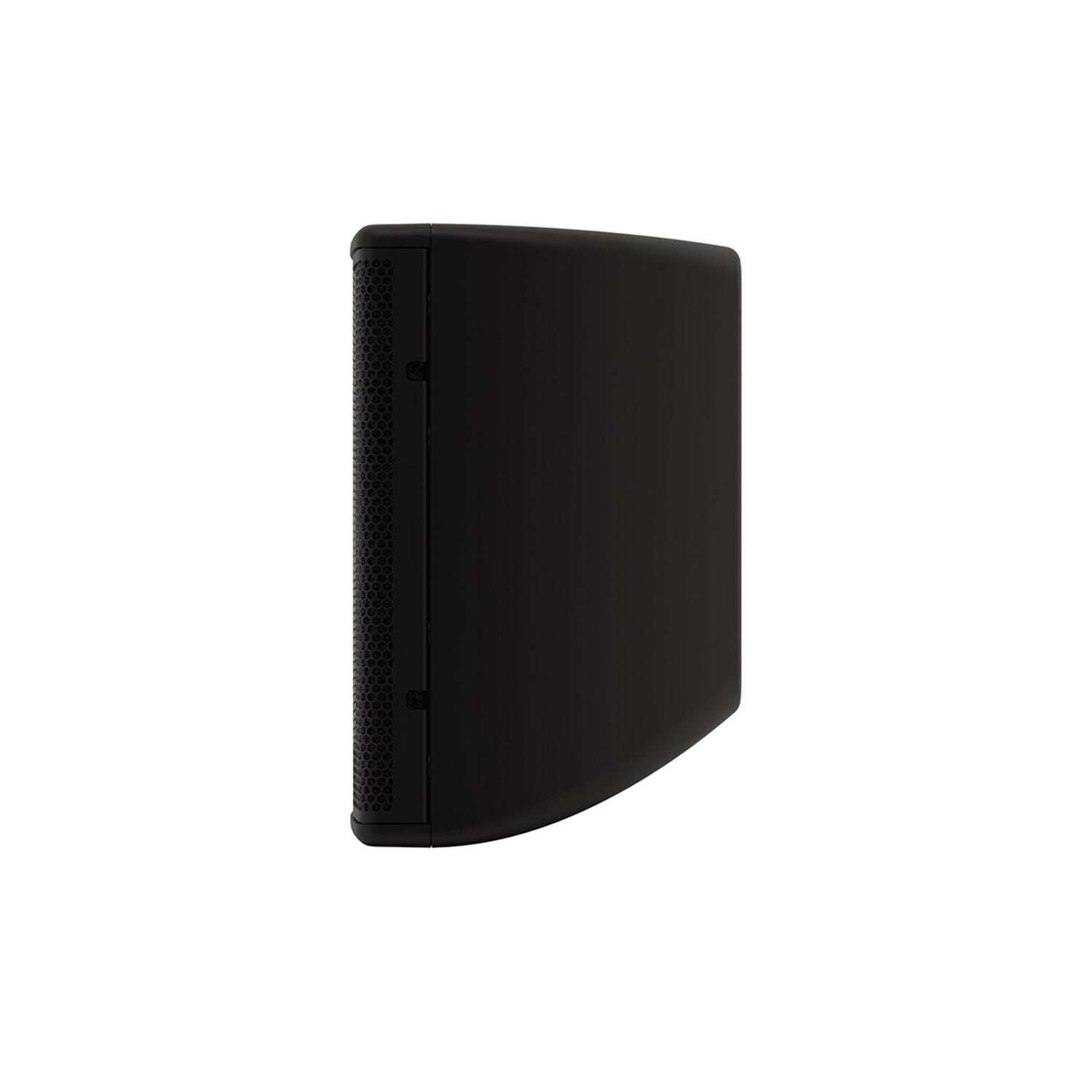

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order.
The CDD5TX-WR option incorporates a 70V/100V line transformer.
A full-range, passive two-way system, the CDD5 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
Specifications Type Ultra-Compact, Coaxial Differential Dispersion passive two-way system Frequency Response (5) 100Hz-20kHz ± 3dB, 10dB @ 70Hz Driver LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system
HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system Rated Power (2) 100W AES, 400W peak Sensitivity (8) 90dB Maximum SPL (9) 110dB continuous, 116dB peak Nominal Impedance 8Ω Dispersion (-6dB) 120˚-90˚ horizontal, 80˚ vertical (user-rotatable) Crossover 2.5kHz passive Enclosure 3 litre, ABS Finish Black or white Protective Grille Black or white perforated steel with scrim cloth backing Connectors Low profile 13A push-lock Pin Connections Left to right: Input+, Input -, Link -, Link + Fittings 6 x M5 inserts for wall/ceiling brackets Dimensions (W) 160mm x (H) 230mm x (D) 149mm
(W) 6.3ins x (H) 9.1ins x (D) 5.9ins Weight 3kg (6.6lbs) Read more
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order.
The CDD5TX-WR option incorporates a 70V/100V line transformer.
A full-range, passive two-way system, the CDD5 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
Specifications Type Ultra-Compact, Coaxial Differential Dispersion passive two-way system Frequency Response (5) 100Hz-20kHz ± 3dB, 10dB @ 70Hz Driver LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system
HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system Rated Power (2) 100W AES, 400W peak Sensitivity (8) 90dB Maximum SPL (9) 110dB continuous, 116dB peak Nominal Impedance 8Ω Dispersion (-6dB) 120˚-90˚ horizontal, 80˚ vertical (user-rotatable) Crossover 2.5kHz passive Enclosure 3 litre, ABS Finish Black or white Protective Grille Black or white perforated steel with scrim cloth backing Connectors Low profile 13A push-lock Pin Connections Left to right: Input+, Input -, Link -, Link + Fittings 6 x M5 inserts for wall/ceiling brackets Dimensions (W) 160mm x (H) 230mm x (D) 149mm
(W) 6.3ins x (H) 9.1ins x (D) 5.9ins Weight 3kg (6.6lbs) Read more
The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent protected 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order.
The CDD5TX-WR option incorporates a 70V/100V line transformer.
A full-range, passive two-way system, the CDD5 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
Specifications Type Ultra-Compact, Coaxial Differential Dispersion passive two-way system Frequency Response (5) 100Hz-20kHz ± 3dB, 10dB @ 70Hz Driver LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system
HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system Rated Power (2) 100W AES, 400W peak Sensitivity (8) 90dB Maximum SPL (9) 110dB continuous, 116dB peak Nominal Impedance 8Ω Dispersion (-6dB) 120˚-90˚ horizontal, 80˚ vertical (user-rotatable) Crossover 2.5kHz passive Enclosure 3 litre, ABS Finish Black or white Protective Grille Black or white perforated steel with scrim cloth backing Connectors Low profile 13A push-lock Pin Connections Left to right: Input+, Input -, Link -, Link + Fittings 6 x M5 inserts for wall/ceiling brackets Dimensions (W) 160mm x (H) 230mm x (D) 149mm
(W) 6.3ins x (H) 9.1ins x (D) 5.9ins Weight 3kg (6.6lbs) Read more
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order.
The CDD5TX-WR option incorporates a 70V/100V line transformer.
A full-range, passive two-way system, the CDD5 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
Specifications Type Ultra-Compact, Coaxial Differential Dispersion passive two-way system Frequency Response (5) 100Hz-20kHz ± 3dB, 10dB @ 70Hz Driver LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system
HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system Rated Power (2) 100W AES, 400W peak Sensitivity (8) 90dB Maximum SPL (9) 110dB continuous, 116dB peak Nominal Impedance 8Ω Dispersion (-6dB) 120˚-90˚ horizontal, 80˚ vertical (user-rotatable) Crossover 2.5kHz passive Enclosure 3 litre, ABS Finish Black or white Protective Grille Black or white perforated steel with scrim cloth backing Connectors Low profile 13A push-lock Pin Connections Left to right: Input+, Input -, Link -, Link + Fittings 6 x M5 inserts for wall/ceiling brackets Dimensions (W) 160mm x (H) 230mm x (D) 149mm
(W) 6.3ins x (H) 9.1ins x (D) 5.9ins Weight 3kg (6.6lbs) Read more
Specifications
| Driver Configuration | 2-way |
| DSP | No |
| Bluetooth Connectivity | No |
| Connectivity | Analog |
| Powered/non-powered | Non-powered |
| Min. Frequency (Hz) | 100 |
| Max. SPL (dB) | 118 |
| WiFi Connectivity | No |
| Max. Frequency (kHz) | 20 |
| Enclosure | Wood |
| Top Seller | Yes |
| Application | Install |
| Weatherized | No |
| Brand | Martin Audio |
