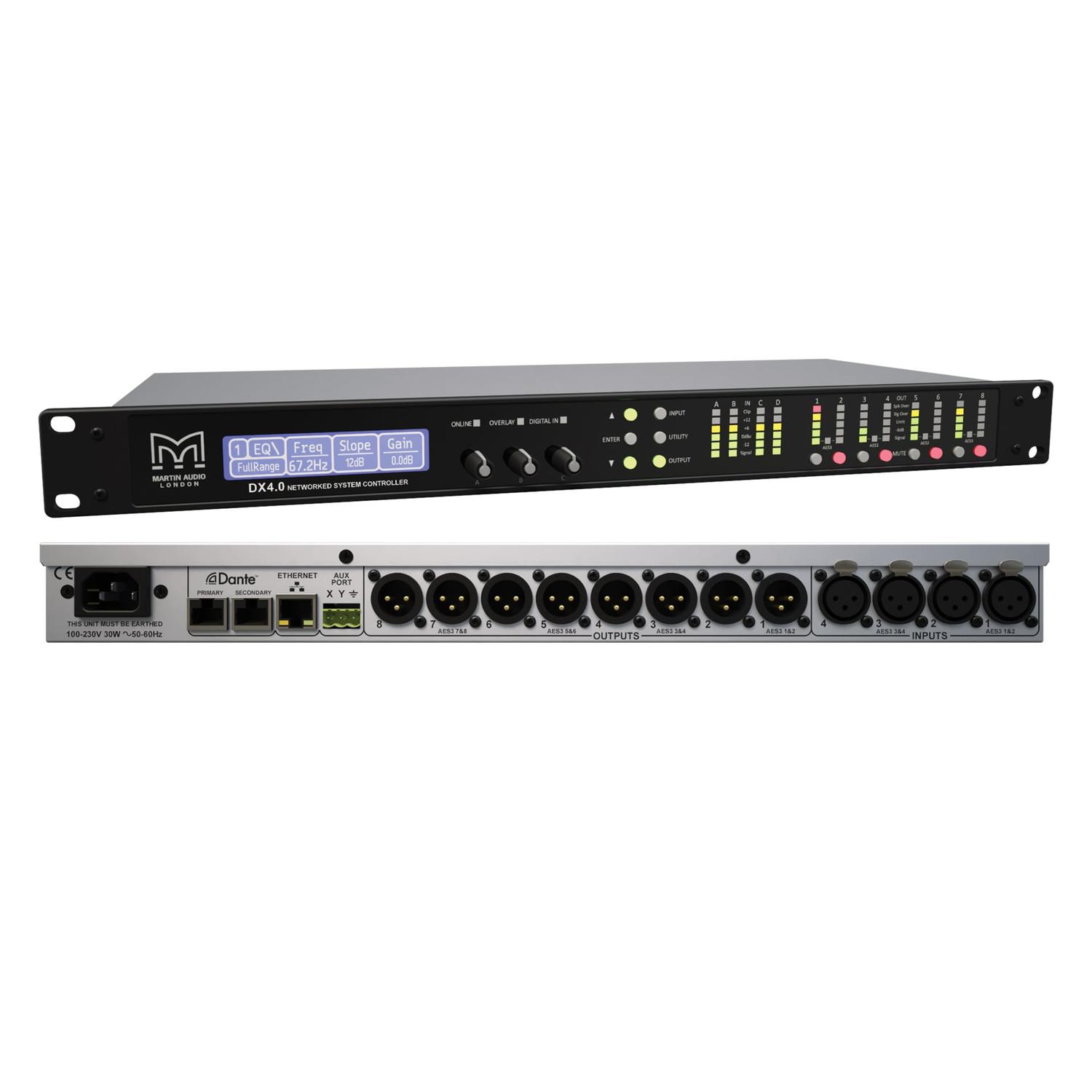

Martin Audio DX4.0 DANTE
Four analogue/AES3 inputs and eight analogue/AES outputs are available, with AES3 inputs and outputs selected in pairs. Dante™ digital audio networking is also provided for digital audio distribution and control, with automatic fall back to analogue or AES3. By converting analogue or AES audio to Dante, the DX4.0 provides ‘on-ramp’ entry to digital audio networking.
The DX4.0 features a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive two-way systems. High-pass filtering, three shelving filters and six parametric filters are provided for each input channel, with crossover filters, two shelving filters and eight parametric filters on each output channel.
The DX4.0 supports FIR filters for use with optimisation of Martin Audio’s O-Line and can also be used with Martin Audio’s U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable.
Features Four input channels and eight output channels loudspeaker processor and matrix Analogue, AES3 and Dante™ digital audio inputs High performance 96kHz DSP Remote control and monitoring over Ethernet via Martin Audio VU-NET software FIR optimisation for Martin Audio’s O-Line VX limiting allows a passive enclosure the same protection as a fully active unit. Comprehensive suite of EQ’s, delays and all pass filters. Global mains operation 100-240V, 50-60Hz Applications Loudspeaker system digital controller Front-of-house matrix to feed Dante digital audio to iKON amplifiers powering Martin Audio loudspeaker systems Use with Martin Audio O-Line for FIR Optimisation Use with Martin Audio U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable Read moreFour analogue/AES3 inputs and eight analogue/AES outputs are available, with AES3 inputs and outputs selected in pairs. Dante™ digital audio networking is also provided for digital audio distribution and control, with automatic fall back to analogue or AES3. By converting analogue or AES audio to Dante, the DX4.0 provides ‘on-ramp’ entry to digital audio networking.
The DX4.0 features a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive two-way systems. High-pass filtering, three shelving filters and six parametric filters are provided for each input channel, with crossover filters, two shelving filters and eight parametric filters on each output channel.
The DX4.0 supports FIR filters for use with optimisation of Martin Audio’s O-Line and can also be used with Martin Audio’s U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable.
Features Four input channels and eight output channels loudspeaker processor and matrix Analogue, AES3 and Dante™ digital audio inputs High performance 96kHz DSP Remote control and monitoring over Ethernet via Martin Audio VU-NET software FIR optimisation for Martin Audio’s O-Line VX limiting allows a passive enclosure the same protection as a fully active unit. Comprehensive suite of EQ’s, delays and all pass filters. Global mains operation 100-240V, 50-60Hz Applications Loudspeaker system digital controller Front-of-house matrix to feed Dante digital audio to iKON amplifiers powering Martin Audio loudspeaker systems Use with Martin Audio O-Line for FIR Optimisation Use with Martin Audio U-Hub to feed digital audio and network to an MLA Series array/subwoofer array via a single cable Read moreSpecifications
| DSP | Yes |
| Bluetooth Connectivity | No |
| Connectivity | Digital |
| Powered/non-powered | Powered |
| WiFi Connectivity | No |
| Enclosure | Wood |
| Application | Install |
| Brand | Martin Audio |
