- Martin Audio SX218
Article number:
44474

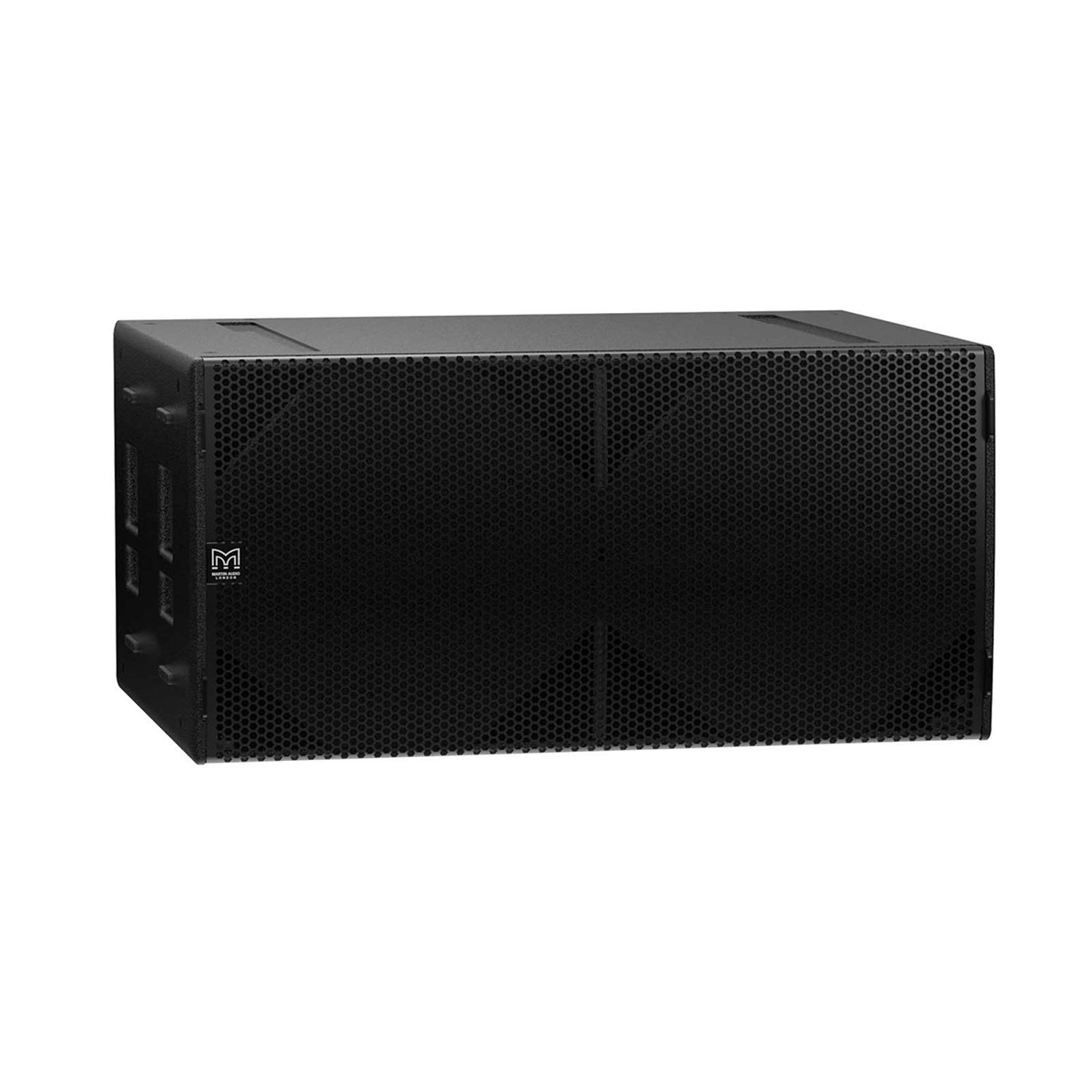

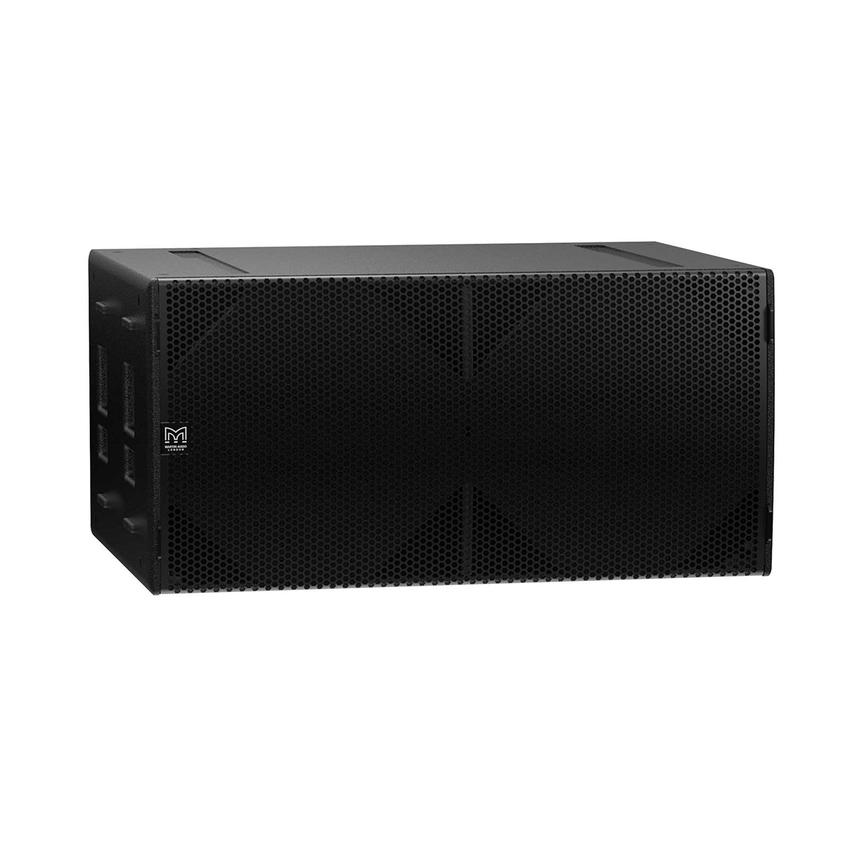

Martin Audio SX218
The SX218 delivers very high output levels and superb transient performance with minimal distortion.
With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. Each driver is rated to handle 1000 watts AES and has a magnet structure which is suspension engineered for maximum linear excursion.
The enclosure is constructed from multi-laminate birch ply and finished with a durable polyurea coating. Eight reflex ports provide a large frontal area to reduce turbulent air noise, and a perforated steel grille protects the drivers from damage. SX218 features a M20 pole mount insert for added versatility in deployment.
The product is supplied as standard without cabinet wheels, but they are available as an accessory.
By adding the input board cover accessory, SX218 is fully weather resistant and suitable for permanent outdoor usage.
Specifications Type Dual-driver, direct radiating subwoofer Frequency Response (1) 35Hz – 150Hz ±3dB, -10dB @ 30Hz Driver 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone Rated Power (2) 2000W AES, 8000W peak Sensitivity (10) 105dB Maximum SPL (9) 144dB Nominal Impedance 2 x 8Ω Dispersion (-6dB) Omnidirectional/or Cardioid (paired) Enclosure Multi-laminate birch/poplar ply Finish Durable Polyurea Coating Protective Grille Black perforated Zintec Connectors 2 x NL4 type Pin Connections (Input) LF1: 1+, 1- LF2: 2+, 2- Pin Connections (Link) LF1: 1+, 1- LF2: 2+, 2- Fittings Two skids on base, with mating channels on top
24 x M10 mounting points
4 x bar handles, 2 on each side
4 x fittings for optional transit cover
M20 Pole mount insert
16 x M8 inserts for optional castors Dimensions (incl. Skids) (W) 1093mm x (H) 537mm x (D) 792mm
(920mm including castors)
(W) 43in x (H) 21.1in x (D) 31.2in
(36.2in including castors) Weight 98.5kg (217lbs) w/o castors
102kg (225lbs) with castors Read more
With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. Each driver is rated to handle 1000 watts AES and has a magnet structure which is suspension engineered for maximum linear excursion.
The enclosure is constructed from multi-laminate birch ply and finished with a durable polyurea coating. Eight reflex ports provide a large frontal area to reduce turbulent air noise, and a perforated steel grille protects the drivers from damage. SX218 features a M20 pole mount insert for added versatility in deployment.
The product is supplied as standard without cabinet wheels, but they are available as an accessory.
By adding the input board cover accessory, SX218 is fully weather resistant and suitable for permanent outdoor usage.
Specifications Type Dual-driver, direct radiating subwoofer Frequency Response (1) 35Hz – 150Hz ±3dB, -10dB @ 30Hz Driver 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone Rated Power (2) 2000W AES, 8000W peak Sensitivity (10) 105dB Maximum SPL (9) 144dB Nominal Impedance 2 x 8Ω Dispersion (-6dB) Omnidirectional/or Cardioid (paired) Enclosure Multi-laminate birch/poplar ply Finish Durable Polyurea Coating Protective Grille Black perforated Zintec Connectors 2 x NL4 type Pin Connections (Input) LF1: 1+, 1- LF2: 2+, 2- Pin Connections (Link) LF1: 1+, 1- LF2: 2+, 2- Fittings Two skids on base, with mating channels on top
24 x M10 mounting points
4 x bar handles, 2 on each side
4 x fittings for optional transit cover
M20 Pole mount insert
16 x M8 inserts for optional castors Dimensions (incl. Skids) (W) 1093mm x (H) 537mm x (D) 792mm
(920mm including castors)
(W) 43in x (H) 21.1in x (D) 31.2in
(36.2in including castors) Weight 98.5kg (217lbs) w/o castors
102kg (225lbs) with castors Read more
The SX218 delivers very high output levels and superb transient performance with minimal distortion.
With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. Each driver is rated to handle 1000 watts AES and has a magnet structure which is suspension engineered for maximum linear excursion.
The enclosure is constructed from multi-laminate birch ply and finished with a durable polyurea coating. Eight reflex ports provide a large frontal area to reduce turbulent air noise, and a perforated steel grille protects the drivers from damage. SX218 features a M20 pole mount insert for added versatility in deployment.
The product is supplied as standard without cabinet wheels, but they are available as an accessory.
By adding the input board cover accessory, SX218 is fully weather resistant and suitable for permanent outdoor usage.
Specifications Type Dual-driver, direct radiating subwoofer Frequency Response (1) 35Hz – 150Hz ±3dB, -10dB @ 30Hz Driver 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone Rated Power (2) 2000W AES, 8000W peak Sensitivity (10) 105dB Maximum SPL (9) 144dB Nominal Impedance 2 x 8Ω Dispersion (-6dB) Omnidirectional/or Cardioid (paired) Enclosure Multi-laminate birch/poplar ply Finish Durable Polyurea Coating Protective Grille Black perforated Zintec Connectors 2 x NL4 type Pin Connections (Input) LF1: 1+, 1- LF2: 2+, 2- Pin Connections (Link) LF1: 1+, 1- LF2: 2+, 2- Fittings Two skids on base, with mating channels on top
24 x M10 mounting points
4 x bar handles, 2 on each side
4 x fittings for optional transit cover
M20 Pole mount insert
16 x M8 inserts for optional castors Dimensions (incl. Skids) (W) 1093mm x (H) 537mm x (D) 792mm
(920mm including castors)
(W) 43in x (H) 21.1in x (D) 31.2in
(36.2in including castors) Weight 98.5kg (217lbs) w/o castors
102kg (225lbs) with castors Read more
With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. Each driver is rated to handle 1000 watts AES and has a magnet structure which is suspension engineered for maximum linear excursion.
The enclosure is constructed from multi-laminate birch ply and finished with a durable polyurea coating. Eight reflex ports provide a large frontal area to reduce turbulent air noise, and a perforated steel grille protects the drivers from damage. SX218 features a M20 pole mount insert for added versatility in deployment.
The product is supplied as standard without cabinet wheels, but they are available as an accessory.
By adding the input board cover accessory, SX218 is fully weather resistant and suitable for permanent outdoor usage.
Specifications Type Dual-driver, direct radiating subwoofer Frequency Response (1) 35Hz – 150Hz ±3dB, -10dB @ 30Hz Driver 2 x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone Rated Power (2) 2000W AES, 8000W peak Sensitivity (10) 105dB Maximum SPL (9) 144dB Nominal Impedance 2 x 8Ω Dispersion (-6dB) Omnidirectional/or Cardioid (paired) Enclosure Multi-laminate birch/poplar ply Finish Durable Polyurea Coating Protective Grille Black perforated Zintec Connectors 2 x NL4 type Pin Connections (Input) LF1: 1+, 1- LF2: 2+, 2- Pin Connections (Link) LF1: 1+, 1- LF2: 2+, 2- Fittings Two skids on base, with mating channels on top
24 x M10 mounting points
4 x bar handles, 2 on each side
4 x fittings for optional transit cover
M20 Pole mount insert
16 x M8 inserts for optional castors Dimensions (incl. Skids) (W) 1093mm x (H) 537mm x (D) 792mm
(920mm including castors)
(W) 43in x (H) 21.1in x (D) 31.2in
(36.2in including castors) Weight 98.5kg (217lbs) w/o castors
102kg (225lbs) with castors Read more
Specifications
Driver Configuration | Dual |
DSP | No |
Bluetooth Connectivity | No |
Connectivity | Analog |
Powered/non-powered | Non-powered |
Max. Frequency (Hz) | 150 |
Min. Frequency (Hz) | 30 |
Max. SPL (dB) | 144 |
WiFi Connectivity | No |
Enclosure | Wood |
Application | Touring |
Diameter (inch) | 18 |
Weatherized | No |
Brand | Martin Audio |
