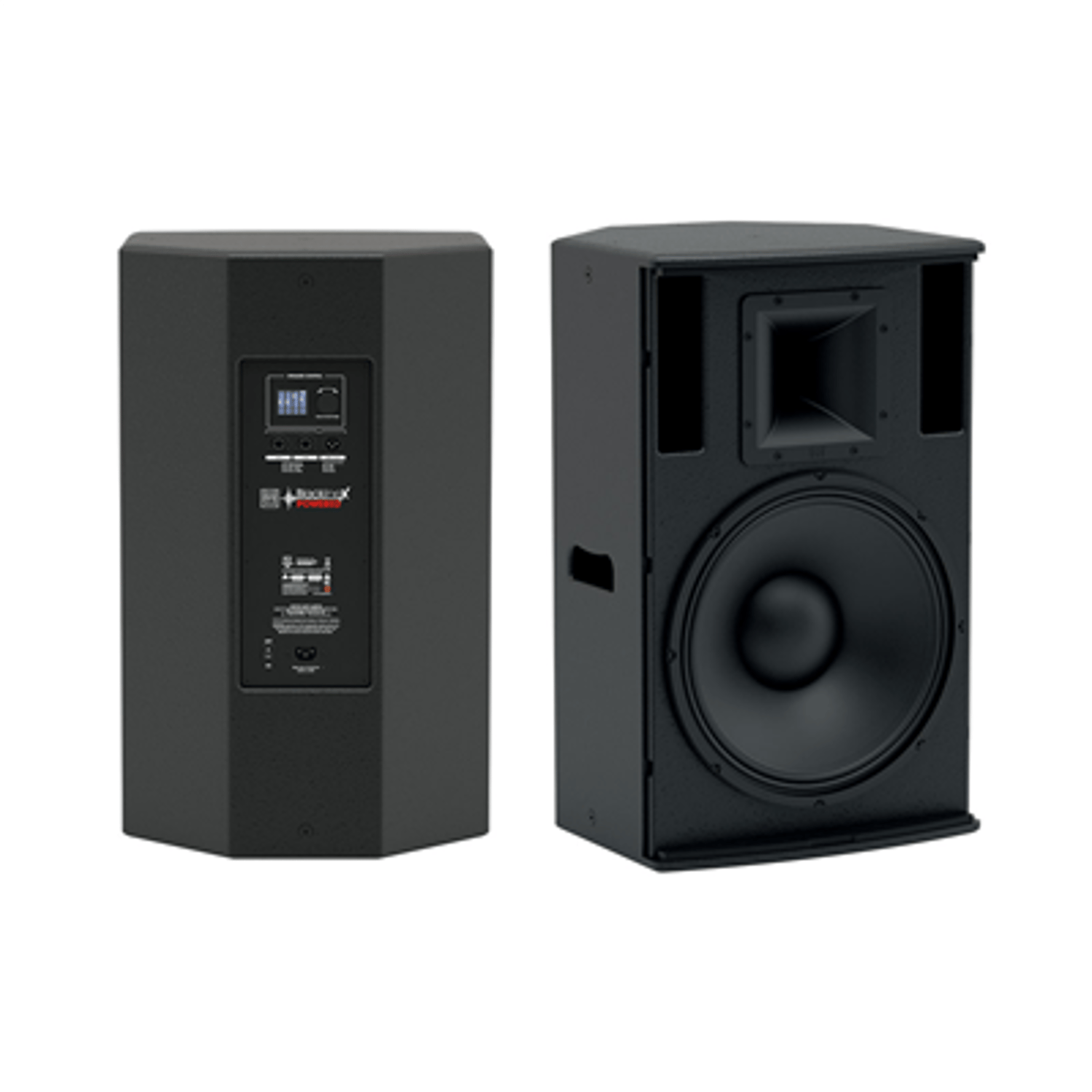

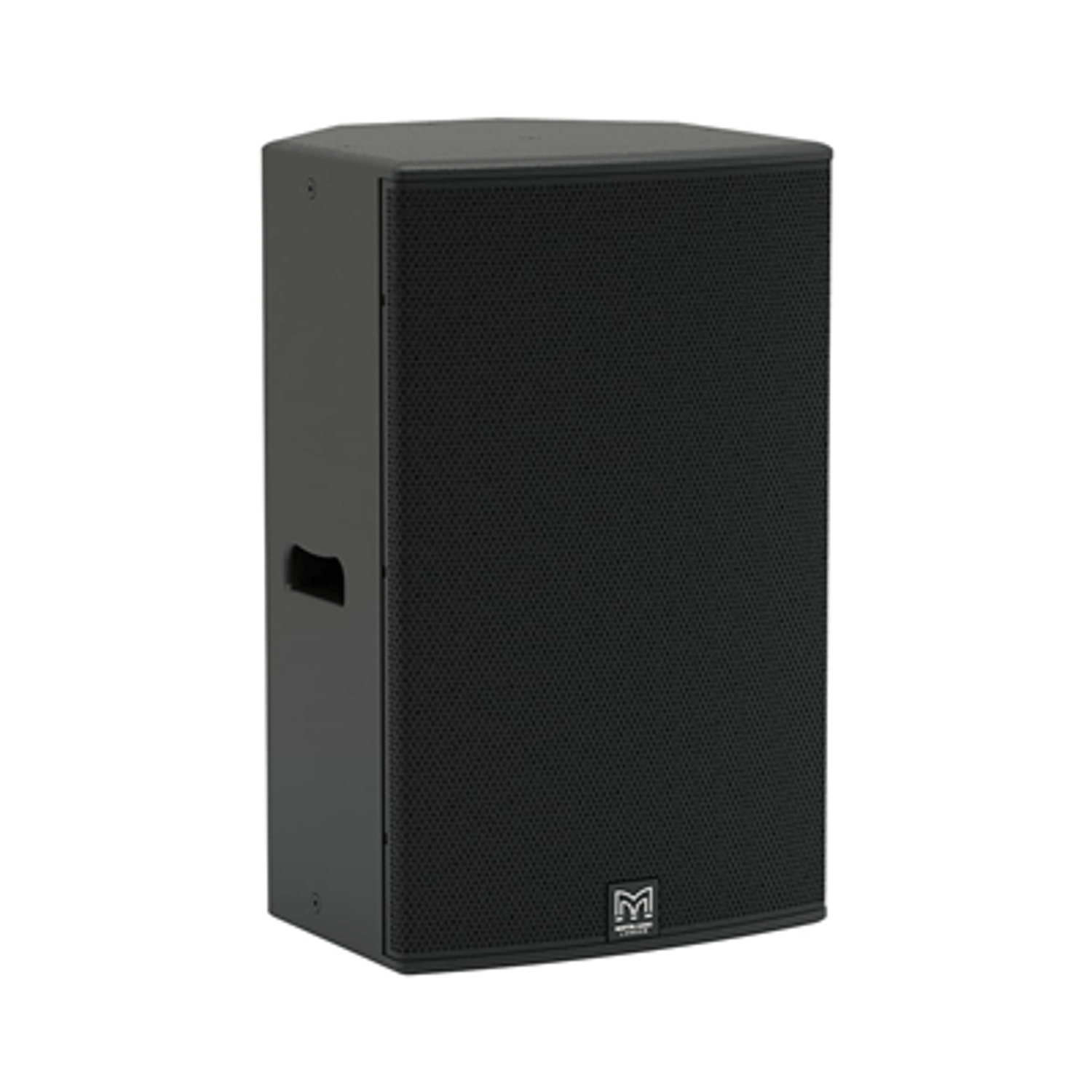

Martin Audio XP15 high output speaker
The Martin Audio XP15 is a high-output self-powered speaker that is designed for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.
The XP15 features a 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-d
The Class D amplifier module delivers up to 1000W LF + 300W HF peak output to the drivers and the sophisticated DSP functions are controlled by a rotary interface and multi- function, easy-to-use colour screen on the rear panel. Onboard DSP functions are controlled by a rotary encoder interface, they include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.
The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
The XP15 features Bluetooth, which means you can stream directly to the speakers via a phone or tablet without the need for any app. In addition the app – XP Connect - is available providing both audio streaming and control from iOS phones and tablets*. This provides full control of the onboard DSP, mixer and mode functions — enabling access to the mixer EQ, mute and level to optimise the speaker set-up remotely. It also enables two speakers to be linked for stereo playback.*Search for XP Connect on Apple App Store.
***Check our DOWNLOADS section below for more info.***
The Martin Audio XP15 is a high-output self-powered speaker that is designed for indoor portable applications and installations that require powerful performance from a single portable loudspeaker.
The XP15 features a 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm. With an accurately-d
The Class D amplifier module delivers up to 1000W LF + 300W HF peak output to the drivers and the sophisticated DSP functions are controlled by a rotary interface and multi- function, easy-to-use colour screen on the rear panel. Onboard DSP functions are controlled by a rotary encoder interface, they include crossover function, a three-channel mixer with three- band EQ on each input channel and a choice of three voicing presets and operating modes for flexible operation without external processing.
The symmetrical, multi-angle enclosure is manufactured from birch and poplar plywood and finished in textured black paint. It is fitted with M8 inserts for eyebolt suspension plus a pole-mount socket with a removable cap. Its cloth-backed protective steel grille is a spring-fit into the sides of the enclosure for easy access to rotate the HF horn.
The XP15 features Bluetooth, which means you can stream directly to the speakers via a phone or tablet without the need for any app. In addition the app – XP Connect - is available providing both audio streaming and control from iOS phones and tablets*. This provides full control of the onboard DSP, mixer and mode functions — enabling access to the mixer EQ, mute and level to optimise the speaker set-up remotely. It also enables two speakers to be linked for stereo playback.*Search for XP Connect on Apple App Store.
***Check our DOWNLOADS section below for more info.***
Specifications
Driver Configuration | 2-way |
DSP | Yes |
Bluetooth Connectivity | Yes |
Connectivity | Digital |
Powered/non-powered | Powered |
Min. Frequency (Hz) | 50 |
Max. SPL (dB) | 131 |
WiFi Connectivity | No |
Max. Frequency (kHz) | 20 |
Enclosure | Wood |
Application | Touring |
Diameter (inch) | 15 |
Weatherized | No |
Brand | Martin Audio |
Diameter | 15 |
