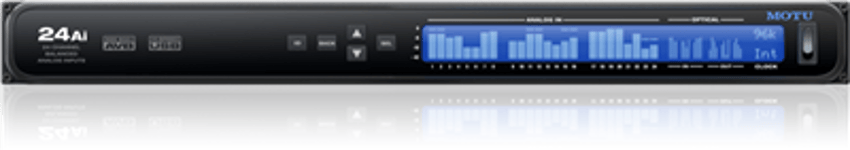

MOTU 24Ai

72 simultaneous audio channels — 24 high-quality, balanced analog inputs on three banks of multi-channel connectors (DB-25 D-sub and Phoenix), plus three banks of 8-channel ADAT optical for 48 inputs and 24 outputs. Universal connectivity — Connects to a computer with audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works with any host audio software.On-board 32-bit floating point DSP with large console style mixing and effects — Flexible 48-input digital mixer with 12 stereo busses and DSP effects, including reverb with sends, plus modeled analog EQ and compression, gate, and reverb.System expansion and audio networking — Add a 2nd MOTU AVB interface (24Ao, 1248, 8M or 16A) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately). Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (hundreds of meters). Stream hundreds of audio channels among devices and computers on the network.Flexible matrix routing and splitting — Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.Web app control — Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.Stand-alone mixing with wireless control — Connect an Apple Airport™ or other Wi-Fi router directly to the 24Ai with a standard Ethernet cable and control the 24Ai's powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live sound mixing.***Check our DOWNLOADS section below for more info.***Read more

Specifications

Interface type	USB audio interfaces
Computer connection	Ethernet/USB 2.0
Analog inputs	24
Analog outputs	N/A
Digital inputs	24
Digital outputs	N/A
Type	Rack unit
Headphone outputs	N/A
Brand	MOTU

Downloads

Motu 24Ai User Manual.pdf
