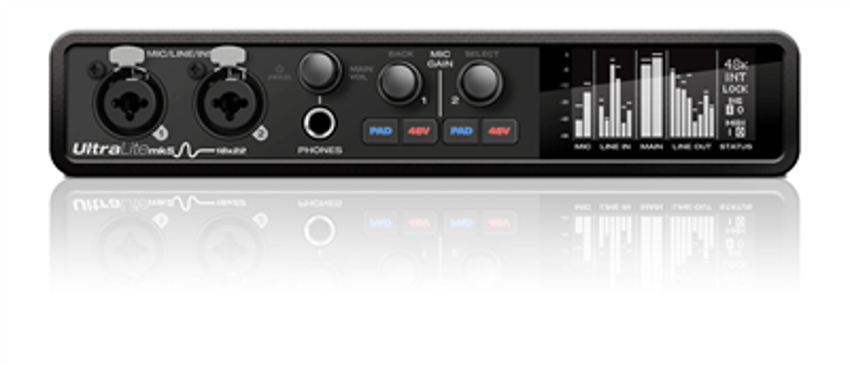

MOTU UltraLite Mk5

UltraLite-mk5 is an 18-input, 22-output USB audio interface with DSP mixing, effects processing and best-in-class analog audio quality for on-the-go mobile audio recording.
From studio to stage, the UltraLite-mk5 delivers exceptional sound quality, state-of-the-art operation and rock-solid performance.

At a glance - what is new for mk5?

Redesigned steel enclosure with molded aluminium alloy and caps Updated ESS converter technology for even higher dynamic range on inputs & outputs Re-engineered CueMix 5 software for MacOS, Win10 & iOS High-resolution, high-contrast white OLED display for precision metering Loopback channels for live streaming and podcasting5th-generation engineering delivers unprecedented sound quality, ultra-low latency and proven performance.

Sound - Best-in-class audio quality.
The UltraLite-mk5 includes renowned ESS Sabre32™ DAC technology, featuring the ES9026PRO DAC, to deliver measured 125 dB dynamic range and -114 dB THD+N. Renowned drivers deliver rock-solid performance and industry-leading low latency.

Performance - Ultra-low latency.
Optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the UltraLite-mk5 delivers an astonishing round trip latency (RTL) of 2.4 ms (milliseconds) over USB (at 96 kHz with a 32-sample host buffer).

Connectivity - 40 simultaneous audio channels
As an interface or mixer, the UltraLite-mk5 provides 18 inputs and 22 outputs, for a total of 40 simultaneous, independent I/O channels. You get 2 mic/line/instrument inputs, 6 line inputs, 10 line outputs, headphone out and 8-channel optical I/O. The optical ports alternatively support stereo TOSLink (optical S/PDIF).

Monitor Mixing with Effects - Introducing CueMix 5
CueMix 5 gives you simple, yet comprehensive graphic control over your mix. CueMix 5 is a completely new app with attractive graphic mixing, graphic editing of parametric EQ, and a convenient touch-friendly interface for quick access to all mixing features, digitally controlled trims and other settings in your UltraLite-mk5.

Livestreaming & Podcasting has never been easier
The UltraLite-mk5 provides convenient loopback channels to your host computer or iOS device, so you can easily route computer output, along with a mix of live inputs from the UltraLite-mk5 itself, back to the computer, where you can record it back into your podcasting host software or stream it live to the internet. Streaming and podcasting has never been easier and better-sounding!

***Check our DOWNLOADS section below for more info.***

Read more

Specifications

Interface type	USB audio interfaces
Computer connection	USB-C
Analog inputs	8
Analog outputs	10
Digital inputs	10
Digital outputs	10
Type	Portable interface
Headphone outputs	1
Brand	MOTU

Downloads

MOTU UltraLite Mk5 — Translation EN (PDF)

MOTU UltraLite Mk5 — Translation NL (PDF)

MOTU UltraLite Mk5 High-Res Images
