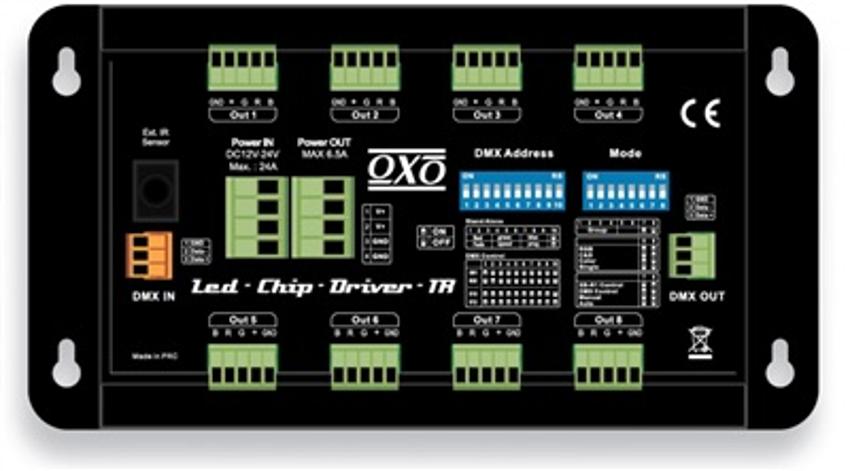

Power requirement : 24VDC,24A max Power in and out terminal sockets 8 output terminal sockets 3A capacity for each output (50 LEDCHIP) DMX in and out terminal socket 1 Infrared connect socket DMX 512 digital control 10 patterns plus a sequence of 10 patterns,chase speed & fade time adjustable Master/slave function modes available Fully controlled by DMX controller or infrared remote Loading output modes consists of RGB mode,Color mode,Color & Brightness mode and single mode DMX Control Mode,Manual Mode and Auto Mode available Different Output Group modes for user assignable RGB color intensity can be adjustable separately All work modes and parameters can be set by flipping 10-way Addressing Dip Switch an 8-way Function Dip Switch IP 20 Dimensions (mm): 195 x 110 x 22 Weight (kg): 0.2
