Article number:
67316

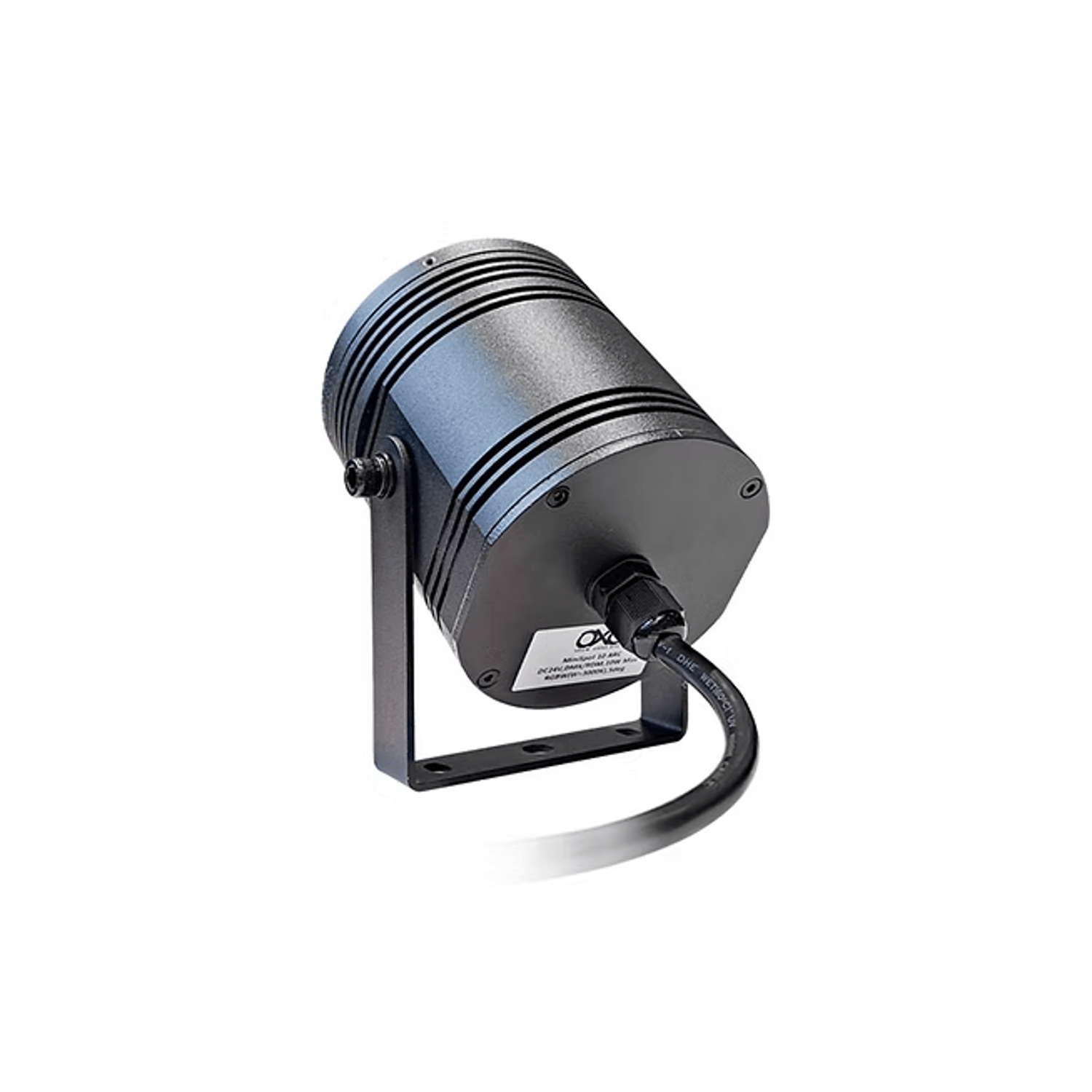

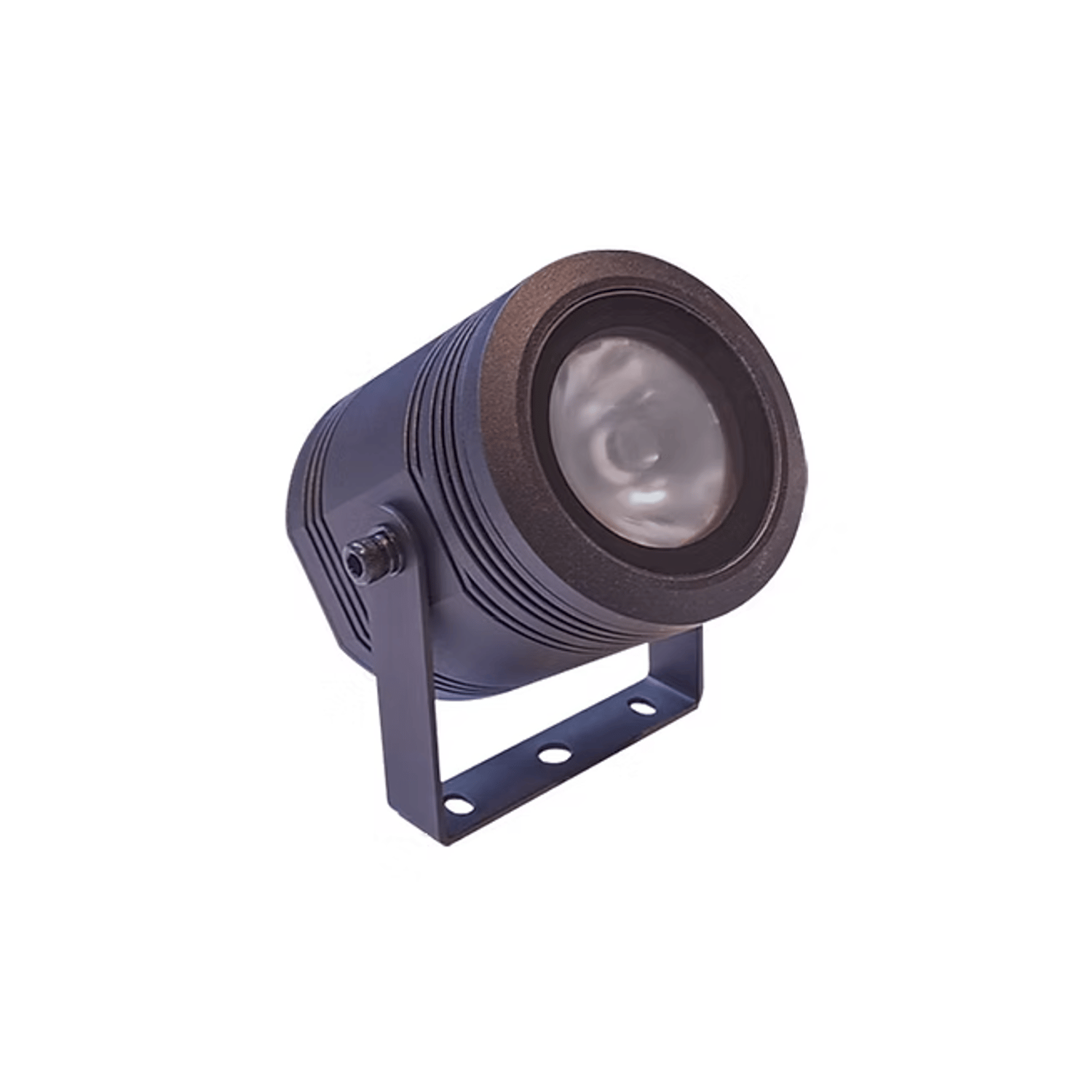

OXO MiniSpot /WW
Compact and lightweight DMX/RDM fixture delivering an effective beam for small and medium size applications. MiniSpot's 10 ARC allows various customized solutions as LED ligtsources and numerous beam apertures.
Specifications
Light source:
Customized LED sources as RGBL, RGBW, RGBA and WW (@3000K)
1 x COB LED 10W
Illuminance:
540 lumens @ max (RGBW & RGBL)
980 lumens @ max (@3000K)
L70B10 - 50 000 hours
Optic:
Customized beam apertures: 5°, 10°, 15°, 25°, 40°, 60°
Asymmetrical beam apertures: 10°x35°, 10°x60°, 30°x60°
Features:
Adjustable yoke mount
Powerful LED
Pre-set static color settings with RDM control
Die-cast aluminium
Custom RAL (on request)
DMX modes: 2
DMX channels: 1 or 4
IP Protection: IP66
Installation: Adjustable mounting yoke
Control: DMX512, RDM
Connectors:
Power supply breakout cables (L150cm)
DMX breakout cables
Operating mode: -20°C / +50°C
Power supply: 24 VDC
Power consumption: 10 W @ max
Dimensions (mm): 85 x 112,5 (incl. adjustable yoke)
Weight: 1,10 kg
Read more
Compact and lightweight DMX/RDM fixture delivering an effective beam for small and medium size applications. MiniSpot's 10 ARC allows various customized solutions as LED ligtsources and numerous beam apertures.
Specifications
Light source:
Customized LED sources as RGBL, RGBW, RGBA and WW (@3000K)
1 x COB LED 10W
Illuminance:
540 lumens @ max (RGBW & RGBL)
980 lumens @ max (@3000K)
L70B10 - 50 000 hours
Optic:
Customized beam apertures: 5°, 10°, 15°, 25°, 40°, 60°
Asymmetrical beam apertures: 10°x35°, 10°x60°, 30°x60°
Features:
Adjustable yoke mount
Powerful LED
Pre-set static color settings with RDM control
Die-cast aluminium
Custom RAL (on request)
DMX modes: 2
DMX channels: 1 or 4
IP Protection: IP66
Installation: Adjustable mounting yoke
Control: DMX512, RDM
Connectors:
Power supply breakout cables (L150cm)
DMX breakout cables
Operating mode: -20°C / +50°C
Power supply: 24 VDC
Power consumption: 10 W @ max
Dimensions (mm): 85 x 112,5 (incl. adjustable yoke)
Weight: 1,10 kg
Read more
Specifications
Fixture type | Beam lights |
Outdoor usage | Not specified |
Complimentary colors | Not specified |
Application | Install |
Colors | WW (3000K) |
Source | LED |
Brand | OXO |
