Article number:
63353

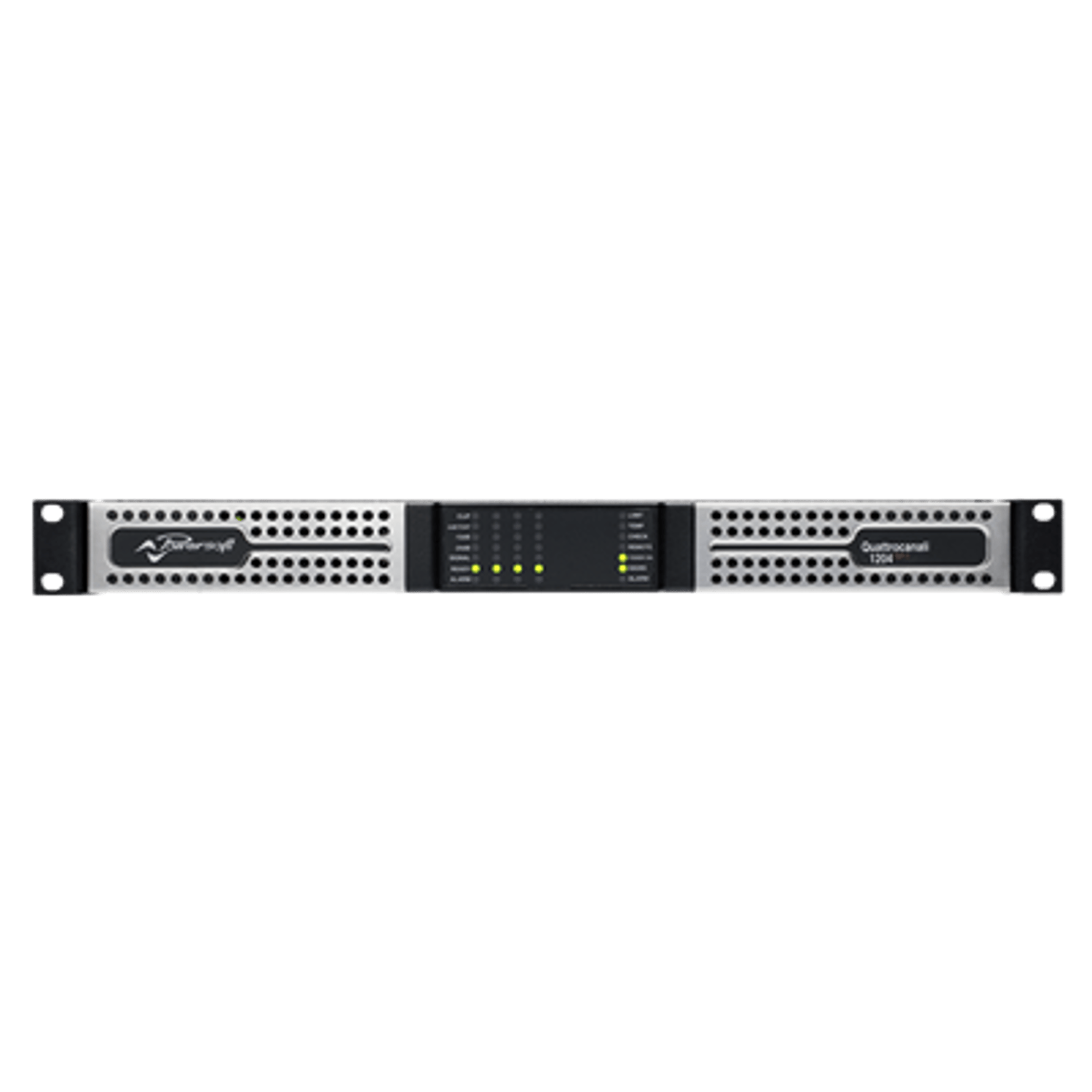

Powersoft Quattrocanali 1204 DSP+
1200W/4-channel Flexible Amplifier with DSP and AES67
OverviewQuattrocanali 1204 offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.FeaturesPower supply Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
General Fixed frequency switch-mode output stage for high grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Light weight – for easier racking and shipping: 7 kg (15.4 lbs)

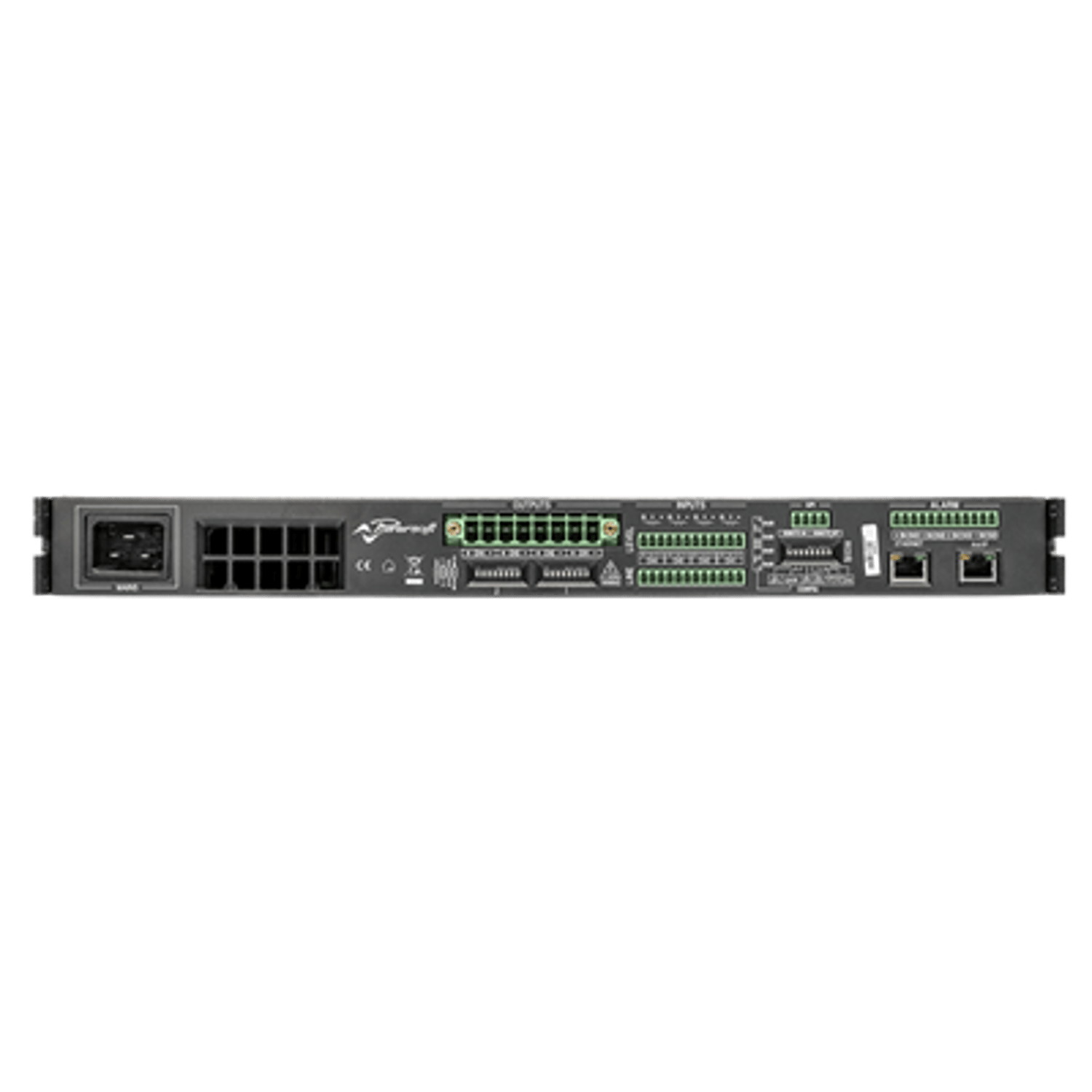

Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel
Settings Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User selectable gain/sensitivity
User selectable maximum output power for each channel
User selectable maximum mains current draw
Lockable set-up by user selectable access key code
Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
Digital Signal Processing TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters
Remote Control and Monitoring
Dedicated WebApp
High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)
SpecificationsGeneralOutput power per ChannelOutput power per Channel400 W @ 2 O300 W @ 4 O300 W @ 8 OBridge mode
800 W @ 4 O600 W @ 8 OMax output voltage / currentMax unclipped voltage @8
70 VpeakCurrent
33 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 31.1 W – 0.45 A230 V: 31.5 W – 0.25 A1/8 of max output power @ 4 O
115 V: 227 W – 2.1 A230 V: 251 W – 1.4 ATHERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipation*Idle
115 V: 106 BTU/h230 V: 107 BTU/h1/8 of max output power @ 4 O
115 V: 261 BTU/h230 V: 344 BTU/hRead more
OverviewQuattrocanali 1204 offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.FeaturesPower supply Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating rangeClip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
General Fixed frequency switch-mode output stage for high grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Light weight – for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel
Settings Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User selectable gain/sensitivity
User selectable maximum output power for each channel
User selectable maximum mains current draw
Lockable set-up by user selectable access key code
Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
Digital Signal Processing TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters
Remote Control and Monitoring
Via Software:
Control and diagnostics monitoring via ArmoniaPlusDedicated WebApp
Via Hardware:
Attenuation (from 0dB to 26dB)High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)
SpecificationsGeneralOutput power per ChannelOutput power per Channel400 W @ 2 O300 W @ 4 O300 W @ 8 OBridge mode
800 W @ 4 O600 W @ 8 OMax output voltage / currentMax unclipped voltage @8
70 VpeakCurrent
33 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 31.1 W – 0.45 A230 V: 31.5 W – 0.25 A1/8 of max output power @ 4 O
115 V: 227 W – 2.1 A230 V: 251 W – 1.4 ATHERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipation*Idle
115 V: 106 BTU/h230 V: 107 BTU/h1/8 of max output power @ 4 O
115 V: 261 BTU/h230 V: 344 BTU/hRead more
1200W/4-channel Flexible Amplifier with DSP and AES67
OverviewQuattrocanali 1204 offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.FeaturesPower supply Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
General Fixed frequency switch-mode output stage for high grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Light weight – for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel
Settings Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User selectable gain/sensitivity
User selectable maximum output power for each channel
User selectable maximum mains current draw
Lockable set-up by user selectable access key code
Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
Digital Signal Processing TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters
Remote Control and Monitoring
Dedicated WebApp
High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)
SpecificationsGeneralOutput power per ChannelOutput power per Channel400 W @ 2 O300 W @ 4 O300 W @ 8 OBridge mode
800 W @ 4 O600 W @ 8 OMax output voltage / currentMax unclipped voltage @8
70 VpeakCurrent
33 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 31.1 W – 0.45 A230 V: 31.5 W – 0.25 A1/8 of max output power @ 4 O
115 V: 227 W – 2.1 A230 V: 251 W – 1.4 ATHERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipation*Idle
115 V: 106 BTU/h230 V: 107 BTU/h1/8 of max output power @ 4 O
115 V: 261 BTU/h230 V: 344 BTU/hRead more
OverviewQuattrocanali 1204 offers the traditionally amazing sound quality and reliability of all Powersoft products.The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduces power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.Quattrocanali is designed to operate with Lo-Z (from 2 O) and 70V/100V distributed lines or any mix of the two. DSP+ versions of the Quattrocanali grant in-depth control and monitoring via ArmoníaPlus, tailoring the sound and managing the system can be done in a remote, decentralized location.DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture.This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.MyPowersoft services are available for this product.FeaturesPower supply Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating rangeClip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
General Fixed frequency switch-mode output stage for high grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Light weight – for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel
Settings Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User selectable gain/sensitivity
User selectable maximum output power for each channel
User selectable maximum mains current draw
Lockable set-up by user selectable access key code
Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
Digital Signal Processing TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControl™ for cable compensation
Peak, RMS voltage, RMS current, TruePower™ limiters
Remote Control and Monitoring
Via Software:
Control and diagnostics monitoring via ArmoniaPlusDedicated WebApp
Via Hardware:
Attenuation (from 0dB to 26dB)High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)
SpecificationsGeneralOutput power per ChannelOutput power per Channel400 W @ 2 O300 W @ 4 O300 W @ 8 OBridge mode
800 W @ 4 O600 W @ 8 OMax output voltage / currentMax unclipped voltage @8
70 VpeakCurrent
33 ApeakAC main powerPower supplyUniversal, regulated switch mode with PFC (Power Factor Correction)Nominal power requirement
100-240 V ±10%, 50-60 HzOperating voltage
90 V – 264 VPower consumption/current drawIdle
115 V: 31.1 W – 0.45 A230 V: 31.5 W – 0.25 A1/8 of max output power @ 4 O
115 V: 227 W – 2.1 A230 V: 251 W – 1.4 ATHERMALOperating temperature range
0° – 45° C – 32° – 113° FThermal dissipation*Idle
115 V: 106 BTU/h230 V: 107 BTU/h1/8 of max output power @ 4 O
115 V: 261 BTU/h230 V: 344 BTU/hRead more
Specifications
| Brand | Powersoft |
