Powersoft T304 A (DSP only)
3000W/4-channel High-performance Amplifier with DSP
Overview
- The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
- All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
- MyPowersoft services are available for this product
Features

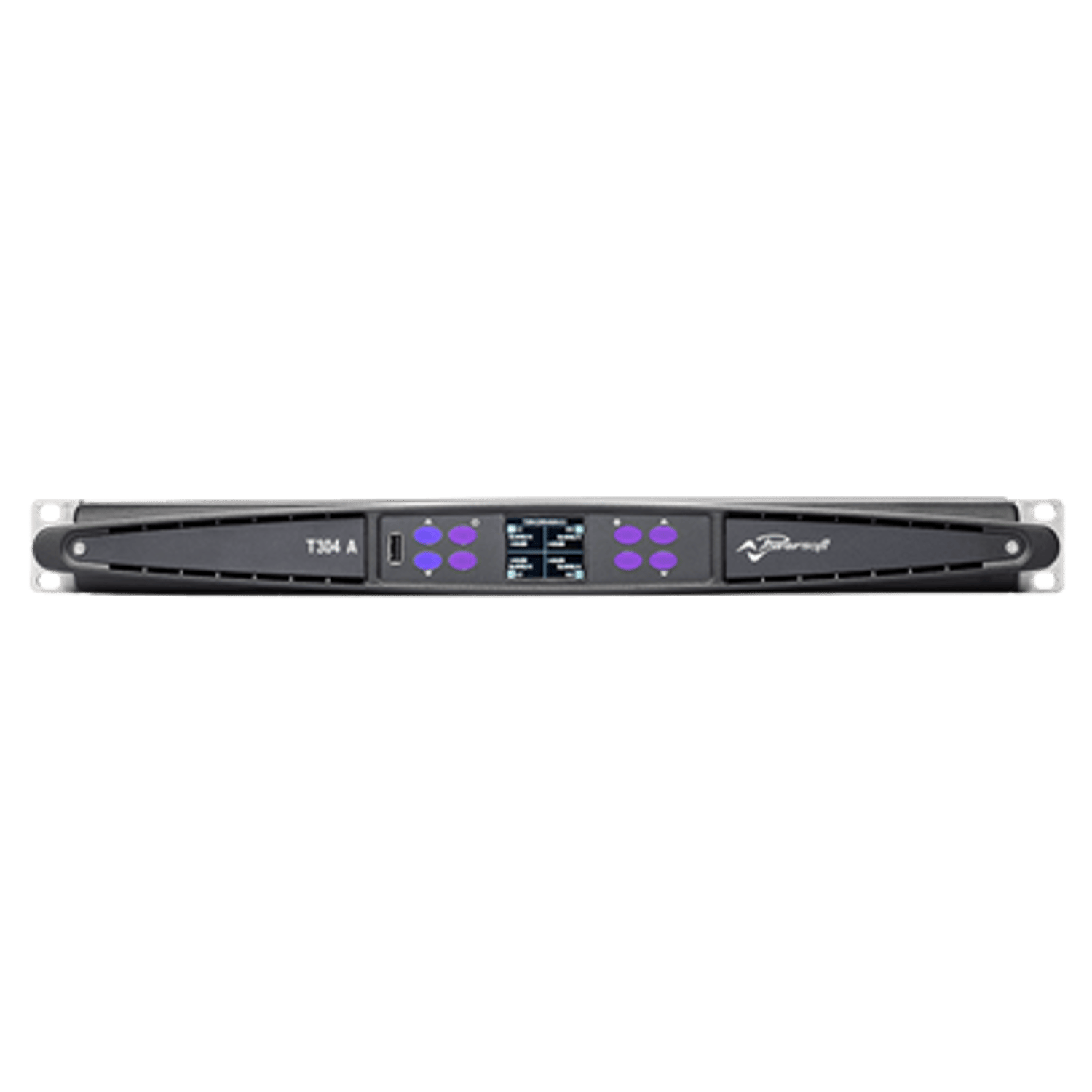

The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways. Full control with a PC running Armonía. Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters. Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control. Group controllable advanced EQ with raised cosine filters Large preset library Preset compatibility with X Series Very long FIR filters (42.6 ms) Control and monitoring through ArmoníaPlusSpecifications General Output power per channel Output power per channel 750W @ 2 O 750 W @ 4 O 750 W @ 8 O Bridge mode
1500 W @ 4 O 1500 W @ 8 O Max output voltage / current Max unclipped output voltage @8 O
145 Vpeak Current
50 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/ Current draw 1/8 of max output power @ 4 O
120 V: 537 W – 4.7 A 230 V: 525 W – 2.7 A THERMAL Thermal dissipation 1/8 of max output power @ 4 O
120 V: 537 BTU/h -135.3 kcal/h 230 V: 512 BTU/h -129.0 kcal/h Read more
Overview
- The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
- All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
- MyPowersoft services are available for this product
Features
The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways. Full control with a PC running Armonía. Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters. Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control. Group controllable advanced EQ with raised cosine filters Large preset library Preset compatibility with X Series Very long FIR filters (42.6 ms) Control and monitoring through ArmoníaPlusSpecifications General Output power per channel Output power per channel 750W @ 2 O 750 W @ 4 O 750 W @ 8 O Bridge mode
1500 W @ 4 O 1500 W @ 8 O Max output voltage / current Max unclipped output voltage @8 O
145 Vpeak Current
50 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/ Current draw 1/8 of max output power @ 4 O
120 V: 537 W – 4.7 A 230 V: 525 W – 2.7 A THERMAL Thermal dissipation 1/8 of max output power @ 4 O
120 V: 537 BTU/h -135.3 kcal/h 230 V: 512 BTU/h -129.0 kcal/h Read more
3000W/4-channel High-performance Amplifier with DSP
Overview
- The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
- All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
- MyPowersoft services are available for this product
Features
The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways. Full control with a PC running Armonía. Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters. Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control. Group controllable advanced EQ with raised cosine filters Large preset library Preset compatibility with X Series Very long FIR filters (42.6 ms) Control and monitoring through ArmoníaPlusSpecifications General Output power per channel Output power per channel 750W @ 2 O 750 W @ 4 O 750 W @ 8 O Bridge mode
1500 W @ 4 O 1500 W @ 8 O Max output voltage / current Max unclipped output voltage @8 O
145 Vpeak Current
50 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/ Current draw 1/8 of max output power @ 4 O
120 V: 537 W – 4.7 A 230 V: 525 W – 2.7 A THERMAL Thermal dissipation 1/8 of max output power @ 4 O
120 V: 537 BTU/h -135.3 kcal/h 230 V: 512 BTU/h -129.0 kcal/h Read more
Overview
- The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
- All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
- MyPowersoft services are available for this product
Features
The loudspeaker processing sets a new benchmark for cost-effective amplification for small and medium-sized systems and stage monitors. The T Series can be controlled and configured in different ways. Full control with a PC running Armonía. Control from the front panel display for features like preset recall (also per output), gain, delay, mute. This makes it very easy to use for small systems in a rental company. The display also shows the available headroom with easy to read numbers in dB as well as other status monitoring parameters. Web app. Use any device with a browser (e.g. a tablet) and access the amplifier via an external WiFi access point for easy control. Group controllable advanced EQ with raised cosine filters Large preset library Preset compatibility with X Series Very long FIR filters (42.6 ms) Control and monitoring through ArmoníaPlusSpecifications General Output power per channel Output power per channel 750W @ 2 O 750 W @ 4 O 750 W @ 8 O Bridge mode
1500 W @ 4 O 1500 W @ 8 O Max output voltage / current Max unclipped output voltage @8 O
145 Vpeak Current
50 Apeak AC main power Power supply Universal, regulated switch mode with PFC (Power Factor Correction) Nominal power requirement
100-240 V ±10%, 50-60 Hz Operating voltage
90 V – 264 V Power consumption/ Current draw 1/8 of max output power @ 4 O
120 V: 537 W – 4.7 A 230 V: 525 W – 2.7 A THERMAL Thermal dissipation 1/8 of max output power @ 4 O
120 V: 537 BTU/h -135.3 kcal/h 230 V: 512 BTU/h -129.0 kcal/h Read more
Specifications
| Type | DSP |
| Brand | Powersoft |
