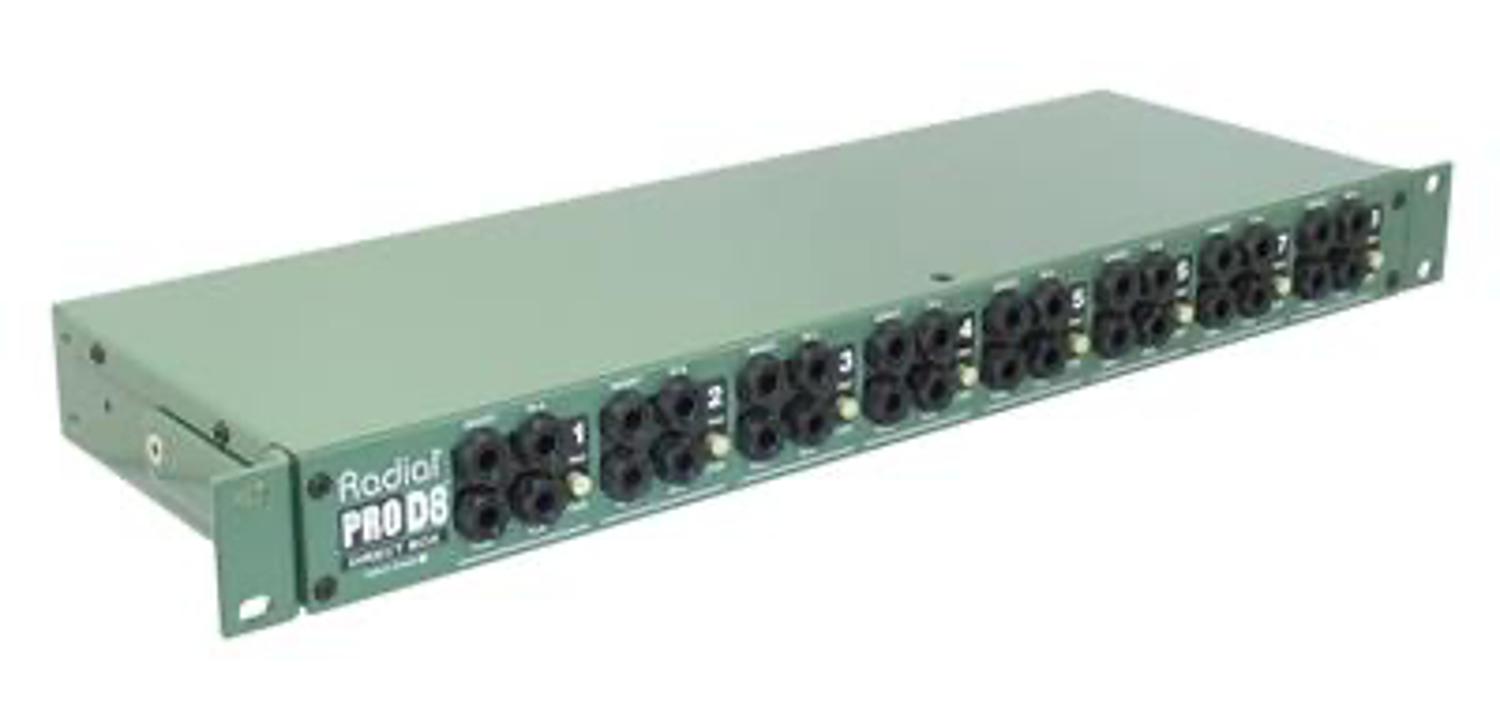

Radial ProD8
The engine inside is a custom wound Eclipse ET-DB2 transformer that performs both the impedance matching and balancing. Linear from 20Hz to 20kHz, it is able to withstand the extreme dynamics common with today's digital keyboards. Unlike active circuits that overload and square wave when the rail voltage is exceeded, transformers saturate. This means that as the signal increases, the ProD8 naturally rounds out the tone producing a warm Bessel curve reminiscent of the very best vintage audio gear. The other significant advantage to this passive design is 100% galvanic isolation between the source and destination. This eliminates hum and buzz caused by ground loops, resulting in a quieter stage.

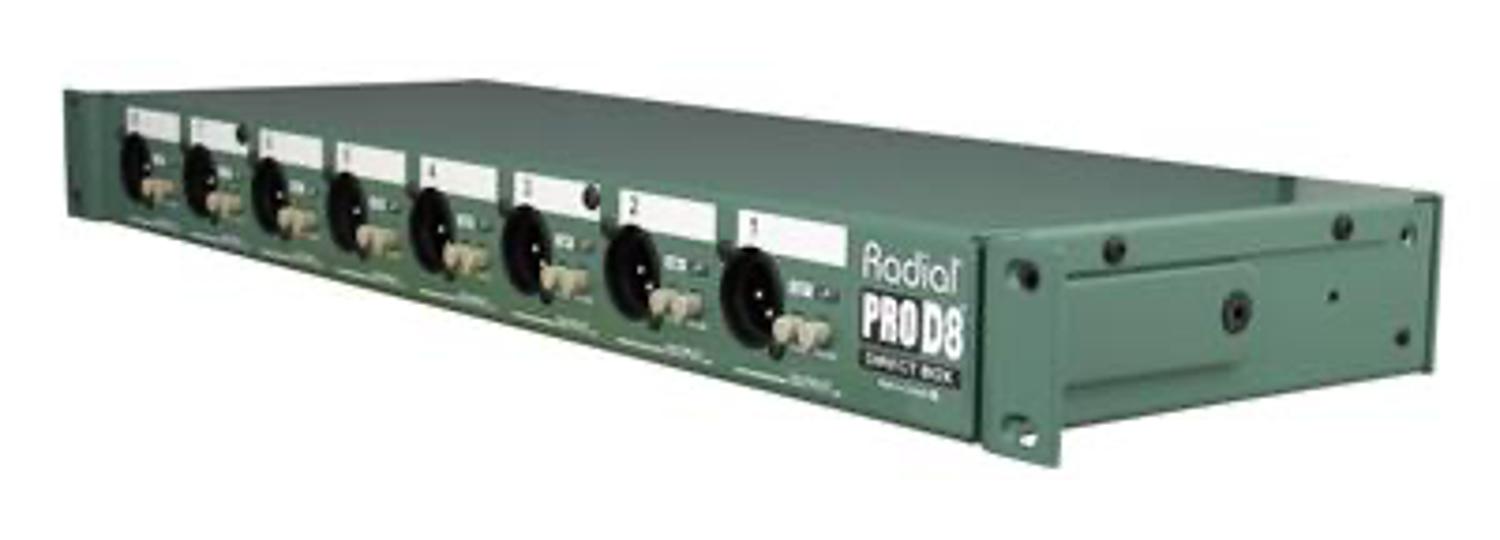

The output panel features isolated XLRs each equipped with ground lift and 180º polarity reverse. Internal switches may be routed to accommodate various schemes such as star grounding. To enhance setup options, the Radial ProD8 is equipped with reversible rack ears. This handy feature allows the system tech to position the inputs on the front of the rack when interfacing with external keyboards or have them inside if the setup is predominantly equipped with rack modules.
The Radial ProD8 delivers unsurpassed audio quality, is able to withstand extreme dynamics, eliminates noise and presents a wide range of setup options. It is no wonder that it has become the world's most popular rack DI for concert touring.

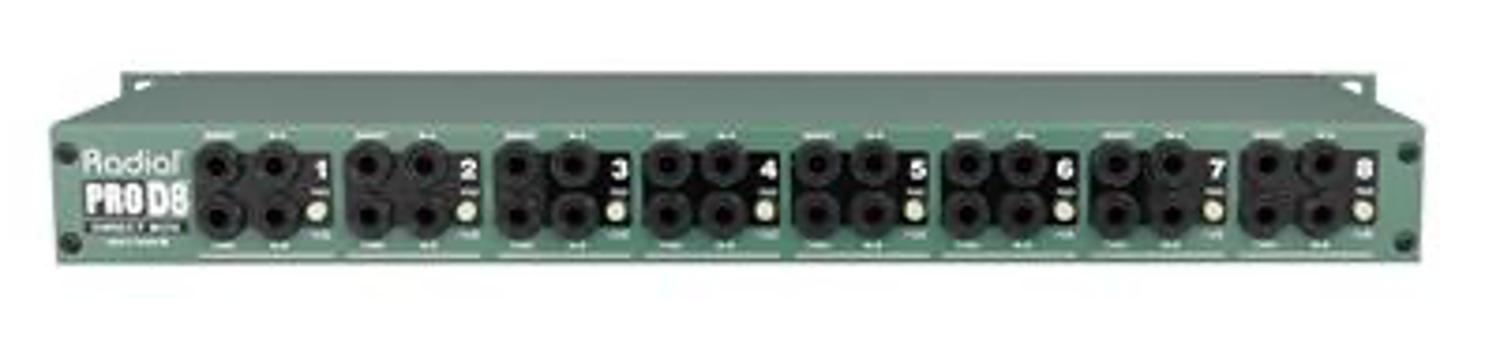

High density 8-channel rackmount DI for keyboardsWithstands extreme dynamics from digital sourcesRedundant inputs let you incorporate backup systemReversible rack ears to optimize patching setup***Check our DOWNLOADS section below for more info.***

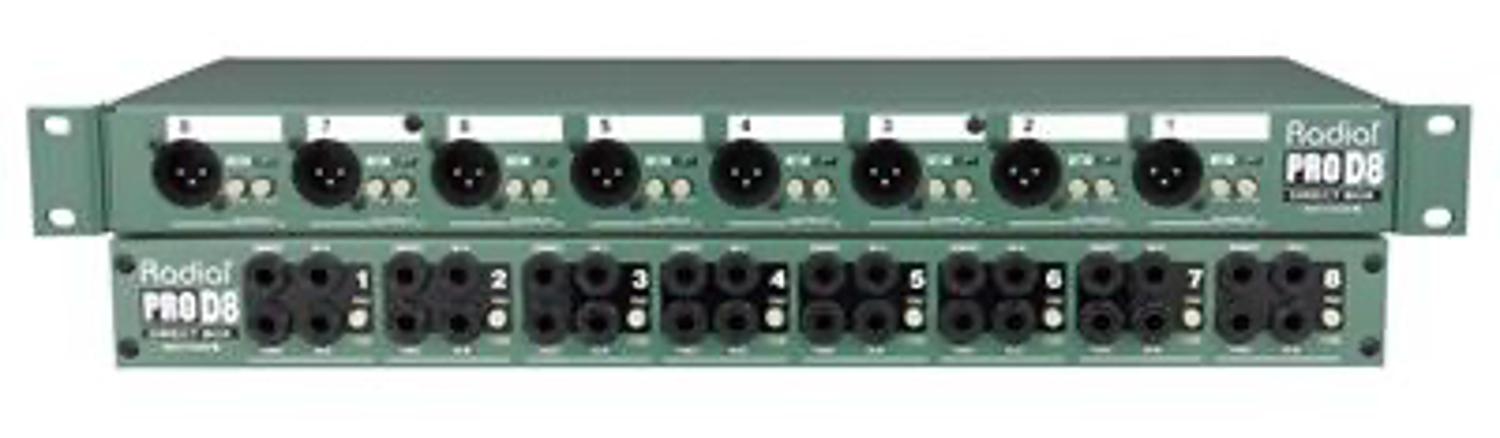

Read moreThe engine inside is a custom wound Eclipse ET-DB2 transformer that performs both the impedance matching and balancing. Linear from 20Hz to 20kHz, it is able to withstand the extreme dynamics common with today's digital keyboards. Unlike active circuits that overload and square wave when the rail voltage is exceeded, transformers saturate. This means that as the signal increases, the ProD8 naturally rounds out the tone producing a warm Bessel curve reminiscent of the very best vintage audio gear. The other significant advantage to this passive design is 100% galvanic isolation between the source and destination. This eliminates hum and buzz caused by ground loops, resulting in a quieter stage.
The output panel features isolated XLRs each equipped with ground lift and 180º polarity reverse. Internal switches may be routed to accommodate various schemes such as star grounding. To enhance setup options, the Radial ProD8 is equipped with reversible rack ears. This handy feature allows the system tech to position the inputs on the front of the rack when interfacing with external keyboards or have them inside if the setup is predominantly equipped with rack modules.
The Radial ProD8 delivers unsurpassed audio quality, is able to withstand extreme dynamics, eliminates noise and presents a wide range of setup options. It is no wonder that it has become the world's most popular rack DI for concert touring.
High density 8-channel rackmount DI for keyboardsWithstands extreme dynamics from digital sourcesRedundant inputs let you incorporate backup systemReversible rack ears to optimize patching setup***Check our DOWNLOADS section below for more info.***
Read moreSpecifications
DI type | Rackmount DI |
Brand | Radial |
