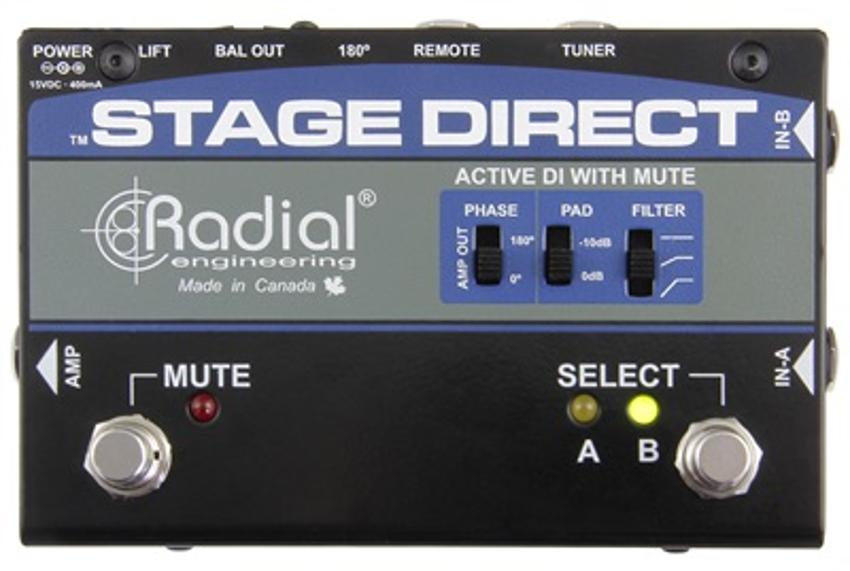

Radial StageDirect
The Radial StageDirect is a state-of-the-art active direct box designed for musicians who require extra control when they are on stage. As with most DIs, the StageDirect is equipped with a hi-Z input for the instrument, a thru-put for the stage amplifier and a balanced low-Z output for the PA system. The 'extra' comes by way of a dedicated tuner output and footswitch that mutes the signal going to the PA and stage amplifier while leaving the tuner output active. This enables the artist to mute the guitar when not in use or quietly tune in between songs.
The innovative circuit design combines a class-A FET input driver with a low noise op-amp to deliver exceptional audio at all frequencies. A -15dB pad may be inserted for extra high output instruments such as active bases or electronic keyboards. Engaging the high-pass filter gently rolls off excessive bass to eliminate clutter and run-away resonant feedback. A 180° polarity reverse switch can be used to help phase align the on-stage amp with the PA or eliminate acoustic 'hot spots' on stage by electronically moving the problem out of the way.
A pair of full-sized LEDs let you know when the StageDirect is muted or ready to perform. Switching is done locally using the footswitch or may be remotely controlled by connecting a momentary (non-latching) footswitch to the dedicated ¼" connector. This enables the stage tech to mute the instrument as he hands the guitar to the artist and un-mute it as he walks off stage. Powering may be done via standard 48V phantom from the mixing console or by using the included 15VDC power supply.
Equally effective for acoustic guitar or bass, the StageDirect works as an extra stage hand by enabling the artist to change instruments without causing switching noise in the PA system.
The Radial StageDirect – Extra control is just a footstep away!
Active DI with footswitch mute & tuner outSilently switch instruments on stage without noiseEliminates feedback when instrument is not in useRemote control lets stage tech perform switching***Check our DOWNLOADS section below for more info.***
Read more
The innovative circuit design combines a class-A FET input driver with a low noise op-amp to deliver exceptional audio at all frequencies. A -15dB pad may be inserted for extra high output instruments such as active bases or electronic keyboards. Engaging the high-pass filter gently rolls off excessive bass to eliminate clutter and run-away resonant feedback. A 180° polarity reverse switch can be used to help phase align the on-stage amp with the PA or eliminate acoustic 'hot spots' on stage by electronically moving the problem out of the way.
A pair of full-sized LEDs let you know when the StageDirect is muted or ready to perform. Switching is done locally using the footswitch or may be remotely controlled by connecting a momentary (non-latching) footswitch to the dedicated ¼" connector. This enables the stage tech to mute the instrument as he hands the guitar to the artist and un-mute it as he walks off stage. Powering may be done via standard 48V phantom from the mixing console or by using the included 15VDC power supply.
Equally effective for acoustic guitar or bass, the StageDirect works as an extra stage hand by enabling the artist to change instruments without causing switching noise in the PA system.
The Radial StageDirect – Extra control is just a footstep away!
Active DI with footswitch mute & tuner outSilently switch instruments on stage without noiseEliminates feedback when instrument is not in useRemote control lets stage tech perform switching***Check our DOWNLOADS section below for more info.***
Read more
The Radial StageDirect is a state-of-the-art active direct box designed for musicians who require extra control when they are on stage. As with most DIs, the StageDirect is equipped with a hi-Z input for the instrument, a thru-put for the stage amplifier and a balanced low-Z output for the PA system. The 'extra' comes by way of a dedicated tuner output and footswitch that mutes the signal going to the PA and stage amplifier while leaving the tuner output active. This enables the artist to mute the guitar when not in use or quietly tune in between songs.
The innovative circuit design combines a class-A FET input driver with a low noise op-amp to deliver exceptional audio at all frequencies. A -15dB pad may be inserted for extra high output instruments such as active bases or electronic keyboards. Engaging the high-pass filter gently rolls off excessive bass to eliminate clutter and run-away resonant feedback. A 180° polarity reverse switch can be used to help phase align the on-stage amp with the PA or eliminate acoustic 'hot spots' on stage by electronically moving the problem out of the way.
A pair of full-sized LEDs let you know when the StageDirect is muted or ready to perform. Switching is done locally using the footswitch or may be remotely controlled by connecting a momentary (non-latching) footswitch to the dedicated ¼" connector. This enables the stage tech to mute the instrument as he hands the guitar to the artist and un-mute it as he walks off stage. Powering may be done via standard 48V phantom from the mixing console or by using the included 15VDC power supply.
Equally effective for acoustic guitar or bass, the StageDirect works as an extra stage hand by enabling the artist to change instruments without causing switching noise in the PA system.
The Radial StageDirect – Extra control is just a footstep away!
Active DI with footswitch mute & tuner outSilently switch instruments on stage without noiseEliminates feedback when instrument is not in useRemote control lets stage tech perform switching***Check our DOWNLOADS section below for more info.***
Read more
The innovative circuit design combines a class-A FET input driver with a low noise op-amp to deliver exceptional audio at all frequencies. A -15dB pad may be inserted for extra high output instruments such as active bases or electronic keyboards. Engaging the high-pass filter gently rolls off excessive bass to eliminate clutter and run-away resonant feedback. A 180° polarity reverse switch can be used to help phase align the on-stage amp with the PA or eliminate acoustic 'hot spots' on stage by electronically moving the problem out of the way.
A pair of full-sized LEDs let you know when the StageDirect is muted or ready to perform. Switching is done locally using the footswitch or may be remotely controlled by connecting a momentary (non-latching) footswitch to the dedicated ¼" connector. This enables the stage tech to mute the instrument as he hands the guitar to the artist and un-mute it as he walks off stage. Powering may be done via standard 48V phantom from the mixing console or by using the included 15VDC power supply.
Equally effective for acoustic guitar or bass, the StageDirect works as an extra stage hand by enabling the artist to change instruments without causing switching noise in the PA system.
The Radial StageDirect – Extra control is just a footstep away!
Active DI with footswitch mute & tuner outSilently switch instruments on stage without noiseEliminates feedback when instrument is not in useRemote control lets stage tech perform switching***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Type | Guitar switchers |
| Brand | Radial |
