Article number:
66356
Article GTIN:
658580646868

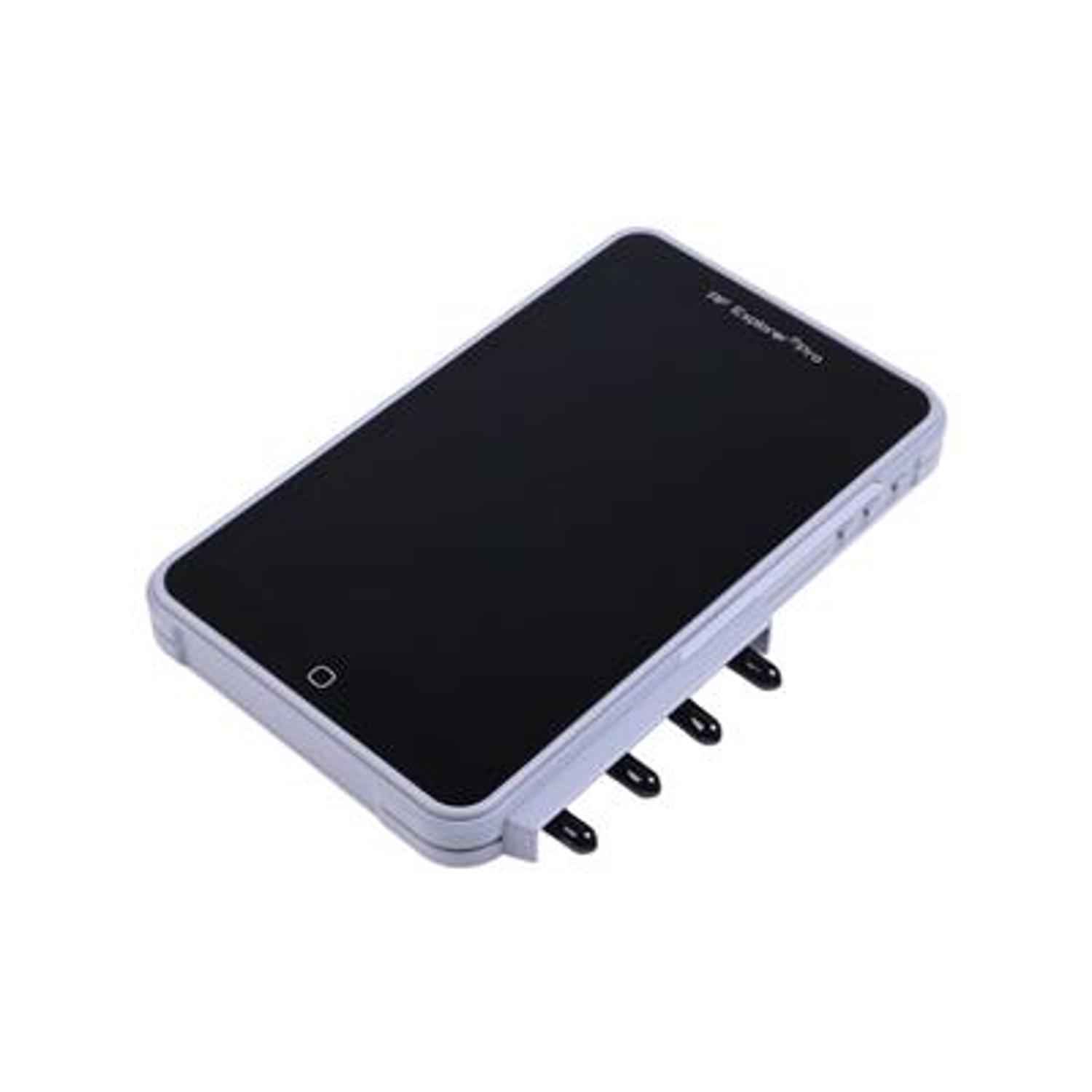

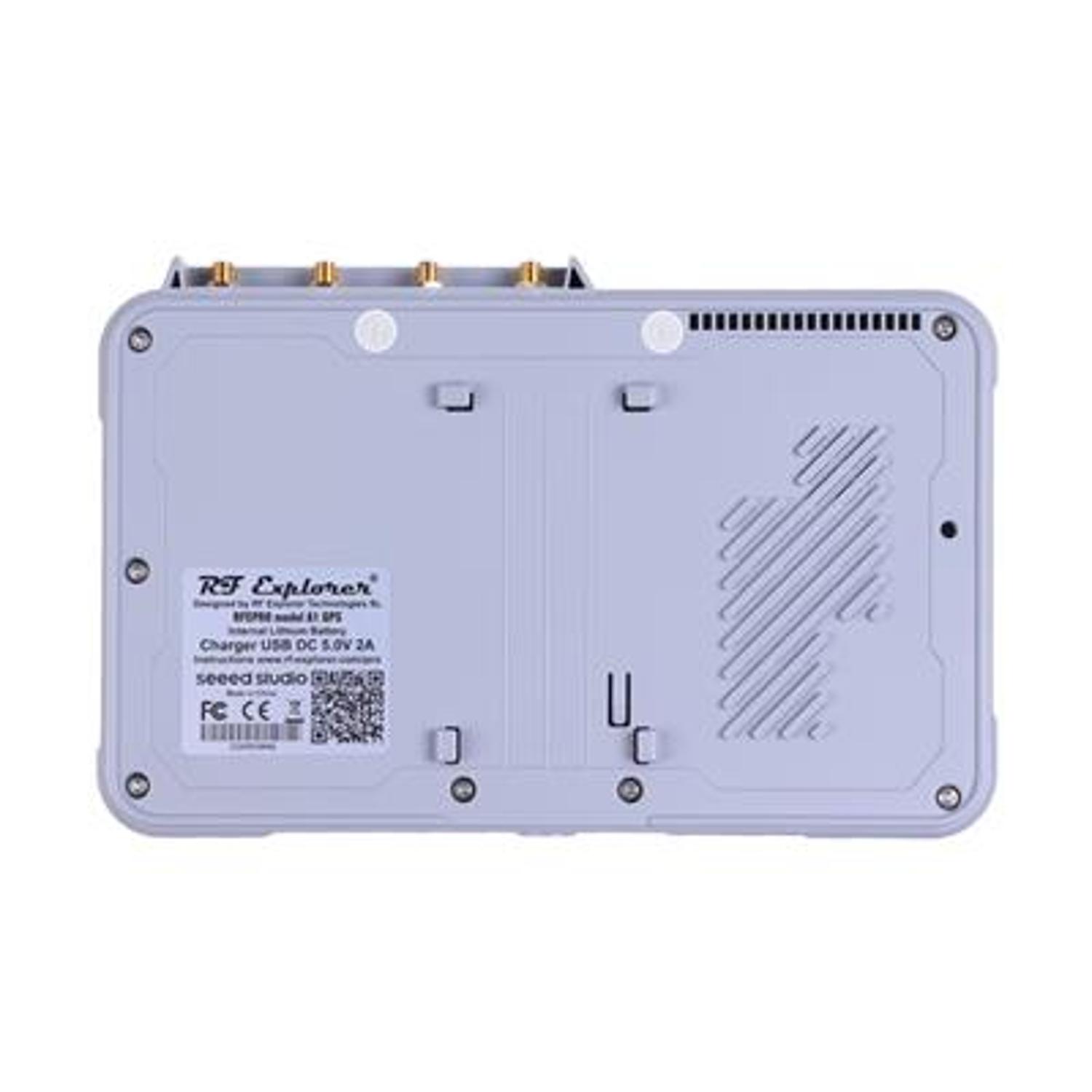

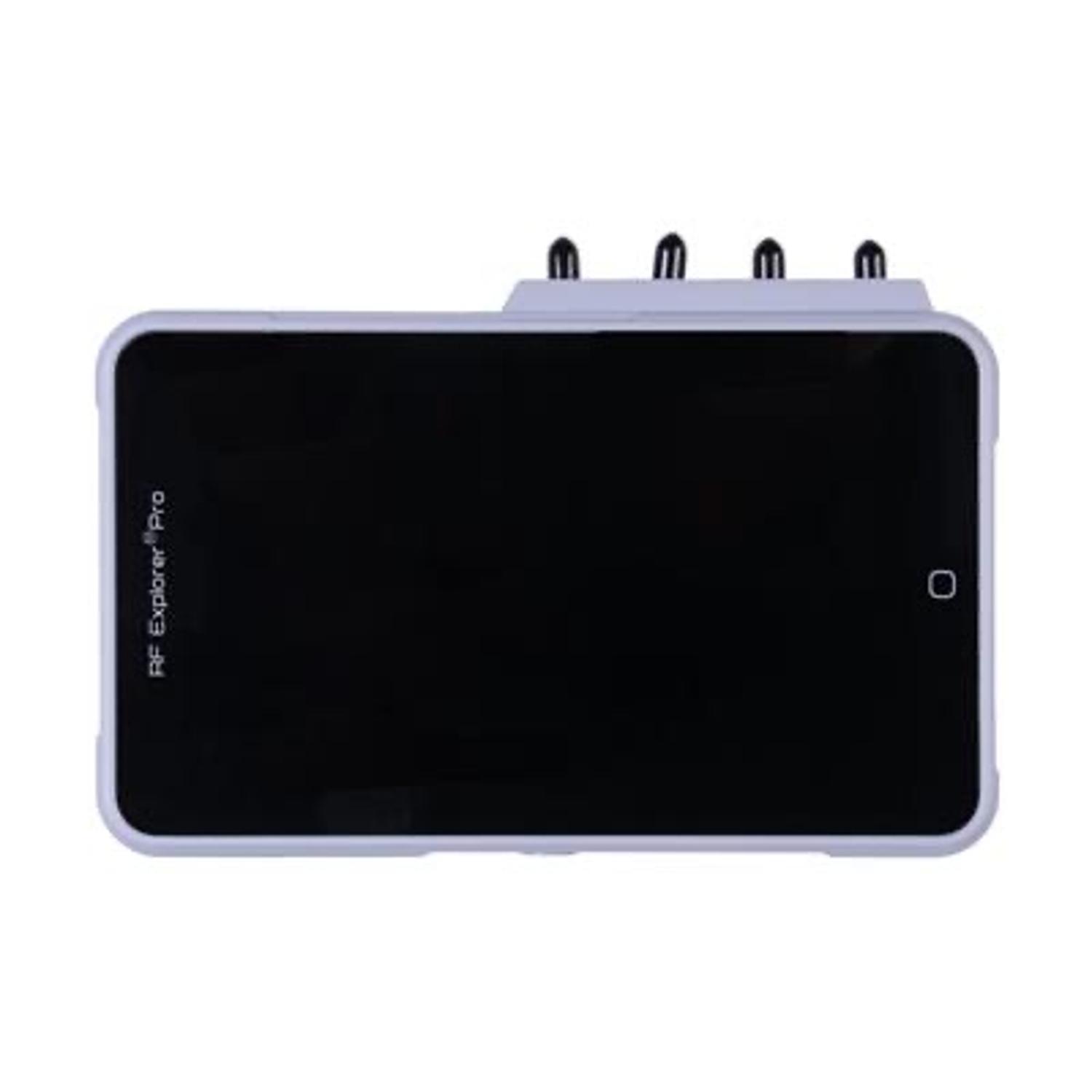

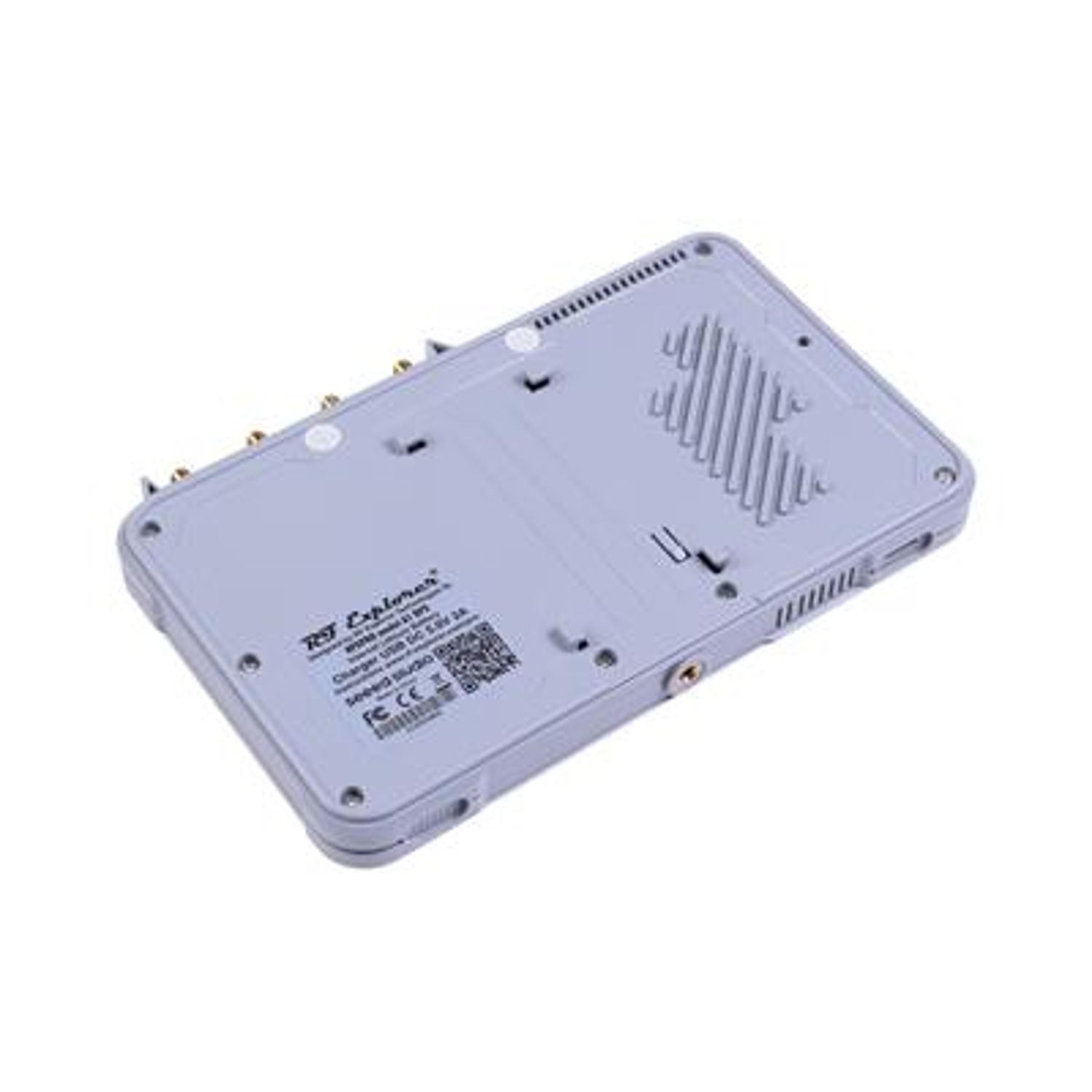

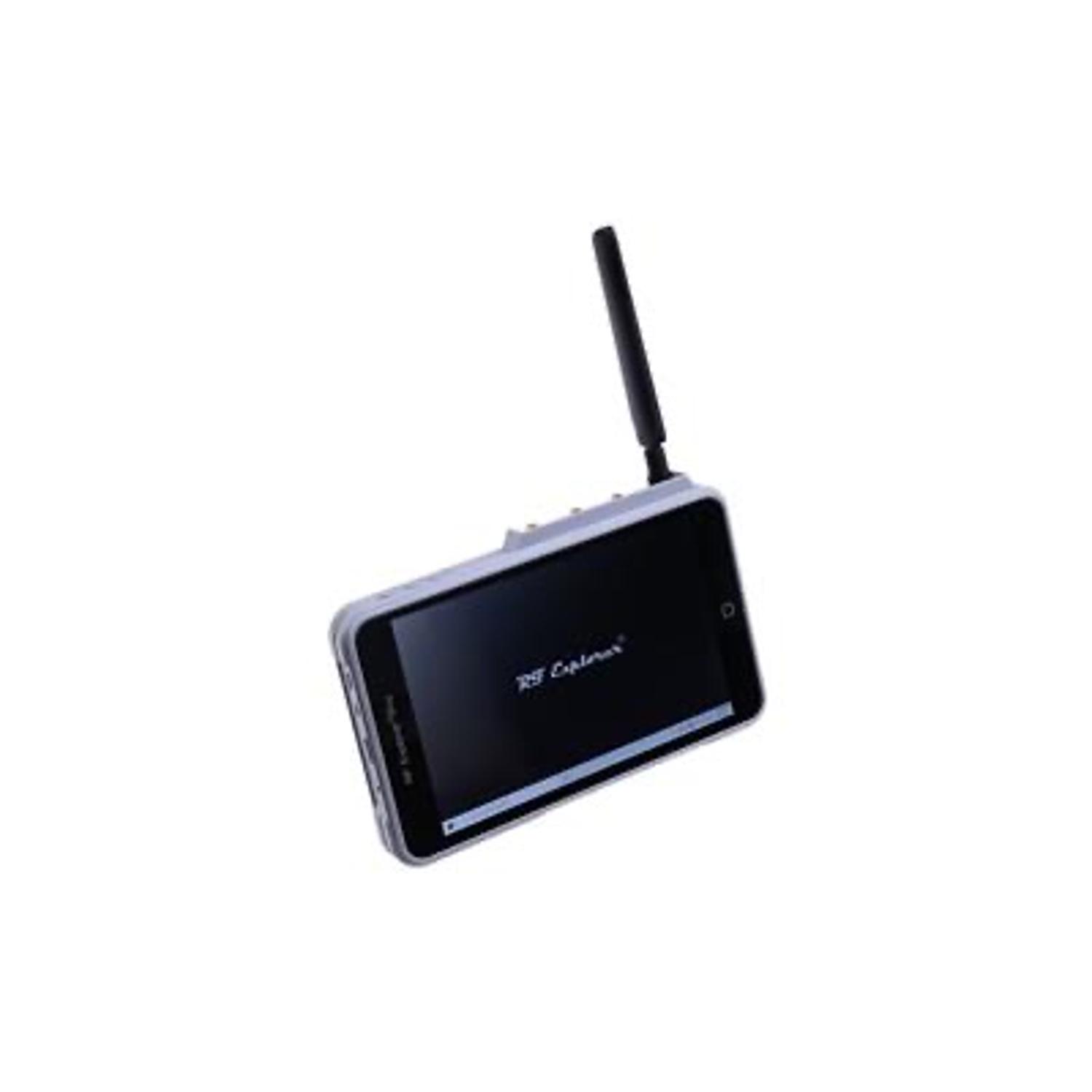

RF Venue Explorer Pro

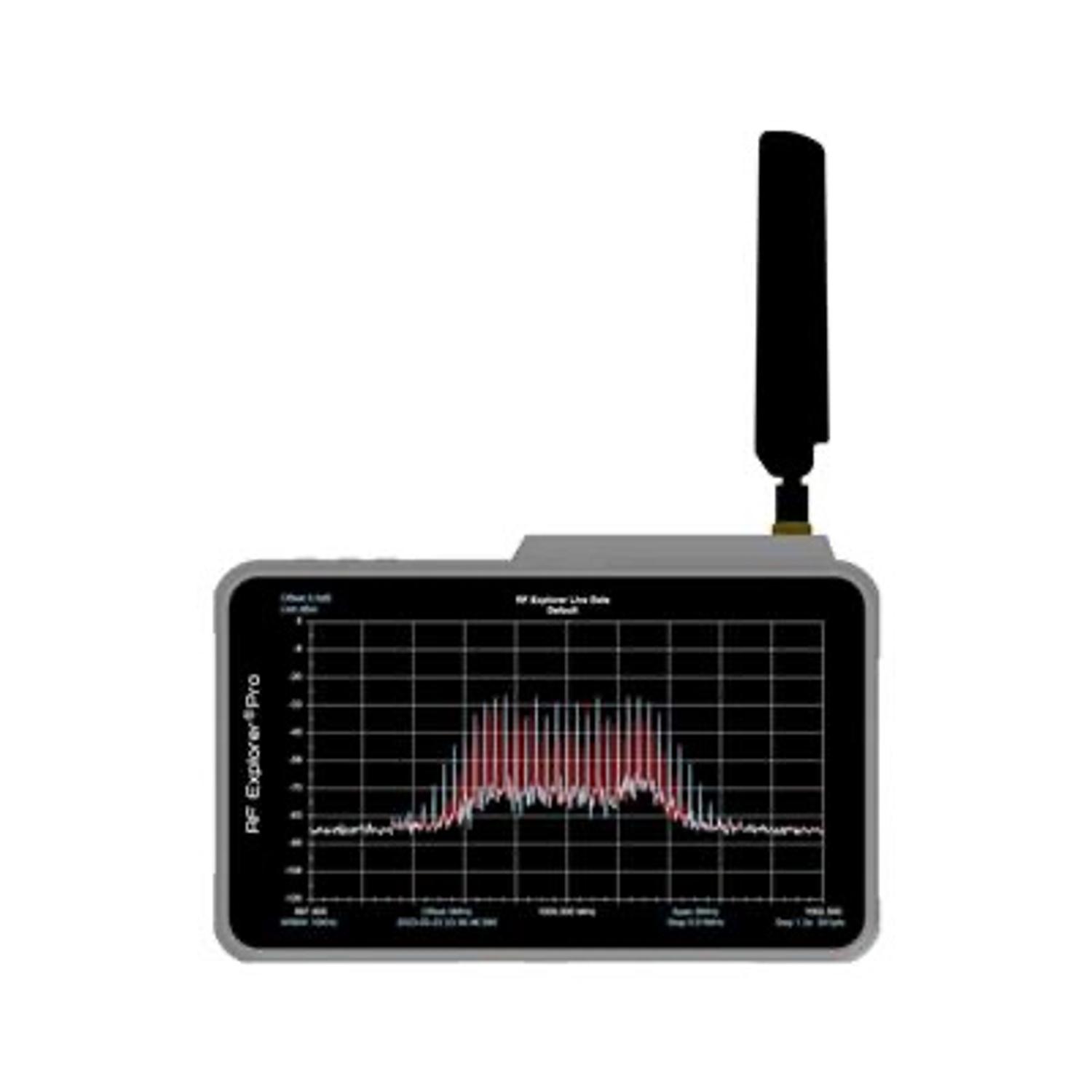

RF Explorer® Pro is a 3rd generation, high-performance instrument for wireless audio system design, deployment, and monitoring. With its integrated Spectrum Analyzer, Signal Tracking Generator, and WiFi Analysis it offers advanced functionality with an intuitive touch screen to support any wireless mic or in-ear monitor system.
RF Explorer Pro also features a dedicated WiFi Analyzer mode built-in for working with wireless data networks and the ever growing list of live performance tools operating in the 2.4 and 5 GHz frequency bands. WiFi Analyzer mode lets you quickly visualize these often congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control.
SMA Spectrum analyzer input: Interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters or other sources to directly measure performance of your system, debug issues, and fine tune performance. HDMI output: Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range. What's included: USB charger and padded carrying case included.Accessories
Frequency range: 15MHz to 3.3GHz baseline / 15MHz to 6.1GHz license 6G / 15MHz to 7.5GHz license 7G / 100KHz-240MHz additional range with external RF Explorer upconverter module Signal generator/tracking range: 24MHz to 6GHz shared license with spectrum analyzer mode Wideband power meter range: 10MHz to 8GHz no license required Frequency Span: 0Hz (zero span) / 500KHz to 6GHz (sweep) Rbw: 3Khz 2.5MHz / future firmware upgrade will enable 100Hz 2.5MHz Sweep time: 280ms Frequency stability: TCXO ±0.5ppm Amplitude accuracy: ±1.5dB Dynamic range: direct: -110dBm to +10dBm / preamplifier LNA: -130dBm to -30dBm / attenuator: -80dBm to +33dBm Noise floor: -160dBm/Hz Battery lifetime: 3.5hs 5hs Device weight: 570 g / 20 oz Device size: 215x140x25mmRead more
RF Explorer Pro also features a dedicated WiFi Analyzer mode built-in for working with wireless data networks and the ever growing list of live performance tools operating in the 2.4 and 5 GHz frequency bands. WiFi Analyzer mode lets you quickly visualize these often congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control.
SMA Spectrum analyzer input: Interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters or other sources to directly measure performance of your system, debug issues, and fine tune performance. HDMI output: Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range. What's included: USB charger and padded carrying case included.Accessories

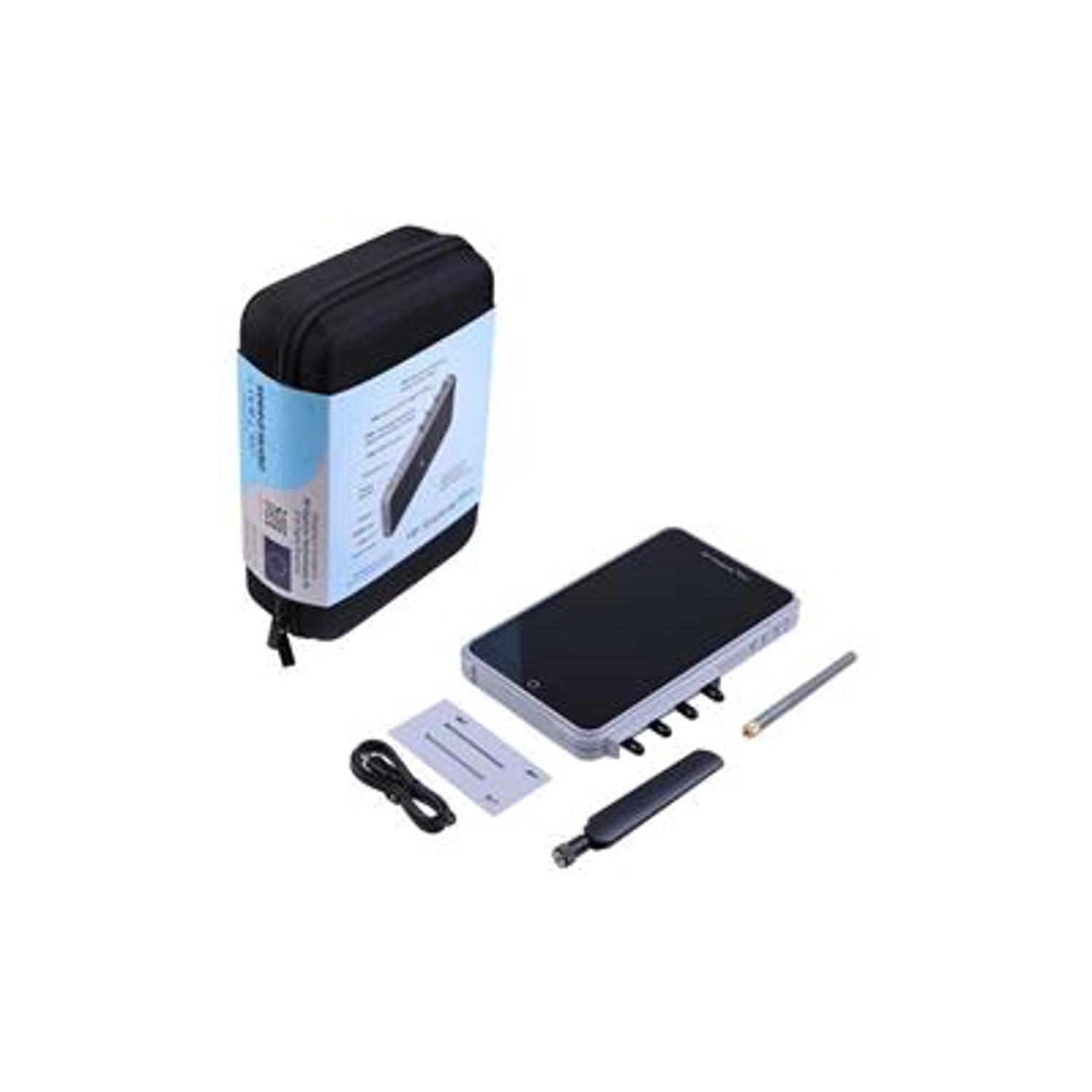

This RF explorer pro spectrum analyzer comes with the following accessories:
Rubber duck SMA antenna (400-900 MHz) Black SMA antenna (900-6000 MHz) Type-C USB cable Storage caseSpecificationsFrequency range: 15MHz to 3.3GHz baseline / 15MHz to 6.1GHz license 6G / 15MHz to 7.5GHz license 7G / 100KHz-240MHz additional range with external RF Explorer upconverter module Signal generator/tracking range: 24MHz to 6GHz shared license with spectrum analyzer mode Wideband power meter range: 10MHz to 8GHz no license required Frequency Span: 0Hz (zero span) / 500KHz to 6GHz (sweep) Rbw: 3Khz 2.5MHz / future firmware upgrade will enable 100Hz 2.5MHz Sweep time: 280ms Frequency stability: TCXO ±0.5ppm Amplitude accuracy: ±1.5dB Dynamic range: direct: -110dBm to +10dBm / preamplifier LNA: -130dBm to -30dBm / attenuator: -80dBm to +33dBm Noise floor: -160dBm/Hz Battery lifetime: 3.5hs 5hs Device weight: 570 g / 20 oz Device size: 215x140x25mmRead more
RF Explorer® Pro is a 3rd generation, high-performance instrument for wireless audio system design, deployment, and monitoring. With its integrated Spectrum Analyzer, Signal Tracking Generator, and WiFi Analysis it offers advanced functionality with an intuitive touch screen to support any wireless mic or in-ear monitor system.
RF Explorer Pro also features a dedicated WiFi Analyzer mode built-in for working with wireless data networks and the ever growing list of live performance tools operating in the 2.4 and 5 GHz frequency bands. WiFi Analyzer mode lets you quickly visualize these often congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control.
SMA Spectrum analyzer input: Interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters or other sources to directly measure performance of your system, debug issues, and fine tune performance. HDMI output: Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range. What's included: USB charger and padded carrying case included.Accessories
Frequency range: 15MHz to 3.3GHz baseline / 15MHz to 6.1GHz license 6G / 15MHz to 7.5GHz license 7G / 100KHz-240MHz additional range with external RF Explorer upconverter module Signal generator/tracking range: 24MHz to 6GHz shared license with spectrum analyzer mode Wideband power meter range: 10MHz to 8GHz no license required Frequency Span: 0Hz (zero span) / 500KHz to 6GHz (sweep) Rbw: 3Khz 2.5MHz / future firmware upgrade will enable 100Hz 2.5MHz Sweep time: 280ms Frequency stability: TCXO ±0.5ppm Amplitude accuracy: ±1.5dB Dynamic range: direct: -110dBm to +10dBm / preamplifier LNA: -130dBm to -30dBm / attenuator: -80dBm to +33dBm Noise floor: -160dBm/Hz Battery lifetime: 3.5hs 5hs Device weight: 570 g / 20 oz Device size: 215x140x25mmRead more
RF Explorer Pro also features a dedicated WiFi Analyzer mode built-in for working with wireless data networks and the ever growing list of live performance tools operating in the 2.4 and 5 GHz frequency bands. WiFi Analyzer mode lets you quickly visualize these often congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control.
SMA Spectrum analyzer input: Interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters or other sources to directly measure performance of your system, debug issues, and fine tune performance. HDMI output: Connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range. What's included: USB charger and padded carrying case included.Accessories
This RF explorer pro spectrum analyzer comes with the following accessories:
Rubber duck SMA antenna (400-900 MHz) Black SMA antenna (900-6000 MHz) Type-C USB cable Storage caseSpecificationsFrequency range: 15MHz to 3.3GHz baseline / 15MHz to 6.1GHz license 6G / 15MHz to 7.5GHz license 7G / 100KHz-240MHz additional range with external RF Explorer upconverter module Signal generator/tracking range: 24MHz to 6GHz shared license with spectrum analyzer mode Wideband power meter range: 10MHz to 8GHz no license required Frequency Span: 0Hz (zero span) / 500KHz to 6GHz (sweep) Rbw: 3Khz 2.5MHz / future firmware upgrade will enable 100Hz 2.5MHz Sweep time: 280ms Frequency stability: TCXO ±0.5ppm Amplitude accuracy: ±1.5dB Dynamic range: direct: -110dBm to +10dBm / preamplifier LNA: -130dBm to -30dBm / attenuator: -80dBm to +33dBm Noise floor: -160dBm/Hz Battery lifetime: 3.5hs 5hs Device weight: 570 g / 20 oz Device size: 215x140x25mmRead more
Specifications
Accessory type | Spectrum scanner |
Brand | RF Venue |
