- Shure UABIAST In-Line Power Adapter
Article number:
37393
Article GTIN:
42406326711

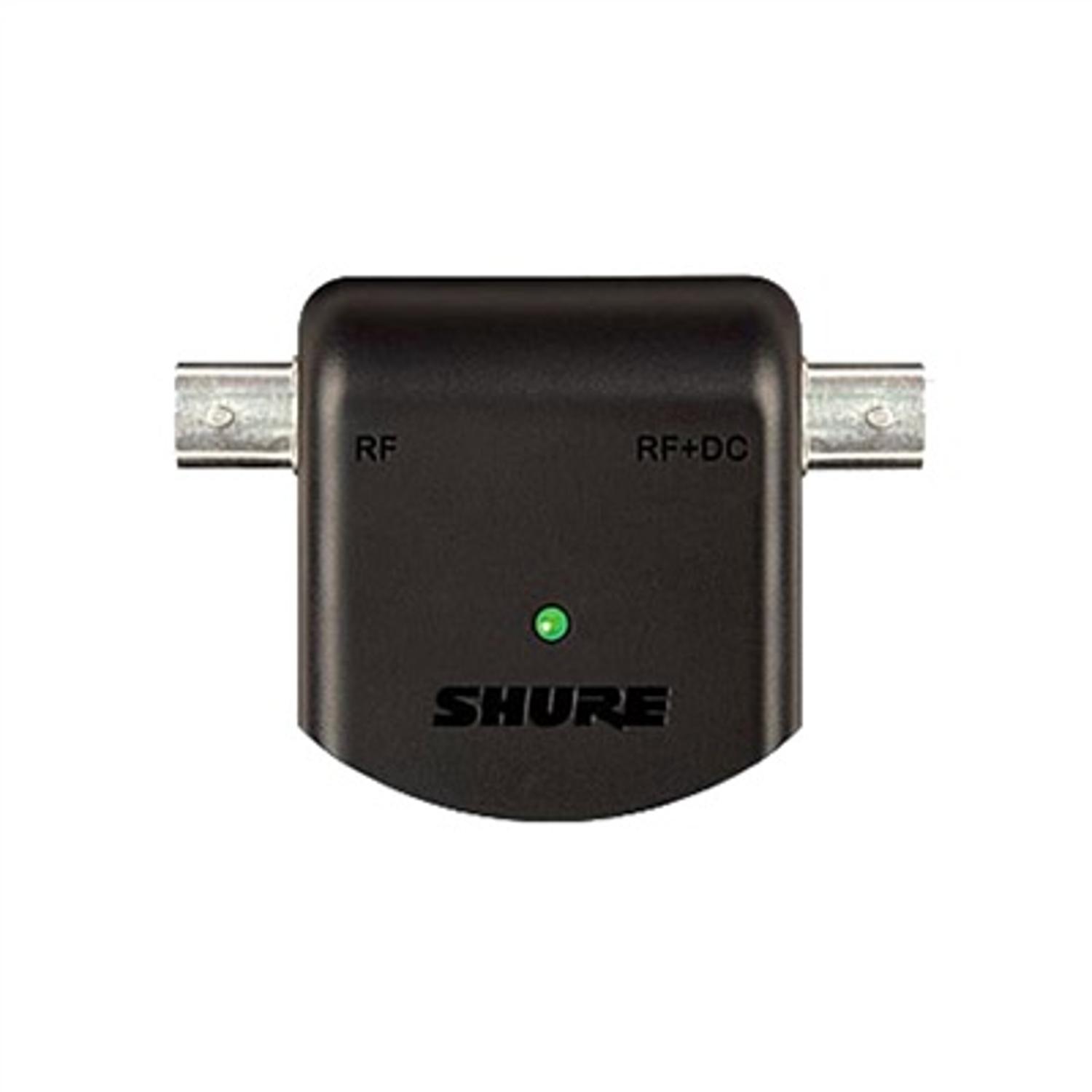

Shure UABIAST In-Line Power Adapter
The Shure UABIAST is an in-line adapter that supplies 12V DC bias power over coaxial cable, supports up to three active Shure antenna devices.
Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with Shure wireless systems that do not supply power from their BNC antenna inputs and are used without an antenna distribution amplifier UA844 or UA845. One UABIAST supplies power to any combination of up to three connected active Shure antenna accessories for extended cable runs and antenna placement options.
SPECIFICATIONS
DC Output Bias Voltage: 14,4V DC (maximum)Maximum Input Power: 12,4V DC, 400 mA (maximum)Insertion Loss: <1 dBConnector Type: BNCBias Voltage: 12V DCImpedance: 50 O
RF Frequency Range: 400 to 1000 MHzDimensions: 25,2 mm H x 67 mm W x 49 mm DNet Weight: 49 gOperating Temperature Range: 7 °C to 38 °CRead more
Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with Shure wireless systems that do not supply power from their BNC antenna inputs and are used without an antenna distribution amplifier UA844 or UA845. One UABIAST supplies power to any combination of up to three connected active Shure antenna accessories for extended cable runs and antenna placement options.
SPECIFICATIONS
DC Output Bias Voltage: 14,4V DC (maximum)Maximum Input Power: 12,4V DC, 400 mA (maximum)Insertion Loss: <1 dBConnector Type: BNCBias Voltage: 12V DCImpedance: 50 O
RF Frequency Range: 400 to 1000 MHzDimensions: 25,2 mm H x 67 mm W x 49 mm DNet Weight: 49 gOperating Temperature Range: 7 °C to 38 °CRead more
The Shure UABIAST is an in-line adapter that supplies 12V DC bias power over coaxial cable, supports up to three active Shure antenna devices.
Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with Shure wireless systems that do not supply power from their BNC antenna inputs and are used without an antenna distribution amplifier UA844 or UA845. One UABIAST supplies power to any combination of up to three connected active Shure antenna accessories for extended cable runs and antenna placement options.
SPECIFICATIONS
DC Output Bias Voltage: 14,4V DC (maximum)Maximum Input Power: 12,4V DC, 400 mA (maximum)Insertion Loss: <1 dBConnector Type: BNCBias Voltage: 12V DCImpedance: 50 O
RF Frequency Range: 400 to 1000 MHzDimensions: 25,2 mm H x 67 mm W x 49 mm DNet Weight: 49 gOperating Temperature Range: 7 °C to 38 °CRead more
Compatible with the UA874 active antenna and the UA830 in-line antenna amplifier, the UABIAST allows those accessories to be used with Shure wireless systems that do not supply power from their BNC antenna inputs and are used without an antenna distribution amplifier UA844 or UA845. One UABIAST supplies power to any combination of up to three connected active Shure antenna accessories for extended cable runs and antenna placement options.
SPECIFICATIONS
DC Output Bias Voltage: 14,4V DC (maximum)Maximum Input Power: 12,4V DC, 400 mA (maximum)Insertion Loss: <1 dBConnector Type: BNCBias Voltage: 12V DCImpedance: 50 O
RF Frequency Range: 400 to 1000 MHzDimensions: 25,2 mm H x 67 mm W x 49 mm DNet Weight: 49 gOperating Temperature Range: 7 °C to 38 °CRead more
Specifications
| Accessory | Antenna |
| Brand | Shure |
