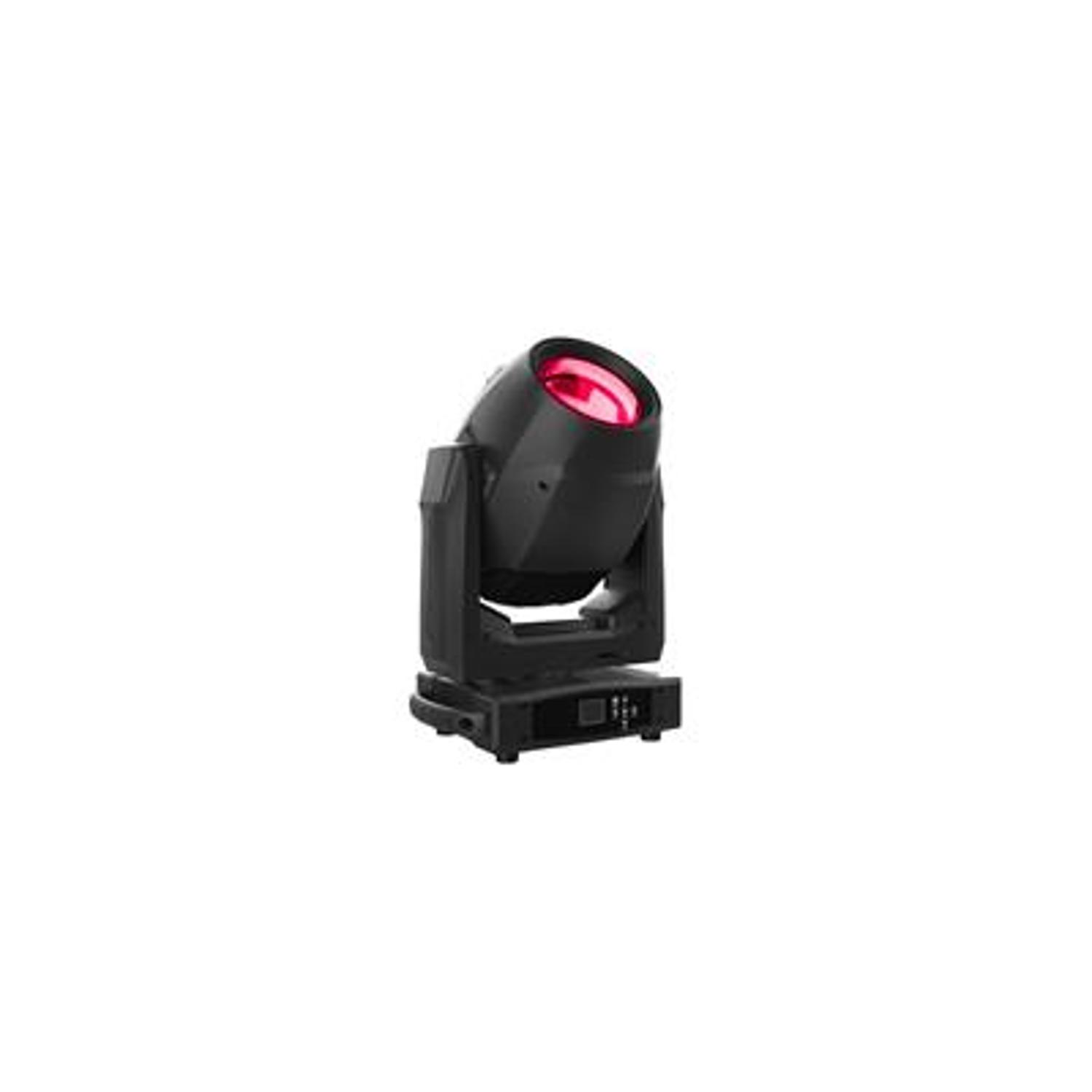

Starway Baracca 360
Specs
OPTIC
- Source: 260W laser
- Beam angle: 1.7°
- Color temperature: 9 569°K
- Lifetime: 20 000 h
- Luminous Flux: 7906 lumens
- Illuminance: 159000 Lux@20m
- Lens diameter: 130 mm
EFFECT
- Color wheel: 17 + open
- CMY
- Fixed gobo wheel: 19 + open
- Prism:
Wheel 1 : Linear 6 facets
Wheel 2 : Circular 16 facets
- Frost
- Strobe: 1~25Hz
SOFTWARE
- Firmware update via USB,
more convenient and faster
- Intelligent temperature
protection to ensure
service life
- Enhanced infinite Pan/Tilt
function with CK Effect mode.
CONTROL
- Channels : 23/28/30/34CH
- Protocal: DMX512, RDM, Artnet ,
sACN
- Connectors: 2 x 5 pins XLR; 2 x
Rj45
- Display: 2.8“ LCD Display
MOVEMENT
- Infinite Pan
- Infinite Tilt
HOUSING
- Die-cast plastic + steel
- IP rating: IP20
- Work environment:
- 40°C ~ 45°C
- Startup environment:
- 20°C ~ 45°C
POWER
- Voltage: AC 110V~240V 50/60Hz
- Consumption : 400 W
DIMENSIONs & WEIGHT
- Dimensions: 361 × 273 × 515 mm
- N.W: 22.2 kgs
Specs
OPTIC
- Source: 260W laser
- Beam angle: 1.7°
- Color temperature: 9 569°K
- Lifetime: 20 000 h
- Luminous Flux: 7906 lumens
- Illuminance: 159000 Lux@20m
- Lens diameter: 130 mm
EFFECT
- Color wheel: 17 + open
- CMY
- Fixed gobo wheel: 19 + open
- Prism:
Wheel 1 : Linear 6 facets
Wheel 2 : Circular 16 facets
- Frost
- Strobe: 1~25Hz
SOFTWARE
- Firmware update via USB,
more convenient and faster
- Intelligent temperature
protection to ensure
service life
- Enhanced infinite Pan/Tilt
function with CK Effect mode.
CONTROL
- Channels : 23/28/30/34CH
- Protocal: DMX512, RDM, Artnet ,
sACN
- Connectors: 2 x 5 pins XLR; 2 x
Rj45
- Display: 2.8“ LCD Display
MOVEMENT
- Infinite Pan
- Infinite Tilt
HOUSING
- Die-cast plastic + steel
- IP rating: IP20
- Work environment:
- 40°C ~ 45°C
- Startup environment:
- 20°C ~ 45°C
POWER
- Voltage: AC 110V~240V 50/60Hz
- Consumption : 400 W
DIMENSIONs & WEIGHT
- Dimensions: 361 × 273 × 515 mm
- N.W: 22.2 kgs
Specifications
Compatible with (optional) wireless DMX | No |
Fixture type | Beam lights |
Outdoor usage | No |
Complimentary colors | N/A |
Lumens | 7910 |
Application | Touring |
Colors | Color Wheel, CMY |
Source | Laser |
Brand | Starway |
