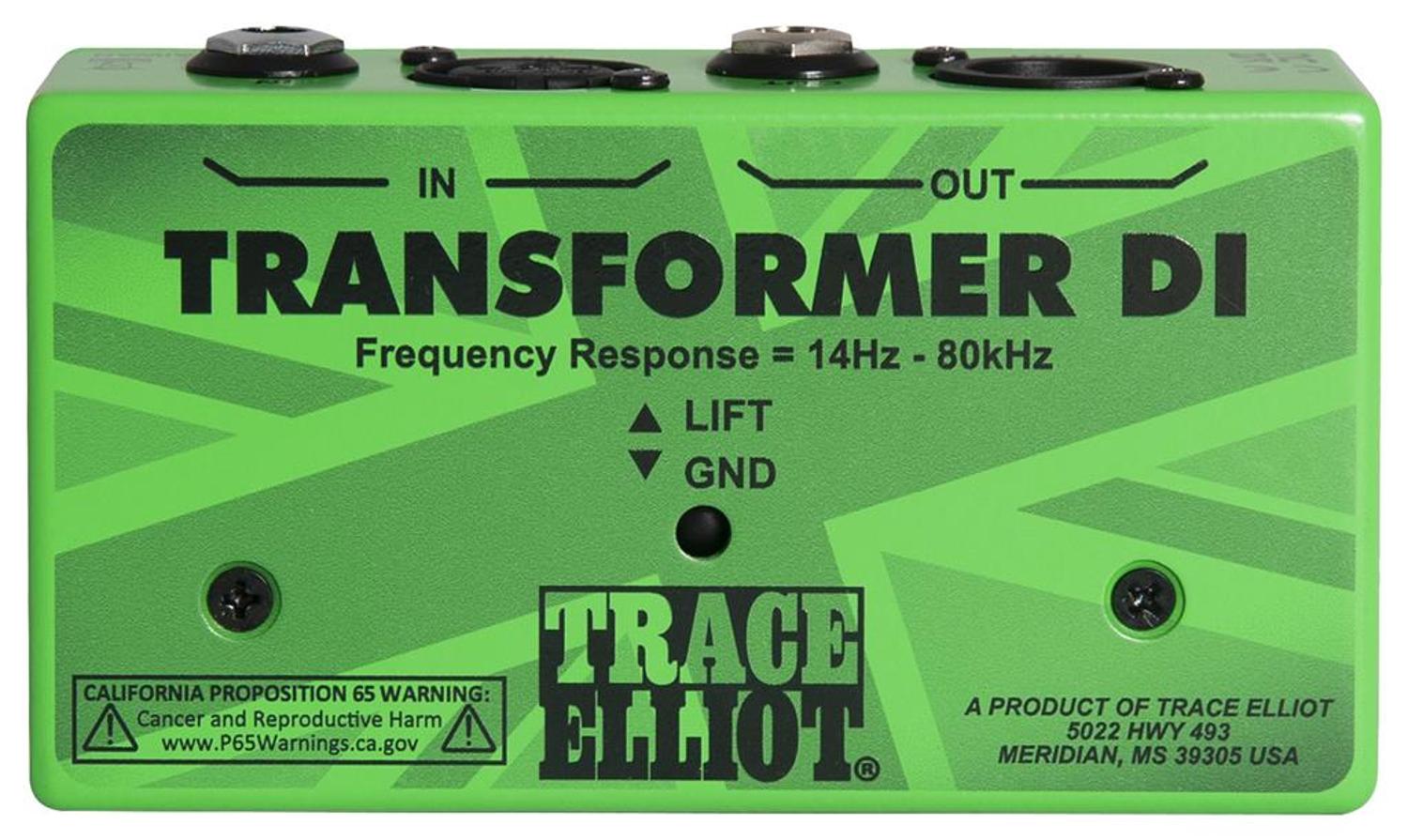

When you need to convert between balanced and unbalanced signals to connect your gear, the Trace Elliot Transformer DI does so with 1-to-1 audiophile quality. Equipped with a perfectly balanced proprietary transformer design, the Transformer DI solves the balanced/unbalanced conversion challenge with total transparency.
Product features
Compact DI Box for Bass and Acoustic Instruments
Audiophile quality 1:1 line level audio transformer interface
Transforms balanced to unbalanced line signals or unbalanced to balanced line signals
Perfectly balanced proprietary transformer design with ultra-high permeability Ni-Fe core
Input: 1x ¼” Jack, 1x XLR
Output: 1x ¼” Jack, 1x XLR
Frequency Response of 20 Hz to 20 kHz (-0.5 dB) with no more than +/-1.0 dB of variation from 14 Hz to 80 kHz
Total Harmonic Distortion is <0.015% from 70 Hz to 80 kHz
Total Harmonic Distortion is 0.5% at 20 Hz
Electrical isolation of >500V between secondary and primary winding or windings
Insertion loss <1.0 dB
Input levels up to +22.2 dBu are acceptable
Ground lift with RF rejection circuitry
Excellent for low to mid impedance signal sources
