The Canvas Clock is designed as a way for all of your time-based effects to be synchronized with the press of a switch. With MIDI Input/Output, 4 fully configurable ¼” Jacks, metronome output, sync input/output, and USB-C connectivity, you are truly able to synchronize almost any device that is associated with tempo, time, and BPM.
Specifications
All-in-one tempo management solution for your pedalboard
Synchronize any device that relies on tempo, time, or BPM
Comprehensive MIDI and analog clock management
Master Song List contains up to 128 songs with name, BPM, and MIDI Macro information
Manage songs in various setlists
Define up to 128 programmable MIDI Macros, each with up to 15 MIDI commands (Program Change, Control Change, etc.)
Use MIDI Macros to change presets on Multi-FX pedals, for example, when recalling a song
Four fully customizable TRS jack connectors for Tempo Out, CV Out, Switch In, and EXP In

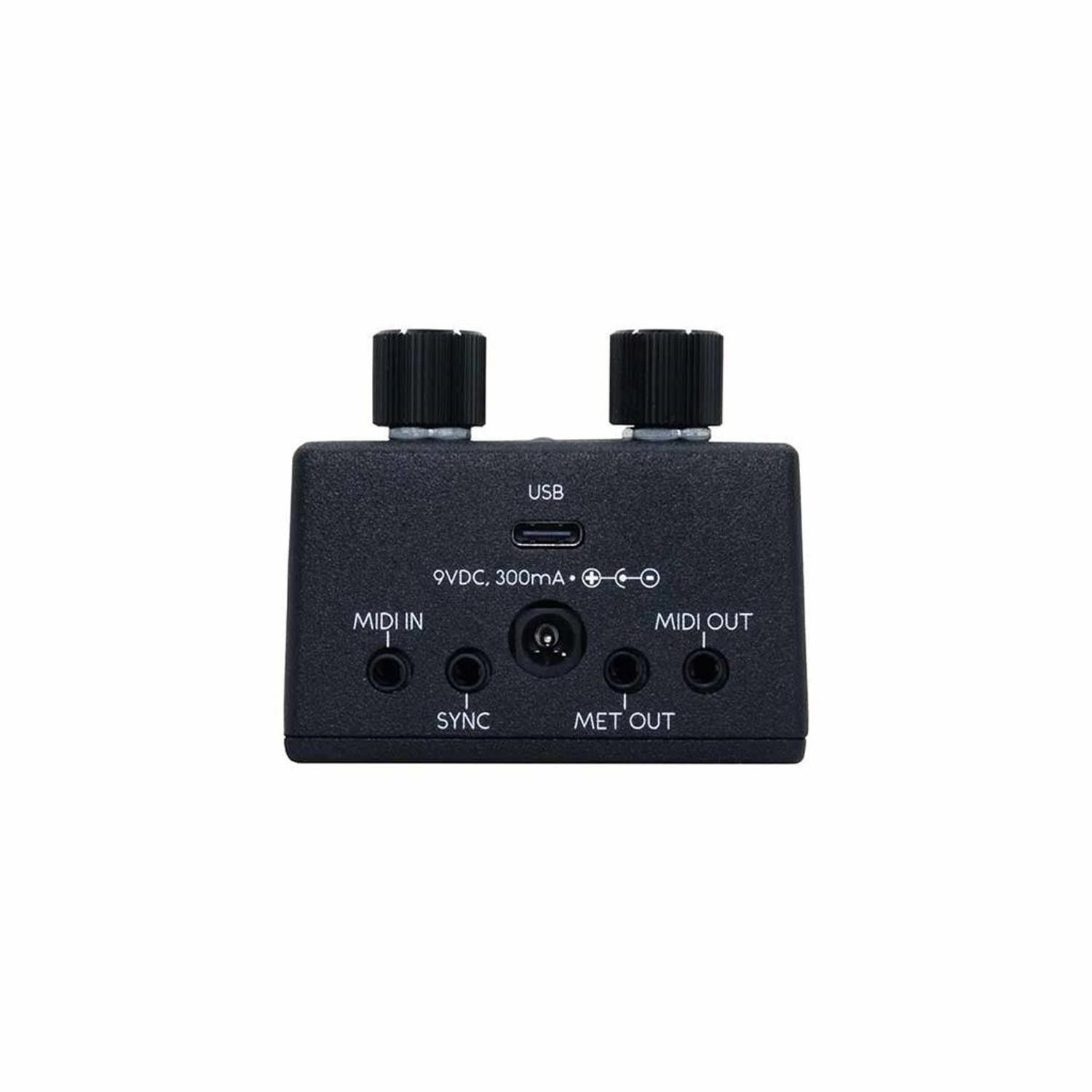

MIDI Input and Output via DIN and 1/8” connectors
Send clock and expression to pedals that don't have MIDI
2.8” TFT LCD display with perfect visibility even under stage lights or sunlight
USB-C connectivity for firmware updates and to manage settings, songs, and setlists via a dedicated web app
Footswitches A and B are assignable (e.g., step through songs, tap tempo)
1/8” metronome output
Sync In/Out jack for Eurorack
Power requirement: 9V, 300mA
Designed and assembled in OKC, USA
