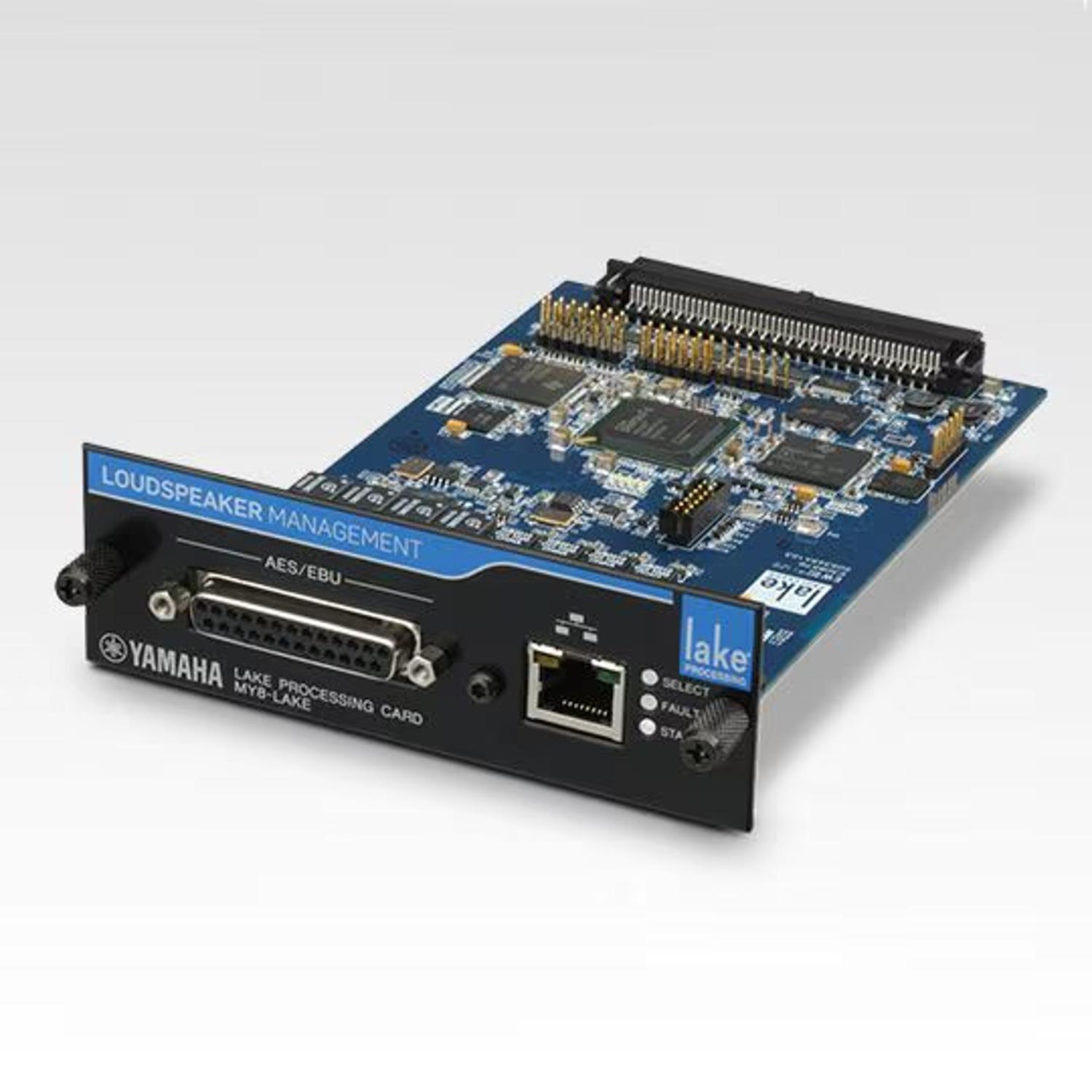

Yamaha MY8-LAKE
Lake Processing has become the de-facto standard for speaker processing in live sound applications. The MY8-LAKE is a DSP card for Yamaha digital mixing consoles, developed through close technological cooperation between Yamaha and Lake. The full power of Mesa EQ, Ideal Graphic EQ, and Linear Phase Crossover functions are packed into one compact card, providing immense processing capability and precise, intuitive control right at your fingertips. ※Regarding Nexo speaker presets The Nexo presets included in Lake Controller preset library cannot be used with MY8-LAKE since Nexo loudspeakers are intended to be used only with Nexo TD Controlers.
About Lake Processing Lake Processing: The Undisputed Leader in Output ManagementLake Processing technology began in the late 1990s, makes it possible to achieve maximum sonic quality in any live sound situation. Mesa EQ with asymmetrical response curves, Ideal Graphic EQ with minimum inter-band interference, Linear Phase Crossover that allows steep slopes without disrupting phase characteristics: these are some of the Lake Processing features that make it easy to deliver ideal sonic performance in venues of any size, with any acoustic characteristics, and with any speakers from any manufacturer. The intuitive Lake Controller user interface contributes to easy, efficient operation, even under the pressure of preparing for a live show.
An Economical Approach to Impressive Processing PowerThe small size of the MY8-LAKE belies the outstanding processing power it offers. 8-in/8-out*1 processing is available in Mesa Mode, while Contour Mode provides 4-in/12-out*2 capability. In Mesa Mode the MY8-LAKE can be used to provide system EQ for the main mix or channel EQ for vocal processing, for example. Contour Mode offers optimum crossover processing for superior speaker system performance, eliminating the need for external crossover and EQ devices. The Mesa and Contour modes can also be combined, giving the MY8-LAKE the flexibility to adapt to a wide range of applications.
*1 Equivalent to two Lake LM44 units. *2 Equivalent to two Lake LM26 units. The MY8-LAKE makes Lake Processing more Accessible than EverThe MY8-LAKE packs industry-standard Lake Processing output management tools into a remarkably compact and convenient expansion card. By simply installing the MY8-LAKE into a compatible Yamaha digital mixing console you gain powerful, flexible output management capability as well as input EQ functionality that can maximize the potential of your console. And since no extra cabling or rack facilities are required, no additional space or time burdens are imposed. The MY8-LAKE makes advanced Lake processing easier than ever.
Specifications 8-in/8-out Mesa mode (system EQ), 4-in/12-out Contour mode (crossover), or a combination of both for versatile processing 24bit resolution, 96 kHz internal processing, supporting 44.1 kHz, 48 kHz, and 88.2 kHz sample rates 1x D-sub 25 pin connector, 1x RJ-45 connector Compatible with Smaart sound system measurement software for efficient, effective speaker tuning Flexible system setup via Yamaha digital mixer insert points and MY8-LAKE card AES/EBU connectors Lake Controller software application allows comprehensive overall management of all Lake devices in the system Over 1,000 speaker presets included for fast, accurate tuning with a wide range of systemsRead moreLake Processing has become the de-facto standard for speaker processing in live sound applications. The MY8-LAKE is a DSP card for Yamaha digital mixing consoles, developed through close technological cooperation between Yamaha and Lake. The full power of Mesa EQ, Ideal Graphic EQ, and Linear Phase Crossover functions are packed into one compact card, providing immense processing capability and precise, intuitive control right at your fingertips. ※Regarding Nexo speaker presets The Nexo presets included in Lake Controller preset library cannot be used with MY8-LAKE since Nexo loudspeakers are intended to be used only with Nexo TD Controlers.
About Lake Processing Lake Processing: The Undisputed Leader in Output ManagementLake Processing technology began in the late 1990s, makes it possible to achieve maximum sonic quality in any live sound situation. Mesa EQ with asymmetrical response curves, Ideal Graphic EQ with minimum inter-band interference, Linear Phase Crossover that allows steep slopes without disrupting phase characteristics: these are some of the Lake Processing features that make it easy to deliver ideal sonic performance in venues of any size, with any acoustic characteristics, and with any speakers from any manufacturer. The intuitive Lake Controller user interface contributes to easy, efficient operation, even under the pressure of preparing for a live show.
An Economical Approach to Impressive Processing PowerThe small size of the MY8-LAKE belies the outstanding processing power it offers. 8-in/8-out*1 processing is available in Mesa Mode, while Contour Mode provides 4-in/12-out*2 capability. In Mesa Mode the MY8-LAKE can be used to provide system EQ for the main mix or channel EQ for vocal processing, for example. Contour Mode offers optimum crossover processing for superior speaker system performance, eliminating the need for external crossover and EQ devices. The Mesa and Contour modes can also be combined, giving the MY8-LAKE the flexibility to adapt to a wide range of applications.
*1 Equivalent to two Lake LM44 units. *2 Equivalent to two Lake LM26 units. The MY8-LAKE makes Lake Processing more Accessible than EverThe MY8-LAKE packs industry-standard Lake Processing output management tools into a remarkably compact and convenient expansion card. By simply installing the MY8-LAKE into a compatible Yamaha digital mixing console you gain powerful, flexible output management capability as well as input EQ functionality that can maximize the potential of your console. And since no extra cabling or rack facilities are required, no additional space or time burdens are imposed. The MY8-LAKE makes advanced Lake processing easier than ever.
Specifications 8-in/8-out Mesa mode (system EQ), 4-in/12-out Contour mode (crossover), or a combination of both for versatile processing 24bit resolution, 96 kHz internal processing, supporting 44.1 kHz, 48 kHz, and 88.2 kHz sample rates 1x D-sub 25 pin connector, 1x RJ-45 connector Compatible with Smaart sound system measurement software for efficient, effective speaker tuning Flexible system setup via Yamaha digital mixer insert points and MY8-LAKE card AES/EBU connectors Lake Controller software application allows comprehensive overall management of all Lake devices in the system Over 1,000 speaker presets included for fast, accurate tuning with a wide range of systemsRead moreSpecifications
| Accessory | Expansion cards |
| Brand | Yamaha |
