Article number:
63631

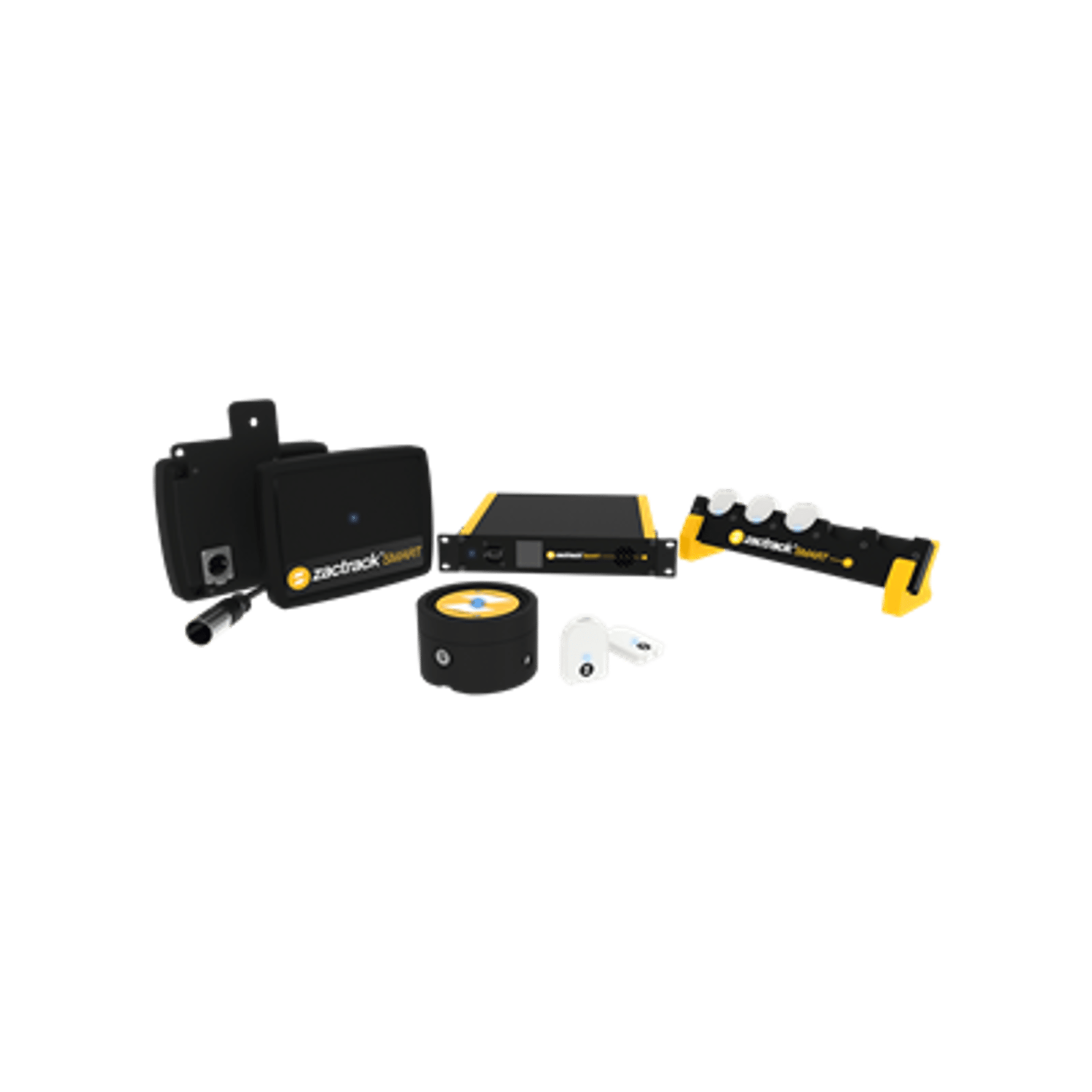

zactrack Smart set
The Next Generation Automated Follow SystemUltra-Wide-Band (UWB) Real Time Radio Tracking
zactrack SMART is the world's first plug and play automated follow system. The 3D setup for all system components is fast and accurate for stage lighting, sound and video effects. zactrack SMART uses self-measuring "mesh network technology" to accurately calculate the dimensions of the stage without using any measurement aid ... just like magic!
Radio Tracking
zactrack uses state of the art Ultra-Wide-Band (UWB) real time radio tracking technology. Acting from 6.2 to 6.7 GHz frequency spectrum with minimum power levels, the technology is available worldwide without any licensing for the end user.Radio tracking transmits through common stage materials (cloth, cardboard, wood, scaffolding . . .) and is undisturbed by any effect or weather-related interference (direct sunshine, fog, rain, snow, lighting, fireworks, . . .)Just hide the tiny tracker under your costume, clip it on a lanyard aroundyour neck or simply put it in your pocket. zactrack is easily applicable for all situations from theatre plays to business presentations.
High accuracy and speed in 3D
zactrack tracking pinpoints the target down to +/- 5 cm accuracy in 3D space and uses advanced prediction mathematics to cope with speeds from acrobats and ice hockey athletes to race cars.
Patented Alignment Algorithm
zactrack uses a unique and patented fixture alignment algorithm wich delivers unparalleled accuracy of any moving fixture around the stage. The software uses advanced mathematics to locate the correct position and orientation of the fixture in 3D space resulting in extreme precision of long throw beams positioned even 100 meters from the target.
Control Lights, Video and Sound
With a single zactrack server you can control lighting fixtures, video effects and 3D sound simultaneously.The system integrates with any stage network and works together with the lighting desk of your choice. Creative work of the LD always stays at the console.
zactrack Smart server
- 1 server up to 64 active fixtures
- 2 servers up to active 256 fixtures + backup
- 9.5" (half size) rack mount server- 222 x 34,5 x 230 mm, 1 HU, 1320 g
- 230 VA with Input 100 - 240 Vac, 50 - 60 Hz
zactrack Smart anchor
- from 8 up to 11 anchors around the stage
- 6.24 - 6.74 GHz UWB active radio antenna
- 190 x 200 x 42 mm, 535 g, PoE, IP 54
- Rig mounting plate for clamp and safety line
zactrack Smart tracker
- 6.24 - 6.74 GHz UWB active radio emitter
- 35 x 60 x 10 mm, 26 g, IP 65
- 8 hours battery life
- up to 10 active trackers (16 Hz)
- up to 30 active trackers (6 Hz Audio only)
- up to 60 inactive trackers
zactrack Smar puck
- Use 4 Pucks for anchor calibration & fixture alignment (black, red, green & blue)
- 6.24 - 6.74 GHz UWB active radio emitter
- Lighting Sensor- 95 x 95 x 59 mm, 342 g, IP 54
- 24 hours battery life
- USB-C for charging (cable included) (Standard 5V USB charger is not included )
zactrack Smart charger
- Charging station for trackers
- 270 x 70 x 65 mm, 387 g
- 5 charging slots for each charger
- USB-C for charging (cable included) (Standard 5V USB charger is not included)
zactrack Smart accessories
- Server Coupler (couple 2 servers to 19")
- Server 19" Extension (extend 1 server to 19")
1 . . . 2 . . . 3 . . . GO! 3 Easy Setup Steps. Operable in less than 15 minutes
Step one: MOUNT
Mount the 8 anchors randomly but equally distributed around your playing area. Use multiple height levels for 3D tracking results. Cable the anchors with PoE network cables to the zactrack SMART server using a common PoE switch. Run the zactrack SMART tablet client and wait until every anchor has registered with the server automatically.
Step two: MEASURE
Place the 4 zactrack SMART Pucks in a rough rectangle minimum 3 meters apart on the stage floor. Turn them on and hit the "self-measure" button on the tablet app.Surprise! Less than a minute later you will see a complete 3D sketch of your stage geometry on your app.
Step three: ALIGN
Patch your moving light and point the beam roughly on each of the pucks by using the lighting desk or the tablet app. Hit the "auto-align" button on the tablet app andzactrack SMART will do an automated alignment sequence on each of the 4 pucks. A minute later zactrack SMART knows the exact position and orientation of your fixture in 3D space.Read more
zactrack SMART is the world's first plug and play automated follow system. The 3D setup for all system components is fast and accurate for stage lighting, sound and video effects. zactrack SMART uses self-measuring "mesh network technology" to accurately calculate the dimensions of the stage without using any measurement aid ... just like magic!
Radio Tracking
zactrack uses state of the art Ultra-Wide-Band (UWB) real time radio tracking technology. Acting from 6.2 to 6.7 GHz frequency spectrum with minimum power levels, the technology is available worldwide without any licensing for the end user.Radio tracking transmits through common stage materials (cloth, cardboard, wood, scaffolding . . .) and is undisturbed by any effect or weather-related interference (direct sunshine, fog, rain, snow, lighting, fireworks, . . .)Just hide the tiny tracker under your costume, clip it on a lanyard aroundyour neck or simply put it in your pocket. zactrack is easily applicable for all situations from theatre plays to business presentations.
High accuracy and speed in 3D
zactrack tracking pinpoints the target down to +/- 5 cm accuracy in 3D space and uses advanced prediction mathematics to cope with speeds from acrobats and ice hockey athletes to race cars.
Patented Alignment Algorithm
zactrack uses a unique and patented fixture alignment algorithm wich delivers unparalleled accuracy of any moving fixture around the stage. The software uses advanced mathematics to locate the correct position and orientation of the fixture in 3D space resulting in extreme precision of long throw beams positioned even 100 meters from the target.
Control Lights, Video and Sound
With a single zactrack server you can control lighting fixtures, video effects and 3D sound simultaneously.The system integrates with any stage network and works together with the lighting desk of your choice. Creative work of the LD always stays at the console.
zactrack Smart server
- 1 server up to 64 active fixtures
- 2 servers up to active 256 fixtures + backup
- 9.5" (half size) rack mount server- 222 x 34,5 x 230 mm, 1 HU, 1320 g
- 230 VA with Input 100 - 240 Vac, 50 - 60 Hz
zactrack Smart anchor
- from 8 up to 11 anchors around the stage
- 6.24 - 6.74 GHz UWB active radio antenna
- 190 x 200 x 42 mm, 535 g, PoE, IP 54
- Rig mounting plate for clamp and safety line
zactrack Smart tracker
- 6.24 - 6.74 GHz UWB active radio emitter
- 35 x 60 x 10 mm, 26 g, IP 65
- 8 hours battery life
- up to 10 active trackers (16 Hz)
- up to 30 active trackers (6 Hz Audio only)
- up to 60 inactive trackers
zactrack Smar puck
- Use 4 Pucks for anchor calibration & fixture alignment (black, red, green & blue)
- 6.24 - 6.74 GHz UWB active radio emitter
- Lighting Sensor- 95 x 95 x 59 mm, 342 g, IP 54
- 24 hours battery life
- USB-C for charging (cable included) (Standard 5V USB charger is not included )
zactrack Smart charger
- Charging station for trackers
- 270 x 70 x 65 mm, 387 g
- 5 charging slots for each charger
- USB-C for charging (cable included) (Standard 5V USB charger is not included)
zactrack Smart accessories
- Server Coupler (couple 2 servers to 19")
- Server 19" Extension (extend 1 server to 19")
1 . . . 2 . . . 3 . . . GO! 3 Easy Setup Steps. Operable in less than 15 minutes
Step one: MOUNT
Mount the 8 anchors randomly but equally distributed around your playing area. Use multiple height levels for 3D tracking results. Cable the anchors with PoE network cables to the zactrack SMART server using a common PoE switch. Run the zactrack SMART tablet client and wait until every anchor has registered with the server automatically.
Step two: MEASURE
Place the 4 zactrack SMART Pucks in a rough rectangle minimum 3 meters apart on the stage floor. Turn them on and hit the "self-measure" button on the tablet app.Surprise! Less than a minute later you will see a complete 3D sketch of your stage geometry on your app.
Step three: ALIGN
Patch your moving light and point the beam roughly on each of the pucks by using the lighting desk or the tablet app. Hit the "auto-align" button on the tablet app andzactrack SMART will do an automated alignment sequence on each of the 4 pucks. A minute later zactrack SMART knows the exact position and orientation of your fixture in 3D space.Read more
The Next Generation Automated Follow SystemUltra-Wide-Band (UWB) Real Time Radio Tracking
zactrack SMART is the world's first plug and play automated follow system. The 3D setup for all system components is fast and accurate for stage lighting, sound and video effects. zactrack SMART uses self-measuring "mesh network technology" to accurately calculate the dimensions of the stage without using any measurement aid ... just like magic!
Radio Tracking
zactrack uses state of the art Ultra-Wide-Band (UWB) real time radio tracking technology. Acting from 6.2 to 6.7 GHz frequency spectrum with minimum power levels, the technology is available worldwide without any licensing for the end user.Radio tracking transmits through common stage materials (cloth, cardboard, wood, scaffolding . . .) and is undisturbed by any effect or weather-related interference (direct sunshine, fog, rain, snow, lighting, fireworks, . . .)Just hide the tiny tracker under your costume, clip it on a lanyard aroundyour neck or simply put it in your pocket. zactrack is easily applicable for all situations from theatre plays to business presentations.
High accuracy and speed in 3D
zactrack tracking pinpoints the target down to +/- 5 cm accuracy in 3D space and uses advanced prediction mathematics to cope with speeds from acrobats and ice hockey athletes to race cars.
Patented Alignment Algorithm
zactrack uses a unique and patented fixture alignment algorithm wich delivers unparalleled accuracy of any moving fixture around the stage. The software uses advanced mathematics to locate the correct position and orientation of the fixture in 3D space resulting in extreme precision of long throw beams positioned even 100 meters from the target.
Control Lights, Video and Sound
With a single zactrack server you can control lighting fixtures, video effects and 3D sound simultaneously.The system integrates with any stage network and works together with the lighting desk of your choice. Creative work of the LD always stays at the console.
zactrack Smart server
- 1 server up to 64 active fixtures
- 2 servers up to active 256 fixtures + backup
- 9.5" (half size) rack mount server- 222 x 34,5 x 230 mm, 1 HU, 1320 g
- 230 VA with Input 100 - 240 Vac, 50 - 60 Hz
zactrack Smart anchor
- from 8 up to 11 anchors around the stage
- 6.24 - 6.74 GHz UWB active radio antenna
- 190 x 200 x 42 mm, 535 g, PoE, IP 54
- Rig mounting plate for clamp and safety line
zactrack Smart tracker
- 6.24 - 6.74 GHz UWB active radio emitter
- 35 x 60 x 10 mm, 26 g, IP 65
- 8 hours battery life
- up to 10 active trackers (16 Hz)
- up to 30 active trackers (6 Hz Audio only)
- up to 60 inactive trackers
zactrack Smar puck
- Use 4 Pucks for anchor calibration & fixture alignment (black, red, green & blue)
- 6.24 - 6.74 GHz UWB active radio emitter
- Lighting Sensor- 95 x 95 x 59 mm, 342 g, IP 54
- 24 hours battery life
- USB-C for charging (cable included) (Standard 5V USB charger is not included )
zactrack Smart charger
- Charging station for trackers
- 270 x 70 x 65 mm, 387 g
- 5 charging slots for each charger
- USB-C for charging (cable included) (Standard 5V USB charger is not included)
zactrack Smart accessories
- Server Coupler (couple 2 servers to 19")
- Server 19" Extension (extend 1 server to 19")
1 . . . 2 . . . 3 . . . GO! 3 Easy Setup Steps. Operable in less than 15 minutes
Step one: MOUNT
Mount the 8 anchors randomly but equally distributed around your playing area. Use multiple height levels for 3D tracking results. Cable the anchors with PoE network cables to the zactrack SMART server using a common PoE switch. Run the zactrack SMART tablet client and wait until every anchor has registered with the server automatically.
Step two: MEASURE
Place the 4 zactrack SMART Pucks in a rough rectangle minimum 3 meters apart on the stage floor. Turn them on and hit the "self-measure" button on the tablet app.Surprise! Less than a minute later you will see a complete 3D sketch of your stage geometry on your app.
Step three: ALIGN
Patch your moving light and point the beam roughly on each of the pucks by using the lighting desk or the tablet app. Hit the "auto-align" button on the tablet app andzactrack SMART will do an automated alignment sequence on each of the 4 pucks. A minute later zactrack SMART knows the exact position and orientation of your fixture in 3D space.Read more
zactrack SMART is the world's first plug and play automated follow system. The 3D setup for all system components is fast and accurate for stage lighting, sound and video effects. zactrack SMART uses self-measuring "mesh network technology" to accurately calculate the dimensions of the stage without using any measurement aid ... just like magic!
Radio Tracking
zactrack uses state of the art Ultra-Wide-Band (UWB) real time radio tracking technology. Acting from 6.2 to 6.7 GHz frequency spectrum with minimum power levels, the technology is available worldwide without any licensing for the end user.Radio tracking transmits through common stage materials (cloth, cardboard, wood, scaffolding . . .) and is undisturbed by any effect or weather-related interference (direct sunshine, fog, rain, snow, lighting, fireworks, . . .)Just hide the tiny tracker under your costume, clip it on a lanyard aroundyour neck or simply put it in your pocket. zactrack is easily applicable for all situations from theatre plays to business presentations.
High accuracy and speed in 3D
zactrack tracking pinpoints the target down to +/- 5 cm accuracy in 3D space and uses advanced prediction mathematics to cope with speeds from acrobats and ice hockey athletes to race cars.
Patented Alignment Algorithm
zactrack uses a unique and patented fixture alignment algorithm wich delivers unparalleled accuracy of any moving fixture around the stage. The software uses advanced mathematics to locate the correct position and orientation of the fixture in 3D space resulting in extreme precision of long throw beams positioned even 100 meters from the target.
Control Lights, Video and Sound
With a single zactrack server you can control lighting fixtures, video effects and 3D sound simultaneously.The system integrates with any stage network and works together with the lighting desk of your choice. Creative work of the LD always stays at the console.
zactrack Smart server
- 1 server up to 64 active fixtures
- 2 servers up to active 256 fixtures + backup
- 9.5" (half size) rack mount server- 222 x 34,5 x 230 mm, 1 HU, 1320 g
- 230 VA with Input 100 - 240 Vac, 50 - 60 Hz
zactrack Smart anchor
- from 8 up to 11 anchors around the stage
- 6.24 - 6.74 GHz UWB active radio antenna
- 190 x 200 x 42 mm, 535 g, PoE, IP 54
- Rig mounting plate for clamp and safety line
zactrack Smart tracker
- 6.24 - 6.74 GHz UWB active radio emitter
- 35 x 60 x 10 mm, 26 g, IP 65
- 8 hours battery life
- up to 10 active trackers (16 Hz)
- up to 30 active trackers (6 Hz Audio only)
- up to 60 inactive trackers
zactrack Smar puck
- Use 4 Pucks for anchor calibration & fixture alignment (black, red, green & blue)
- 6.24 - 6.74 GHz UWB active radio emitter
- Lighting Sensor- 95 x 95 x 59 mm, 342 g, IP 54
- 24 hours battery life
- USB-C for charging (cable included) (Standard 5V USB charger is not included )
zactrack Smart charger
- Charging station for trackers
- 270 x 70 x 65 mm, 387 g
- 5 charging slots for each charger
- USB-C for charging (cable included) (Standard 5V USB charger is not included)
zactrack Smart accessories
- Server Coupler (couple 2 servers to 19")
- Server 19" Extension (extend 1 server to 19")
1 . . . 2 . . . 3 . . . GO! 3 Easy Setup Steps. Operable in less than 15 minutes
Step one: MOUNT
Mount the 8 anchors randomly but equally distributed around your playing area. Use multiple height levels for 3D tracking results. Cable the anchors with PoE network cables to the zactrack SMART server using a common PoE switch. Run the zactrack SMART tablet client and wait until every anchor has registered with the server automatically.
Step two: MEASURE
Place the 4 zactrack SMART Pucks in a rough rectangle minimum 3 meters apart on the stage floor. Turn them on and hit the "self-measure" button on the tablet app.Surprise! Less than a minute later you will see a complete 3D sketch of your stage geometry on your app.
Step three: ALIGN
Patch your moving light and point the beam roughly on each of the pucks by using the lighting desk or the tablet app. Hit the "auto-align" button on the tablet app andzactrack SMART will do an automated alignment sequence on each of the 4 pucks. A minute later zactrack SMART knows the exact position and orientation of your fixture in 3D space.Read more
Specifications
| Brand | zactrack |
