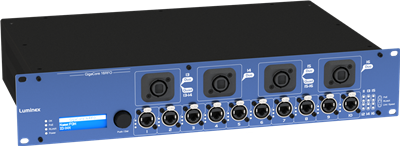

Luminex GigaCore 16RFO DUO SMF
The GigaCore 16RFO is a unit designed without compromises, specifically with touring application in mind and with the feedback of key industry players. The units comes with all the advanced functionalities of the GigaCore Ethernet switches range, in a fully touring oriented package.
The 2U high unit offers rugged optical connectors options such as OpticalCon, settable at the front or the rear of the unit, making a very flexible solution.
Full backup on power supply is available, bringing true redundancy at power level. Front end display, rugged connectors, and the easiest managed switch interface available on the market, make this product the ideal companion for a stressless tour !
Check the images section to see what kind of connector configuration better fit your needs !
- 12 x 10/100/1000Mbps Ethernet connections on Neutrik Ethercon connector(10 on the front , 2 at the rear)
- 4 slot to the front or at the rear for rugged fibre connector (D type)
- 2 x PowerCon True1 in/out
- 1 x RJ45 for serial console port
- Wire-speed Layer 2/3 Switching
- Industry specific web interface
- Front end display for basic configuration
- RLinkX: Automatic redundancy on ports to create secured links
- Group: Create group within your network for a better network isolation
- Port status
- 3 LEDs per port: PoE, RLinkX, Link/Speed
- 4 status LEDs for the device: OK, PoE, RLinkX*, Power
- Universal redundant power supply: 100-240VAC
- Redundant fans
- IEEE 1588 PTP V2 support
- Sound protocol compliant: Low Jitter
- PoE with redundant supply to deliver up to 150W through the 10 front Ethercon connectors
|Item Category Code||LUMINEX|
|Vendor Item No.||LU 01 00056-06|
|Country/Region of Origin Code||BE|
