Martin Audio Adorn A80T (Black)

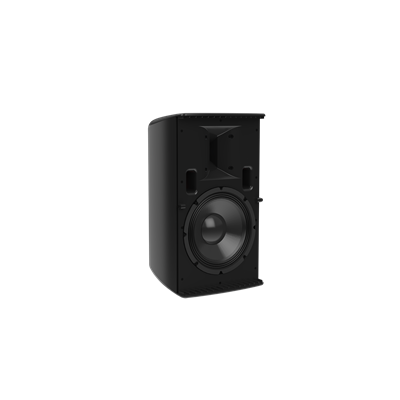

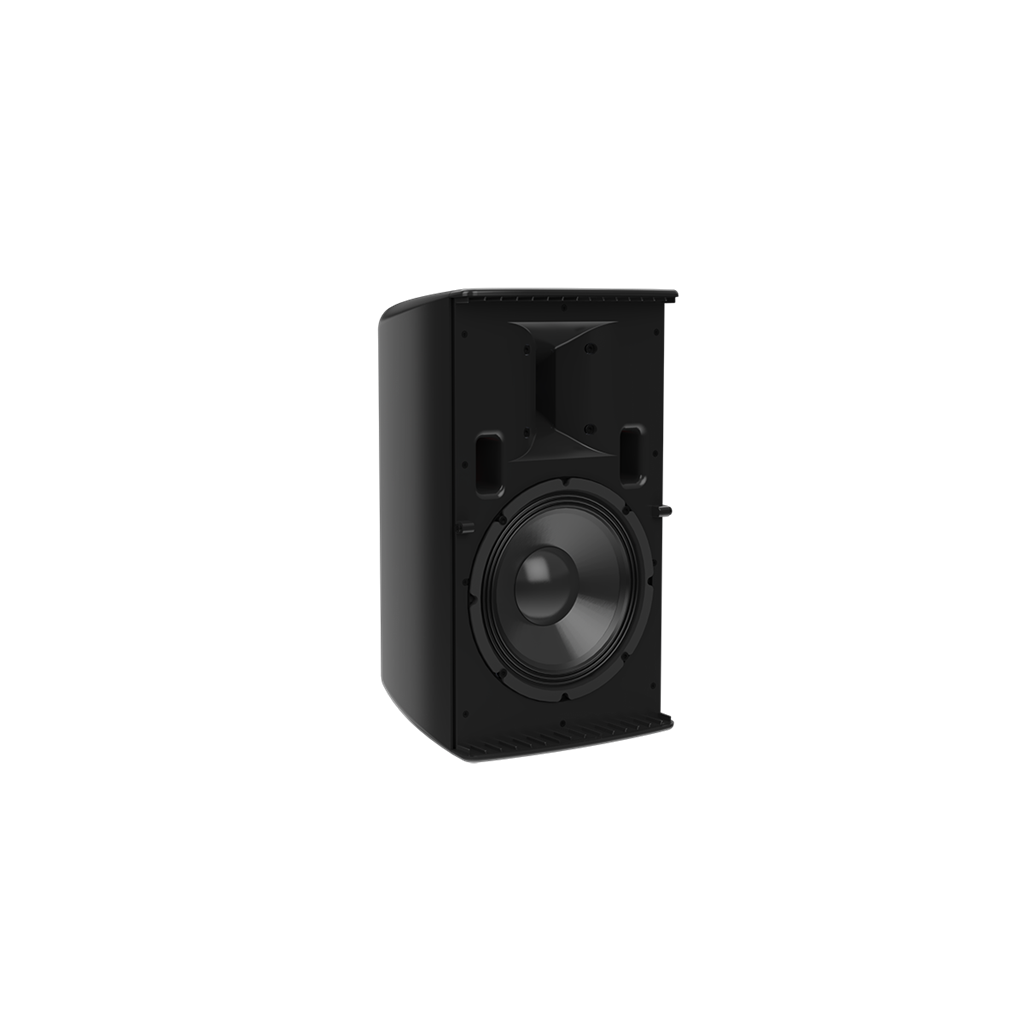

The A80T features an 8” (203mm) LF driver and a 1” (25mm) polymer domeHF compression driver on 90° x 50° horn. With a power handling of 200WAES, 800W peak, and a maximum SPL of 120dB at 1 metre, it is designed forbackground and foreground applications that call for premium sound qualityand high levels from a visually-discreet enclosure.

It can be wall-mounted vertically or horizontally using the supplied accessoryWB6/8 bracket, and its nominal impedance of 8 ohms enables multiple speakersto be driven in parallel from a single channel of a low impedance amplifier suchas the VIA2502, VIA5004 or the VIA5002 for 70V/100V line. It’s built-in high-quality transformer for 70V/100V line operation has transformer taps selectedby rotary switch. The enclosure is suitable for outdoor usage when used withthe waterproof connector cover accessory (sold separately).

Specifications

• Type: Compact passive two-way system, front ported bass reflex
• Frequency Response: 63Hz-17kHz ± 3dB, -10dB @ 50Hz
• Drivers:
  • LF: 8” with 2” high-temp voice coil, ferrite motor system
  • HF: 1” with 1” exit polymer dome compression driver
• Rated Power: 200W AES, 800W peak
• Recommended Amplifier: VIA2502 or VIA5004 (or VIA5002 for 70V/100V line)
• Sensitivity: 91dB
• Maximum SPL: 120dB peak
• Nominal Impedance: 8 ohms
• Dispersion: 90° H x 50° V (-6dB)
• Crossover: 2.3kHz passive (LF and HF auto-resetting fuses)
• Transformer Taps:
  • 70V: 60/30/15/7.5W
  • 100V: 60/30/15W
• Recommended High-Pass Filter: 40Hz 24dB/oct (8 ohm), 60Hz 24dB/oct (Transformer)
• Enclosure: ABS, UL 94V-0 rated
• Finish: Black or white

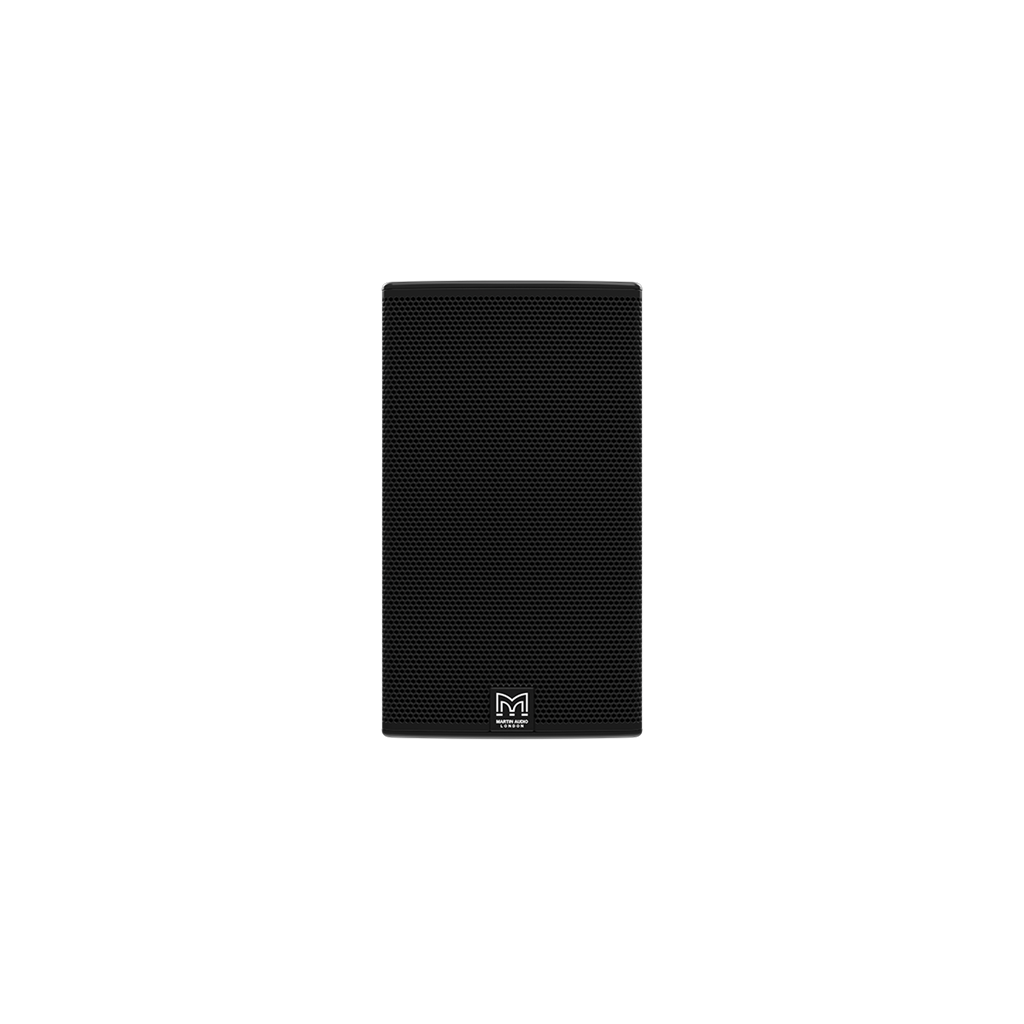

• Grille: Perforated steel

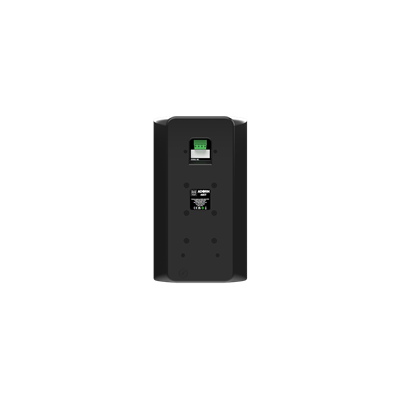

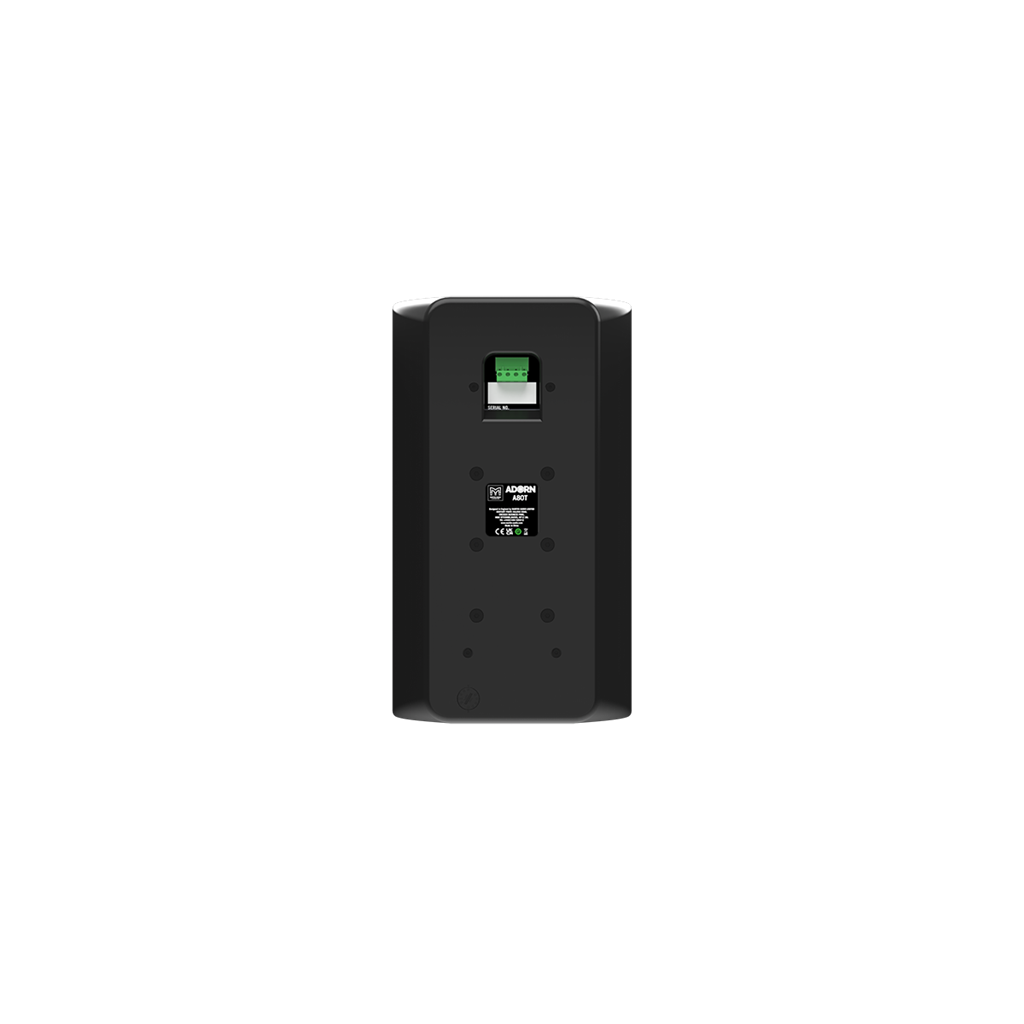

• Connectors: Low profile 13A push-lock
• Fittings: 6 x M6 inserts for wall or ceiling brackets
• Dimensions (Excl. Bracket): (W) 246mm x (H) 421mm x (D) 233mm / (W) 9.69in x (H) 16.56in x (D) 9.18in
• Weight: 9.08kg (20.02lbs)
• Accessories: IP54 rating with optional waterproof connector cover, weatherized mounting bracket

Martin Audio ADORN on-wall and ceiling loudspeakers bring class-leading performance, reliability and cost competitiveness to a widerange of commercial sound installations — from retail outlets, barsand restaurants to corporate offices.

With Martin Audio signature sound characteristics, the ADORN series is aperfect choice for background and foreground systems which require superiorsound quality from visually-discreet, ultra-compact, yet value priced enclosures.They also provide a seamless sonic transition within a multi-zone complex usinglarger Martin Audio systems such as CDD or BlacklineX.

AESTHETIC ENCLOSURES

ADORN full-range on-wall enclosures are visually unobtrusivewith smooth lines. Available in black or white as standard,they can be readily painted to match any interior décor andarchitectural environment.

ADORN in-ceiling and pendant speakers feature a bezel-lessgrille for a clean look and a bayonet fitting which is easy toremove without the use of tools. The in-ceiling series is finishedin white and may also be painted to blend with any décor whilethe pendant is also available in black as standard.

LOW IMPEDANCE ANDTRANSFORMER OPTIONS

All models have a nominal impedance of 16 ohms (except the8 ohm A80T), enabling four or more speakers to be driven inparallel by one amplifier channel, thereby maximising efficiencyand minimising cost.

All ‘T’ designated models are fitted with an internal high-quality70V/100V multi-tap line transformer with a switch to select theoutput level.
