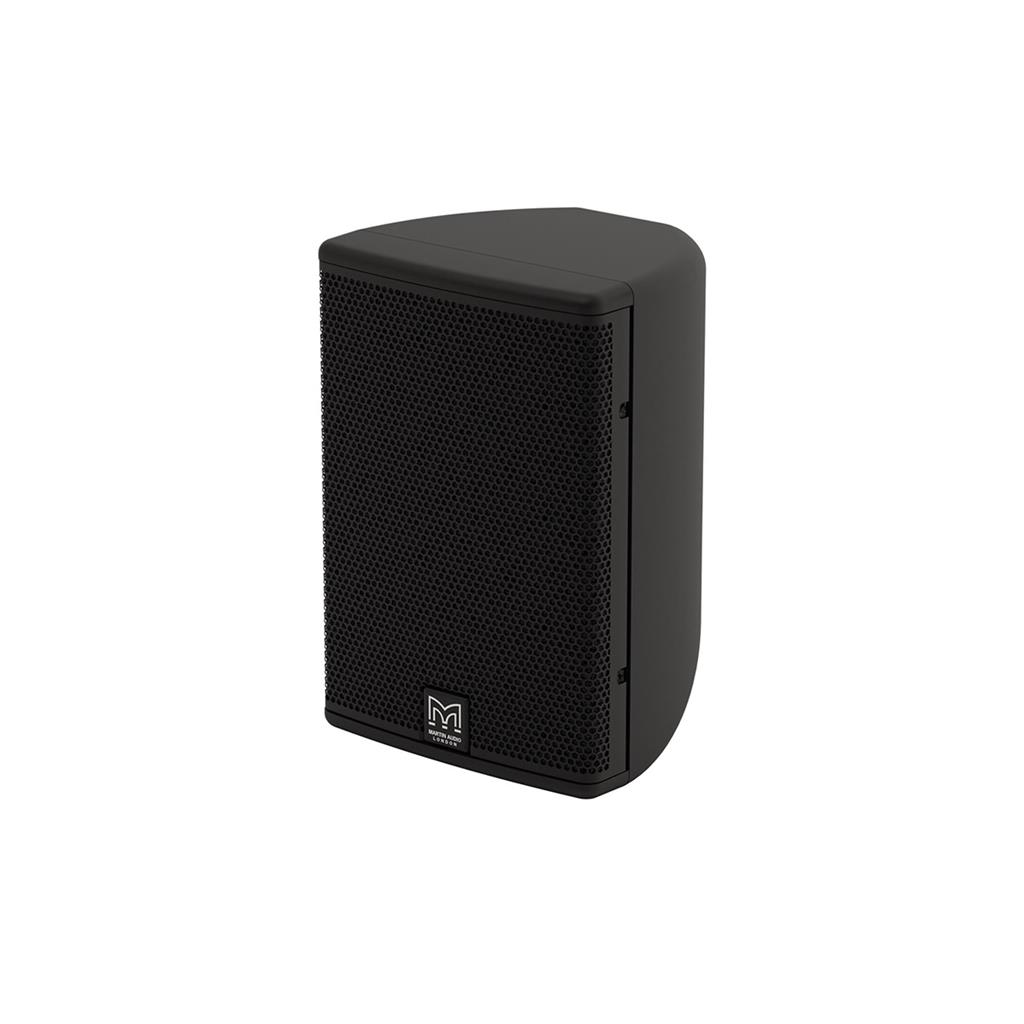

Martin Audio CDD5 (Black)
Item No
41287
Description
The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent protected 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.

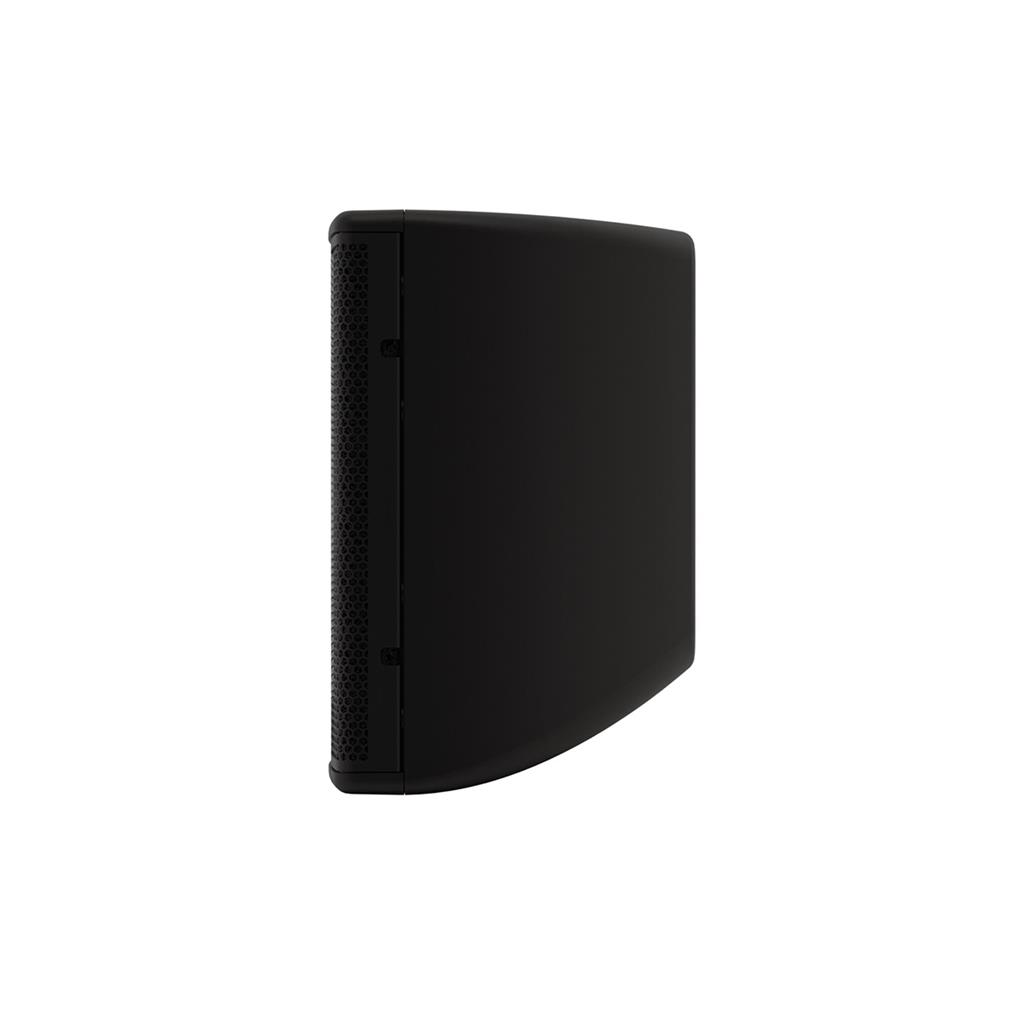

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order.
The CDD5TX-WR option incorporates a 70V/100V line transformer.
A full-range, passive two-way system, the CDD5 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
Specifications
The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order.
The CDD5TX-WR option incorporates a 70V/100V line transformer.
A full-range, passive two-way system, the CDD5 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
Specifications
| Type | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| Frequency Response (5) | 100Hz-20kHz ± 3dB, 10dB @ 70Hz |
| Driver | LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system |
| Rated Power (2) | 100W AES, 400W peak |
| Sensitivity (8) | 90dB |
| Maximum SPL (9) | 110dB continuous, 116dB peak |
| Nominal Impedance | 8Ω |
| Dispersion (-6dB) | 120˚-90˚ horizontal, 80˚ vertical (user-rotatable) |
| Crossover | 2.5kHz passive |
| Enclosure | 3 litre, ABS |
| Finish | Black or white |
| Protective Grille | Black or white perforated steel with scrim cloth backing |
| Connectors | Low profile 13A push-lock |
| Pin Connections | Left to right: Input+, Input -, Link -, Link + |
| Fittings | 6 x M5 inserts for wall/ceiling brackets |
| Dimensions | (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1ins x (D) 5.9ins |
| Weight | 3kg (6.6lbs) |
Specifications
| Item Category Code | MARTIN AUDIO |
| Vendor Item No. | CDD5B |
| Product Group | CDD |
| Net Weight | 3 |
| Gross Weight | 3.2 |
| Country/Region of Origin Code | GB |
| Tariff No. | 8518220090 |
