disguise gx 3
The go-to media server for touring artists who want to run the most intricate set designs.
The most versatile media server yet
The gx 3 is our most versatile and flexible single-box solution to fit any production across any application, be it live or xR.
Take generative content further
Unlock new potential in Notch generative content such as facial tracking, simulation and buffer effects or even AI background removal for IMAG thanks to the NVIDIA A6000 advanced processing capabilities.
More video throughput
The gx 3 includes two 100GbE network ports and 12G video capture as standard, keeping in line with the future requirement of live shows
Designed for modern workflows
The integration of a new PCIe 4.0 motherboard, CPU, and storage guarantees peak performance when dealing with complex video files.
Battle tested chassis

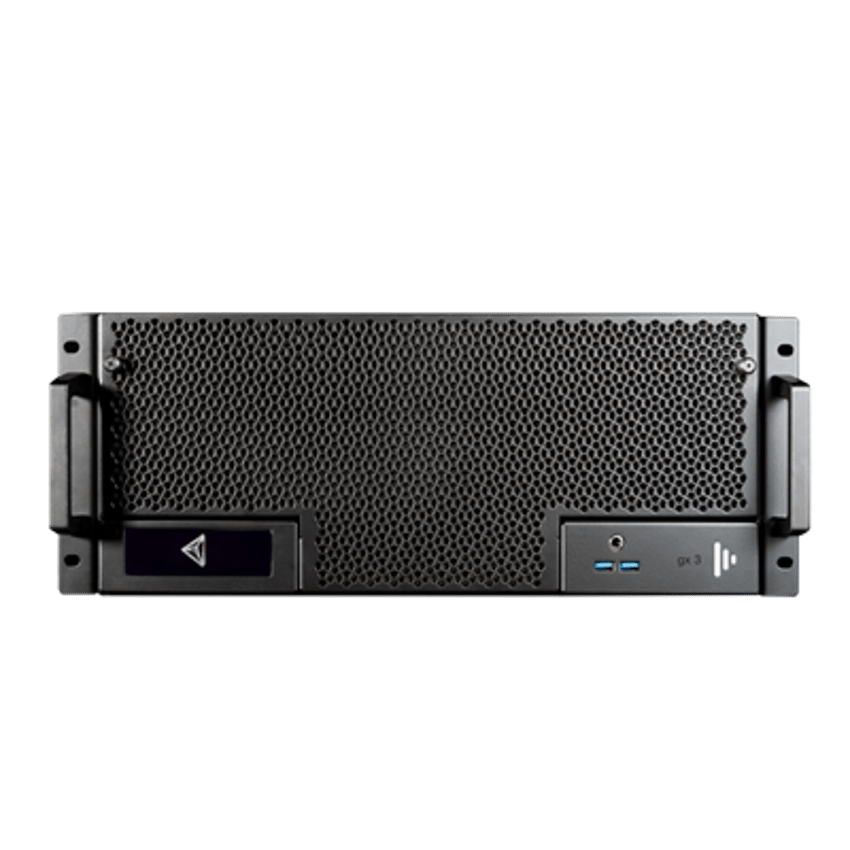

Ruggedised 4U chassis with hi-res OLED front panel displaying detailed system information and a redesigned fan with a maximum decibel rating of 56dB.
Tech specsSystem Connectivity - I/OVideo Output3x 4K outputs using VFC cards
1x DisplayPort 1.4 (GUI)
Ships standard with HDMI 2.0 VFC cards
Different Video Format Conversions cards also available, refer to VFC SpecificationsVideo Input3x 12G inputs or 12x 3G inputs
(HD-BNC connectors)Video SyncBNC GenlockOptical AudioADAT/SPDIF (Toslink connector) - 1x in, 1x outMIDIMIDI (circular 5-pin DIN connector) - 1x in, 1x outAudioBalanced XLR (circular 3-pin connector) - 2x in, 2x out
Analogue (1/4 headphone jack) - 1x inGeneral Network1x 1Gb/sec (Ethernet)
2x 10Gb/sec (Ethernet)High Speed Network2x 100Gb/sec port (QSFP28)System Management Controller1x Management Port (Ethernet)Data/Peripherals5x USB 3.0
***Check our DOWNLOADS section below for more info.***
Read more
The most versatile media server yet
The gx 3 is our most versatile and flexible single-box solution to fit any production across any application, be it live or xR.
Take generative content further
Unlock new potential in Notch generative content such as facial tracking, simulation and buffer effects or even AI background removal for IMAG thanks to the NVIDIA A6000 advanced processing capabilities.
More video throughput
The gx 3 includes two 100GbE network ports and 12G video capture as standard, keeping in line with the future requirement of live shows
Designed for modern workflows
The integration of a new PCIe 4.0 motherboard, CPU, and storage guarantees peak performance when dealing with complex video files.
Battle tested chassis
Ruggedised 4U chassis with hi-res OLED front panel displaying detailed system information and a redesigned fan with a maximum decibel rating of 56dB.
Tech specsSystem Connectivity - I/OVideo Output3x 4K outputs using VFC cards
1x DisplayPort 1.4 (GUI)
Ships standard with HDMI 2.0 VFC cards
Different Video Format Conversions cards also available, refer to VFC SpecificationsVideo Input3x 12G inputs or 12x 3G inputs
(HD-BNC connectors)Video SyncBNC GenlockOptical AudioADAT/SPDIF (Toslink connector) - 1x in, 1x outMIDIMIDI (circular 5-pin DIN connector) - 1x in, 1x outAudioBalanced XLR (circular 3-pin connector) - 2x in, 2x out
Analogue (1/4 headphone jack) - 1x inGeneral Network1x 1Gb/sec (Ethernet)
2x 10Gb/sec (Ethernet)High Speed Network2x 100Gb/sec port (QSFP28)System Management Controller1x Management Port (Ethernet)Data/Peripherals5x USB 3.0
***Check our DOWNLOADS section below for more info.***
Read more
The go-to media server for touring artists who want to run the most intricate set designs.
The most versatile media server yet
The gx 3 is our most versatile and flexible single-box solution to fit any production across any application, be it live or xR.
Take generative content further
Unlock new potential in Notch generative content such as facial tracking, simulation and buffer effects or even AI background removal for IMAG thanks to the NVIDIA A6000 advanced processing capabilities.
More video throughput
The gx 3 includes two 100GbE network ports and 12G video capture as standard, keeping in line with the future requirement of live shows
Designed for modern workflows
The integration of a new PCIe 4.0 motherboard, CPU, and storage guarantees peak performance when dealing with complex video files.
Battle tested chassis
Ruggedised 4U chassis with hi-res OLED front panel displaying detailed system information and a redesigned fan with a maximum decibel rating of 56dB.
Tech specsSystem Connectivity - I/OVideo Output3x 4K outputs using VFC cards
1x DisplayPort 1.4 (GUI)
Ships standard with HDMI 2.0 VFC cards
Different Video Format Conversions cards also available, refer to VFC SpecificationsVideo Input3x 12G inputs or 12x 3G inputs
(HD-BNC connectors)Video SyncBNC GenlockOptical AudioADAT/SPDIF (Toslink connector) - 1x in, 1x outMIDIMIDI (circular 5-pin DIN connector) - 1x in, 1x outAudioBalanced XLR (circular 3-pin connector) - 2x in, 2x out
Analogue (1/4 headphone jack) - 1x inGeneral Network1x 1Gb/sec (Ethernet)
2x 10Gb/sec (Ethernet)High Speed Network2x 100Gb/sec port (QSFP28)System Management Controller1x Management Port (Ethernet)Data/Peripherals5x USB 3.0
***Check our DOWNLOADS section below for more info.***
Read more
The most versatile media server yet
The gx 3 is our most versatile and flexible single-box solution to fit any production across any application, be it live or xR.
Take generative content further
Unlock new potential in Notch generative content such as facial tracking, simulation and buffer effects or even AI background removal for IMAG thanks to the NVIDIA A6000 advanced processing capabilities.
More video throughput
The gx 3 includes two 100GbE network ports and 12G video capture as standard, keeping in line with the future requirement of live shows
Designed for modern workflows
The integration of a new PCIe 4.0 motherboard, CPU, and storage guarantees peak performance when dealing with complex video files.
Battle tested chassis
Ruggedised 4U chassis with hi-res OLED front panel displaying detailed system information and a redesigned fan with a maximum decibel rating of 56dB.
Tech specsSystem Connectivity - I/OVideo Output3x 4K outputs using VFC cards
1x DisplayPort 1.4 (GUI)
Ships standard with HDMI 2.0 VFC cards
Different Video Format Conversions cards also available, refer to VFC SpecificationsVideo Input3x 12G inputs or 12x 3G inputs
(HD-BNC connectors)Video SyncBNC GenlockOptical AudioADAT/SPDIF (Toslink connector) - 1x in, 1x outMIDIMIDI (circular 5-pin DIN connector) - 1x in, 1x outAudioBalanced XLR (circular 3-pin connector) - 2x in, 2x out
Analogue (1/4 headphone jack) - 1x inGeneral Network1x 1Gb/sec (Ethernet)
2x 10Gb/sec (Ethernet)High Speed Network2x 100Gb/sec port (QSFP28)System Management Controller1x Management Port (Ethernet)Data/Peripherals5x USB 3.0
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Type | Rack mounted Server |
| Brand | disguise |
