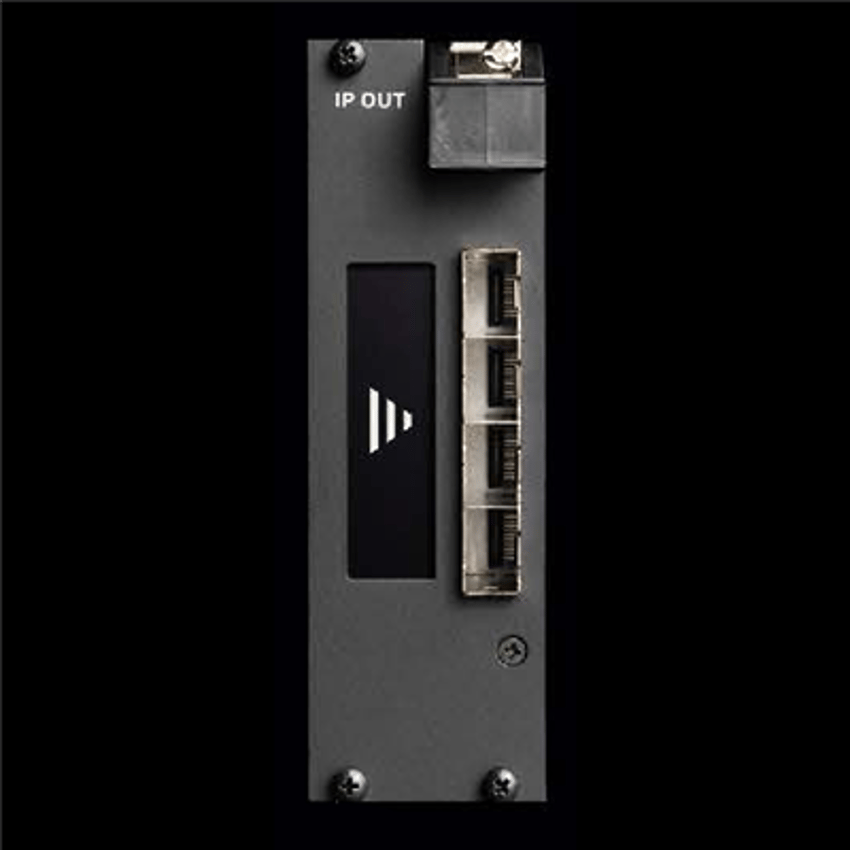

disguise VFC card (ip)

You can now enable a SMPTE ST 2110 video output from your Disguise hardware with minimal latency thanks to our new IP-VFC card.

TECHNICAL SPECIFICATIONS
Bit depth: 10-bit (all modes)
Chroma subsampling: YUV 4:4:4, YUV 4:2:2, RGB 4:2:2 (all modes)
Colour space: REC 709, REC 2020 (all modes except HD Video at 1280 x 720 which supports REC 709 only)
SFP Support: Support for 25Gb SFP28* for ST 2110 mode and coaxial video SFP modules for SDI mode

SUPPORTED FORMATS
4K DCI (4096 x 2160)
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p (SINGLE)**
UHD (3840 x 2160)
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 (SINGLE)**
2K DCI (2048 x 1080)
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 29.97p, 2K DCI 30p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p (SINGLE, QUAD)**
Full HD (1920 x 1080)
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080i50, 1080p59.94, 1080i59.94, 1080p60 (SINGLE, QUAD)**
HD (1280 x 720) 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60 (SINGLE, QUAD)**
Read more

Specifications

Type	Video format conversion cards
Brand	disguise
