Dynacord U120:1-EU

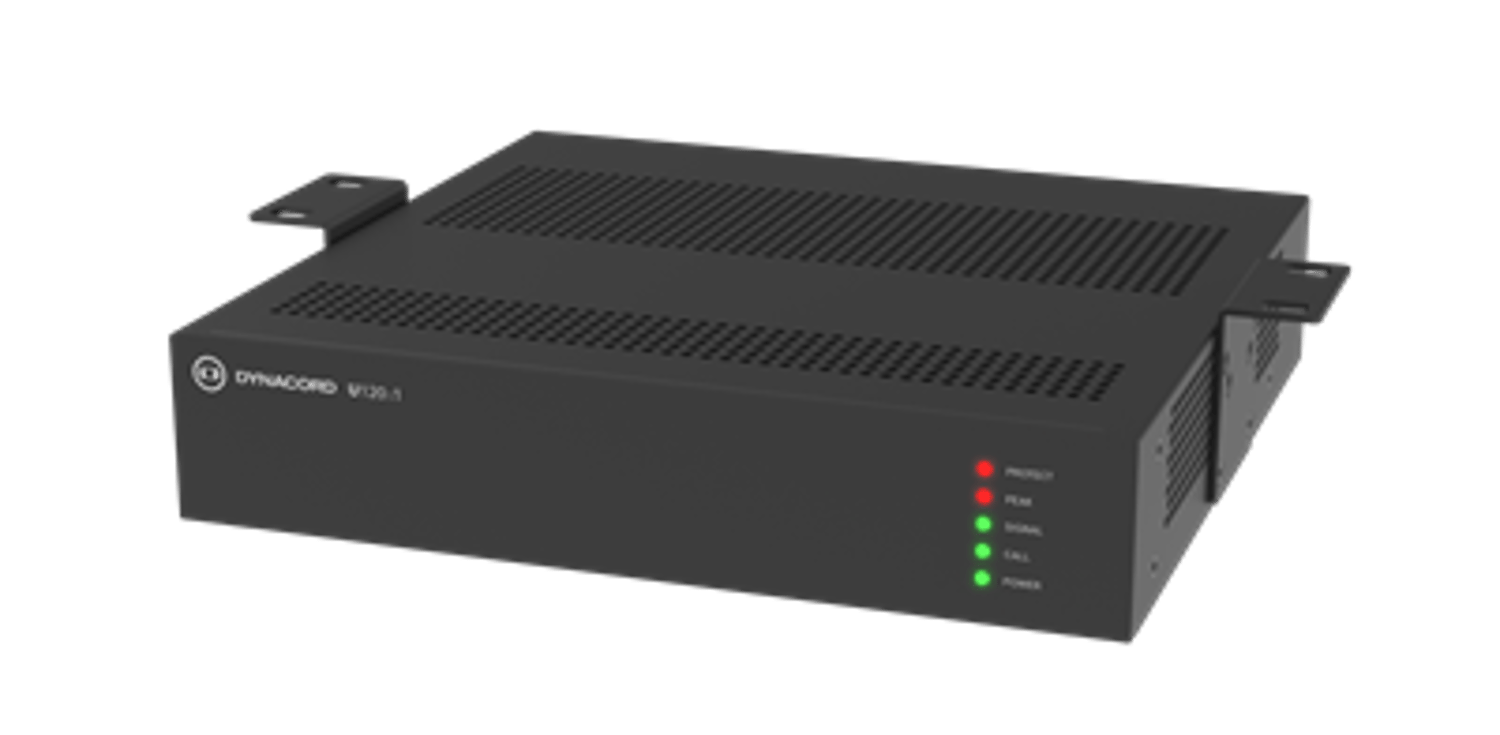

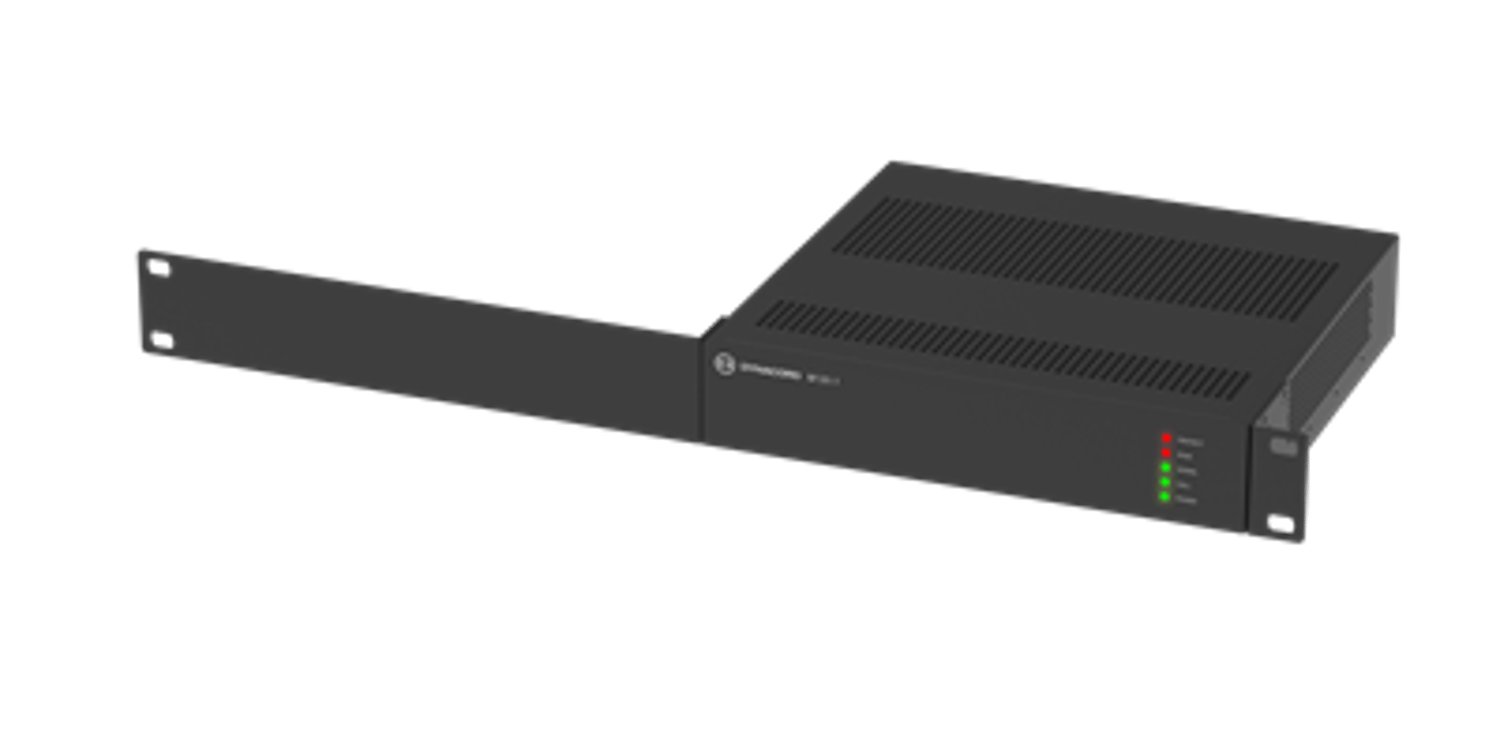

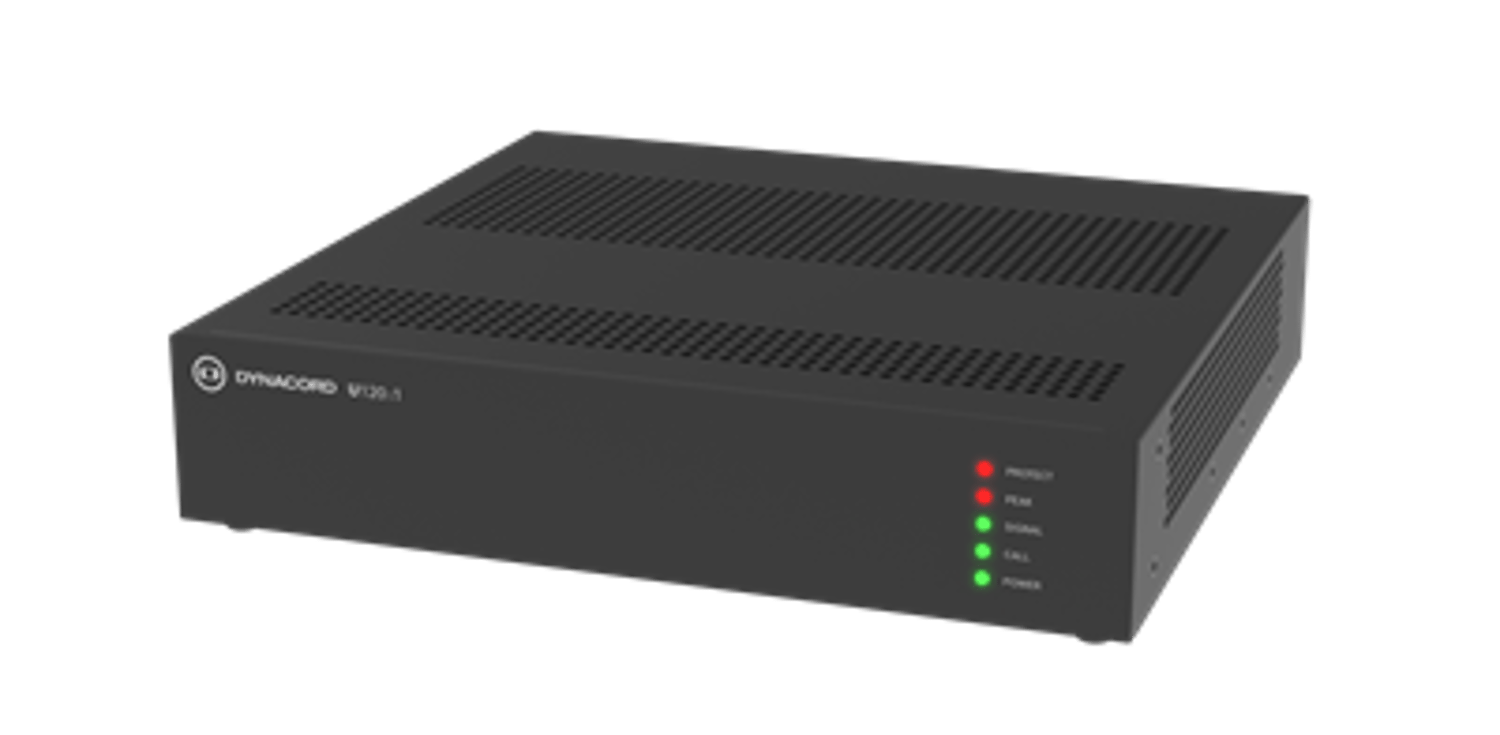

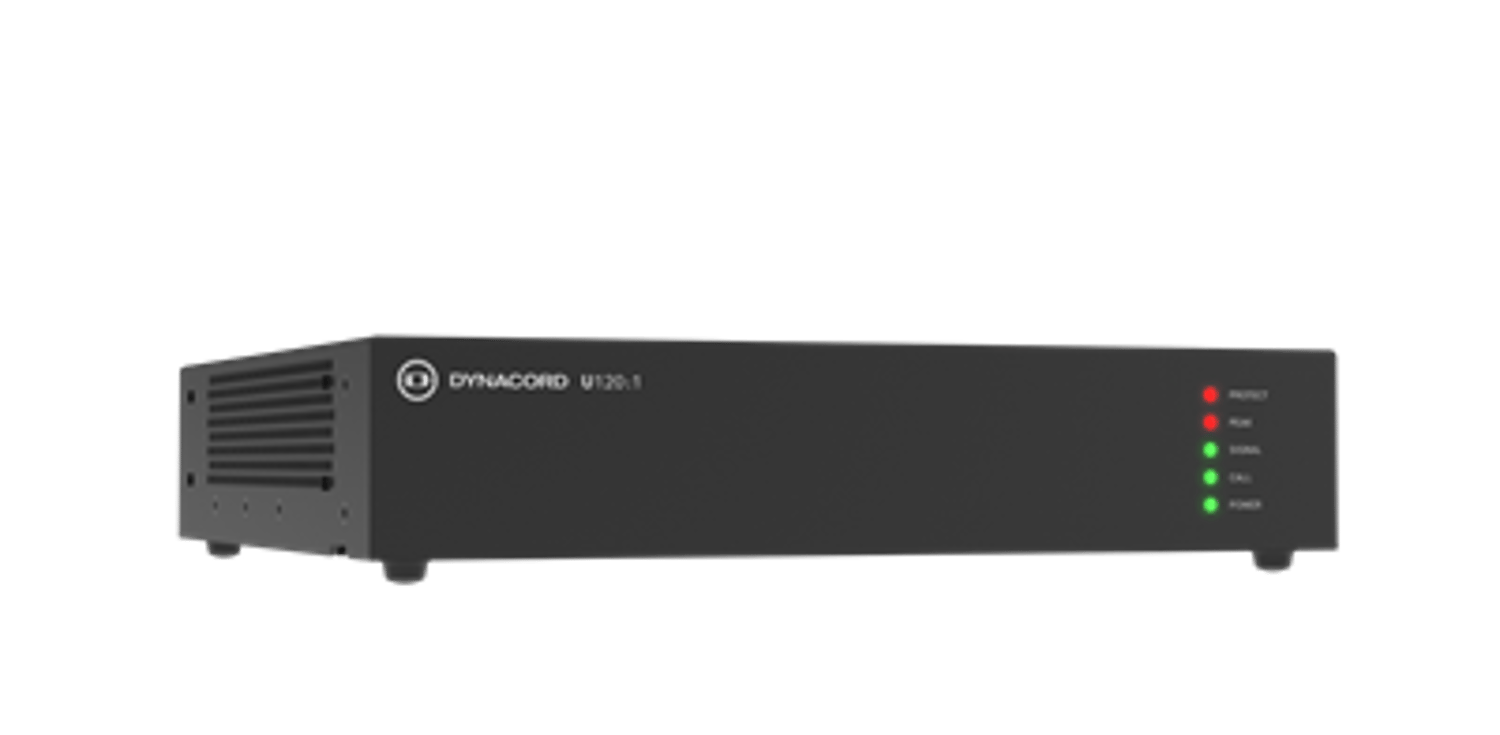

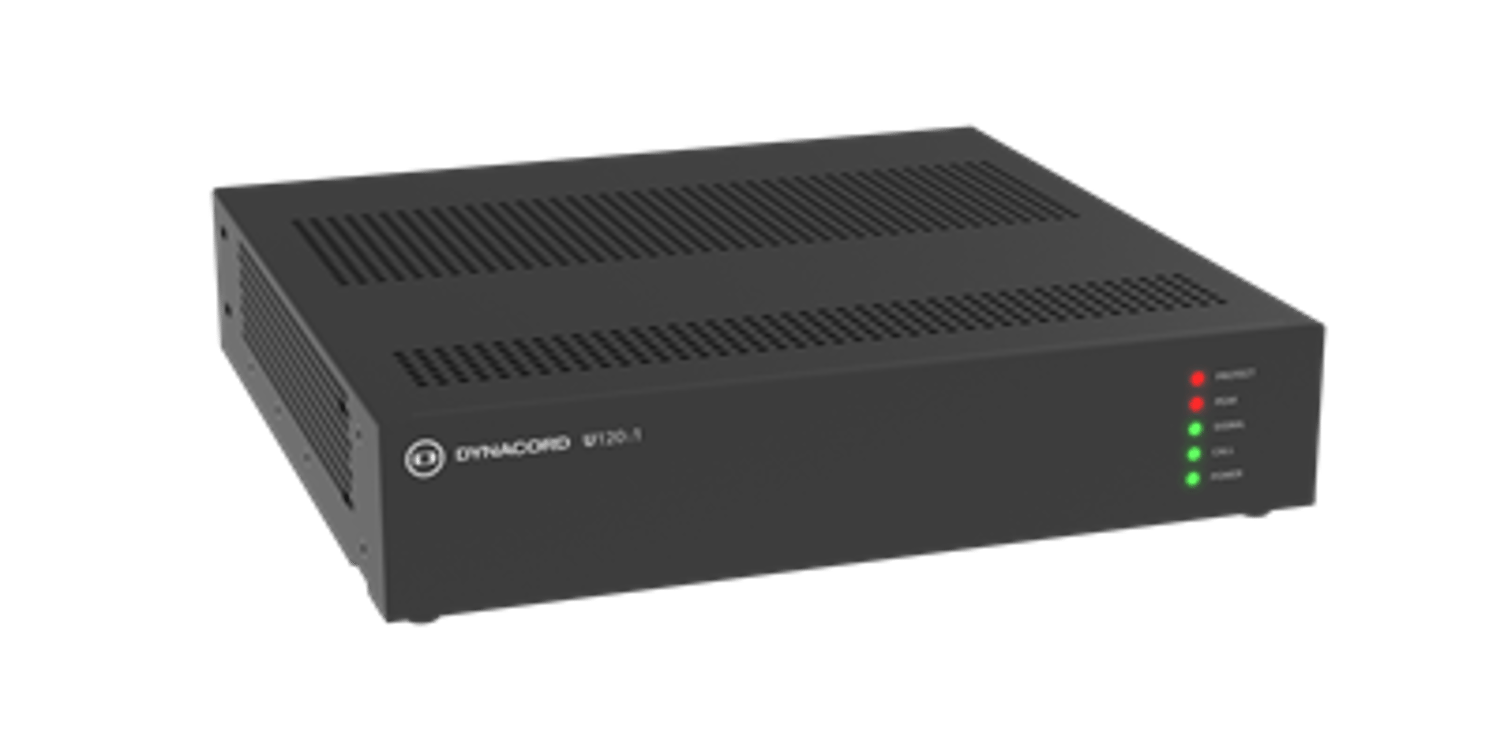

Introducing the U120:1, a 120 W power amplifier designed to cater to the demands of small to mediumsized installations, where paramount considerations include quality, performance, and unwavering reliability. This amplifier is ideal for background music and crystal-clear voice announcement applications, making it a perfect fit for diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers. Thanks to its compact size, standing just one rack unit high and half rack wide, the U120:1 presents numerous installation possibilities, even in spaceconstrained settings. Included brackets facilitate both single and dual rack-mount configurations, while desktop and under-counter installations are equally viable. When rack-mounted side by side, two amplifiers can seamlessly inhabit a single rack unit, optimizing space utilization and effectively doubling both channel count and output power.
Specifications

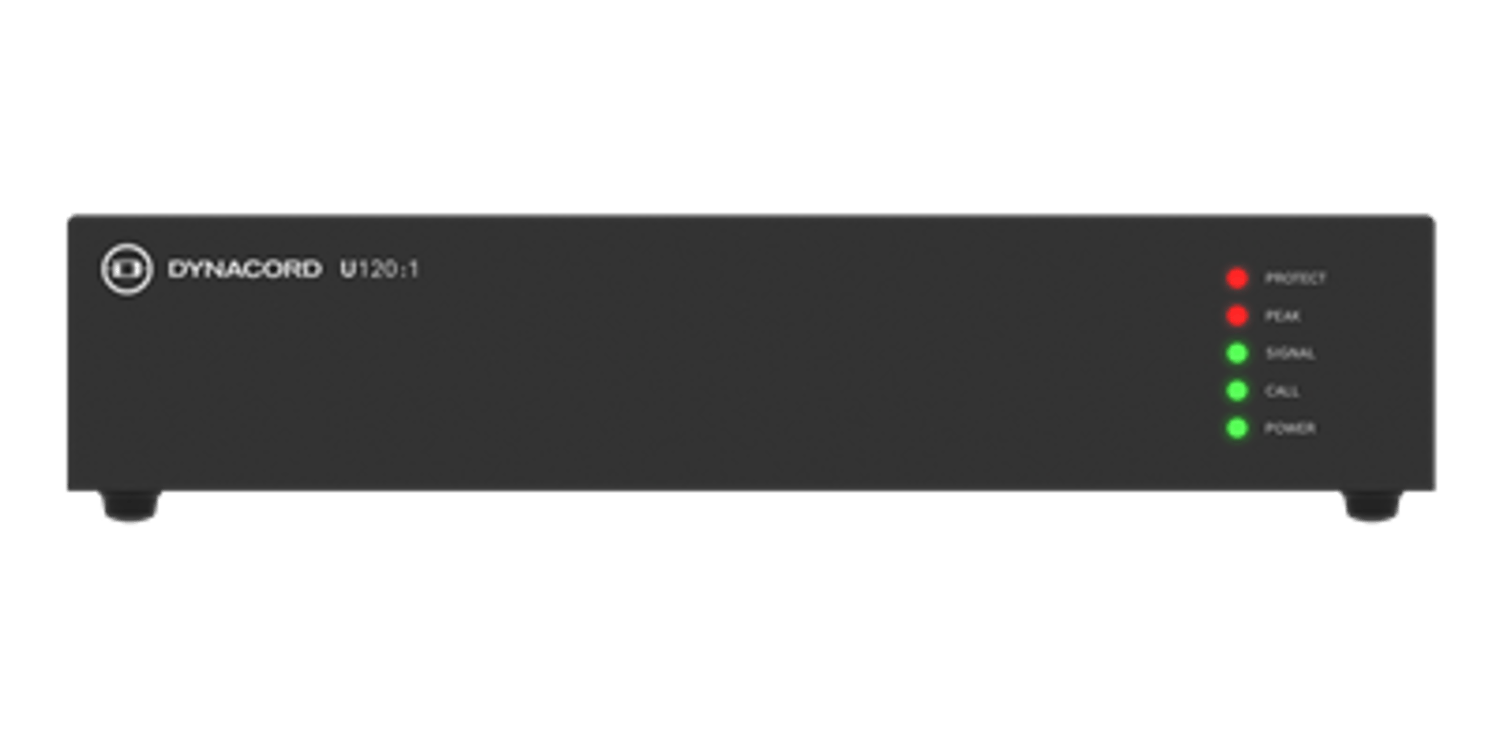

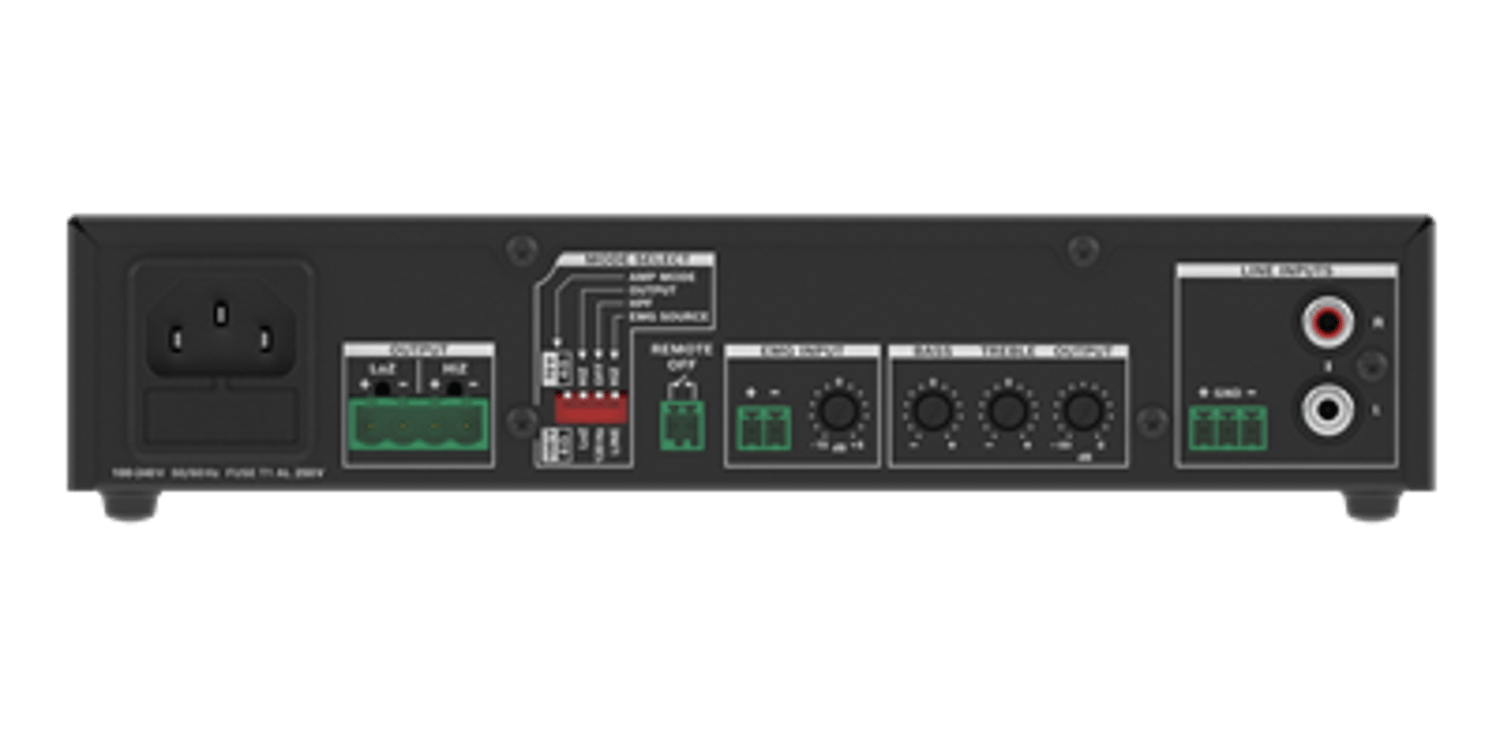

Idle mode 9 W / 11 WRemote power (ON/OFF Stand by)2-pin, Eurostyle, contact closurePerformanceFrequency response, -3 dB ref. 1 kHzAny input to output<10 Hz — 22 kHzDistortion<1% @rated output power, 1 kHzOutput stage topologyClass DEqualizationBass shelving±12 dB / 150 Hz — 3 dB (100 Hz)Treble shelving±12 dB / 5 kHz — 3 dB (10 kHz)FilterLO-CUT permanentlyf=20 Hz, 12 dB/oct.LO-CUT switchable, can be activatedf=120 Hz, 12 dB/oct.GeneralFront status LEDsProtect (Red)Protection, short circuitPeak (Red)1 dB before clip (input and output)Signal (Green)Input and output signalCall (Green)EMG / priority trigger / Vox input activePower (Green)Power on conditionDIP switchesEMG (HiZ/LowZ), Two-tone Chime (ON/OFF), HPF (120 Hz), VOX (ON/OFF), Phantom power (+48 V/OFF) Output (HiZ/LowZ), Amp mode (70 V/100 V; 4O/8O)ProtectionsAmplifierAudio limiters, high temperature, DC, HF, short circuit, over current protectionSwitching mode power supply (µPC controlled)Mains over/under voltage protection, inrush current limiter, mains over current, high temperatureRemote power OFFContact closureInputsNumber of inputs2 mic/line, 2 aux (+EMG)Sensitivity with all level controls in max. positionMIC / Call station-68 dBu (300 µV)AUX (only L or R)-22 dBu (60 mV)AUX (Stereo) (L and R)-28 dBu (30 mV)Maximum input levelMIC / Call station+8 dBuInput impedancesMIC / Call station10 kOAUX4.7 kOEMG (Line)>15 kOEMG (HiZ)>470 kOLINE (L and R)75 ONoise, MIC input to output, Aweighted, (HiZ 100 V)-60 dBuInput 1TypeMic/Line, contact override with chimeConnector3-pin XLR, balanced / 5-pin Eurostyle, balanced (3 pin for input, 2 pin for triggerDynamic range61 dB (Mic gain min — max)S/N (A-weighted)=98 dBPhantom power supply, switchable48 V DCInput 2TypeMic/Line, VOX ducker overrideConnector3-pin XLR, balancedVOX DuckingDucking control 0 dB — -45 dBVOX Threshold-60dBu — +8 dBu, adjustableDynamic range61 dB (Mic gain min — max)S/N (A-weighted)=98 dBPhantom power supply, switchable48 V DCInput 3TypeLineConnectorRCA (chinch), stereo converted to mono, unbalancedS/N (A-weighted)=98 dBInput 4TypeLineConnectorRCA (chinch), stereo converted to mono, unbalancedS/N (A-weighted)=98 dBEMG InputTypeLine; 100 VConnector2-pin, balancedS/N (A-weighted)=98 dBLoudspeaker outputConnector4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ)Rated output power240 WMax output voltage, 1 kHz, THD=0.5%, no load4 O 8 O 70 V 100 V
31 VRMS 45 VRMSMechanicalEnclosureIEC protection classClass I (grounded)Dimensions (HxWxD), without acessories44.2 mm x 218 mm x 217.7 mm
(1.74 in x 8.6 in x 8.57 in)Color in RALRAL 9017 Traffic blackNet weight (without accessories)1.85 kg
(4.07 lb)Net weight (with accessories)2.31 kg
(5.09 lb)Shipping weight2.67 kg
(5.88 lb)MountingStand-alone; 19" rack; rack side-byside; half 19" rack; table-top; undertableEnvironmentalClimatic conditionsCooling conceptFour-stage-fans (Off / Slow / Medium / Fast)Operating temperature-5°C — 45°C
(23°F — 113°F)Storage temperature-40°C — 70°C
(-40°F —158°F)
