Dynacord U240:1-EU

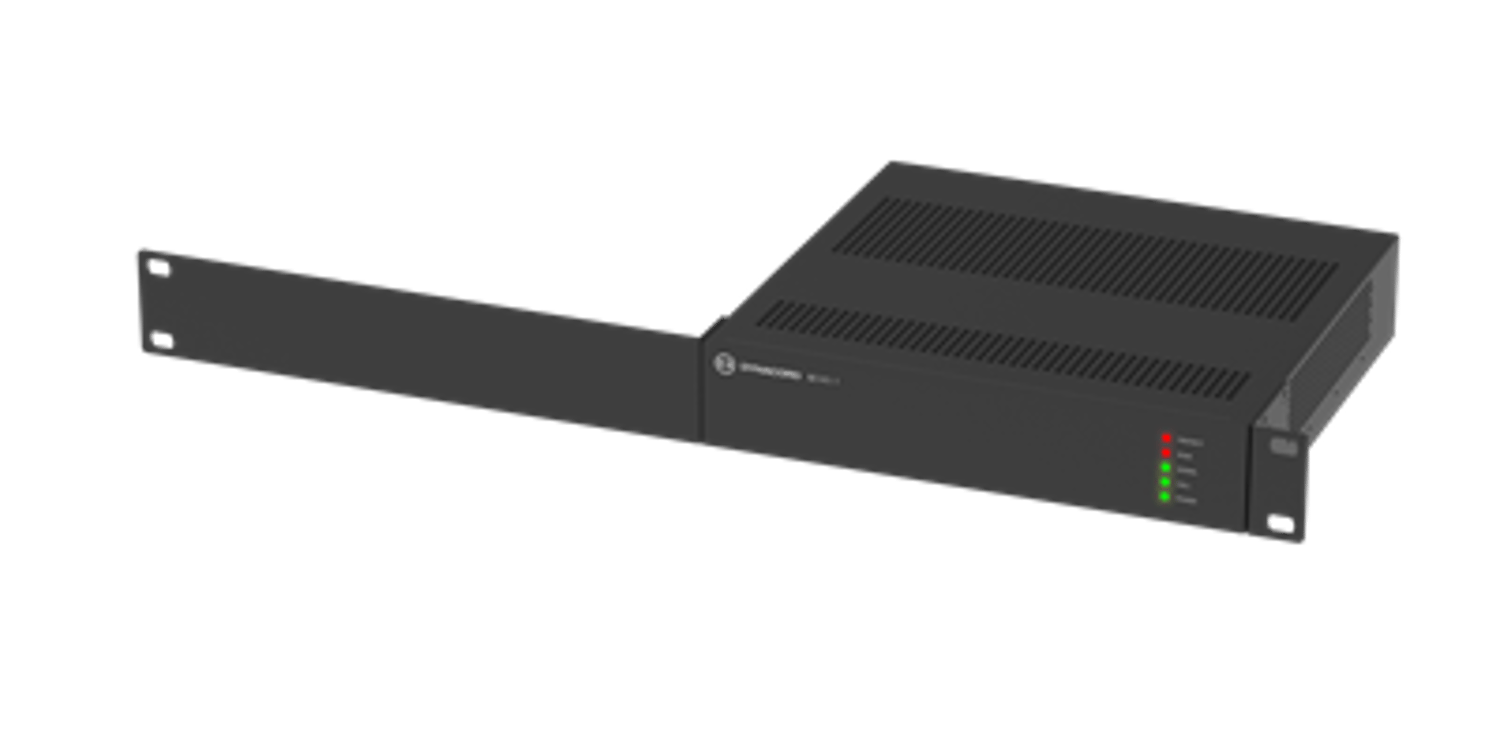

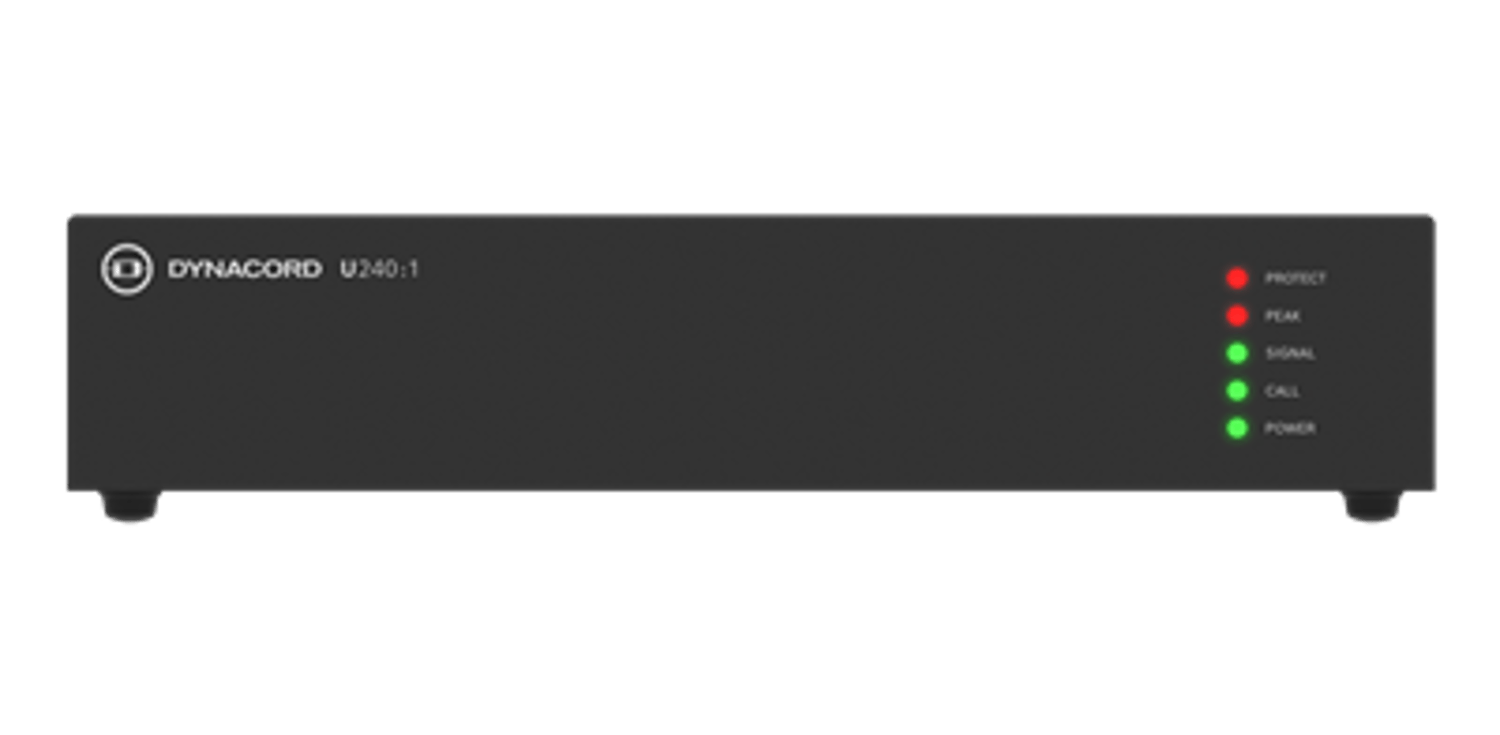

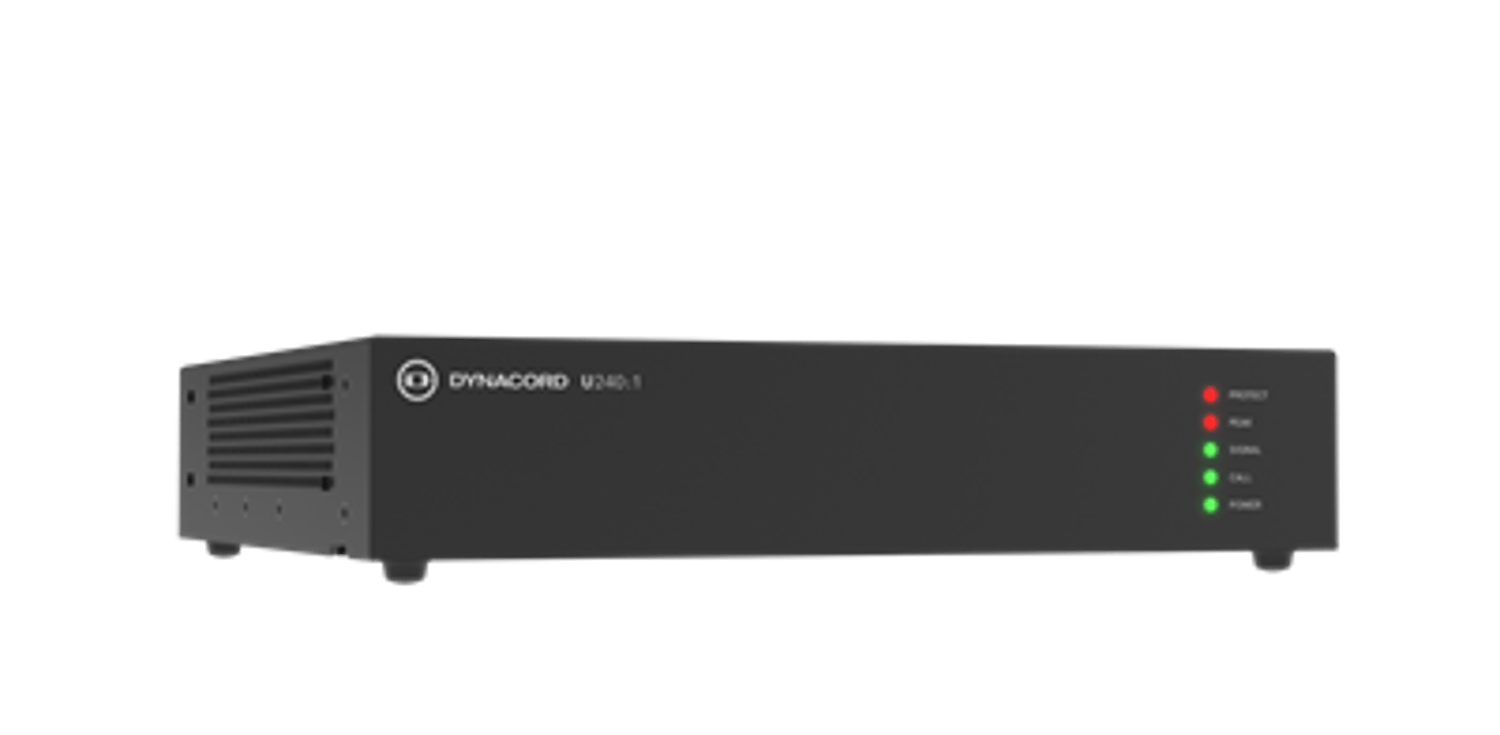

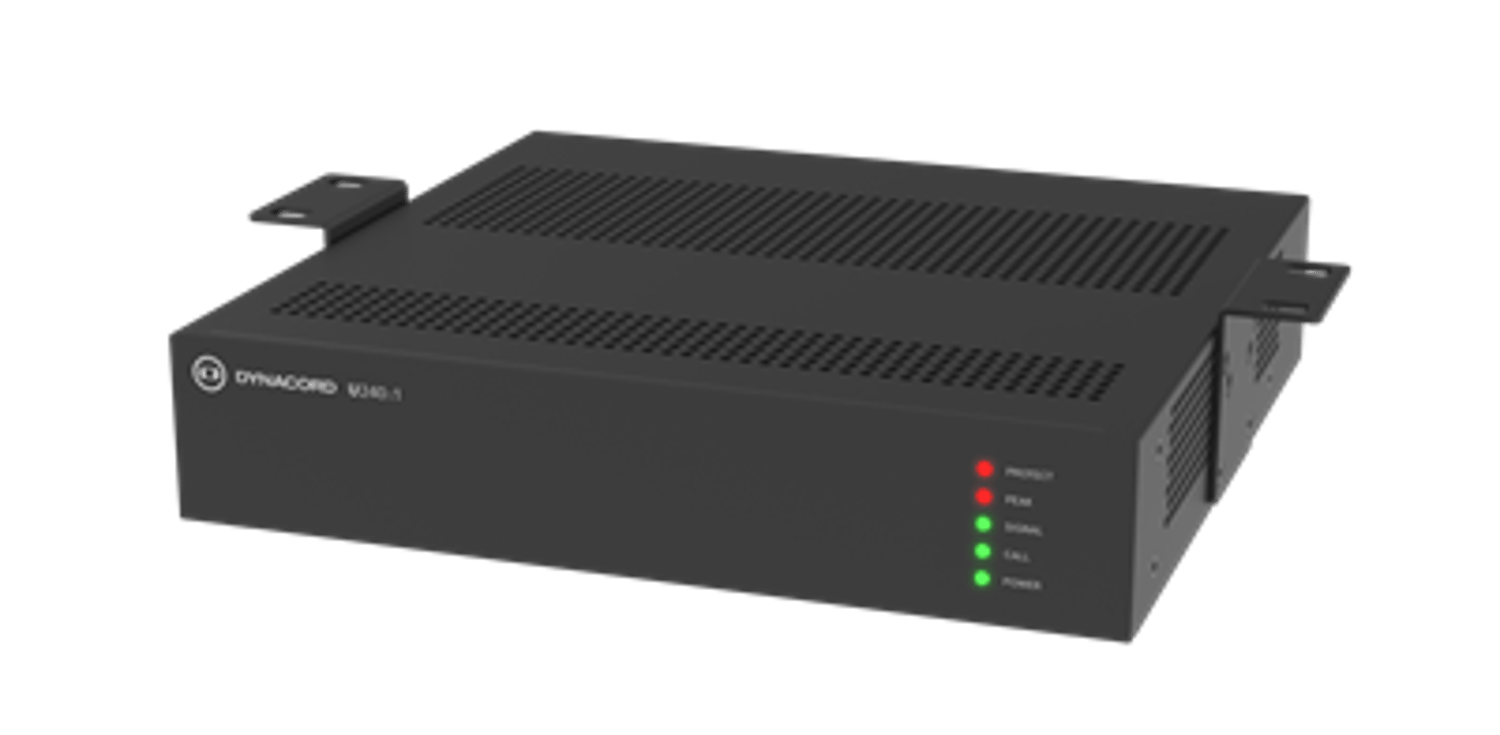

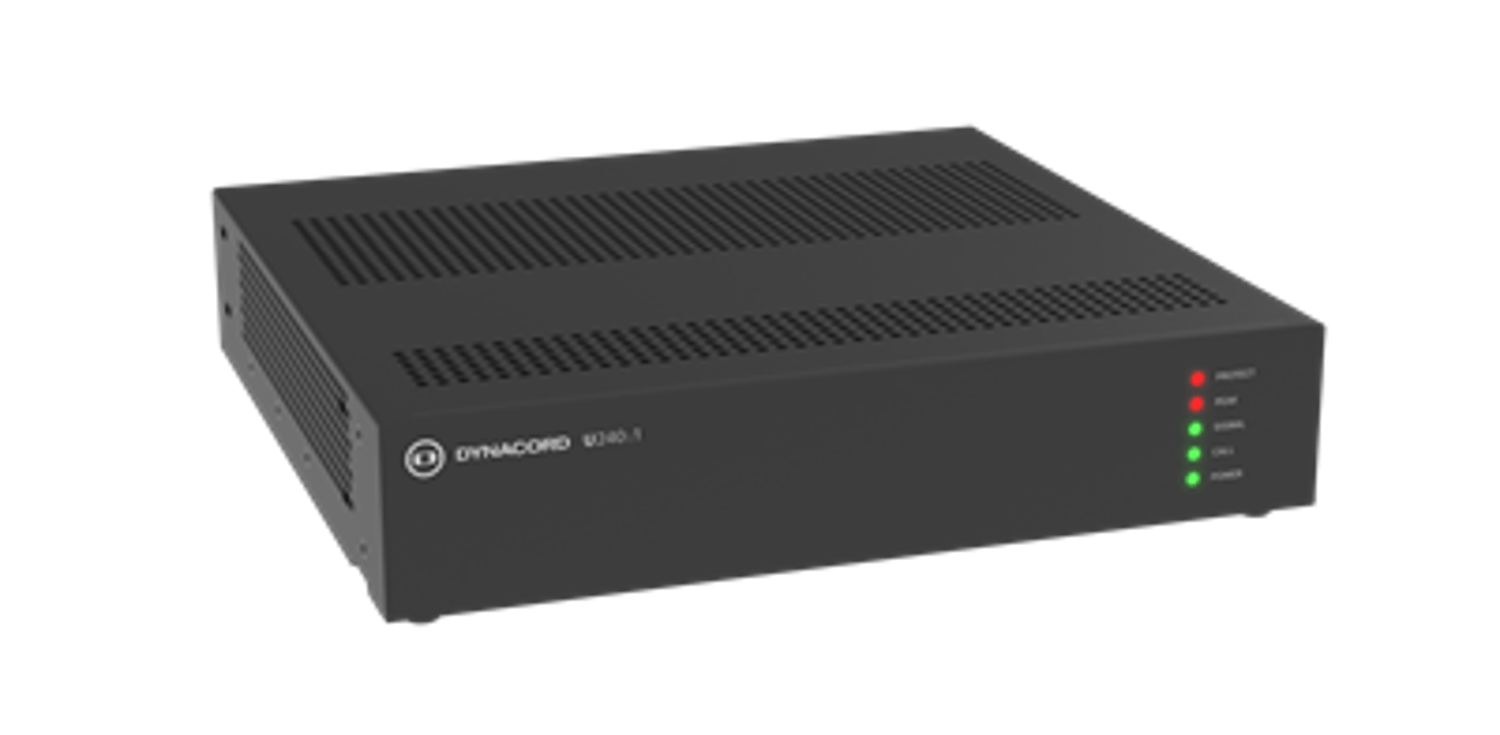

Introducing the U240:1, a 240 W power amplifier designed to cater to the demands of small to mediumsized installations, where paramount considerations include quality, performance, and unwavering reliability. This amplifier is ideal for background music and crystal-clear voice announcement applications, making it a perfect fit for diverse environments such as bars, restaurants, retail outlets, educational institutions, houses of worship, museums, galleries, transport hubs, and conference centers. Thanks to its compact size, standing just one rack unit high and half rack wide, the U240:1 presents numerous installation possibilities, even in spaceconstrained settings. Included brackets facilitate both single and dual rack-mount configurations, while desktop and under-counter installations are equally viable. When rack-mounted side by side, two amplifiers can seamlessly inhabit a single rack unit, optimizing space utilization and effectively doubling both channel count and output power.
Specifications
Idle mode 10 W / 12 W Remote power (ON/OFF Stand by) 2-pin, Eurostyle, contact closure Performance Frequency response, -3 dB ref. 1 kHz Any input to output <10 Hz — 22 kHz Distortion <1% @rated output power, 1 kHz Output stage topology Class D Equalization Bass shelving ±12 dB / 150 Hz — 3 dB (100 Hz) Treble shelving ±12 dB / 5 kHz — 3 dB (10 kHz) Filter LO-CUT permanently f=20 Hz, 12 dB/oct. LO-CUT switchable, can be activated f=120 Hz, 12 dB/oct. General Front status LEDs Protect (Red) Protection, short circuit Peak (Red) 1 dB before clip (input and output) Signal (Green) Input and output signal Call (Green) EMG Power (Green) Power on condition DIP switches EMG (HiZ/Line level), HPF (120 Hz), Output (HiZ/LowZ), Amp mode (70 V/100 V; 4O/8O) Protections Amplifier Audio limiters, high temperature, DC, HF, short circuit, over current protection Switching mode power supply (µPC controlled) Mains over/under voltage protection, inrush current limiter, mains over current, high temperature Remote power OFF Contact closure Inputs Number of inputs 1 Input Type Line Connector RCA (chinch), stereo converted to mono, unbalanced; 3-pin Eurostyle, balanced Sensitivity 100 mV Impedance 4.6 kO S/N (flat @max volume) >60 dB S/N (flat @min volume/muted) >95 dB Headroom >19 dB EMG Input Type Line; 100 V Connector 2-pin, balanced S/N (A-weighted) =98 dB Loudspeaker output Connector 4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ) Rated output power 240 W Max output voltage, 1 kHz, THD=0.5%, no load 4 O 8 O 70 V 100 V
31 VRMS 45 VRMS Mechanical Enclosure IEC protection class Class I (grounded) Dimensions (HxWxD), without acessories 44.2 mm x 218 mm x 217.7 mm
(1.74 in x 8.6 in x 8.57 in) Color in RAL RAL 9017 Traffic black Net weight (without accessories) 1.86 kg
(4.10 lb) Net weight (with accessories) 2.32 kg
(5.11 lb) Shipping weight 2.68 kg
(5.90 lb) Mounting Stand-alone; 19" rack; rack side-byside; half 19" rack; table-top; undertable Environmental Climatic conditions Cooling concept Four-stage-fans (Off / Slow / Medium / Fast) Operating temperature -5°C — 45°C
(23°F — 113°F) Storage temperature -40°C — 70°C
(-40°F —158°F)
Read more
