Article number:
33473
e:cue Butler Pro (DMX/RDM)

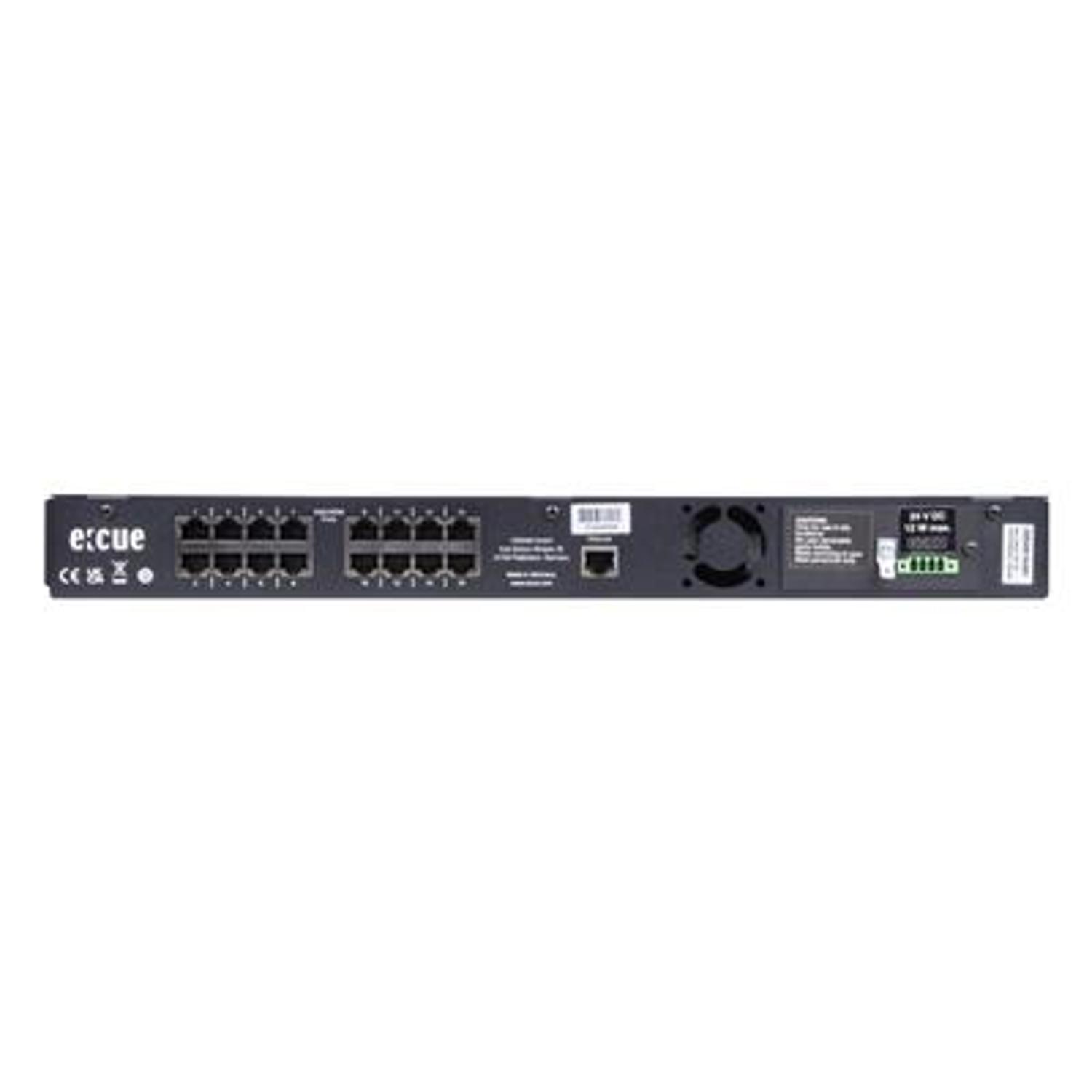

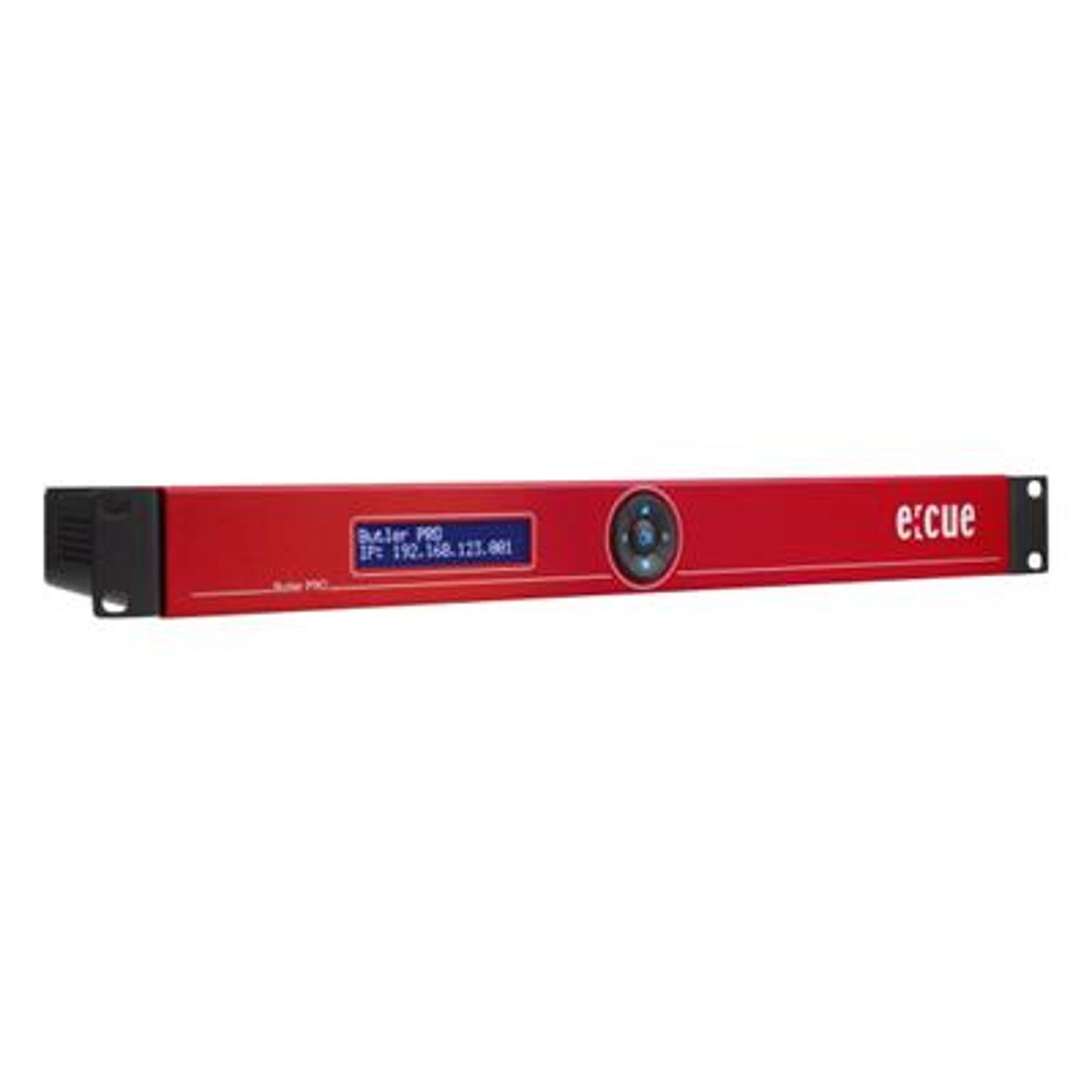

The Butler PRO is an e:net to DMX512/RDM (DMX512 version) or an e:net to e:pix (e:pix version) interface for the e:cue Lighting Application Suite (LAS) and SYMPHOLIGHT. Butler PRO is connected to the e:cue software via Ethernet. The Butler PRO DMX512 is the perfect choice for running a large number of DMX512 universes, offering support for 16 DMX512 universes with 8,192 channels and full RDM (Remote Device Management) capability for bidirectional communication with luminaires. The Butler PRO e:pix controls 16 e:pix universes with 32,768 channels. The system can be mounted ideally into a standard 19-inch rack. Yet, it is also possible to mount it onto a wall or ceiling m using rotatable mounting brackets.
Specifications
Dimensions (W x H x D) 482 x 44 x 142 mm / 19 x 1.7 x 5.6 in (incl. mounting brackets) Weight 1200 g Power 100 ... 240 V AC, 50/60 Hz Power consumtion. max. 20 W Operating temperature 0 … 40 °C / 32 … 104 °F Storage temperature -20 ... 70 °C / -4 ... 158 °F Operating/storage humidity 0 … 80% non-condensing Protection Class IP20 Materials Steel, front powder coated Mounting in 19-inch standard racks Certification CE, ETL, UKCA
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
Dimensions (W x H x D) 482 x 44 x 142 mm / 19 x 1.7 x 5.6 in (incl. mounting brackets) Weight 1200 g Power 100 ... 240 V AC, 50/60 Hz Power consumtion. max. 20 W Operating temperature 0 … 40 °C / 32 … 104 °F Storage temperature -20 ... 70 °C / -4 ... 158 °F Operating/storage humidity 0 … 80% non-condensing Protection Class IP20 Materials Steel, front powder coated Mounting in 19-inch standard racks Certification CE, ETL, UKCA
***Check our DOWNLOADS section below for more info.***
Read more
The Butler PRO is an e:net to DMX512/RDM (DMX512 version) or an e:net to e:pix (e:pix version) interface for the e:cue Lighting Application Suite (LAS) and SYMPHOLIGHT. Butler PRO is connected to the e:cue software via Ethernet. The Butler PRO DMX512 is the perfect choice for running a large number of DMX512 universes, offering support for 16 DMX512 universes with 8,192 channels and full RDM (Remote Device Management) capability for bidirectional communication with luminaires. The Butler PRO e:pix controls 16 e:pix universes with 32,768 channels. The system can be mounted ideally into a standard 19-inch rack. Yet, it is also possible to mount it onto a wall or ceiling m using rotatable mounting brackets.
Specifications
Dimensions (W x H x D) 482 x 44 x 142 mm / 19 x 1.7 x 5.6 in (incl. mounting brackets) Weight 1200 g Power 100 ... 240 V AC, 50/60 Hz Power consumtion. max. 20 W Operating temperature 0 … 40 °C / 32 … 104 °F Storage temperature -20 ... 70 °C / -4 ... 158 °F Operating/storage humidity 0 … 80% non-condensing Protection Class IP20 Materials Steel, front powder coated Mounting in 19-inch standard racks Certification CE, ETL, UKCA
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
Dimensions (W x H x D) 482 x 44 x 142 mm / 19 x 1.7 x 5.6 in (incl. mounting brackets) Weight 1200 g Power 100 ... 240 V AC, 50/60 Hz Power consumtion. max. 20 W Operating temperature 0 … 40 °C / 32 … 104 °F Storage temperature -20 ... 70 °C / -4 ... 158 °F Operating/storage humidity 0 … 80% non-condensing Protection Class IP20 Materials Steel, front powder coated Mounting in 19-inch standard racks Certification CE, ETL, UKCA
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
Type | Controllers & Processors |
Brand | E:CUE |
