- e:cue Glass Touch T12 (White)
Article number:
1529

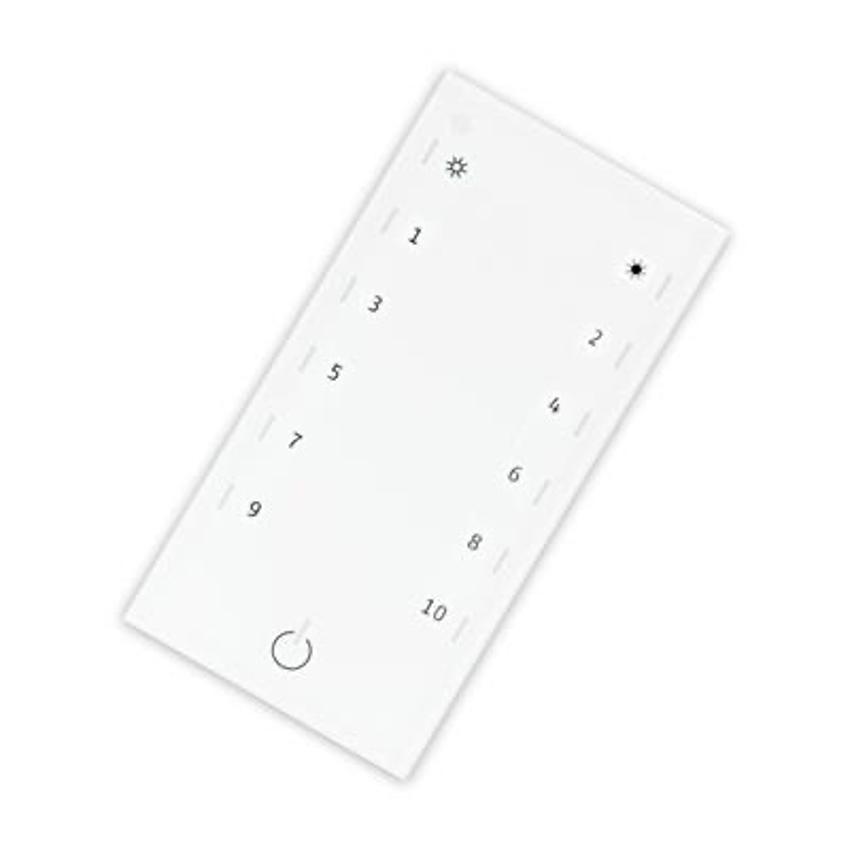

e:cue Glass Touch T12 (White)
The Glass Touch series of user terminals features an elegant design with a glass surface as well as touch-sensitive keys and wheel for user interaction. Designed to work with the SYMPL e:bus Node or Butler XT2 via the e:bus protocol, the Glass Touch keys and wheel are easily customized using the e:cue software to perform any function according to project requirements.
Pleasing to the eye, these devices are the perfect solution for control in high-end lighting applications such as retail, architectural, hospitality, and residential projects. Glass Touches are wall mountable, compatible with standard flush type boxes, and up to eight units can be connected to a single Butler XT2, for added flexibility during installation.
Specifications
Glass Touch T6
Glass Touch T6R
Glass Touch T12
Article Code
IC: AA439100138
EAN: 4006584745951
IC: AA439120138
EAN: 4006584745975
IC: AA439070138
EAN: 4006584745937
Layout
2 x Dimm Button
4 x Digit Button (Scenes etc.)
1 x On/Off Button
1 x Touch Rotary
1 x Play Button
6 x Digit Buttons (Scenes etc.)
1 x On/Off Button
2 x Dimm Button
10 x Digit Button (Scenes etc.)
1 x On/Off Button
Dimensions WxHxD (mm/inches)
80 x 80 x 11 / 3.15 x 3.15 x 0.43
80 x 160 x 11 / 3.15 x 6.3 x 0.43
80 x 160 x 11 / 3.15 x 6.3 x 0.43
Weight kg/lb
0.11 kg / 0.23 lbs
0.21 kg / 0.46lbs
0.21 kg / 0.46lbs
Power supply
24 V DC, 18 mA (via e:bus)
24 V DC, 18 mA (via e:bus)
24 V DC, 18 mA (via e:bus)
Operating / storage temp. °C/°F
0 ... 40 °C / 32 ... 104 °F
0 ... 40 °C / 32 ...104 °F
0 ... 40 °C / 32 ... 104 °F
Operating / storage hum.
0 ... 80%, not condensing
0 ... 80%, not condensing
0 ... 80%, not condensing
Environment
IP20
IP20
IP20
Housing
Glass (surface), aluminium (housing)
Glass (surface), aluminium (housing)
Glass (surface), aluminium (housing)
Mounting
In-wall mounting
In-wall mounting
In-wall mounting
Certifications
CE, ETL, UKCA
CE, ETL, UKCA
CE, ETL, UKCA
User interface
Capacitive touch sensors
Capacitive touch sensors
Capacitive touch sensors
System link
e:bus (screw terminals)
e:bus (screw terminals)
e:bus (screw terminals)
Input
IR
IR
IR
***Check our DOWNLOADS section below for more info.***
