- e:cue Bridge 8
Article number:
58025

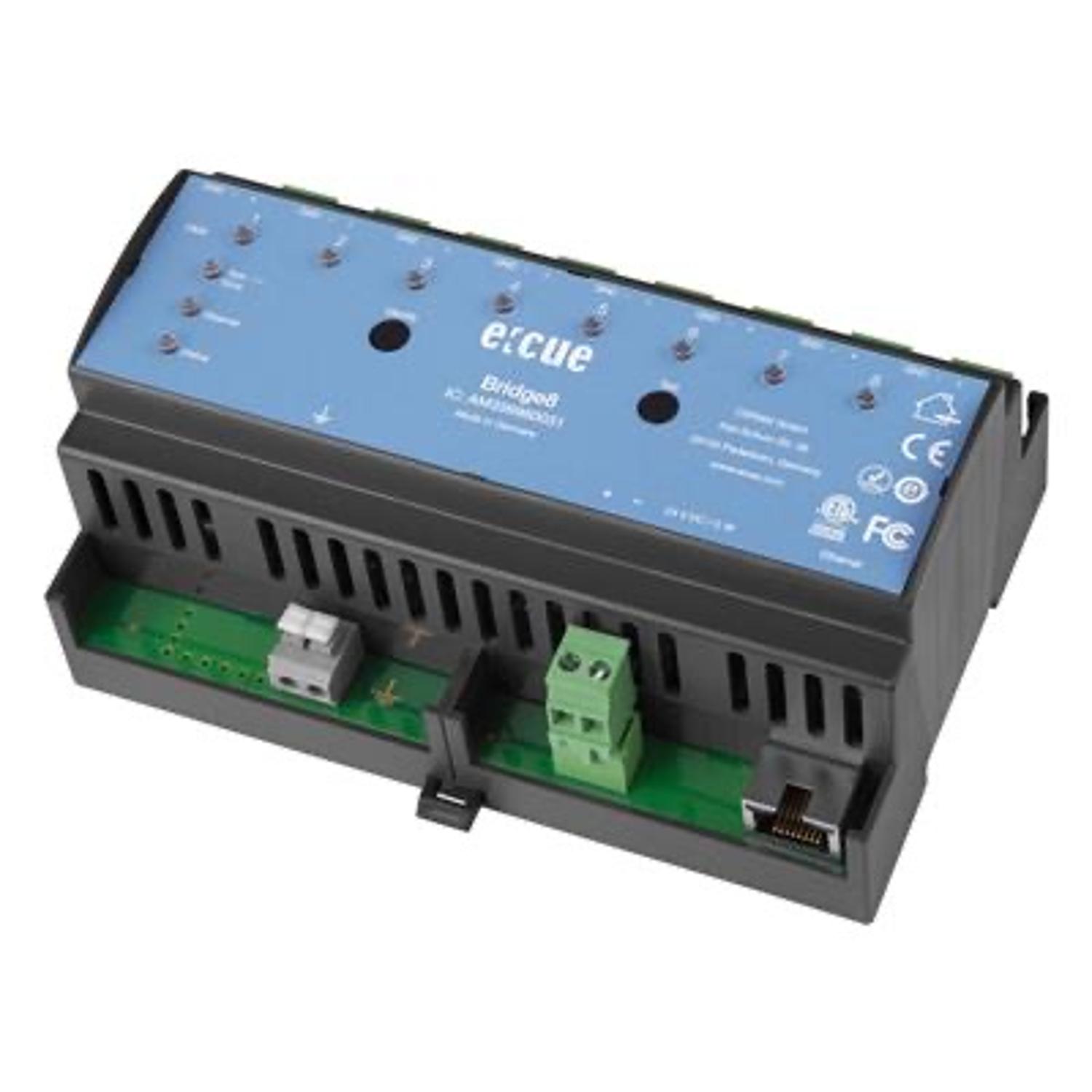

e:cue Bridge 8
The Bridge8 is an sACN/Art-Net to DMX512 interface with a total of 8 DMX512 outputs for a max of 4096 DMX512 channels. It is DIN rail mountable and has been specifically developed with tough outdoor environments in mind. Designed for this use, it comes with integrated surge protection and components that allow a very high operating temperature - the outputs are isolated up to 3,75 kV. The built-in web interface enables all parameters to be easily set and managed. With a freely definable DMX value the source IP (sACN/Art-Net Sender) can be easily changed to a different device.
Specifications
Dimensions (W x H x D) 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 24 ... 48 V DC (terminal plug), reverse polarity protection
or PoE IEEE 802.3af on RJ45 Power consumption max. 8 W (incl. DMX termination) Operating temperature -40 ... 70 °C* / -40 ... 158 °F* Storage temperature -40 ... 70 °C / -40 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material self extinguishing blend PC/ABS Mounting on 35 mm DIN rail (EN 60715)
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 8 x DMX512
isolated in pairs
surge protection
3-pin terminal plug Interface specifications VDMXmax / VDMXmin = 4.6 V / 0.8 V
Short circuit protected: ISCmax = 100 mA Ethernet-Port 1 x e:net/ethernet 10/100 Mbit/s, RJ-45
surge protection User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button, Test button * 70 °C / 158 °F for max. 1 hour/day; continuous operation at max. 60 °C / 140 °F. Read more
Specifications
Dimensions (W x H x D) 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 24 ... 48 V DC (terminal plug), reverse polarity protection
or PoE IEEE 802.3af on RJ45 Power consumption max. 8 W (incl. DMX termination) Operating temperature -40 ... 70 °C* / -40 ... 158 °F* Storage temperature -40 ... 70 °C / -40 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material self extinguishing blend PC/ABS Mounting on 35 mm DIN rail (EN 60715)
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 8 x DMX512
isolated in pairs
surge protection
3-pin terminal plug Interface specifications VDMXmax / VDMXmin = 4.6 V / 0.8 V
Short circuit protected: ISCmax = 100 mA Ethernet-Port 1 x e:net/ethernet 10/100 Mbit/s, RJ-45
surge protection User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button, Test button * 70 °C / 158 °F for max. 1 hour/day; continuous operation at max. 60 °C / 140 °F. Read more
The Bridge8 is an sACN/Art-Net to DMX512 interface with a total of 8 DMX512 outputs for a max of 4096 DMX512 channels. It is DIN rail mountable and has been specifically developed with tough outdoor environments in mind. Designed for this use, it comes with integrated surge protection and components that allow a very high operating temperature - the outputs are isolated up to 3,75 kV. The built-in web interface enables all parameters to be easily set and managed. With a freely definable DMX value the source IP (sACN/Art-Net Sender) can be easily changed to a different device.
Specifications
Dimensions (W x H x D) 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 24 ... 48 V DC (terminal plug), reverse polarity protection
or PoE IEEE 802.3af on RJ45 Power consumption max. 8 W (incl. DMX termination) Operating temperature -40 ... 70 °C* / -40 ... 158 °F* Storage temperature -40 ... 70 °C / -40 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material self extinguishing blend PC/ABS Mounting on 35 mm DIN rail (EN 60715)
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 8 x DMX512
isolated in pairs
surge protection
3-pin terminal plug Interface specifications VDMXmax / VDMXmin = 4.6 V / 0.8 V
Short circuit protected: ISCmax = 100 mA Ethernet-Port 1 x e:net/ethernet 10/100 Mbit/s, RJ-45
surge protection User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button, Test button * 70 °C / 158 °F for max. 1 hour/day; continuous operation at max. 60 °C / 140 °F. Read more
Specifications
Dimensions (W x H x D) 143 x 92 x 62 mm / 5.63 x 3.6 x 2.4 in (excl. fastening clip) Weight 250 g / 0.55 lb Power supply 24 ... 48 V DC (terminal plug), reverse polarity protection
or PoE IEEE 802.3af on RJ45 Power consumption max. 8 W (incl. DMX termination) Operating temperature -40 ... 70 °C* / -40 ... 158 °F* Storage temperature -40 ... 70 °C / -40 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material self extinguishing blend PC/ABS Mounting on 35 mm DIN rail (EN 60715)
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 8 x DMX512
isolated in pairs
surge protection
3-pin terminal plug Interface specifications VDMXmax / VDMXmin = 4.6 V / 0.8 V
Short circuit protected: ISCmax = 100 mA Ethernet-Port 1 x e:net/ethernet 10/100 Mbit/s, RJ-45
surge protection User interface LEDs for error, Ethernet activity, device status, DMX status
Identify button, Test button * 70 °C / 158 °F for max. 1 hour/day; continuous operation at max. 60 °C / 140 °F. Read more
Specifications
| Type | DMX & Lighting Gateways |
| Brand | E:CUE |
