Article number:
1507

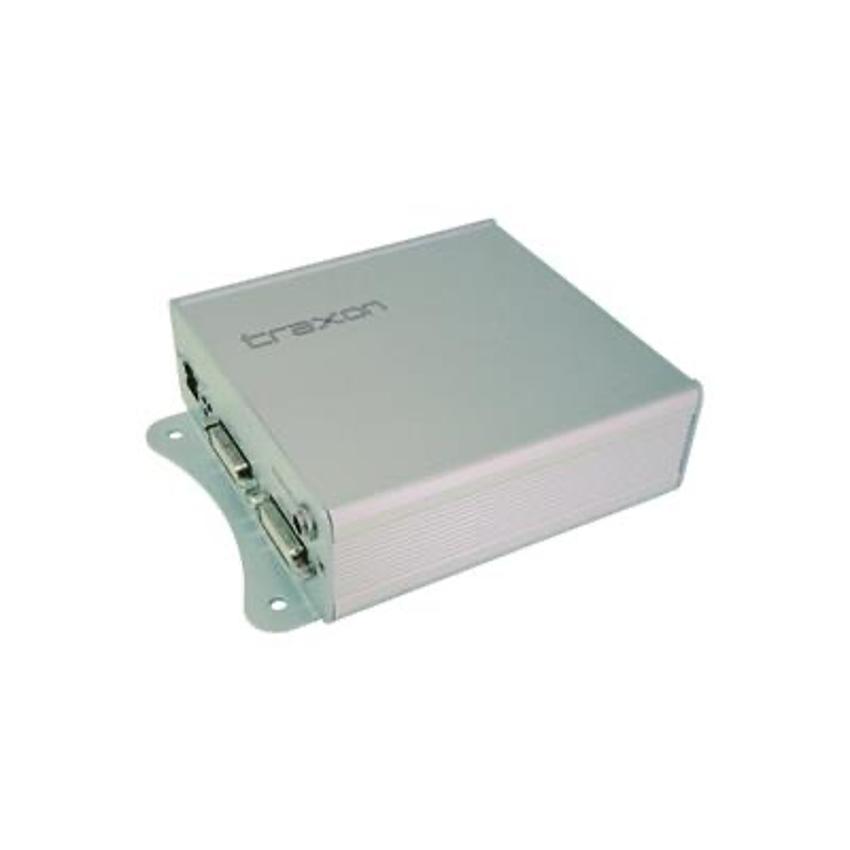

e:cue Video Micro Converter DMX
The e:cue Video Micro Converter (VMC) is an ultra-compact standalone converter for transforming a digital video signal (DVI) into DMX or e:pix control signals. Specifically designed for medium to large-sized LED video matrix systems, one VMC allows up to 4096 pixels to be transformed from a video signal to an LED system. For resolutions requiring more than 4096 pixels, practically any number of VMCs can be daisy-chained or connected via DVI splitters. The Video Micro Converter offers excellent ?exibility thanks to simple con?guration with the e:cue Patchelor software. The converter is available in two different versions: The VMC outputs DMX512 and e:pix, while the VMC DMX512 only supports the DMX512 signal.
Specifications
Dimensions (W x H x D) 155 x 120 x 45 mm/
6.1 x 4.7 x 1.8 inch Weight 0.43 kg/0.95 lbs Power 12 V DC, 5 W (ext. PSU) Operating/storage temp. 0 … 40 °C/32 … 104 °F Operating/storage hum. 0 … 90% non-condensing Protection Class IP20 Materials Aluminium Mounting Wall mounting
VMC Garage
(for 19-inch rack mouting) Certification CE, ETL Setup Link e:net (RJ45 for setup) Input DVI (female connector) Output 8 x DMX512 or e:pix (RJ45)
DVI (female connector)
Display LED indicators,
7-segment display
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
Dimensions (W x H x D) 155 x 120 x 45 mm/
6.1 x 4.7 x 1.8 inch Weight 0.43 kg/0.95 lbs Power 12 V DC, 5 W (ext. PSU) Operating/storage temp. 0 … 40 °C/32 … 104 °F Operating/storage hum. 0 … 90% non-condensing Protection Class IP20 Materials Aluminium Mounting Wall mounting
VMC Garage
(for 19-inch rack mouting) Certification CE, ETL Setup Link e:net (RJ45 for setup) Input DVI (female connector) Output 8 x DMX512 or e:pix (RJ45)
DVI (female connector)
Display LED indicators,
7-segment display
***Check our DOWNLOADS section below for more info.***
Read more
The e:cue Video Micro Converter (VMC) is an ultra-compact standalone converter for transforming a digital video signal (DVI) into DMX or e:pix control signals. Specifically designed for medium to large-sized LED video matrix systems, one VMC allows up to 4096 pixels to be transformed from a video signal to an LED system. For resolutions requiring more than 4096 pixels, practically any number of VMCs can be daisy-chained or connected via DVI splitters. The Video Micro Converter offers excellent ?exibility thanks to simple con?guration with the e:cue Patchelor software. The converter is available in two different versions: The VMC outputs DMX512 and e:pix, while the VMC DMX512 only supports the DMX512 signal.
Specifications
Dimensions (W x H x D) 155 x 120 x 45 mm/
6.1 x 4.7 x 1.8 inch Weight 0.43 kg/0.95 lbs Power 12 V DC, 5 W (ext. PSU) Operating/storage temp. 0 … 40 °C/32 … 104 °F Operating/storage hum. 0 … 90% non-condensing Protection Class IP20 Materials Aluminium Mounting Wall mounting
VMC Garage
(for 19-inch rack mouting) Certification CE, ETL Setup Link e:net (RJ45 for setup) Input DVI (female connector) Output 8 x DMX512 or e:pix (RJ45)
DVI (female connector)
Display LED indicators,
7-segment display
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
Dimensions (W x H x D) 155 x 120 x 45 mm/
6.1 x 4.7 x 1.8 inch Weight 0.43 kg/0.95 lbs Power 12 V DC, 5 W (ext. PSU) Operating/storage temp. 0 … 40 °C/32 … 104 °F Operating/storage hum. 0 … 90% non-condensing Protection Class IP20 Materials Aluminium Mounting Wall mounting
VMC Garage
(for 19-inch rack mouting) Certification CE, ETL Setup Link e:net (RJ45 for setup) Input DVI (female connector) Output 8 x DMX512 or e:pix (RJ45)
DVI (female connector)
Display LED indicators,
7-segment display
***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Type | DMX & Lighting Gateways |
| Brand | E:CUE |
