Article number:
41101

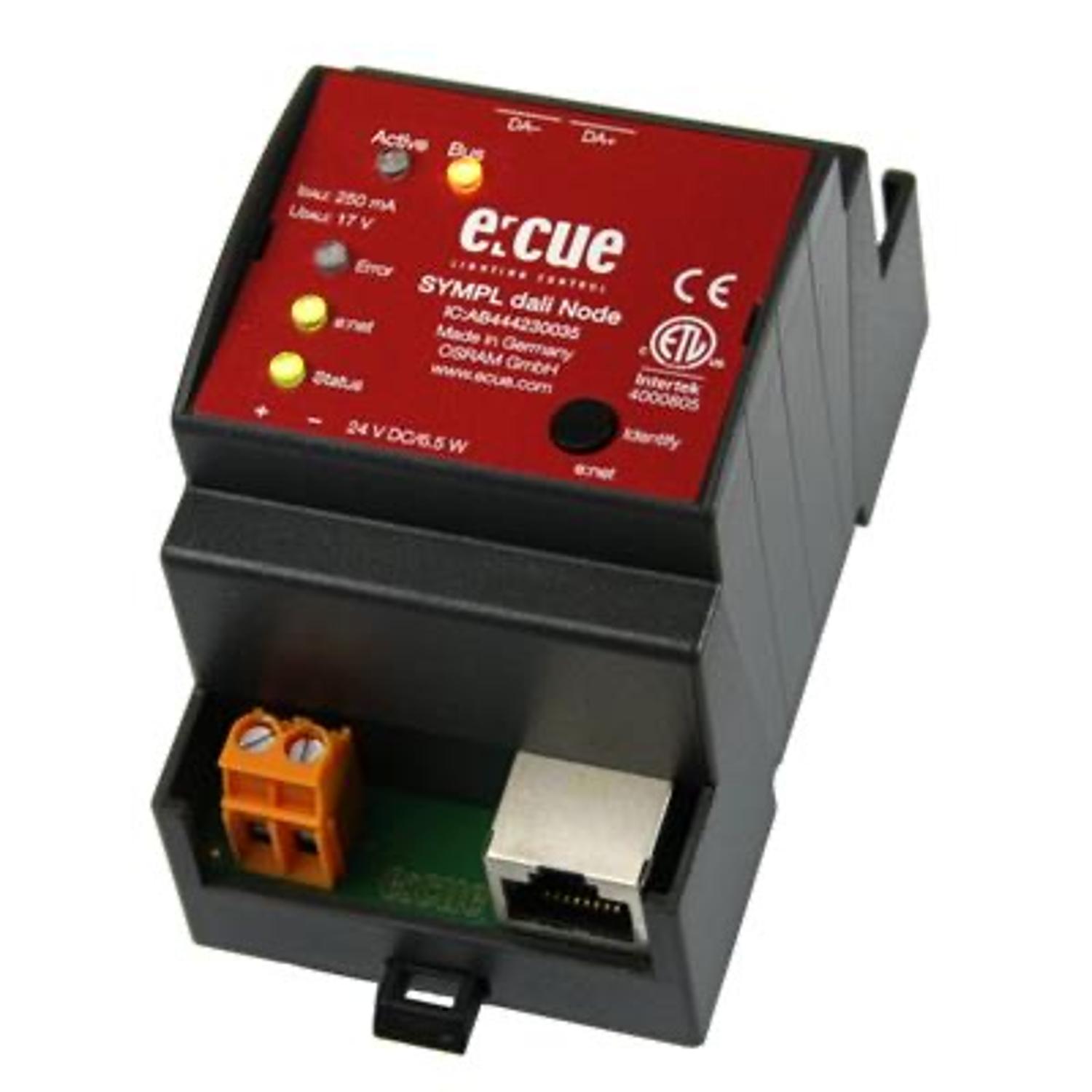

e:cue Sympl Dali Node
The e:cue SYMPL dali Node is a single DALI line interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides a DALI control for up to 64 DALI devices. The SYMPL dali Node is supplied with voltage via an external adaptor. It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The SYMPL dali Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POECE & UL certifiedSpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POECE & UL certifiedSpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The e:cue SYMPL dali Node is a single DALI line interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides a DALI control for up to 64 DALI devices. The SYMPL dali Node is supplied with voltage via an external adaptor. It is easily mounted onto standard 35 mm DIN rails or a suspension hole on the back on any solid vertical surface. The SYMPL dali Node is a straightforward, reliable and easy to use interface solution for SYMPHOLIGHT.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POECE & UL certifiedSpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POECE & UL certifiedSpecificationsDimensions (W x H x D)53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip)Weight 100 gPower supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45Power consumption2 W (incl. e:pix termination)Operating temperature0 ... 50 °C / 32 ... 122 °FStorage temperature-10 ... 70 °C / 14 ... 158 °FElectrical safetySELVOperating/storage hum.0 ... 80% non-condensingProtection ClassIP20Housing materialSelf extinguishing blend PC/ABS UL document E140692Mountingon 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surfaceCertificationCE, ETL, UKCAInterface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugsInterface specificationsVDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mAEthernet-Port1 x e:net 10/100 Mbit/s, RJ45 User interfaceLEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
Specifications
| Type | DMX & Lighting Gateways |
| Brand | E:CUE |
