Article number:
66897

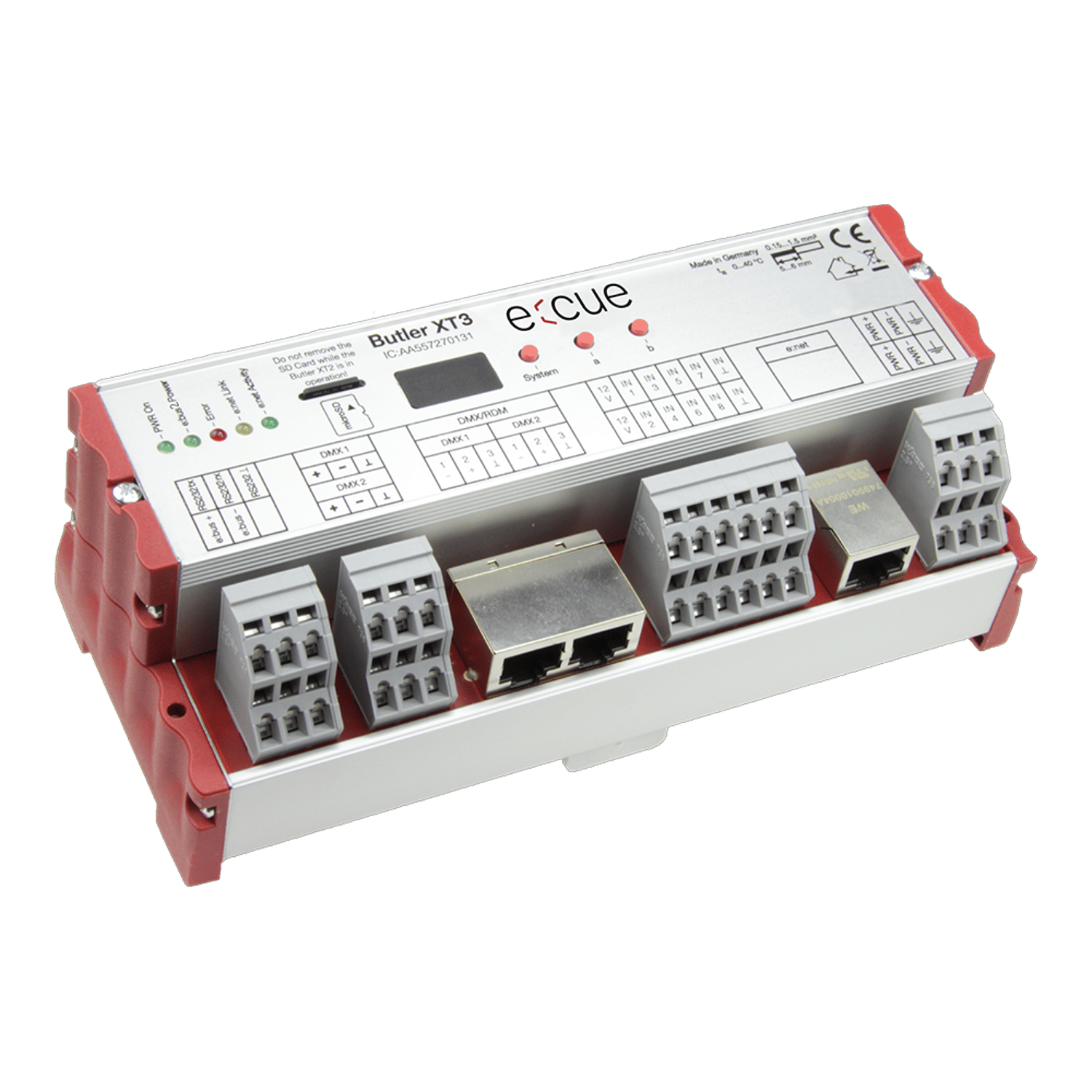

e:cue Butler XT3
The Butler XT3 expands the successful Butler series with a DMX512 system that is ideal for less complex applications in standalone operation.
It can be controlled via our custom graphical user interface in combination with a web browser, or via our free apps for iOS1 and Android™1 devices over a Wi-Fi connection.
Highlights
Up to eight individually controllable zones in standalone mode Controls up to 1,024 DMX512/RDM channels Supports RDM for bidirectional communication with lighting systems Integrated real-time and astronomical clock with daylight saving time support and daylight-based energy-saving option Easy transfer of shows via Ethernet When connected with e:cue control software, scalable up to 64 devices (128 DMX512 universes) — in standalone mode 16 devices; in combination with XT3 up to 32 universes Integrated web server; remote control of light shows via web browser or iOS system1 / Android system1Specifications
Dimensions (W × H × D): 177 × 60 × 75 mm / 7 × 2.4 × 3 inch Weight kg/lbs: 0.4 / 0.88 Power supply: 12 … 24 V DC, ≥ 1.3 A Operating/storage temp.: 0 … 40 °C / 32 … 104 °F Operating/storage humidity: 0 … 80% Protection rating: IP20 Enclosure: Aluminum Mounting: 35 mm DIN rail Certification: CE, ETL User interfaces: Button System connection: e:bus2 (terminals), E:net (RJ45, Ethernet) Outputs: DMX (RJ45, terminals) Inputs: RS-232 (terminals) Inputs: RDM (RJ45, terminals) Inputs: 8 optically isolated dry-contact inputs Display: 7-seg LED Storage medium: MicroSD card Read moreThe Butler XT3 expands the successful Butler series with a DMX512 system that is ideal for less complex applications in standalone operation.
It can be controlled via our custom graphical user interface in combination with a web browser, or via our free apps for iOS1 and Android™1 devices over a Wi-Fi connection.
Highlights
Up to eight individually controllable zones in standalone mode Controls up to 1,024 DMX512/RDM channels Supports RDM for bidirectional communication with lighting systems Integrated real-time and astronomical clock with daylight saving time support and daylight-based energy-saving option Easy transfer of shows via Ethernet When connected with e:cue control software, scalable up to 64 devices (128 DMX512 universes) — in standalone mode 16 devices; in combination with XT3 up to 32 universes Integrated web server; remote control of light shows via web browser or iOS system1 / Android system1Specifications
Dimensions (W × H × D): 177 × 60 × 75 mm / 7 × 2.4 × 3 inch Weight kg/lbs: 0.4 / 0.88 Power supply: 12 … 24 V DC, ≥ 1.3 A Operating/storage temp.: 0 … 40 °C / 32 … 104 °F Operating/storage humidity: 0 … 80% Protection rating: IP20 Enclosure: Aluminum Mounting: 35 mm DIN rail Certification: CE, ETL User interfaces: Button System connection: e:bus2 (terminals), E:net (RJ45, Ethernet) Outputs: DMX (RJ45, terminals) Inputs: RS-232 (terminals) Inputs: RDM (RJ45, terminals) Inputs: 8 optically isolated dry-contact inputs Display: 7-seg LED Storage medium: MicroSD card Read moreSpecifications
| Type | Controllers & Processors |
| Brand | E:CUE |
