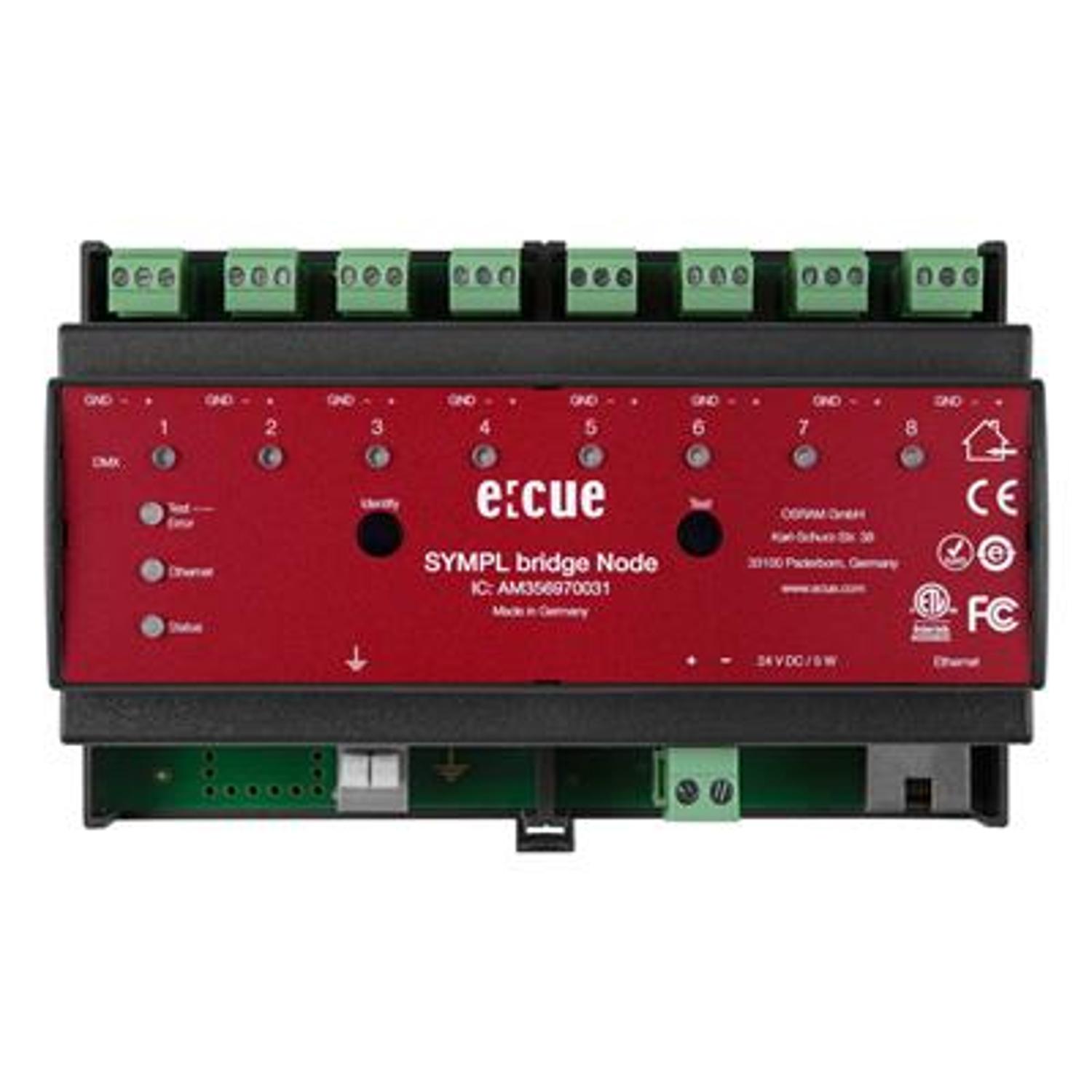

e:cue Sympl Bridge Node
The SYMPL bridge Node is similar to the Bridge8 but the key difference is that besides DMX it also supports e:cue's own protocol “e:pix “. This grants full access to Traxon fixtures via the e:pix protocol by 3rd party controller utilizing Art-Net or sACN with up to 32 Universes. Enjoy the advantages of the e:pix protocol now also with any 3rd party controller.The SMYPL bridge Node is especially designed for projects in tough outdoor environments. Designed for this use, it comes with integrated surge protection and components that allow a very high operating temperature - the outputs are isolated up to 3,75kV.The built-in web interface enables all parameters to be easily set and managed. With a freely definable DMX value the source IP (sACN/Art-Net Sender) can be easily changed to a different device.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. e:pix termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugs Interface specifications VDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. e:pix termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugs Interface specifications VDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The SYMPL bridge Node is similar to the Bridge8 but the key difference is that besides DMX it also supports e:cue's own protocol “e:pix “. This grants full access to Traxon fixtures via the e:pix protocol by 3rd party controller utilizing Art-Net or sACN with up to 32 Universes. Enjoy the advantages of the e:pix protocol now also with any 3rd party controller.The SMYPL bridge Node is especially designed for projects in tough outdoor environments. Designed for this use, it comes with integrated surge protection and components that allow a very high operating temperature - the outputs are isolated up to 3,75kV.The built-in web interface enables all parameters to be easily set and managed. With a freely definable DMX value the source IP (sACN/Art-Net Sender) can be easily changed to a different device.
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. e:pix termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugs Interface specifications VDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
The innovative, scalable, and easy-to-install controller portfolio is flexible, modular, and ideally suited for a variety of control tasks. Simplicity and flexibility are the main features of the SYMPL Modular Controller Range. SYMPL features a decentralized system architecture and can be customized flexibly to any project needs. The standard components communicate via a uniform, Ethernet-based system bus. Quick Link Mode simplifies IP configuration and system set-up.
Reasons to buy
Modular Scalable Network based Easy commissioning Flexible connectivity Reliable redundancy Smart webinterface POE
CE & UL certified
Specifications Dimensions (W x H x D) 53.5 x 90.5 x 62 mm / 2.1 x 3.6 x 2.4 in (excl. fastening clip) Weight 100 g Power supply 24 V DC (terminal plug)
or PoE IEEE 802.3af on RJ45 Power consumption 2 W (incl. e:pix termination) Operating temperature 0 ... 50 °C / 32 ... 122 °F Storage temperature -10 ... 70 °C / 14 ... 158 °F Electrical safety SELV Operating/storage hum. 0 ... 80% non-condensing Protection Class IP20 Housing material Self extinguishing blend PC/ABS UL document E140692 Mounting on 35 mm DIN rail (EN 60715), 3 units
or with key hole on any stable vertical surface Certification CE, ETL, UKCA Interface 2 x e:pix, 2048 channels/universe,
individually isolated (1 kV)
3-pin terminal plugs Interface specifications VDMXmax = 4.8 V, VDMXmin = 0.8 V
Short circuit current ISCmax = 62 mA Ethernet-Port 1 x e:net 10/100 Mbit/s, RJ45 User interface LEDs for error, Ethernet activity, device status, e:pix status
Identify button
Read more
Specifications
| Type | DMX & Lighting Gateways |
| Brand | E:CUE |
