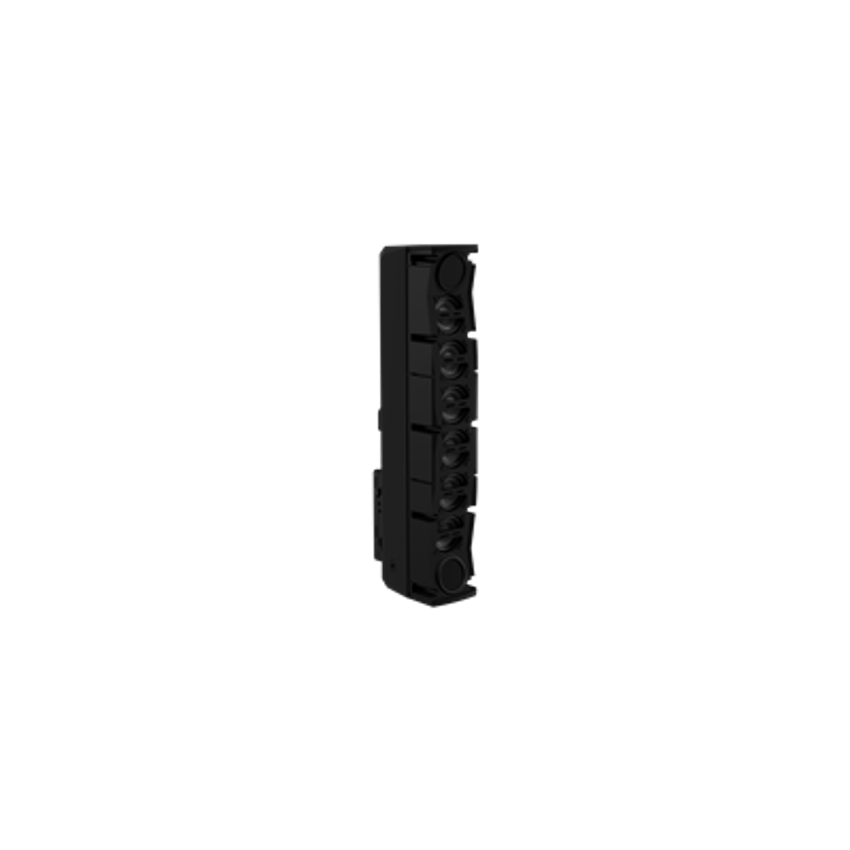

Electro-Voice LRC-1060 (Black)
LRC-1060 loudspeakers include a pre-installed transformer for connection to 70- or 100-volt lines. These models include EV’s patented Automatic Saturation Compensation (ASC) technology, which preserves low frequency response and protects system electronics from improper electrical loads when the transformer is engaged - regardless of the number of speakers connected to the line.
An integral part of LRC offering is the mounting bracket that ships with each loudspeaker. It has been carefully designed to cover most mounting situations, whether the column needs to be positioned with no tilt and as close to the wall as possible, tilted downward, inverted for up-tilt, panned to either side, or aimed with a combination of pan and tilt.
LRC Line Radiator Columns are engineered for use on any system using the recommended high-pass filter, but deliver their best performance when paired with Dynacord DSP matrix processors and amplifiers. These provide dedicated presets which ensure the optimal balance of sound quality, output, and system protection. All models are available in black and white and are suitable for indoor or outdoor use.
LRC-1060 loudspeakers are EN54-24 certified, and all models are supported by EASE/EASE Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software.
Specifications
(2) 2.5 in passive radiators Connector type 4-pin Euroblock
Input + Pass through Wire size 12AWG (maximum) Suspension points (2) M8 Mounting SwifTilt Multi-angle Tilt + Pan Bracket Maximum horizontal pan angle +/- 80° (at all down-tilt angles) Vertical down-tilt angles 7 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° IP rating FW (outdoor full exposure), IP55c Color RAL 9004 Signal black /
RAL 9003 Signal white Dimensions (H x W x D) 22.83 in x 4.13 in x 5.67 in Dimensions (H x W x D) 580 mm x 105 mm x 144 mm Weight 9.7 lb Weight 4.4 kg Shipping weight 14.33 lb Shipping weight 6.5 kg Included hardware Tilt bracket
Pan bracket
Gland nut weather cover
Dual-ended Allen/TR20 key
M8x20 mm eyebolt (pre-installed) Read more
LRC-1060 loudspeakers include a pre-installed transformer for connection to 70- or 100-volt lines. These models include EV’s patented Automatic Saturation Compensation (ASC) technology, which preserves low frequency response and protects system electronics from improper electrical loads when the transformer is engaged - regardless of the number of speakers connected to the line.
An integral part of LRC offering is the mounting bracket that ships with each loudspeaker. It has been carefully designed to cover most mounting situations, whether the column needs to be positioned with no tilt and as close to the wall as possible, tilted downward, inverted for up-tilt, panned to either side, or aimed with a combination of pan and tilt.
LRC Line Radiator Columns are engineered for use on any system using the recommended high-pass filter, but deliver their best performance when paired with Dynacord DSP matrix processors and amplifiers. These provide dedicated presets which ensure the optimal balance of sound quality, output, and system protection. All models are available in black and white and are suitable for indoor or outdoor use.
LRC-1060 loudspeakers are EN54-24 certified, and all models are supported by EASE/EASE Focus3, PREVIEW Loudspeaker Software and by SONICUE System Software.
Specifications
(2) 2.5 in passive radiators Connector type 4-pin Euroblock
Input + Pass through Wire size 12AWG (maximum) Suspension points (2) M8 Mounting SwifTilt Multi-angle Tilt + Pan Bracket Maximum horizontal pan angle +/- 80° (at all down-tilt angles) Vertical down-tilt angles 7 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25° IP rating FW (outdoor full exposure), IP55c Color RAL 9004 Signal black /
RAL 9003 Signal white Dimensions (H x W x D) 22.83 in x 4.13 in x 5.67 in Dimensions (H x W x D) 580 mm x 105 mm x 144 mm Weight 9.7 lb Weight 4.4 kg Shipping weight 14.33 lb Shipping weight 6.5 kg Included hardware Tilt bracket
Pan bracket
Gland nut weather cover
Dual-ended Allen/TR20 key
M8x20 mm eyebolt (pre-installed) Read more
Specifications
| Powered/non-powered | Non-powered |
| Application | Install |
| Brand | Electro-Voice |
