Article number:
3559

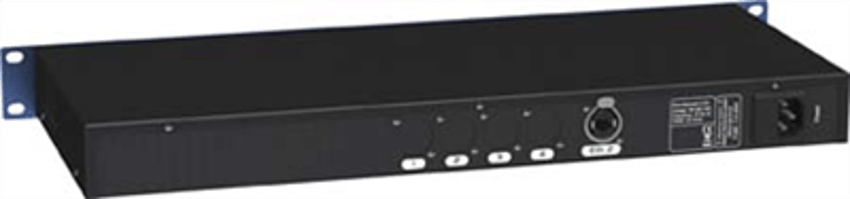

Luminex Ethernet-DMX4 MkII
The Ethernet-DMX4 MkII is an Ethernet node that serves four DMX512 outlets, compatible with the Artnet and sACN protocols. All outlets are conform to DMX512-A and can be used as input or output.
The two Ethernet links on the front and at the rear are 10/100BaseTX connections on Neutrik RJ45 Ethercon connectors. The Ethernet-DMX4 MkII embeds a built-in switch fabric which allows to use the converter as an Ethernet repeater.
All configuration can be done over Ethernet through a build in Web site. This all comes in a 19" 1 unit high metal housing that can be rack mounted.Connections: 2 x 10/100BaseTX Ethernet ports on Neutrik RJ45 Ethercon connector 4 x DMX512-A in/outputs on shielded and isolated gold plated 5 pin female XLR, with termination (DMX512-A)Features: DMX routing, universe setting Input and output enable / disable DMX output frame rate setting Supported protocols: DMX, DMX512-A, RDM, Art-Net™, sACN Protocol selection per port IP settings Unit ID and labeling Ethernet activity indication on front panel Up to 40 programmable profiles and routings Up to 10 predefined profiles (splitters, mergers...) Multi language Web interfaceOperation: Ethernet <-> DMX conversion Ethernet and DMX Merger Ethernet and DMX Backup DMX splitter / booster DMX trigger. Remote selection of the control source Built-in DMX softpatch Wysiwyg enabled. DMX inputs can be visualised in Wysiwyg DMX snapshot. Capture 3 fixed lighting states per outlet Modification of captured values from the Web interface Auto-load capture on boot-up (ideal for expo)Read more
The two Ethernet links on the front and at the rear are 10/100BaseTX connections on Neutrik RJ45 Ethercon connectors. The Ethernet-DMX4 MkII embeds a built-in switch fabric which allows to use the converter as an Ethernet repeater.
All configuration can be done over Ethernet through a build in Web site. This all comes in a 19" 1 unit high metal housing that can be rack mounted.Connections: 2 x 10/100BaseTX Ethernet ports on Neutrik RJ45 Ethercon connector 4 x DMX512-A in/outputs on shielded and isolated gold plated 5 pin female XLR, with termination (DMX512-A)Features: DMX routing, universe setting Input and output enable / disable DMX output frame rate setting Supported protocols: DMX, DMX512-A, RDM, Art-Net™, sACN Protocol selection per port IP settings Unit ID and labeling Ethernet activity indication on front panel Up to 40 programmable profiles and routings Up to 10 predefined profiles (splitters, mergers...) Multi language Web interfaceOperation: Ethernet <-> DMX conversion Ethernet and DMX Merger Ethernet and DMX Backup DMX splitter / booster DMX trigger. Remote selection of the control source Built-in DMX softpatch Wysiwyg enabled. DMX inputs can be visualised in Wysiwyg DMX snapshot. Capture 3 fixed lighting states per outlet Modification of captured values from the Web interface Auto-load capture on boot-up (ideal for expo)Read more
The Ethernet-DMX4 MkII is an Ethernet node that serves four DMX512 outlets, compatible with the Artnet and sACN protocols. All outlets are conform to DMX512-A and can be used as input or output.
The two Ethernet links on the front and at the rear are 10/100BaseTX connections on Neutrik RJ45 Ethercon connectors. The Ethernet-DMX4 MkII embeds a built-in switch fabric which allows to use the converter as an Ethernet repeater.
All configuration can be done over Ethernet through a build in Web site. This all comes in a 19" 1 unit high metal housing that can be rack mounted.Connections: 2 x 10/100BaseTX Ethernet ports on Neutrik RJ45 Ethercon connector 4 x DMX512-A in/outputs on shielded and isolated gold plated 5 pin female XLR, with termination (DMX512-A)Features: DMX routing, universe setting Input and output enable / disable DMX output frame rate setting Supported protocols: DMX, DMX512-A, RDM, Art-Net™, sACN Protocol selection per port IP settings Unit ID and labeling Ethernet activity indication on front panel Up to 40 programmable profiles and routings Up to 10 predefined profiles (splitters, mergers...) Multi language Web interfaceOperation: Ethernet <-> DMX conversion Ethernet and DMX Merger Ethernet and DMX Backup DMX splitter / booster DMX trigger. Remote selection of the control source Built-in DMX softpatch Wysiwyg enabled. DMX inputs can be visualised in Wysiwyg DMX snapshot. Capture 3 fixed lighting states per outlet Modification of captured values from the Web interface Auto-load capture on boot-up (ideal for expo)Read more
The two Ethernet links on the front and at the rear are 10/100BaseTX connections on Neutrik RJ45 Ethercon connectors. The Ethernet-DMX4 MkII embeds a built-in switch fabric which allows to use the converter as an Ethernet repeater.
All configuration can be done over Ethernet through a build in Web site. This all comes in a 19" 1 unit high metal housing that can be rack mounted.Connections: 2 x 10/100BaseTX Ethernet ports on Neutrik RJ45 Ethercon connector 4 x DMX512-A in/outputs on shielded and isolated gold plated 5 pin female XLR, with termination (DMX512-A)Features: DMX routing, universe setting Input and output enable / disable DMX output frame rate setting Supported protocols: DMX, DMX512-A, RDM, Art-Net™, sACN Protocol selection per port IP settings Unit ID and labeling Ethernet activity indication on front panel Up to 40 programmable profiles and routings Up to 10 predefined profiles (splitters, mergers...) Multi language Web interfaceOperation: Ethernet <-> DMX conversion Ethernet and DMX Merger Ethernet and DMX Backup DMX splitter / booster DMX trigger. Remote selection of the control source Built-in DMX softpatch Wysiwyg enabled. DMX inputs can be visualised in Wysiwyg DMX snapshot. Capture 3 fixed lighting states per outlet Modification of captured values from the Web interface Auto-load capture on boot-up (ideal for expo)Read more
Specifications
| Type | Dmx & Lighting Gateways |
| Brand | Luminex |
