- Luminex GigaCore 10t-10G- (NeutrikQUAD SMF + PoE++)
Article number:
65740

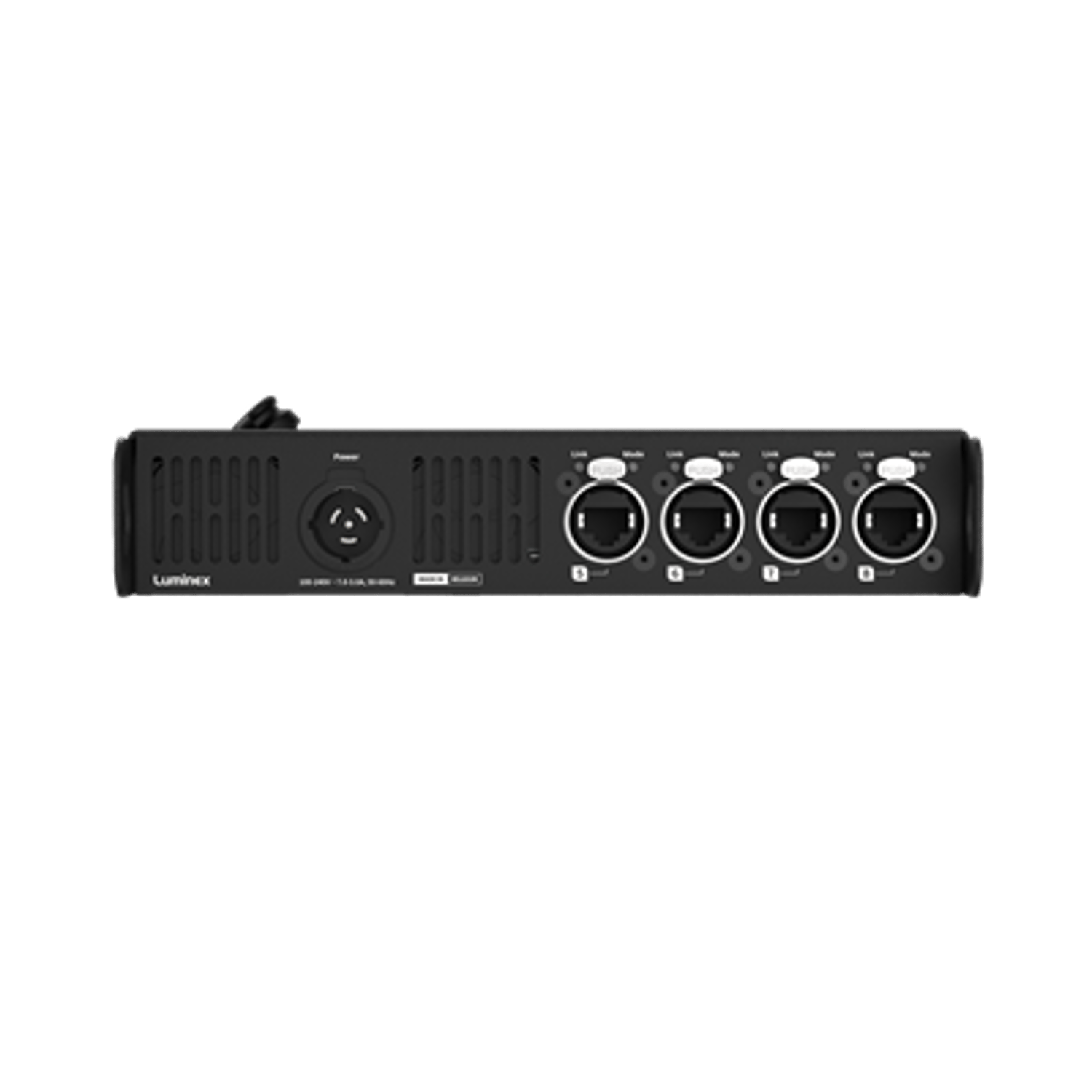

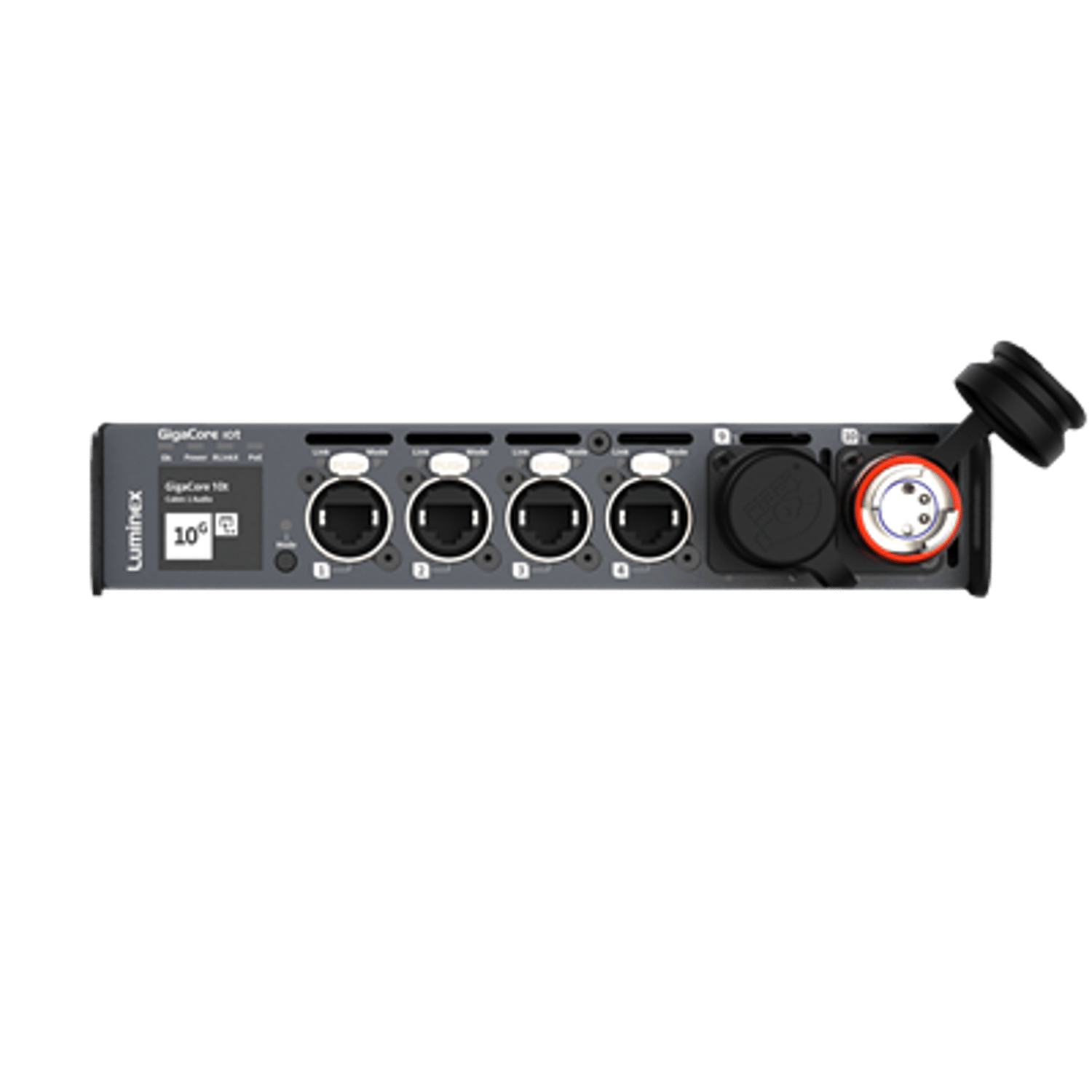

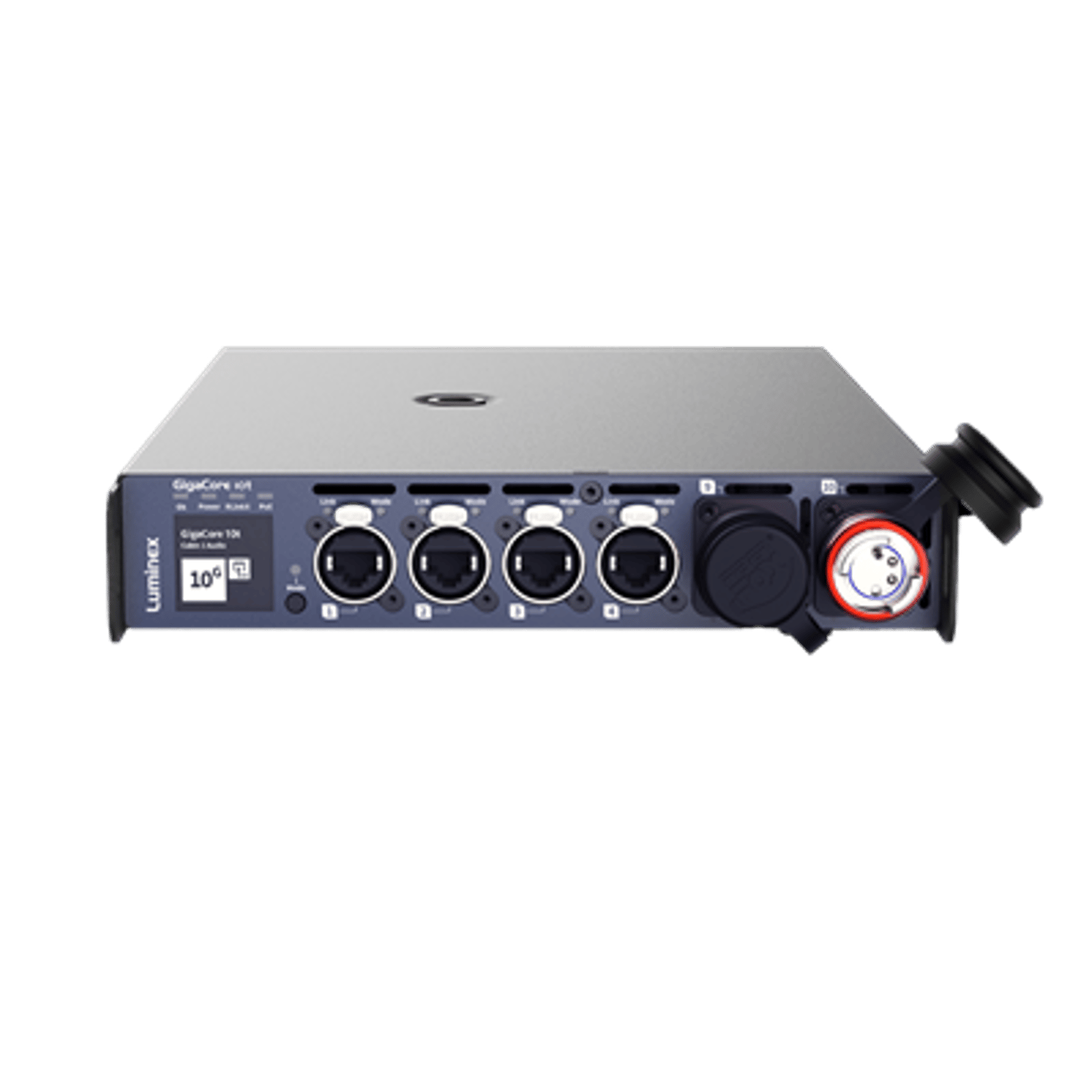

Luminex GigaCore 10t-10G- (NeutrikQUAD SMF + PoE++)
The GigaCore 10t is a 10 Gigabit Ethernet switch forProfessional touring applications.
10Gb Network switch for converged AV networks
The GigaCore 10t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
10Gb Connectivity
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.
PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today.
Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.GigaCore 10t can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.
AV validated for real applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more. We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.
Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment.Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.
Intuitive web UI
The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done on the fly and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.
Consistency in LED colours
Consistent Group (VLAN) colours in the web UI, in Araneo and on the front panel LED’s.
Specifications 10t
Key Features
Most suitable applications: Touring applications, Rack mount and Truss mount (through 2x M10) applicationsPoE: PoE ++ OptionalRLinkX (Link redundancy): YesGroups (VLAN segmentation): YesMultiLinkX (Link aggregation): Yes (With future FW upgrade)Profile manager: YesMemory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storageMAC address table: 16384 entriesAddress learning / Aging: Self learning, Auto agingSwitching throughput: 56GbpsJumbo frames: MTU up to 12000IGMP support: Yes (V1/V2/V3)IGMP snooping: Yes, enabled by defaultPort sensing: Auto negotiation (Copper ports)Auto crossover: MDI / MDIXAuto sensing: Full or Half Duplex (Gigabit is Full Duplex)ConnectivityEthernet connectivity: 8 x EtherCon connectors (4x front, 4x rear) (1Gbps)Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports) (front panel)Ethernet port speed: 1GbpsSerial: NoPowerPower connectivity: 1 x PowerCON True 1 inPower input: 100-240VAC, 50-60HzPower consumption: TBCFuse: NABackup power input: NoBackup PoE power input: NoPoE: PoE ++ OptionalSupported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILANSound protocol compliance: Yes (low jitter)Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVBProtocolsConfigurationDisplay and jog: NoConfiguration: Through the built-in web server, Network wide configuration through Araneo softwareStatus LEDs: Global status LEDs: Device, power, PoE power and mode Port status LEDs: PoE, groups, link/activity and port speed Dark mode availableColored RGB LEDs: YesPhysicalMounting: Rack, Truss (2x M10)Enclosure: Robust metal housingDimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")Weight: 3,4kgPackaging: TBCEnvironment: Operating temperature: 0 to +50 °C Storage temperature: -10 to +70 °C Humidity (non condensing): 5 to 95% RHNoise level @1m: TBCBTU: Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHSStandards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024***Check our DOWNLOADS section below for more info.***
Read more
10Gb Network switch for converged AV networks
The GigaCore 10t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
10Gb Connectivity
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.
PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today.
Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.GigaCore 10t can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.
AV validated for real applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more. We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.
Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment.Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.
Intuitive web UI
The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done on the fly and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.
Consistency in LED colours
Consistent Group (VLAN) colours in the web UI, in Araneo and on the front panel LED’s.
Specifications 10t
Key Features
Most suitable applications: Touring applications, Rack mount and Truss mount (through 2x M10) applicationsPoE: PoE ++ OptionalRLinkX (Link redundancy): YesGroups (VLAN segmentation): YesMultiLinkX (Link aggregation): Yes (With future FW upgrade)Profile manager: YesMemory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storageMAC address table: 16384 entriesAddress learning / Aging: Self learning, Auto agingSwitching throughput: 56GbpsJumbo frames: MTU up to 12000IGMP support: Yes (V1/V2/V3)IGMP snooping: Yes, enabled by defaultPort sensing: Auto negotiation (Copper ports)Auto crossover: MDI / MDIXAuto sensing: Full or Half Duplex (Gigabit is Full Duplex)ConnectivityEthernet connectivity: 8 x EtherCon connectors (4x front, 4x rear) (1Gbps)Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports) (front panel)Ethernet port speed: 1GbpsSerial: NoPowerPower connectivity: 1 x PowerCON True 1 inPower input: 100-240VAC, 50-60HzPower consumption: TBCFuse: NABackup power input: NoBackup PoE power input: NoPoE: PoE ++ OptionalSupported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILANSound protocol compliance: Yes (low jitter)Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVBProtocolsConfigurationDisplay and jog: NoConfiguration: Through the built-in web server, Network wide configuration through Araneo softwareStatus LEDs: Global status LEDs: Device, power, PoE power and mode Port status LEDs: PoE, groups, link/activity and port speed Dark mode availableColored RGB LEDs: YesPhysicalMounting: Rack, Truss (2x M10)Enclosure: Robust metal housingDimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")Weight: 3,4kgPackaging: TBCEnvironment: Operating temperature: 0 to +50 °C Storage temperature: -10 to +70 °C Humidity (non condensing): 5 to 95% RHNoise level @1m: TBCBTU: Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHSStandards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024***Check our DOWNLOADS section below for more info.***
Read more
The GigaCore 10t is a 10 Gigabit Ethernet switch forProfessional touring applications.
10Gb Network switch for converged AV networks
The GigaCore 10t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
10Gb Connectivity
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.
PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today.
Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.GigaCore 10t can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.
AV validated for real applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more. We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.
Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment.Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.
Intuitive web UI
The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done on the fly and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.
Consistency in LED colours
Consistent Group (VLAN) colours in the web UI, in Araneo and on the front panel LED’s.
Specifications 10t
Key Features
Most suitable applications: Touring applications, Rack mount and Truss mount (through 2x M10) applicationsPoE: PoE ++ OptionalRLinkX (Link redundancy): YesGroups (VLAN segmentation): YesMultiLinkX (Link aggregation): Yes (With future FW upgrade)Profile manager: YesMemory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storageMAC address table: 16384 entriesAddress learning / Aging: Self learning, Auto agingSwitching throughput: 56GbpsJumbo frames: MTU up to 12000IGMP support: Yes (V1/V2/V3)IGMP snooping: Yes, enabled by defaultPort sensing: Auto negotiation (Copper ports)Auto crossover: MDI / MDIXAuto sensing: Full or Half Duplex (Gigabit is Full Duplex)ConnectivityEthernet connectivity: 8 x EtherCon connectors (4x front, 4x rear) (1Gbps)Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports) (front panel)Ethernet port speed: 1GbpsSerial: NoPowerPower connectivity: 1 x PowerCON True 1 inPower input: 100-240VAC, 50-60HzPower consumption: TBCFuse: NABackup power input: NoBackup PoE power input: NoPoE: PoE ++ OptionalSupported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILANSound protocol compliance: Yes (low jitter)Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVBProtocolsConfigurationDisplay and jog: NoConfiguration: Through the built-in web server, Network wide configuration through Araneo softwareStatus LEDs: Global status LEDs: Device, power, PoE power and mode Port status LEDs: PoE, groups, link/activity and port speed Dark mode availableColored RGB LEDs: YesPhysicalMounting: Rack, Truss (2x M10)Enclosure: Robust metal housingDimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")Weight: 3,4kgPackaging: TBCEnvironment: Operating temperature: 0 to +50 °C Storage temperature: -10 to +70 °C Humidity (non condensing): 5 to 95% RHNoise level @1m: TBCBTU: Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHSStandards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024***Check our DOWNLOADS section below for more info.***
Read more
10Gb Network switch for converged AV networks
The GigaCore 10t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.
10Gb Connectivity
10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.
PoE++
PoE++ implementation on every copper port allows you to connect any PoE device available today.
Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.GigaCore 10t can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.
AV validated for real applications
GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, AES67, ST-2110, IPMX, MA-Net, and many more. We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.
Robust yet silent design
A robust yet silent design allows you to use GigaCore in any AV environment.Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.
Intuitive web UI
The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done on the fly and the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.
Consistency in LED colours
Consistent Group (VLAN) colours in the web UI, in Araneo and on the front panel LED’s.
Specifications 10t
Key Features
Most suitable applications: Touring applications, Rack mount and Truss mount (through 2x M10) applicationsPoE: PoE ++ OptionalRLinkX (Link redundancy): YesGroups (VLAN segmentation): YesMultiLinkX (Link aggregation): Yes (With future FW upgrade)Profile manager: YesMemory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storageMAC address table: 16384 entriesAddress learning / Aging: Self learning, Auto agingSwitching throughput: 56GbpsJumbo frames: MTU up to 12000IGMP support: Yes (V1/V2/V3)IGMP snooping: Yes, enabled by defaultPort sensing: Auto negotiation (Copper ports)Auto crossover: MDI / MDIXAuto sensing: Full or Half Duplex (Gigabit is Full Duplex)ConnectivityEthernet connectivity: 8 x EtherCon connectors (4x front, 4x rear) (1Gbps)Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports) (front panel)Ethernet port speed: 1GbpsSerial: NoPowerPower connectivity: 1 x PowerCON True 1 inPower input: 100-240VAC, 50-60HzPower consumption: TBCFuse: NABackup power input: NoBackup PoE power input: NoPoE: PoE ++ OptionalSupported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILANSound protocol compliance: Yes (low jitter)Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVBProtocolsConfigurationDisplay and jog: NoConfiguration: Through the built-in web server, Network wide configuration through Araneo softwareStatus LEDs: Global status LEDs: Device, power, PoE power and mode Port status LEDs: PoE, groups, link/activity and port speed Dark mode availableColored RGB LEDs: YesPhysicalMounting: Rack, Truss (2x M10)Enclosure: Robust metal housingDimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")Weight: 3,4kgPackaging: TBCEnvironment: Operating temperature: 0 to +50 °C Storage temperature: -10 to +70 °C Humidity (non condensing): 5 to 95% RHNoise level @1m: TBCBTU: Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHSStandards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024***Check our DOWNLOADS section below for more info.***
Read more
Specifications
| Type | AV Network Switches |
| Brand | Luminex |
