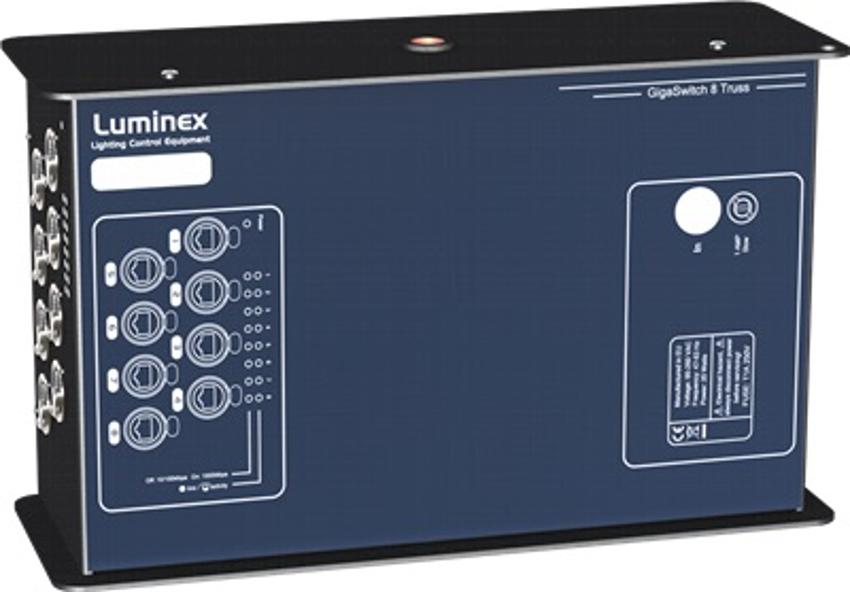

The Luminex GigaSwitch 8 Ethernet Switch is a truss mountable device equipped with eight Neutrik Ethercon ports providing 10/ 100/ 1000 Mbps bandwidth. These ports can be used for connecting PCs, Media servers, Art-Net™ or sACN nodes. The eight multi-speed ports use standard twisted pair cabling and are ideal for segmenting networks into small, connected SubNets. Each port can support up to 2000 Mbps of throughput in full-duplex mode. This stand-alone GigaSwitch enables the network to use most multimedia and imaging applications concurrently with other user applications without creating bottlenecks.Features: Eight 1000 Base-T Gigabit Ethernet ports on Neutrik Ethercon Supports Auto-negotiation for 10/100/1000Mbps and Duplex mode Supports Auto-MDIX for each port Supports Full/Half duplex Transfer mode for 10 and 100Mbps Supports fill Duplex transfer mode for 1000Mbps Full Wire Speed Reception and Transmission Store and Forward switching method Supports 4096 absolute MAC adresses Side Panel with diagnostic LEDs 2 x M10 Inserts (28mm deep) for truss clamp (top, right, bottom)Read more
