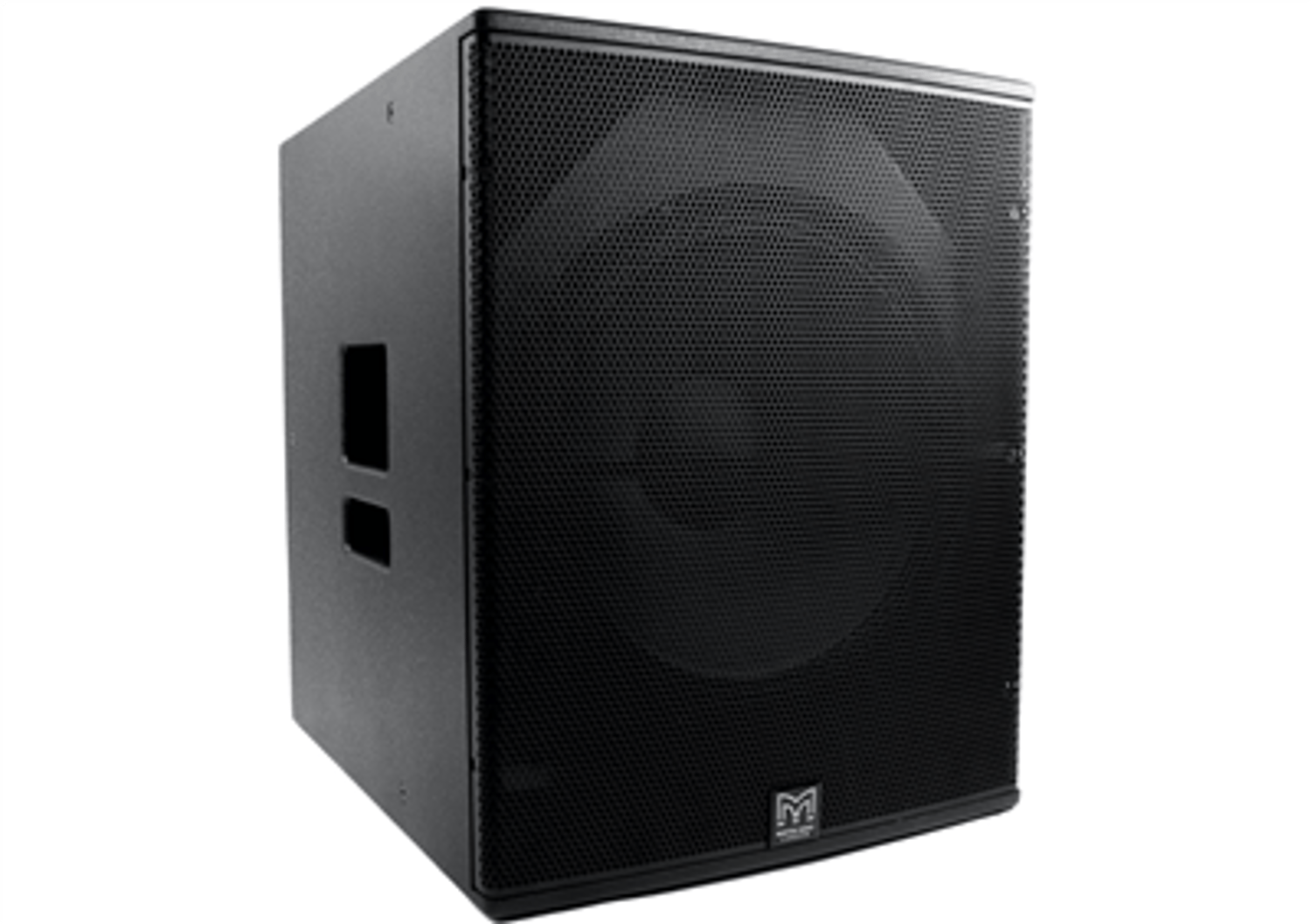

Martin Audio Blackline X118

The Blackline X118 is a compact, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. It extends the low frequency operating range of the combined system to 42Hz and provides exceptional low frequency impact. It can be used singly, stacked or flown via integral M10 insets and features a long-excursion 18” (460mm)/3” (75 mm) voice coil driver in a compact reflex enclosure. Its four reflex ports have a large frontal area to reduce turbulent air noise at very high levels.

The X118 enclosure is constructed from plywood and finished in black textured paint as standard, with white and RAL colour finishes available to special order. An impact-resistant perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount fitting in the top surface and two side handles for ease of handling. Rubber feet on the base of the enclosure resist movement and align with recesses in the top surface for stable stacking.

When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.5 system controller or by an MA Series [Electronics] amplifier with onboard DSP option.Read more

Specifications

Driver Configuration	Single
DSP	No
Bluetooth Connectivity	No
Connectivity	Analog
Powered/non-powered	Non-powered
Max. Frequency (Hz)	150
Min. Frequency (Hz)	42
Max. SPL (dB)	136
WiFi Connectivity	No
Enclosure	Wood
Application	Touring
Diameter (inch)	18
Weatherized	No
Brand	Martin Audio
Diameter	18
