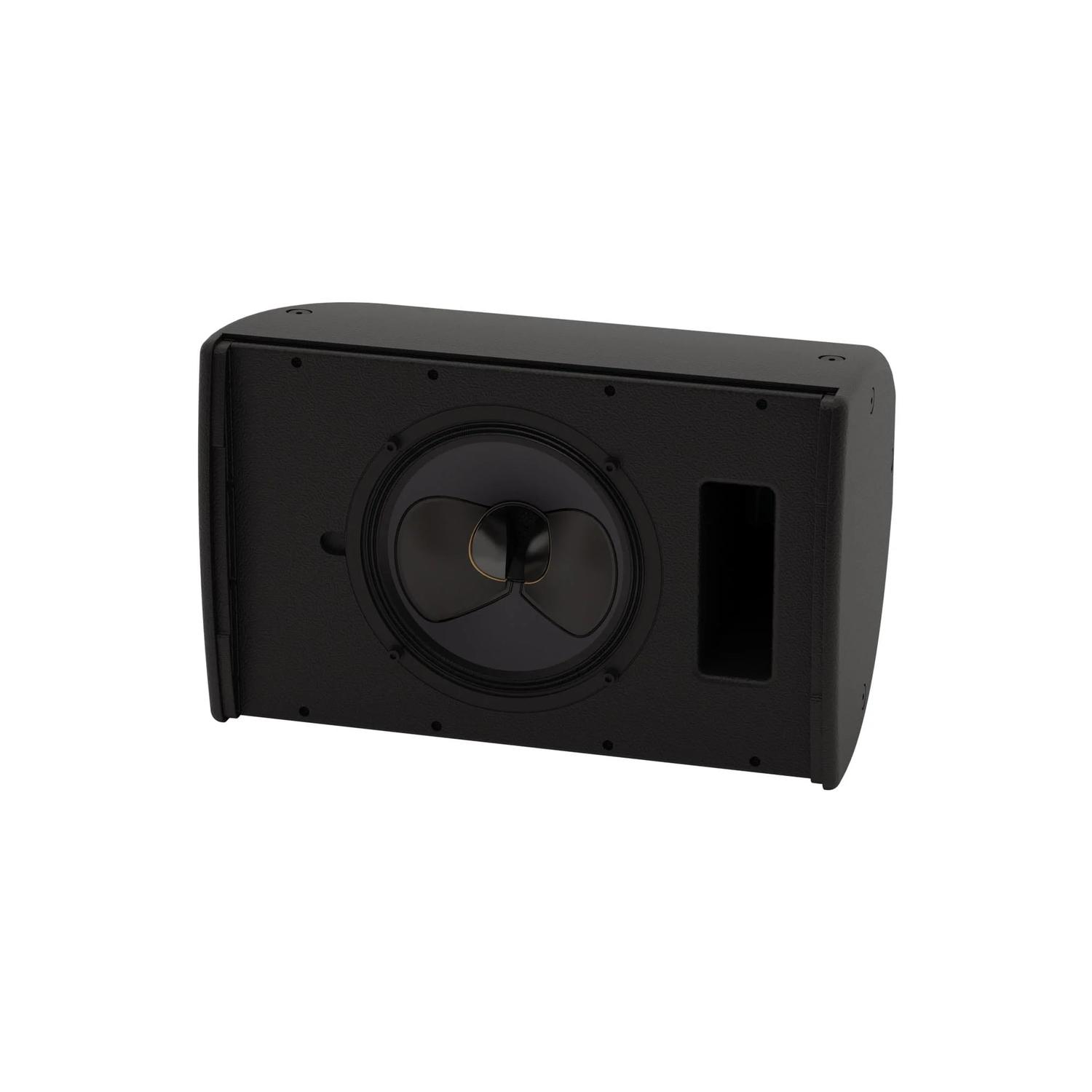

Martin Audio CDD10TX Weatherized (Black)

Name: Martin Audio CDD10TX Weatherized (Black)
Brand: Martin Audio
SKU: 58455
Availability: SoldOut

The Coaxial Differential Dispersion technology employed in the CDD10TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

The visually distinctive composite enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the CDD10TX-WR allows it to be surface-mounted close to a wall via an optional wall bracket or suspended from a ceiling by eyebolts or a horizontal yoke option.

A full suite of weatherised accessories are available and fixings on the loudspeaker are stainless steel. Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order.

A full-range, passive two-way system, the CDD10TX-WR should be used with a compatible controller with appropriate limiter settings to provide system protection. When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system. Note that this speaker is high impedance only; there is no low impedance mode.

Features Compact, CDD™ passive two-way system Coaxial Differential Dispersion™ technology Elegant UPM Formi composite enclosure Outdoor operation when sheltered from direct exposure to elements Operating temperature -20°C to +70°C Environmentally tested to meet IP54 User-rotatable coaxial drive unit Vertical and horizontal mounting options Screw-free water and particle resistant grille Integral inserts for eyebolt suspension Discreet weatherised mounting accessories Black or white standard colour options 70V/100V line transformer (no low impedance) Applications Outdoor Restaurants Bars Hotel Areas Nearfield Systems in Outdoor Stadia Transport Hubs Concourses and Theme Parks Read more

A full suite of weatherised accessories are available and fixings on the loudspeaker are stainless steel. Finished in black (RAL9005) or white (RAL9016) as standard, with any RAL colour to order.

Specifications

Driver Configuration	2-way
DSP	No
Bluetooth Connectivity	No
Connectivity	Analog
Powered/non-powered	Non-powered
Min. Frequency (Hz)	65
Max. SPL (dB)	123
WiFi Connectivity	No
Max. Frequency (kHz)	20
Enclosure	Wood
Top Seller	Yes
Application	Install
Weatherized	Yes
Brand	Martin Audio
