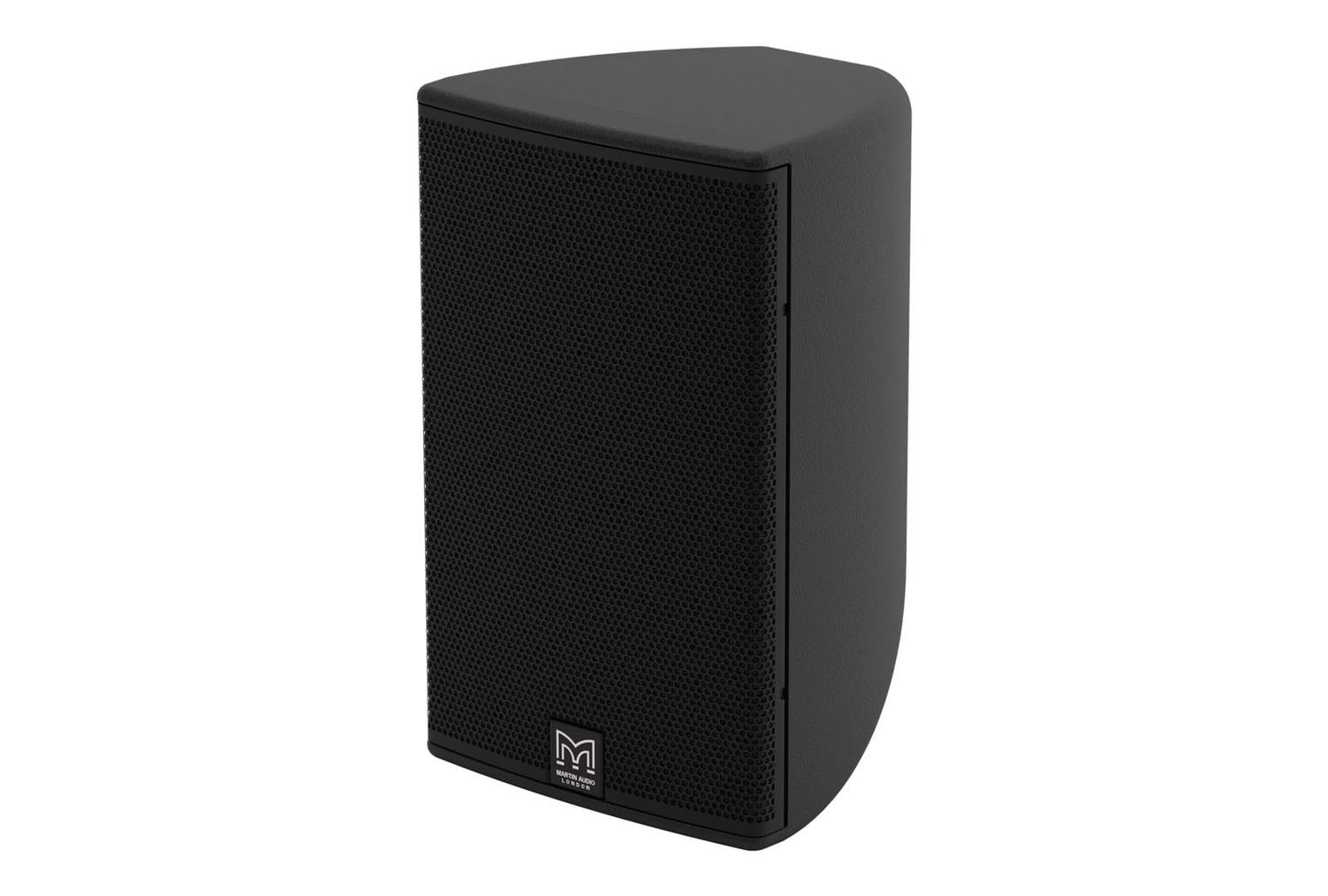

Martin Audio CDD8TX (Black)

Name: Martin Audio CDD8TX (Black)
Brand: Martin Audio
SKU: 58449
Availability: SoldOut

The Coaxial Differential Dispersion technology employed in the CDD8 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with noncoaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of optional wall and ceiling brackets.

Finished in black (RAL9005) or white (RAL9016) as standard, the CDD8TX can be supplied in any RAL colour to order.

A full-range, passive two-way system, the CDD8TX should be used with a compatible controller with appropriate limiter settings to provide system protection.

When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system. Note that this speaker is high impedance only; there is no low impedance mode.

Features Ultra-Compact, CDD™ passive two-way system Coaxial Differential Dispersion™ technology Elegant UPM Formi composite enclosure User-rotatable coaxial drive unit Vertical and horizontal mounting options Screw-free perforated steel grille Discreet mounting accessories Black or white standard colour options 70V/100V line transformer (no low impedance) Applications Live Music Clubs and Bars Nightclubs Bars and Restaurants Museums and AV Spaces Convention Centres Hotels Retail Outlets Leisure Centres Houses of Worship Read more

Finished in black (RAL9005) or white (RAL9016) as standard, the CDD8TX can be supplied in any RAL colour to order.

A full-range, passive two-way system, the CDD8TX should be used with a compatible controller with appropriate limiter settings to provide system protection.

Specifications

Driver Configuration	2-way
DSP	No
Bluetooth Connectivity	No
Connectivity	Analog
Powered/non-powered	Non-powered
Min. Frequency (Hz)	70
Max. SPL (dB)	115
WiFi Connectivity	No
Max. Frequency (kHz)	20
Enclosure	Wood
Top Seller	Yes
Application	Install
Weatherized	No
Brand	Martin Audio
