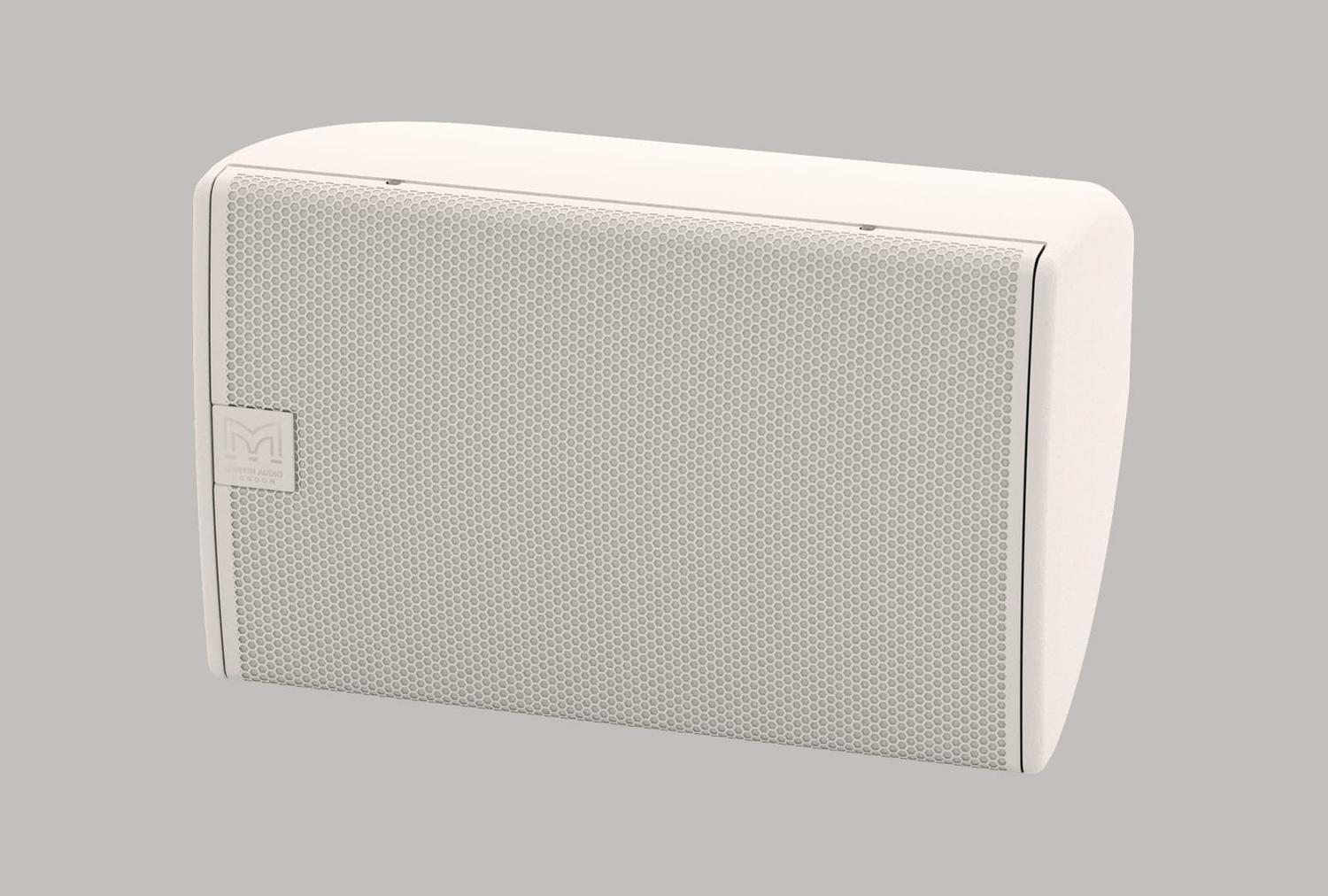

Martin Audio CDD8TX (White)
The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of optional wall and ceiling brackets.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD8TX can be supplied in any RAL colour to order.
A full-range, passive two-way system, the CDD8TX should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system. Note that this speaker is high impedance only; there is no low impedance mode.
Features Ultra-Compact, CDD™ passive two-way system Coaxial Differential Dispersion™ technology Elegant UPM Formi composite enclosure User-rotatable coaxial drive unit Vertical and horizontal mounting options Screw-free perforated steel grille Discreet mounting accessories Black or white standard colour options 70V/100V line transformer (no low impedance) Applications Live Music Clubs and Bars Nightclubs Bars and Restaurants Museums and AV Spaces Convention Centres Hotels Retail Outlets Leisure Centres Houses of Worship Read moreThe visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of optional wall and ceiling brackets.
Finished in black (RAL9005) or white (RAL9016) as standard, the CDD8TX can be supplied in any RAL colour to order.
A full-range, passive two-way system, the CDD8TX should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system. Note that this speaker is high impedance only; there is no low impedance mode.
Features Ultra-Compact, CDD™ passive two-way system Coaxial Differential Dispersion™ technology Elegant UPM Formi composite enclosure User-rotatable coaxial drive unit Vertical and horizontal mounting options Screw-free perforated steel grille Discreet mounting accessories Black or white standard colour options 70V/100V line transformer (no low impedance) Applications Live Music Clubs and Bars Nightclubs Bars and Restaurants Museums and AV Spaces Convention Centres Hotels Retail Outlets Leisure Centres Houses of Worship Read moreSpecifications
Driver Configuration | 2-way |
DSP | No |
Bluetooth Connectivity | No |
Connectivity | Analog |
Powered/non-powered | Non-powered |
Min. Frequency (Hz) | 70 |
Max. SPL (dB) | 121 |
WiFi Connectivity | No |
Max. Frequency (kHz) | 20 |
Enclosure | Wood |
Top Seller | Yes |
Application | Install |
Weatherized | No |
Brand | Martin Audio |
