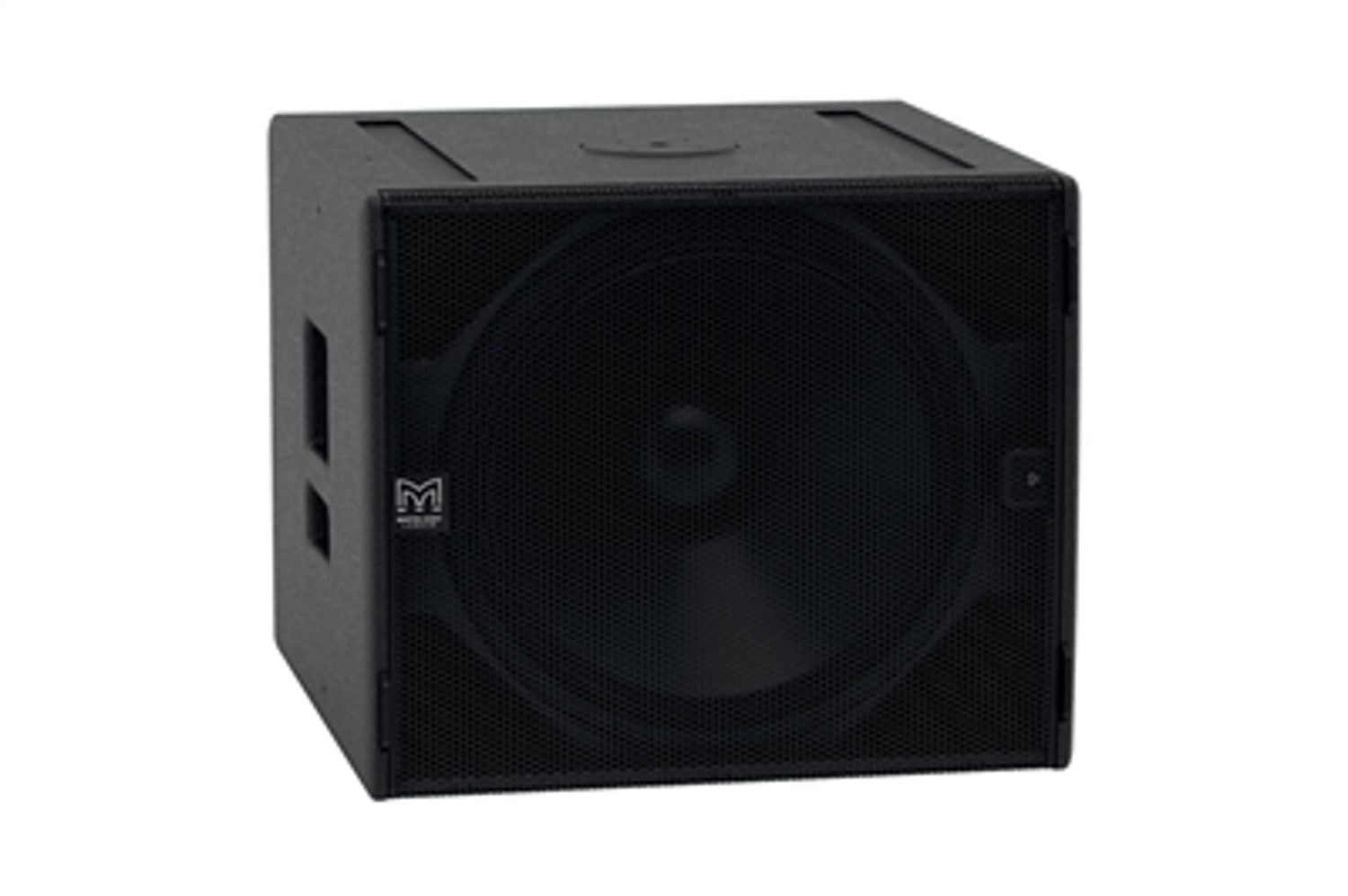

Martin Audio CSX-LIVE 118
A self-powered system, the CSX-LIVE 118 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W peak output to the driver, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz. DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.
For simple set-ups, ‘plug-and-play’ presets for operation with the CDD-LIVE 8, 12 or 15 — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. Additional presets provide the appropriate settings for the rear-facing subwoofer in a cardioid pair.
As an alternative to its analogue inputs, the CSX-LIVE 118 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.
The enclosure is constructed from multi-laminate plywood with a durable polyurea coating and equipped with a perforated steel grille, twin grab handles, skids, M10 flying inserts and a threaded pole socket.
Read moreA self-powered system, the CSX-LIVE 118 incorporates a Class D amplifier, DSP and Dante™ digital audio networking — simplifying set-up, enhancing control and eliminating amplifier racks. The onboard amplifier delivers 2000W peak output to the driver, and its switched-mode power supply auto-ranges to global mains voltages from 100 to 240V 50/60Hz. DSP functions — including parametric EQ, delay, muting, gain and preset selection — can be controlled over Ethernet from a PC or Windows® tablet via intuitive VU-NET™ proprietary software.
For simple set-ups, ‘plug-and-play’ presets for operation with the CDD-LIVE 8, 12 or 15 — as well as a user-defined preset — can be selected on the rear panel, instead of using computer control. Additional presets provide the appropriate settings for the rear-facing subwoofer in a cardioid pair.
As an alternative to its analogue inputs, the CSX-LIVE 118 is Dante enabled for digital audio distribution and control over a single CAT5 cable to maintain audio quality however long the cable run.
The enclosure is constructed from multi-laminate plywood with a durable polyurea coating and equipped with a perforated steel grille, twin grab handles, skids, M10 flying inserts and a threaded pole socket.
Read moreSpecifications
Driver Configuration | Single |
DSP | No |
Bluetooth Connectivity | No |
Connectivity | Digital |
Powered/non-powered | Powered |
Max. Frequency (Hz) | 150 |
Min. Frequency (Hz) | 35 |
Max. SPL (dB) | 135 |
WiFi Connectivity | No |
Enclosure | Wood |
Application | Touring |
Diameter (inch) | 18 |
Weatherized | No |
Brand | Martin Audio |
Diameter | 18 |
