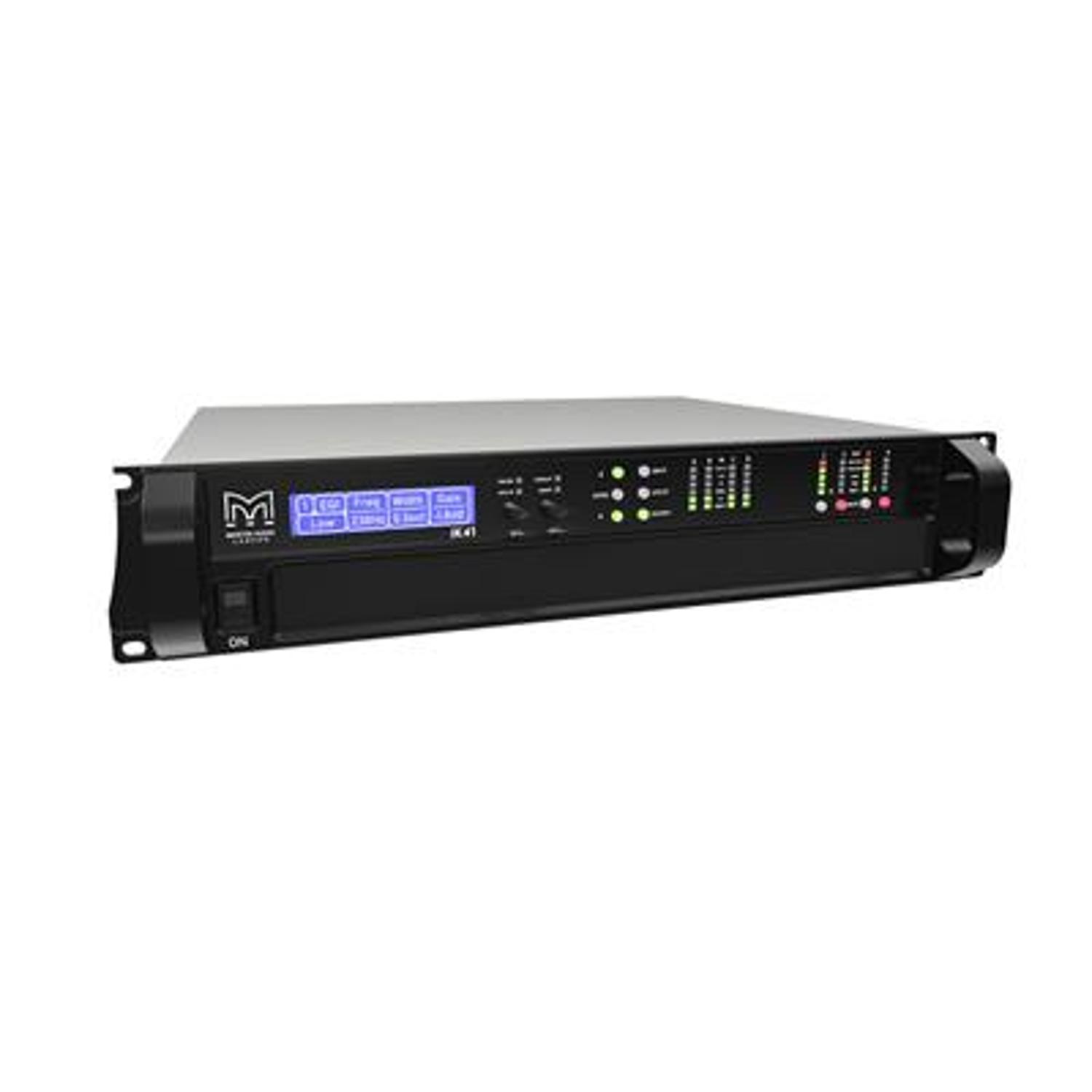

Martin Audio iKON iK41
Features
Four channels of efficient Class D amplification High power density in 2U rack height Up to 6,000 Watts total power output, depending on load impedance High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters) Switch mode power supply Global mains operation, 85V to 240V auto-sensing Intuitive, user-friendly, front panel interface Analogue, AES3 and Dante™ digital audio network inputs Ethernet network for system operation, control and monitoring via Martin Audio VU-NET™ software Comprehensive protection and monitoring functionsApplications Dedicated system amplifier for Martin Audio WPM, TORUS 8 and select other systems Versatile multi-channel amplification for Martin Audio loudspeaker systems
iK41 can deliver a full 1500 watts per channel into 4O and its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.
Powerful DSP is fully integrated into the iK41 to provide a multitude of features that ensure maximum performance of select loudspeaker systems. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in WPM line array systems.
The iK41 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.
Read moreFeatures
Four channels of efficient Class D amplification High power density in 2U rack height Up to 6,000 Watts total power output, depending on load impedance High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters) Switch mode power supply Global mains operation, 85V to 240V auto-sensing Intuitive, user-friendly, front panel interface Analogue, AES3 and Dante™ digital audio network inputs Ethernet network for system operation, control and monitoring via Martin Audio VU-NET™ software Comprehensive protection and monitoring functionsApplications Dedicated system amplifier for Martin Audio WPM, TORUS 8 and select other systems Versatile multi-channel amplification for Martin Audio loudspeaker systems
iK41 can deliver a full 1500 watts per channel into 4O and its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.
Powerful DSP is fully integrated into the iK41 to provide a multitude of features that ensure maximum performance of select loudspeaker systems. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimisation process in WPM line array systems.
The iK41 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multiband limiting for passive 2-way systems.
Read moreSpecifications
| Powered/non-powered | Non-powered |
| Application | Install |
| Brand | Martin Audio |
